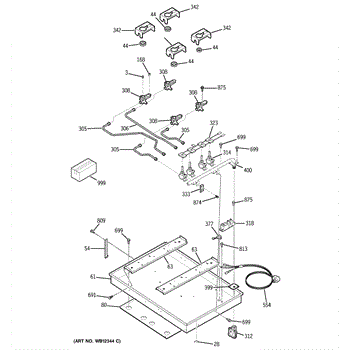

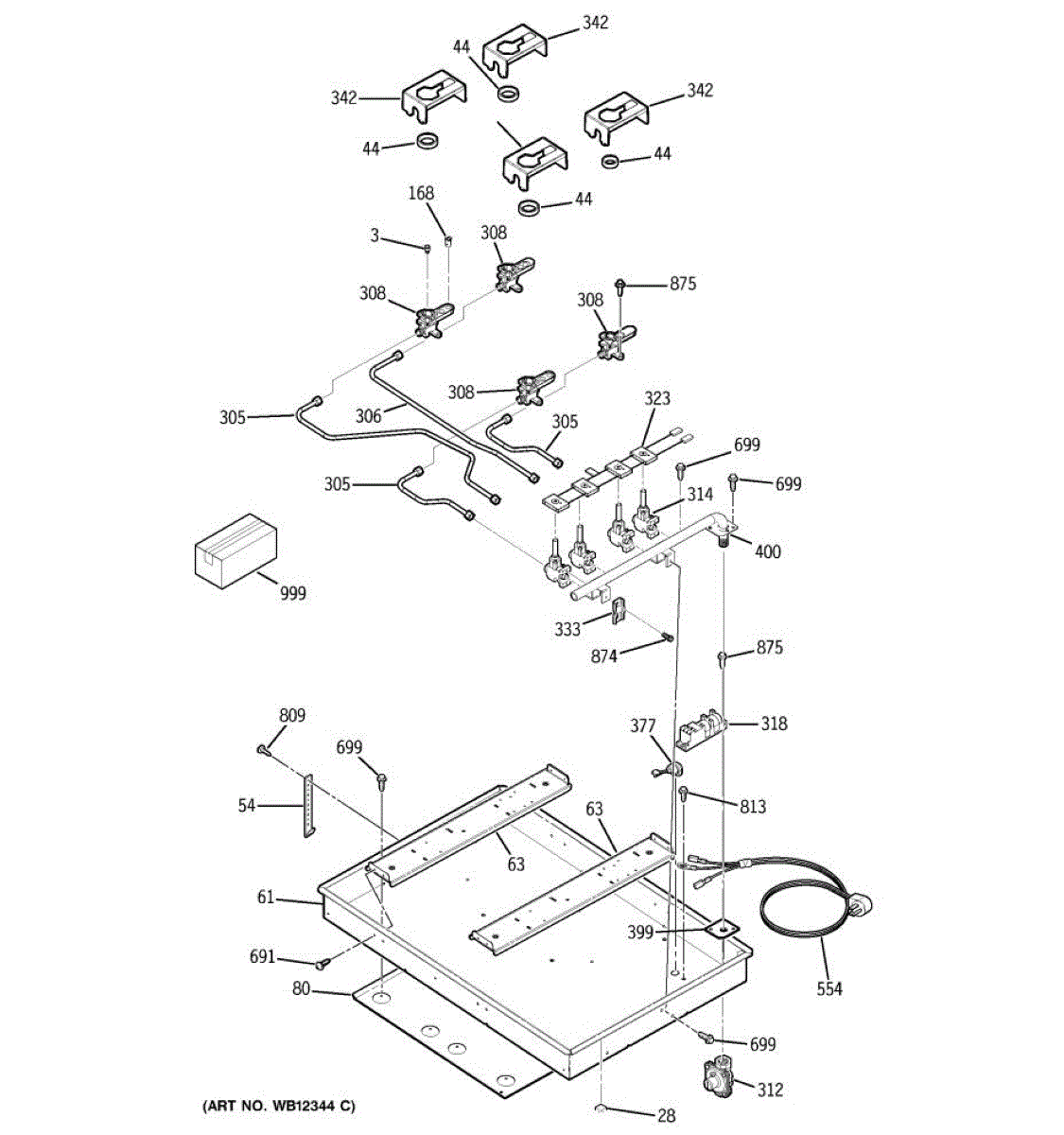

Parts for Ge JGP932BEC2BB: 02 - Gas Burner Parts

Natural gas

Natural gas

Natural gas

Natural gas

This LP orifice spud directs propane gas to a burner for correct flame size and stable cooking heat. It's the specific replacement used in LP-configured gas cooktop/oven burners to restore proper gas flow. What it does:

• Meters propane flow to a burner for consistent flame performance.
• Used in LP (propane) conversions or LP-configured burners.
• Common symptoms it can fix: burner won't light, weak or uneven flame, or poor heat control.
• Fits into the burner valve/manifold assembly and works with the burner head.

• Turn off the gas supply and disconnect power to the appliance before servicing.
• Use correct LP conversion instructions for your appliance and replace only with the specified orifice for LP.
• Hand-start threads, then snug with the appropriate wrench; avoid over-tightening.

Liquid propane

Liquid propane

Liquid propane

This burner grommet sits beneath the gas burner head on the cooktop surface, providing a snug seat and spill barrier. Replacing a worn grommet helps keep the burner level and helps prevent spills and debris from entering the burner box.

• Seats and centers the burner head on the cooktop
• Helps seal around the burner opening to limit spill intrusion
• Maintains proper burner height and stability
• Replaces grommets that are cracked, shrunken, or deformed
• Common signs: burner wobbles or sits unevenly, visible wear, or liquids leaking under the top

• Disconnect power and shut off gas supply before servicing
• Remove grates and burner caps; lift off the burner head carefully to avoid damaging the igniter
• Remove the old grommet and clean the recess; press the new grommet fully and evenly into place
• Reassemble and verify burner alignment and ignition before restoring gas and power

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Long

Used for the large burners

Used for the small burners

Natural gas

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This gas valve kit replaces a failed range/oven gas control valve to restore reliable gas flow and ignition control. Designed to match OEM function for safe, consistent burner operation. What it does:

• Controls gas flow to the burner assembly for normal ignition and heating
• Replaces worn or leaky valves that can cause weak or no flame
• Helps resolve intermittent ignition or valve-sticking symptoms
• Works with the oven/range's existing manifold and burner components

• One gas valve kit as shown

• Shut off gas supply and power to the appliance before servicing
• Use proper tools and follow OEM service diagram for alignment and wiring
• Do not modify the part; replace any damaged gaskets or seals during installation

This spark module controls ignition for your range's surface burners. When you turn a burner knob, it generates the high-voltage spark the electrodes need to ignite the gas quickly and consistently.

• Generates high-voltage pulses to the surface igniters to light the burner flame
• Activates when a burner switch/knob calls for ignition
• Routes spark output to the cooktop electrodes for reliable lighting
• Common failure signs: no spark on one or more burners, intermittent/weak spark, or continuous clicking

• Unplug the appliance and shut off the gas supply; allow the cooktop to cool
• Access the module per your model (often under the cooktop or behind a rear panel)
• Label and transfer wires one at a time from the old module to the new; ensure a solid ground and secure mounting
• Reassemble, restore power and gas, and test each burner for proper ignition

The Harness Switch is an OEM replacement part for GE gas ranges. Internally wired to the electronic control board, it regulates power distribution to the burner ignitors.

When a surface knob is turned, the switch instantly routes electricity enabling the igniter to spark and ignite selected gas jets beneath cookware. Integrated temperature sensors then signal switch maintained burner activity.

Causes of failure relate to standard thermal cycling without damage. Accumulated grime could potentially disrupt connections over years of stovetop cooking particulates.

Symptoms include:

• Inability to light specific gas burners by knob selection
• Range may indicate error codes relating to unresolved ignition sequences.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right angle

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This is a replacement mounting screw used to secure panels and components on compatible appliances. It restores proper fit and prevents rattling or loose parts for a safe, stable appliance. What it does:

• Secures panels, trim, brackets or small components in place
• Replaces missing or stripped fasteners that cause rattling or loose parts
• Helps maintain appliance alignment and safe operation when installed properly
• Small fastener for interior or exterior appliance assemblies

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver and hand-start threads to avoid cross-threading
• Do not overtighten; snug until secure to prevent stripping or damaging parts

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
