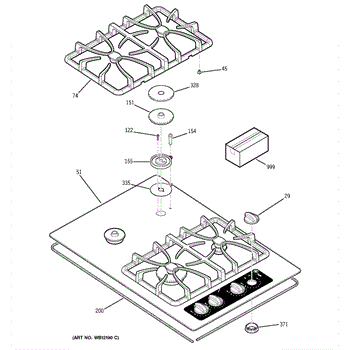

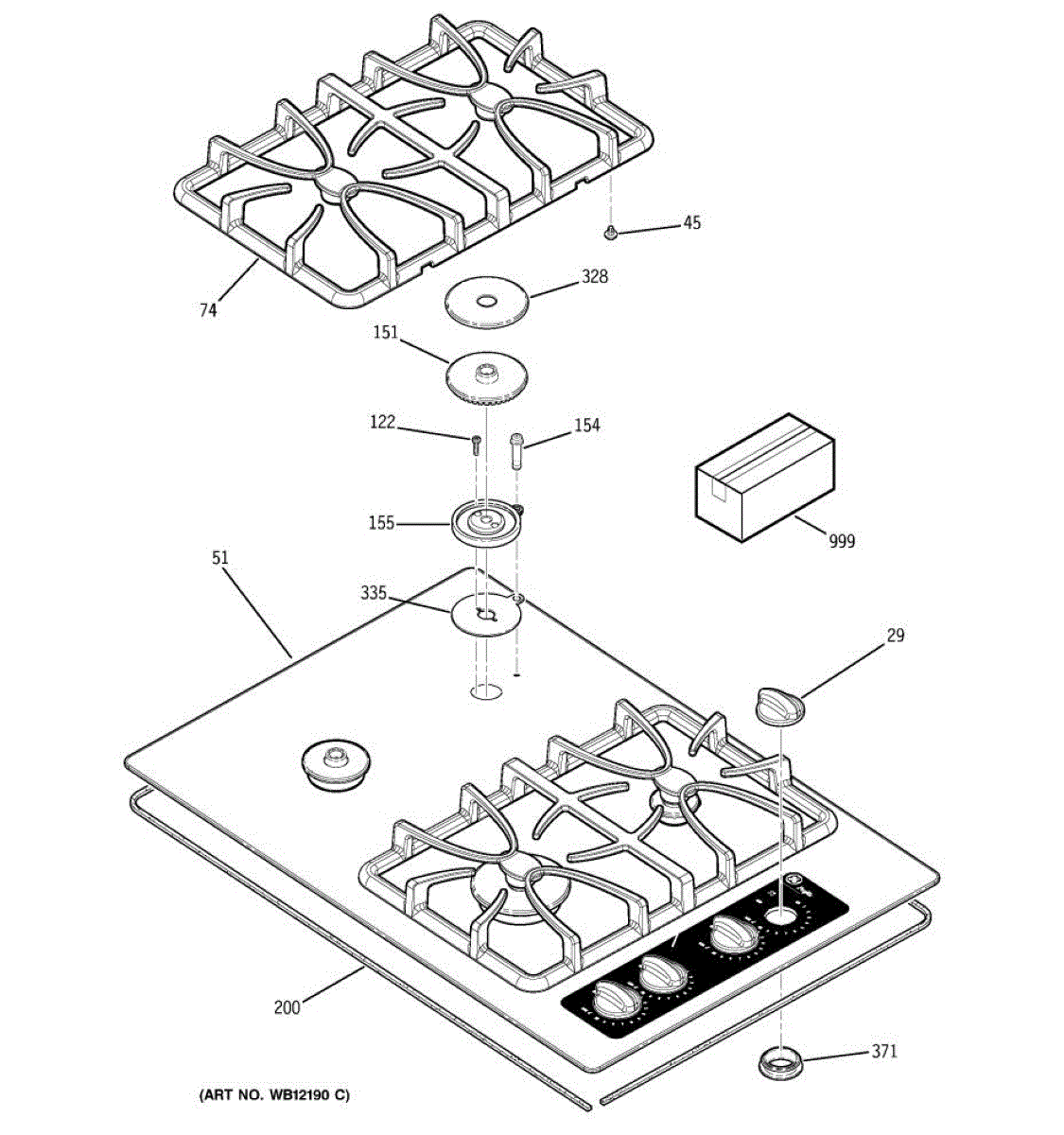

Parts for Ge JGP932BEC2BB: 01 - Cooktop Parts

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it should be replaced. For safety reasons, the burner should not be used until this screw is replaced; the burner head could shift during cooking and lead to a fire. To start, disconnect the gas and power from the stove to prevent accidental ignition of the burner. Make sure the burners are not hot. Remove the burner grate and burner cap from the burner that is missing a screw. Install the new screw in the hole and tighten it with a screwdriver. Put the burner cap and burner grate back on the stove and reconnect the gas and power. Periodic inspection of the burner heads and all associated screws and parts on the stovetop will prevent accidents and keep the stove working correctly. This screw is a silver, metal part that is sold individually. It is designed for use in gas rangetops manufactured by General Electric and Hotpoint.

This igniter lights the gas at a burner. Replacing a worn or cracked igniter restores quick, consistent ignition so your gas range or cooktop lights reliably and heats as expected without repeated tries.

• Provides the ignition source to light burner gas when heat is selected
• Supports consistent flame start-up for reliable cooking performance
• Common symptoms include: burner won't ignite, delayed or intermittent ignition, or needing to light manually
• Visual clues can include a cracked insulator or damaged igniter tip/element

• Disconnect power and shut off gas before servicing; allow the appliance to cool completely
• Access the igniter per your model; note wire routing and mounting before removal
• Transfer any reusable mounting clip/grommet from the old part to the new one
• Handle the igniter carefully and avoid touching the element/tip; ensure secure connections and test ignition before reassembly

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

Approx 4 inches in diameter

Approx 3 inches in diameter

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This burner cap is an authentic OEM replacement part sourced directly from the manufacturer. It is used on gas ranges to distribute the burner's heat evenly. There are various size burners on gas stovetops, with each size having a specific size of burner cap. This cap is for large burners and should not be used on other size burners. Over time, the burner cap may become rusted from being washed or having liquids spilled on it. If the cap is damaged, it should be replaced before cooking on the burner.To start, disconnect the gas and ensure that the grate and burner are completely cool before touching the parts. Remove the cooking grate and set it aside. Lift the burner cap and remove it from the stove. Align the new burner cap up with the grooves on the burner and set it flush. Restore the grate and turn the gas back on to operate the stove. Test the burner to make sure it is seated correctly.This large burner cover is made of heat-tempered metal and is sold individually. It is designed for use on gas stovetops manufactured by General Electric.

Color: Black. This medium burner cap is used to ensure the gas burner's heat is evenly distributed for cooking on gas stoves. The burner cap sits under the burner grate and covers the exposed flame, acting as a sort of hot plate. As the flame heats the cap, the heat is distributed upwards. The amount of heat is determined by temperature control which adjusts the gas flow. This burner cap is designed for the medium burners on the stove and should not be used for other size burners. Over time, the burner cap may become damaged due to food spills or simply due to the stove's age. If the cap is damaged, it should be replaced before cooking on the burner.Make sure the stove is completely cool before removing and replacing the burner cap. Remove the cooking grate and set it aside. Lift the burner cap and remove it from the stove. Line the new burner cap up and place it over the burner spreader. Put the grate back on the stove.This medium burner cover is made of heat-tempered metal and is sold individually. It is an authentic OEM part sourced directly from the manufacturer. It is designed for use on gas stovetops manufactured by General Electric.

Note: The part is approximately 2-3/8" in diameter.

Small

Note: The part is approximately 4" in diameter.

Note: The part is approximately 3" in diameter.

Black

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
