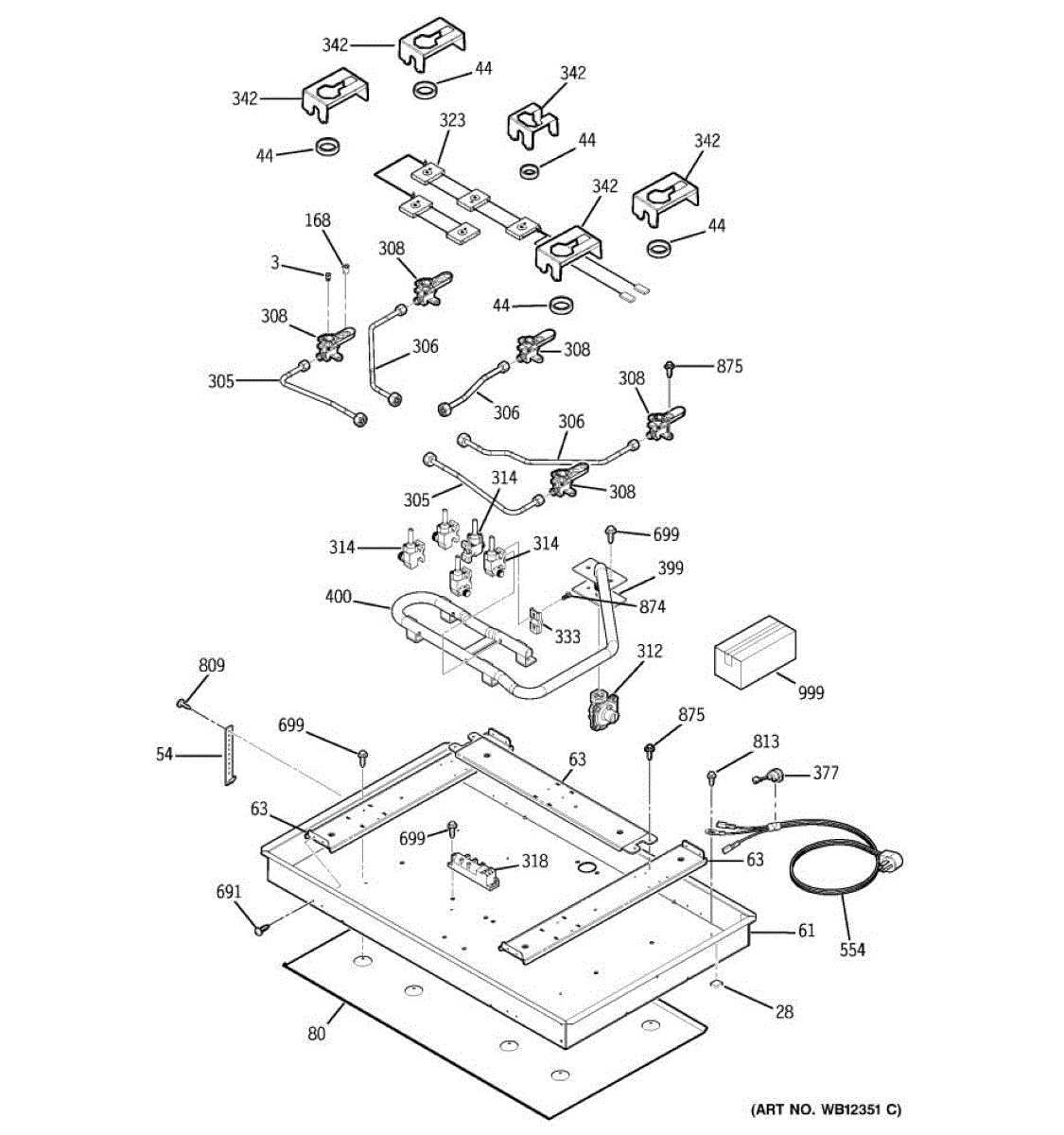

Parts for Ge JGP962BEC2BB: 02 - Gas Burner Parts

Natural gas

Natural gas

Natural gas

This LP orifice spud directs propane gas to a burner for correct flame size and stable cooking heat. It's the specific replacement used in LP-configured gas cooktop/oven burners to restore proper gas flow. What it does:

• Meters propane flow to a burner for consistent flame performance.
• Used in LP (propane) conversions or LP-configured burners.
• Common symptoms it can fix: burner won't light, weak or uneven flame, or poor heat control.
• Fits into the burner valve/manifold assembly and works with the burner head.

• Turn off the gas supply and disconnect power to the appliance before servicing.
• Use correct LP conversion instructions for your appliance and replace only with the specified orifice for LP.
• Hand-start threads, then snug with the appropriate wrench; avoid over-tightening.

Liquid propane

Liquid propane

Liquid propane

This burner grommet sits beneath the gas burner head on the cooktop surface, providing a snug seat and spill barrier. Replacing a worn grommet helps keep the burner level and helps prevent spills and debris from entering the burner box.

• Seats and centers the burner head on the cooktop
• Helps seal around the burner opening to limit spill intrusion
• Maintains proper burner height and stability
• Replaces grommets that are cracked, shrunken, or deformed
• Common signs: burner wobbles or sits unevenly, visible wear, or liquids leaking under the top

• Disconnect power and shut off gas supply before servicing
• Remove grates and burner caps; lift off the burner head carefully to avoid damaging the igniter
• Remove the old grommet and clean the recess; press the new grommet fully and evenly into place
• Reassemble and verify burner alignment and ignition before restoring gas and power

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Left front

Right front

Left rear

Center

Right rear

Used for the large burners

Used for the small burners

Natural gas

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This gas valve kit replaces a failed range/oven gas control valve to restore reliable gas flow and ignition control. Designed to match OEM function for safe, consistent burner operation. What it does:

• Controls gas flow to the burner assembly for normal ignition and heating
• Replaces worn or leaky valves that can cause weak or no flame
• Helps resolve intermittent ignition or valve-sticking symptoms
• Works with the oven/range's existing manifold and burner components

• One gas valve kit as shown

• Shut off gas supply and power to the appliance before servicing
• Use proper tools and follow OEM service diagram for alignment and wiring
• Do not modify the part; replace any damaged gaskets or seals during installation

The Spark Module is an OEM part for GE cooktops. Located within the cooktop's control unit, this module is responsible for generating electric sparks to ignite the burners. Consisting of electronic components and wiring, the spark module works with other systems to reliably and safely light the gas or electric burners.

Symptoms of a bad spark module include:

• Burners not lighting or lighting intermittently
• Repeated flashing of the burner indicator lights
• Clicking or buzzing sounds coming from the control unit

Causes of a failed spark module can be exposure to moisture, dust or debris accumulating inside the control unit over time as well as mechanical or electrical degradation of the ignition components.

This genuine OEM GE replacement part is also compatible with some Kenmore cooktop models that use GE's control systems.

The Spark Switch Assembly is an OEM replacement part for GE gas ranges. It helps ignite gas burners safely during cooking. Includes all five switches and harness

Causes of a bad spark switch assembly can include electrical malfunctions, wear and tear from regular use, or damage from exposure to heat and moisture. Physical damage or corrosion can also impair its functionality.

Symptoms of a bad Spark Switch Assembly include:

• Burners not igniting or taking longer to ignite
• No clicking sound when turning the burner knob
• Continuous clicking even after the burner is lit
• Inconsistent sparking

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right angle

This seal manifold is the molded gasket that seals the connection between the manifold and valve assembly, preventing leaks and ensuring proper flow. It restores a watertight/gas-tight seal where the manifold meets the control valves. What it does

• Seals the joint between the manifold and valve assembly to prevent fluid or gas leaks.
• Helps maintain correct pressure and flow through the manifold and valves.
• Addresses symptoms such as visible leaks, strong odors, or intermittent flow/operation around the manifold area.
• Restores reliable sealing after manifold or valve service or when the original seal is damaged.

• Before you start, disconnect power and shut off water or gas supply as applicable to the appliance.
• Replace only with the matching OEM part and ensure mating surfaces are clean and dry for a proper seal.
• Tighten manifold fasteners evenly to the manufacturer's guidance to avoid distortion (follow OEM torque/sequence if available).

This pipe manifold routes and distributes gas from the appliance inlet to the individual burner valves, restoring correct gas flow for reliable burner operation. It's a direct-fit replacement designed to match the original OEM geometry and mounting. What it does:

• Channels incoming gas to oven/range burner valves and ports for consistent fuel delivery
• Supports valve and ignitor alignment so burners light and maintain stable flames
• Failing or cracked manifolds can cause burners not to light, weak or uneven flame, or visible gas odor — have gas issues addressed immediately
• Replacing a damaged manifold restores correct gas routing and helps eliminate ignition and flame irregularities

• Gas-line parts should be installed; improper work can cause gas leaks, fire, or injury
• Shut off the gas supply and disconnect power before beginning work
• Tighten fittings to OEM torque and perform a certified leak test after installation
• Use only OEM-specified replacement parts and follow the appliance manufacturer's service instructions

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This is a replacement mounting screw used to secure panels and components on compatible appliances. It restores proper fit and prevents rattling or loose parts for a safe, stable appliance. What it does:

• Secures panels, trim, brackets or small components in place
• Replaces missing or stripped fasteners that cause rattling or loose parts
• Helps maintain appliance alignment and safe operation when installed properly
• Small fastener for interior or exterior appliance assemblies

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct screwdriver and hand-start threads to avoid cross-threading
• Do not overtighten; snug until secure to prevent stripping or damaging parts

Black. 8-18 AB HXW 3/8

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
