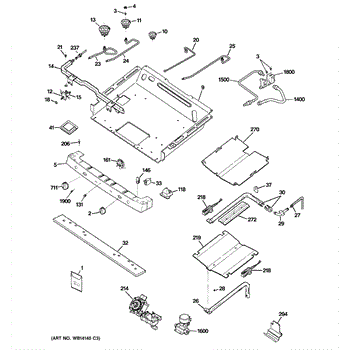

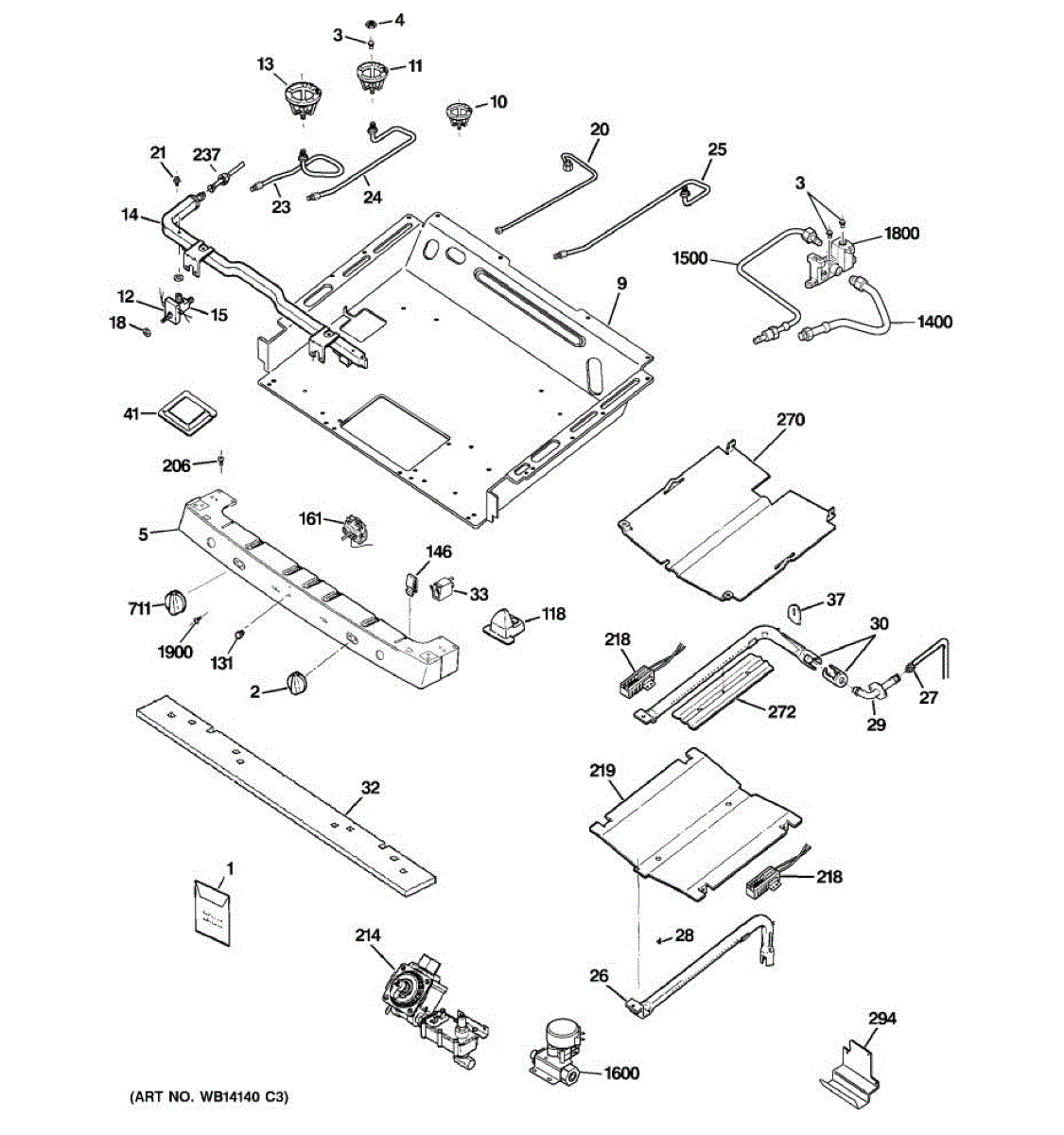

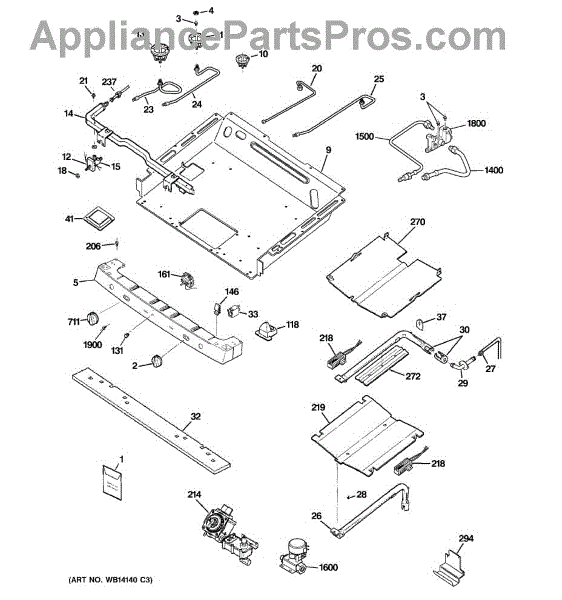

Parts for Ge PGB975SEM2SS: 01 - Gas & Burner Parts

Converts your range to use a different fuel type. Install this orifice conversion kit assembly when switching between natural gas and propane.

Stainless steel cleaner for gas ranges and cooktops. Restores shine and removes fingerprints, smudges, and streaks from exterior surfaces.

Replace cracked, melted, or peeling burner control knobs on your range. This plastic knob installs on the control shaft to adjust heat settings.

Natural gas

Natural gas orifice designed for high-altitude cooktop installations. Replace if worn, damaged, or missing to restore proper gas flow regulation.

Burner orifice spud for gas ranges and cooktops. Installs in the burner assembly to regulate gas flow. Replace if cracked, worn, or missing.

Liquid propane orifice spud for cooktop and range burners. Regulates gas flow for proper flame. Replace if damaged, worn, or converting from natural gas.

This small threaded component controls gas flow to LP gas burners and is located within the burner assembly. Replace when burners produce yellow flames, won't ignite properly, or have uneven flame patterns.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

Replace a faulty range igniter switch when burners won't light or spark inconsistently. This switch controls the spark ignition system for gas burners.

If your range burners won't light or spark intermittently, the igniter switch may be faulty. This double-function switch controls spark ignition for safer cooking.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Fix a burner that won't light or shut off completely with this gas range top burner valve. Controls gas flow to restore reliable ignition. DIY repair.

Fix burners that won't light, stay lit, or shut off completely with this gas control valve. Regulates flow to a single burner for steady flames and safe cooking.

Protective cover for your range thermostat. Replaces cracked, broken, or missing covers. Installs on the control panel to shield thermostat components.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Fix a weak or uneven center burner flame with this natural gas orifice and tube assembly. Restores proper fuel flow when the orifice is clogged or worn.

1/4-20 threaded screw secures panels, brackets, and internal assemblies in ranges, ovens, and cooktops. Replace missing, stripped, or corroded fasteners.

Gas range burner orifice holder directs gas flow from the valve to the stovetop burner. Replace if bent, broken, cracked, or missing for proper assembly.

Delivers gas from the manifold to your range's surface burner. Replace this tube if it's cracked, leaking, corroded, or damaged to restore safe gas flow.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Insulation pad for gas range burner box. Replaces worn, damaged, or missing heat insulation. Installs inside the burner box compartment for protection.

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Covers and protects the indicator lamp opening on your range control panel. Replace when cracked, discolored, or missing to restore visibility. Confirm fit with your model number.

Oven not reaching set temperature or overheating by 10-20 degrees? This range thermostat monitors and regulates heat for consistent baking. 2-hour DIY repair.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Gas valve control assembly for ranges. Manages gas flow to burners and allows precise flame adjustment. Replace if worn, leaking, or damaged to restore control.

Fix an oven that won't heat or takes too long to reach temperature. This igniter glowbar opens the gas valve to ignite the burner. DIY-friendly repair.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

Broil shield for gas ranges. Mounts inside the oven cavity to protect components from direct heat. Replace if cracked, warped, or damaged.

Color: stainless steel. Measures about 2 inches in diameter.
