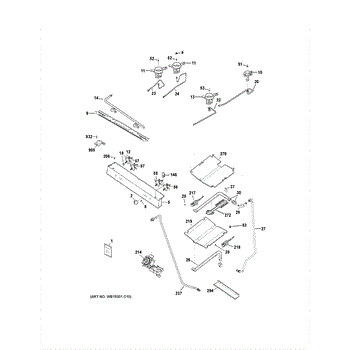

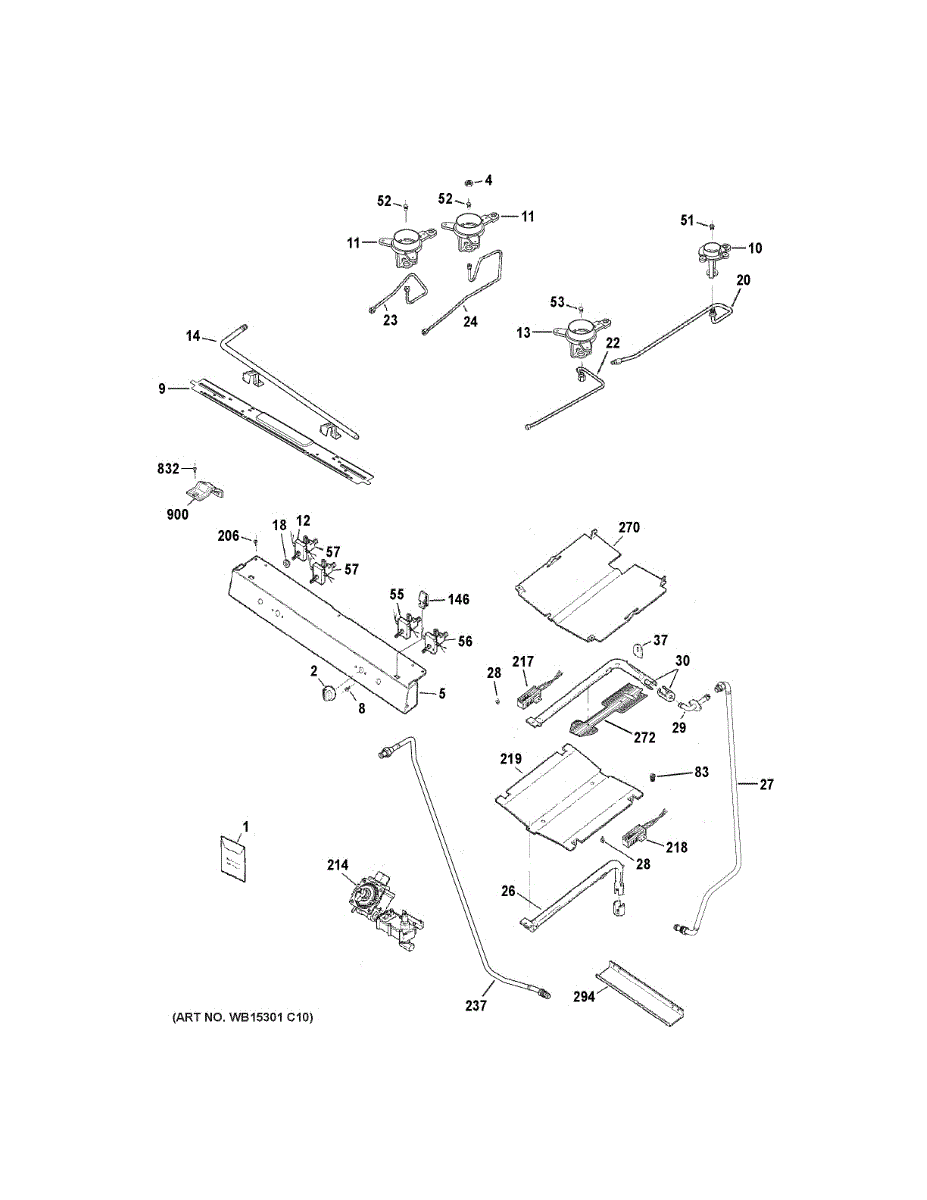

Parts for Ge JGB635DEK2BB: Gas & Burner Parts

This LP conversion kit converts a compatible gas appliance from natural gas to propane (LP) so burners operate with the correct orifice sizing and fuel flow. Use when changing fuel type to restore proper flame performance and safety. What it does:

• Replaces orifices and/or components needed to match appliance fuel flow to propane (LP)
• Helps restore proper flame size and color after switching fuel types
• Addresses symptoms such as weak or uneven flames, hard ignition, or yellow/orange flame tips
• Ensures appliance operates as designed on the correct fuel when installed per OEM instructions

• Follow the OEM conversion instructions exactly and keep the original parts; improper conversion can be unsafe.
• Shut off the gas supply and power before starting; check all connections for leaks after installation.
• Some conversions must comply with local codes — verify requirements before proceeding.
• Use only the orifices/components supplied with the kit for the specified appliance; do not modify parts.

The Range NG High Altitude Kit is an OEM part for GE gas ranges. This high-altitude conversion kit allows the range to operate properly at elevations above 2000 feet.

Causes related to needing this kit are using the range at a high elevation without proper adjustment for decreased air pressure and oxygen levels.

Symptoms of needing this high-altitude kit include:

• Unstable or inconsistent flame during operation
• Excessive cooking times
• Incomplete combustion of gas resulting in carbon monoxide issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Valve Knob is an OEM part for GE ranges. It is used to control the gas flow to the burners, allowing for precise adjustment of the flame and ensuring proper cooking temperatures.

You should replace the valve knob if it becomes damaged or worn out. Common issues include the knob becoming loose, cracking, or breaking, which can make it difficult to control the gas flow accurately.

Symptoms of a bad valve knob include:

• Difficulty in turning the knob
• The knob not staying in place
• Visible cracks or damage
• Inconsistent flame control

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Size: 8 - 32 inch.

This small V2 inlet jet directs water flow to the dispenser/ice-making area so the appliance fills and forms properly. It restores correct water routing for consistent filling and helps reduce weak or misshapen ice or slow dispensing. What it does:

• Channels water to the ice maker/dispenser so the correct amount reaches the fill area.
• Helps ensure uniform ice formation and consistent dispenser flow.
• Can resolve symptoms like weak/slow dispensing, underfilled ice trays, or uneven ice cubes.
• Works as the small replacement nozzle where the original inlet jet is worn or blocked.

• One small V2 inlet jet

• Disconnect power and shut off the water supply before beginning work.
• Access may require removing inner panels or the ice maker/dispenser housing; follow your model's service instructions.
• Inspect the seat and surrounding fittings for debris or damage before installing; replace other damaged components as needed.

The Medium surface burner base is an OEM part for GE ranges. It serves as the base for the surface burners, covering and protecting the burner cavities.

Causes of a bad surface burner base include warping or deformation from high heat over time, cracks or breaks from impact damage, or corrosion from liquid spills or grease accumulation.

Symptoms of a bad surface burner base include:

• Burners no longer sitting flush or securely on the cooktop surface
• Excessive air gaps around the burners allowing gas/flames to escape
• Difficulty cleaning due to liquid leaks into the burner cavities
• Visible cracks, breaks, or deformities in the material

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This burner box harness is the wiring assembly that connects the range's cooktop igniters and gas valves inside the burner box, restoring reliable spark and control signals so burners ignite properly. What it does:

• Routes electrical power and ignition signals to cooktop igniters and gas valves inside the burner box
• Replaces damaged or frayed wiring that can cause intermittent ignition or no-spark conditions
• Helps stop arcing or shorting caused by chafed insulation or loose connections
• Restores proper electrical continuity between control board outputs and burner components

• One burner box wiring harness assembly as shown

• Disconnect electrical power (and gas supply where applicable) before servicing
• Access typically requires removing the range back panel or cooktop; keep fasteners organized
• Inspect connectors and mounting clips; replace any damaged clips or fasteners
• After installation, restore power and verify each burner ignites and shuts off properly; do not use if wiring shows damage

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

Rear orifice holder secures the gas orifice in the rear-right burner assembly so the orifice stays correctly positioned for reliable ignition and consistent flame performance during cooking. What it does:

• Holds and aligns the gas orifice within the rear-right burner head for proper gas flow.
• Keeps the orifice stable during use to help maintain consistent flame size and heat.
• Common symptoms indicating this part may be faulty: burner fails to light, intermittent ignition, or uneven/low flame on the rear-right burner.
• Works as part of the burner assembly that interfaces with the burner head, cap, and orifice.

• Always shut off the gas supply and disconnect electrical power before beginning service.
• Remove burner cap, grate and burner head as needed to access the orifice holder; keep small parts organized.
• Reassemble carefully, verify correct seating of the orifice and holder, and perform a soap-leak check after reconnecting gas.

The Front Orifice Holder is an OEM component specifically designed for GE range burners. Located under the cooktop, it serves as the mounting bracket that secures the front orifice at the base of each burner head.

Symptoms of a bad front orifice holder include:

• Flames that appear crooked or uneven from the burner
• Gas flames that sway or blow around excessively
• Difficulty adjusting the burner flame height or pattern

Over time and repeated heating cycles, the metal holder can warp or distort from heat exposure. Motion from burner head adjustment may also cause bracket weakness. This genuine GE replacement part installs with ease and ensures precise positioning of flame origination points. Proper orifice placement afforded by the front holder optimizes burner combustion and safety. Compatible GE, Kenmore, and select electric range brands include Monogram, GE Café, and Profile models.


The GE Front Orifice Holder-Left is an OEM part for GE gas ranges. It secures the front left burner's gas orifice nozzle to properly regulate fuel delivery.

Symptoms of a bad front orifice holder include:

• Burning or fire hazards if gas leaks around the holder's joint
• Inability to adjust the flame height or heat level on that burner
• Uneven heating performance between the front left burner and others

Causes may include cracks, corrosion or material fatigue developing in the holder over many heating and cooling cycles. Mineral deposits could also potentially cause issues.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas ranges.

Rear orifice holder (left) secures and positions the burner orifice for the back-left gas burner, restoring proper alignment for reliable ignition and more consistent flame control when the original holder is damaged or missing. What it does:

• Holds the rear-left burner orifice in the correct position for proper gas flow and ignition.
• Helps support stable, even flame and consistent heat at the back-left burner.
• Use when the burner head sits unevenly, ignition is inconsistent, or the orifice holder is cracked, bent, or loose.
• Simple replacement can stop gas leakage paths caused by a misaligned or damaged holder.

• Turn off the appliance power and shut off the gas supply before servicing.
• Allow the cooktop and burner components to cool fully; remove grates and burner caps to access the holder.
• Replace only with the correct left rear holder and seat the orifice securely; avoid forcing parts.

The Burner Bake Tube is an OEM part for GE gas ovens and ranges. It acts as the path by which gas travels from the valve to the burner, where it is ignited and the flame produced.

Symptoms of a bad burner tube include:

• Inability to ignite or extinguish the gas flame properly
• Burner flames that appear abnormal in color or size
• Decreased gas pressure at the burner resulting in weak flames
• Frequent sensor issues or interrupted baking

Causes can be cracks in the tubing allowing gas leaks, blockages restricting fuel flow, or permanent damage from overheating. Installing this GE replacement restores efficient combustion ensuring reliable oven or range operation.

Compatible with Hotpoint, RCA, and select Kenmore models as well, replacing yours prevents future troubles from minor issues left unaddressed.


This tube burner supply is the replacement gas tube that delivers fuel from the range/oven valve to the burner, restoring proper gas flow for reliable ignition and consistent flame performance. What it does:

• Directs gas from the appliance valve to the burner for normal operation
• Replaces cracked, corroded, or clogged burner tubing that can cause fuel flow disruption
• Helps correct symptoms such as burners that won't light, weak or uneven flames, or intermittent ignition
• Restores a sealed path for gas to reduce leakage risk when installed and tightened correctly

• Turn off gas supply and electrical power to the appliance before beginning work
• Verify proper fit and orientation to the valve and burner; use the OEM clamp/hardware if provided
• After installation, check all connections for leaks (soap-and-water test) and restore power per the appliance manual

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Elbow 90° Asm is an OEM replacement part for GE gas ranges. It joins sections of burner piping at precise right angles, guiding fuel and air flow to burner heads.

Causes of a bad elbow joint can be wear from years of vibrations, cracks developing from heat cycling, or accidental damage during maintenance.

Symptoms of a faulty elbow include:

• Yellow burner flames or incomplete combustion
• Gas smell or leaks around pipes
• Reduced heat levels from affected burners
• Premature deterioration of other components

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models too.

This broil burner provides concentrated heat for the oven's broil function, restoring high-temperature top-down cooking for browning and searing. Designed to match the original part shape and heat output for safe, consistent performance. What it does:

• Generates the concentrated high heat used during the oven's broil cycle
• Helps restore proper browning, crisping, and searing on top of foods
• Commonly replaced when broil heat is weak, uneven, or the burner won't light
• Works as the direct heating element for the oven's broil operation

• Disconnect power (and gas supply, if applicable) before beginning service
• Handle carefully; edges may be sharp and burner surfaces can be fragile

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

LP Gas. LG .99mm

The Round Valve Burner is an OEM component specifically designed for GE gas ranges. Each burner delivers flame through a round metal valve that is mounted below the cooktop surface.

Symptoms of a bad burner include:

• Inability to ignite or an intermittent flame
• Irregular or unpredictable flame size regardless of control knob position
• Yellow flame or flame that encompasses the burner entirely instead of staying centered
• Gas smell emitting from the burner area when in use

Causes of burner failure can be a buildup of residue or debris in the valve mechanism over many years, wear and tear of internal parts like the thermocouple or orifice, or physical damage.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore gas ranges.

The Round Valve Burner 140 is an OEM part for GE gas ranges. It regulates gas flow to a tubular burner ring, enabling tempered cooking performance.

Causes of failure include mineral buildups obstructing valve ports, worn sealing edges letting gas escape, or broken internal components.

Symptoms of a bad round valve burner are:

• Inaccurate or indistinct burner flame patterns
• Inability to maintain consistent flame heights
• Responsiveness issues adjusting burner temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This round gas valve controls flow to a surface burner, providing smooth flame adjustment and reliable shutoff. Replace a worn valve to restore precise burner control and safe operation on your gas range or cooktop.

• Regulates gas to the burner as the control knob turns, from low simmer to full flame
• Common symptoms: burner won't light though the igniter sparks, flame won't adjust or shut off, gas odor near the knob, or a stiff/stripped valve stem
• Services one burner position; multiple valves are used on many gas ranges/cooktops
• Installs in the burner manifold/orifice holder location specified by the manufacturer

• Disconnect power and shut off the gas supply before servicing
• Note stem orientation; transfer fittings/brackets from the original valve as needed and use approved thread sealant where specified
• After installation, leak-test all joints with an approved solution before restoring gas
• Verify proper ignition and flame adjustment on the burner after replacement

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This valve control assembly regulates gas flow to a range/oven burner, restoring safe, reliable ignition and heat control. It replaces a failed control module to help burners light and maintain consistent flame levels. What it does:

• Controls gas delivery to the burner based on the range/oven control settings
• Helps the igniter light and sustain a steady flame for heating
• Stops gas flow when the controller signals shutoff for safety
• Addresses symptoms such as burners not lighting, weak or inconsistent flame, or loss of burner heat

• Turn off gas supply and disconnect electrical power before starting work
• Only install on the correct appliance model; verify model fitment before purchase
• Check all gas connections for leaks after installation using a leak detector or soapy water

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This manifold supply tube assembly is the pre-formed gas line that feeds the burner manifold in your gas range or cooktop. Replacing a damaged or leaking tube restores safe, consistent gas flow so burners can ignite and operate properly.

• Routes gas from the appliance inlet/regulator to the burner manifold
• Restores proper gas delivery if the original tube is cracked, kinked, or corroded
• Helps with symptoms such as multiple burners not lighting, weak/uneven flames, or a gas odor near the manifold area
• Pre-bent OEM geometry ensures correct routing and fit

• Shut off gas supply and disconnect power before servicing
• Work in a well-ventilated area; keep open flames and sparks away
• Do not bend or modify the pre-formed tube; ensure flare fittings seat squarely
• After installation, leak-test all connections with an approved leak-detection solution.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
