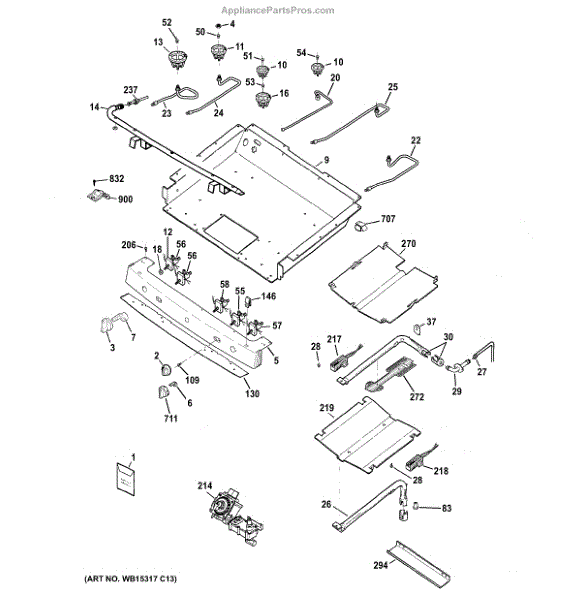

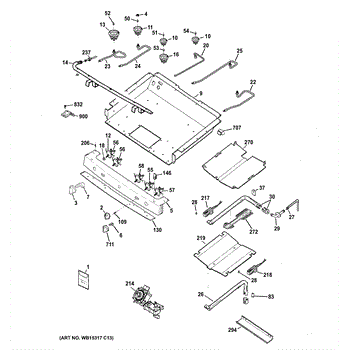

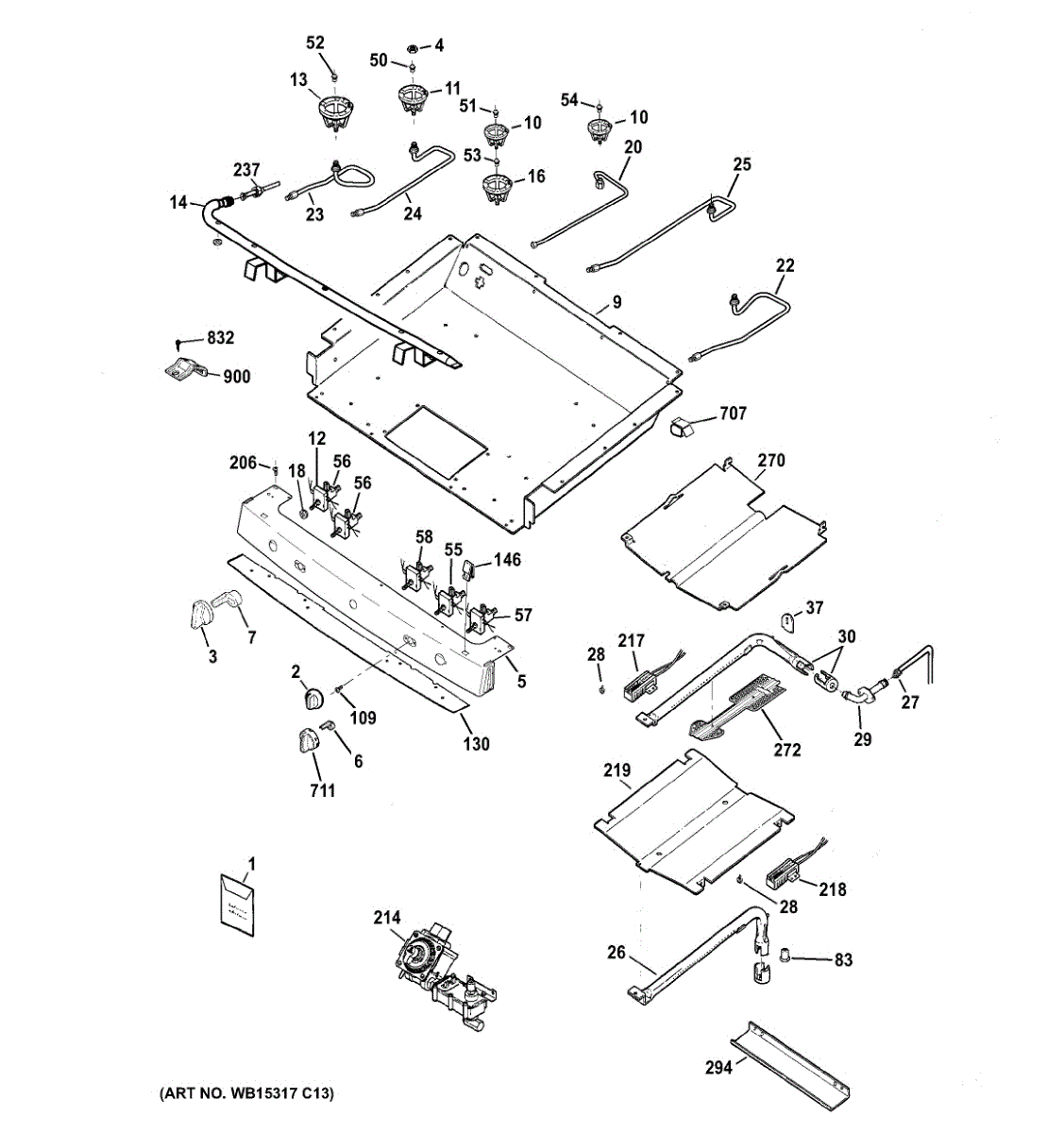

Parts for Ge JGB760DEF2BB: Gas & Burner Parts

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

Burners won't light or igniters click constantly? This igniter switch and wiring harness assembly restores spark ignition on gas range surface burners.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Round manifold pipe for gas ranges. Distributes gas from supply line to burners. Replace if cracked, corroded, or leaking to restore safe operation.

Secures the cooktop to the range frame, preventing shifting or rocking. Replace if your bracket is cracked, bent, worn, or missing for stable alignment.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

This is an authentic OEM orifice holder sourced directly from the manufacturer for use on gas stoves. The orifice holder is located on the stovetop and supplies the gas to the burner base for cooking. If this part becomes bent or damaged or is missing from the stove, it should be replaced. If the orifice holder is damaged, the flame that is cooking the food may not receive a steady supply of gas, and the cooking temperature will be affected.Disconnect the power from the gas stove and shut off the gas supply. Take the grates and burner caps off the stoves. Remove the burner bases so that there is access to the top panel of the stove. Remove the screws holding the top panel in place and take the top panel off. Set the screws aside. Loosen the electrode bracket and take the orifice holder off the stove. Install the new orifice holder and tighten the mounting screw. Replace the parts removed during the repair and reconnect the gas and power.This orifice holder is a metal part that is sold individually. It is designed for use in gas ranges manufactured by General Electric.

Fix weak flames or uneven heating on your gas range. This burner orifice holder secures the gas orifice for stable ignition and proper flame control.

Right rear burner won't ignite or flame is uneven? This range orifice holder secures the gas orifice for proper alignment and consistent flame performance.

Fix uneven flames or burner ignition issues with this gas range bake burner tube. Delivers gas from valve to burner for proper heating and baking.

Restores proper gas flow when burners won't light or flame is weak. This supply tube connects the valve to the burner for reliable ignition and heat.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Fix weak flames or uneven heating with this gas range burner elbow assembly. Connects burner piping at 90-degree angles to restore proper fuel flow.

If your oven won't broil or has uneven broiling, the broil burner may have failed. This gas range burner typically takes 30-45 minutes to replace.

Burner orifice spud regulates gas flow to the burner on your range or cooktop. Replace if missing, damaged, or when converting between LP and natural gas.

Fix uneven flames or weak burner heat with this range burner orifice spud. Controls gas flow to each burner. Simple DIY repair in 15-20 minutes.

Weak or uneven flames on your gas range? A clogged or damaged orifice spud restricts gas flow to the burner. Simple replacement restores proper flame size.

Burner won't ignite or flame is uneven? This surface burner valve regulates gas flow to each burner for precise temperature control on your gas range.

Fix a burner that won't ignite or produce gas with this surface burner valve. Controls gas flow to individual burners on your gas range or cooktop.

Gas burner won't light or heats unevenly? This burner valve controls gas flow to your cooktop. Moderate DIY repair requiring stovetop disassembly.

Burner won't light or flame won't adjust? This surface burner valve regulates gas flow to restore precise flame control on your gas range cooktop.

Weak or uneven oven flame? This oven orifice spud secures the gas orifice and directs proper gas flow to the burner for consistent heating.

Replacement 8-18 x 5/16 screw secures range panels, brackets, and components. Needed when original fastener is stripped, missing, or damaged.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Fix stiff knobs or poor flame control on your gas range. This surface burner valve assembly regulates gas flow for smooth ignition and consistent heat.

Fix an oven that won't heat or takes too long to reach temperature. This igniter glowbar opens the gas valve to ignite the burner. DIY-friendly repair.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

Carries gas from the pressure regulator to the burner valve manifold on your gas range. Replace if the tube is damaged, cracked, or leaking to restore safe fuel flow.

Burner deflector guard for gas ranges. Installs around burner assembly to direct heat and protect components. Replace if cracked, warped, or missing.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available

Secures the thermostat assembly to your gas range or oven frame. Replace this mounting screw if it's stripped, missing, or damaged during repairs.

Secures the gas valve assembly to the frame of your range. Replace this bracket if it's bent, broken, or missing to properly mount the valve components.
