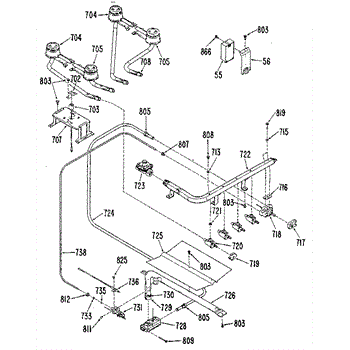

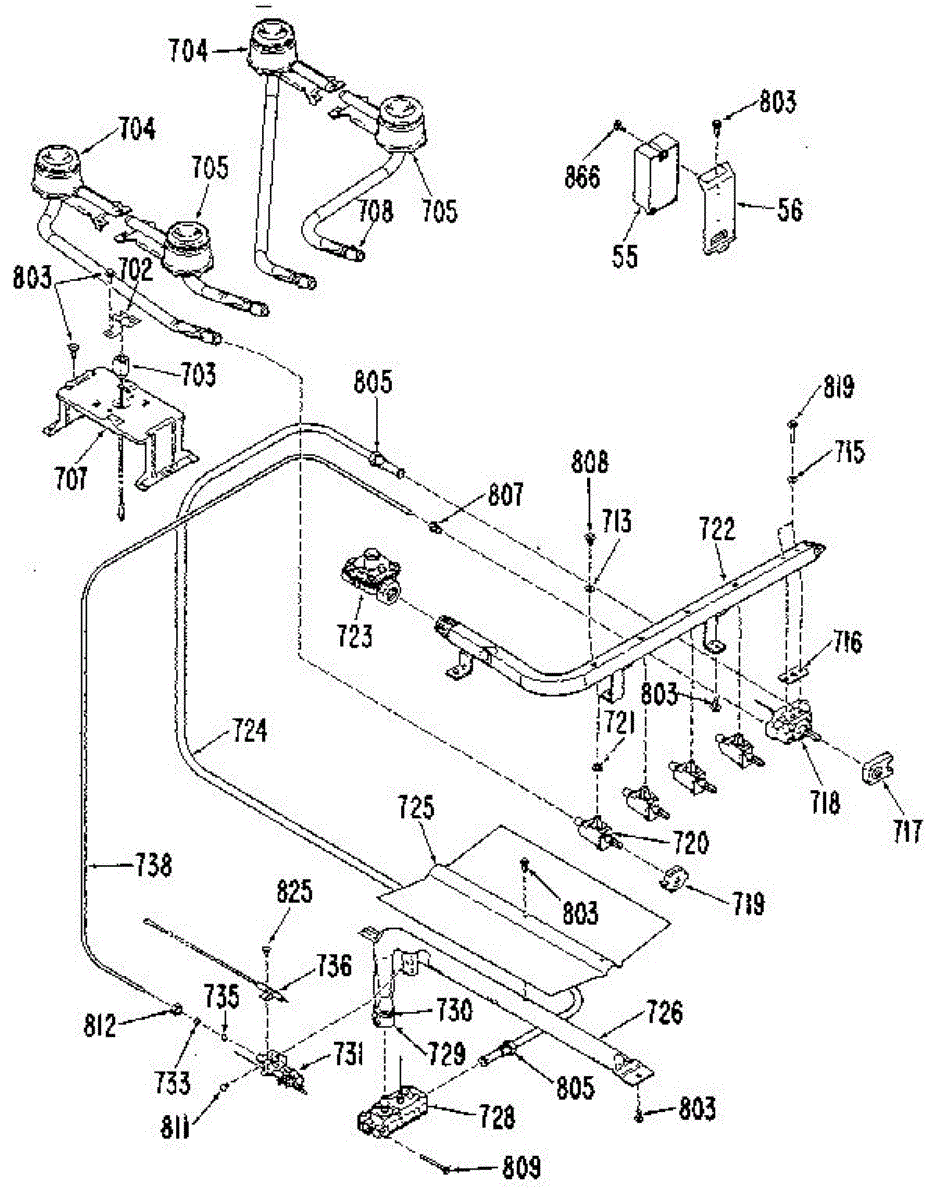

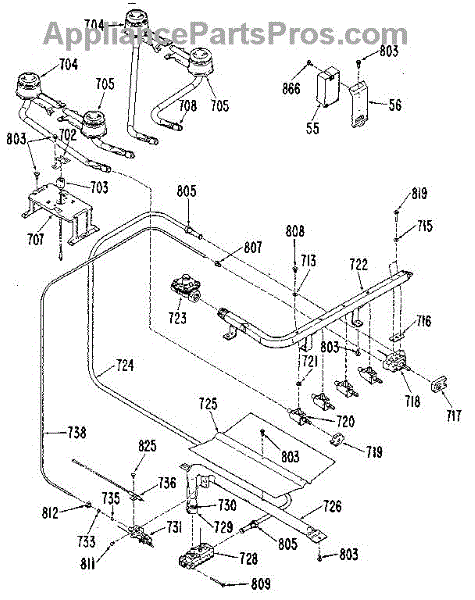

Parts for Kenmore 102.25(1988) (10225(1988), 102 25(1988)): Gas Control Section Parts

Left side oven door hinge provides smooth opening and closing operation. Replace if cracked, seized, worn, or binding. Mounts to oven cavity interior.

Replaces a cracked, worn, or broken oven door hinge. Installs on the right side, allowing the door to open and close smoothly and securely.

Replacement tension spring for oven doors, latches, and assemblies. Restores proper tension when the original spring has stretched, broken, or worn out.

Range won't power on or burners not heating? The terminal block connects power to your range. Common repair for electrical connection issues.

This spark module controls the ignition sparks for a gas range or cooktop, letting the burner surface and oven ignite reliably. Replaces a failed ignition control to restore sparking at the burner electrodes. What it does

• Sends timed spark pulses to burner electrodes so gas ignites when a burner or oven is turned on
• Replaces a failed or intermittent ignition source that causes clicking without ignition
• Commonly used when one or more burners won't light or spark consistently
• Works with electrode wires and ignition switches to coordinate burner ignition

• Spark module (1)

• Disconnect power and shut off the gas supply before starting work
• Label or photograph existing wire connections to ensure correct reconnection
• Handle the module and wiring harness carefully; avoid pulling on wires or connectors

Range hinge bracket that secures the oven door hinge assembly. Replace this mounting bracket if it's cracked, broken, or bent causing door misalignment.

Right-side hinge for range oven doors. Installs on the door frame to support opening and closing. Replace if cracked, bent, or causing door misalignment.

This replacement burner box bottom is the lower metal pan that supports and protects the range's burner assembly, helping contain spills and direct heat away from internal components for safer, more reliable operation. What it does:

• Provides a protective base for the burner assembly and internal wiring/components
• Helps channel heat and spills away from sensitive parts to reduce corrosion and damage
• Keeps burners aligned and seated properly for consistent ignition and flame pattern
• Worn, rusted, or warped pans can lead to uneven flames, burner misalignment, or visible damage under the cooktop

• Disconnect the appliance from power and shut off the gas supply before servicing
• Allow the range to cool completely and remove surface components (grates, burners, cooktop) per the owner's manual
• Handle metal edges carefully; rusted parts may have sharp areas
• Follow OEM instructions and torque guidelines when reinstalling; replace any damaged fasteners or gaskets as needed

Color: Black

Color: chrome. Measures about 9 inches wide by 19 inches deep.

Color: Chrome. 3 pack. These range clock knobs are all you need to cover one timer control. For black order WB3X5699.

Outer door glass panel for your range. Replaces cracked, broken, or damaged exterior glass on the oven door. Direct fit replacement part.

Glass cushion bumper for electric and gas range cooktops. Installs between glass surface and frame. Replace if cracked, worn, or missing.

Plastic spacer that fits between range door panels to maintain proper spacing. Replace if cracked, broken, or missing to restore door alignment.

Fix burners that won't light with this range burner igniter switch. Controls spark ignition for gas burners. Moderately easy DIY repair in 30-45 minutes.

ST10-16 X 7/16"

Inverted tubing nut secures gas line connections on ranges and ovens. Replace if stripped, corroded, or missing to ensure proper tubing fitment.

Nickel

This Loxit locking retaining nut secures components and terminals on home appliances to keep parts fastened and reduce vibration-related loosening. It's a small but essential hardware piece for reliable mechanical and electrical connections. What it does:

• Secures terminals, studs, or posts to prevent movement and maintain electrical contact
• Holds small assemblies or panels in place to stop rattling or loosening from vibration
• Restores proper fit where a worn or missing nut causes a loose knob, control, or connection
• Helps prevent intermittent electrical contact caused by loose fasteners

• One Loxit locking retaining nut

• Disconnect power to the appliance before starting any repair.
• Verify nut thread and size match the stud before installation; use correct hand tools.
• Tighten securely but avoid over-torquing to prevent stripping or damage.
• Ensure proper seating and inspect wiring for wear.

Nickel

A replacement 10-24 x 1/4 machine screw that secures panels and components in place, restoring proper fit and reducing rattles or loose parts. Small but essential for assembly and trim fastening on compatible appliances. What it does:

• Fastens appliance panels, brackets, and small components using a 10-24 threaded connection
• Stops loose or rattling trim, control panels, and internal brackets when the original screw is missing or damaged
• Matches OEM thread and length for correct fit where specified
• Used wherever a short 10-24 machine screw is required to secure parts

• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Replace with the same part number to ensure proper thread engagement and fit
• Disconnect power and follow appliance safety procedures before accessing internal areas

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Flat-head 10-32 zinc screw secures panels and components on cooktops, ranges, and ovens. Replace stripped, missing, or corroded screws for proper fit.

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to stop loose panels, excess vibration, or rattling and helps keep parts aligned for safe operation. What it does:

• Fastens panels, brackets, or trim pieces to the appliance chassis
• Replaces missing or stripped screws that allow components to shift or vibrate
• Helps eliminate rattling or squeaking caused by loose fasteners
• Restores a secure fit for components that affect door alignment or panel gaps

• One mounting screw

• Disconnect power to the appliance before beginning any repair
• Use the matching screwdriver or bit; avoid over-tightening to prevent stripping
• Check adjacent fasteners and replace any that are damaged for best results

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Replacement mounting bolt for ovens and ranges. Used to secure internal components or panels. Order a new bolt if yours is stripped, missing, or damaged.

Package of 12 washers for ranges and ovens. Replaces missing, worn, or damaged washers used in various mounting and assembly points throughout your appliance.

Replacement washer for oven door handles. Installs between handle and door surface. Order when original is cracked, worn, or missing to secure handle.

This washer secures components inside your range. Replace if the original is lost, stripped, corroded, or damaged during service or repair work.
