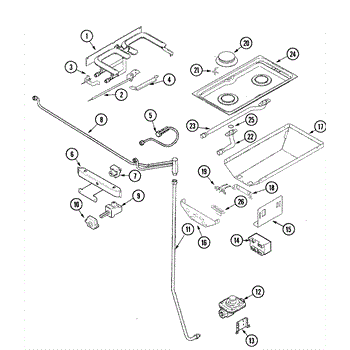

Parts for Jenn-Air JDS9860ACB: 05 - Gas Controls Parts

This replacement E-shaped grill burner supplies an even gas flame to the grill section of compatible cooktops/ranges, restoring consistent grilling performance and heat distribution for searing and cooking.

• Delivers uniform flame across the grill area for even cooking
• Replaces a burner that's warped, corroded, clogged, or not lighting evenly
• Can help resolve weak flame, cold spots, flare-ups, or uneven grilling
• Designed for the grill compartment of compatible gas units

• Disconnect gas and power before servicing
• Allow appliance to cool completely; wear gloves to avoid cuts on metal edges
• Transfer any reusable hardware from the old burner as directed by your model's instructions
• After installation, perform a leak check and verify proper flame pattern

This burner spark igniter produces the electrical arc that lights the gas flame on your range or cooktop. Replacing a worn electrode restores quick, dependable ignition and helps stop continuous clicking when a burner won't light.

• Generates the high-voltage spark that ignites the gas at the burner
• Works with the ignition module to light the burner when the knob is turned
• Common symptoms of a failing igniter: clicking but no flame, no visible spark, burner lights only with a match, intermittent or delayed ignition
• Restores fast, reliable lighting performance at the burner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Access the electrode at its burner location; note its position and gap relative to the burner before removal
• Handle the ceramic insulator carefully and reuse original mounting hardware if applicable
• Reconnect the spark wire securely, reassemble, and test for proper spark and ignition

This spark ignitor ground assembly creates the spark and grounded path needed to light a gas burner. Replacing a worn electrode restores consistent ignition and helps reduce continuous clicking or burners that fail to ignite.

• Generates a high-voltage spark at the electrode tip to ignite the gas at the burner
• Integral ground bracket completes the circuit and sets the proper spark gap near the flame source
• Common symptoms: no spark at one position, intermittent ignition, continuous clicking, or cracked/corroded electrode or ground
• Intended for a single burner location; match mounting style and connector to your original

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Note the original electrode position and wire routing; remove the old assembly
• Install the new assembly with clean, tight metal-to-metal ground contact and correct gap to the burner per service instructions
• Reconnect the lead and test for a strong, consistent spark before reassembly

Left Rear

Right Rear

Right Front

Replacement igniter switch that restores spark ignition for gas cooktops and ranges, helping burners light reliably and reducing intermittent or no-ignite symptoms. Designed as a like-for-like control component when your original switch fails. What it does:

• Sends the electrical spark signal to the burner ignition circuit so the burner lights
• Stops clicking or sparking when the switch fails, which can cause burners not to ignite
• Addresses symptoms like intermittent ignition, continuous clicking without flame, or no spark from the burner electrode
• Works as the control point between user knob/ignition module and the spark system

• Turn off power to the appliance and shut off the gas supply before servicing
• Replace with the exact part number and match connector types; do not force-fit a non-matching switch
• After installation, test burners for proper ignition and check for gas leaks before normal use

This top burner valve switch mounts to a surface burner gas valve and closes the ignition circuit when you turn the knob to Lite. Replacing a worn switch restores dependable sparking and stops intermittent or nonstop clicking at the burners.

• Mounts on the surface burner valve and closes the ignition circuit at the Lite position
• Signals the spark module to fire the igniters so the burner lights
• Helps ensure quick, consistent burner ignition
• Common symptoms: no spark at a burner, intermittent ignition, or continuous clicking with knobs in Off

• Disconnect power and shut off the gas supply before servicing
• Pull off the burner knob and remove the control/manifold panel to access the valve switch
• Transfer wires one at a time and align the switch correctly on the valve stem; avoid overtightening
• Reassemble, restore power, test for spark with gas off, then relight and check for leaks

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Spark Module Kit is an OEM part for Whirlpool ranges. It is responsible for generating the spark needed to ignite the gas burners on the cooktop. The spark module sends electrical signals to the igniters, creating the spark that lights the gas for cooking.

Over time, the spark module can fail due to electrical issues, exposure to moisture, or normal wear and tear. When the spark module becomes faulty, it can lead to various problems with igniting the burners.

Symptoms of a bad spark module include:

• Burners not lighting or taking a long time to light
• No clicking sound when turning the burner knob
• Burners only lighting intermittently
• Visible sparks or arcing from the module

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: This part is only compatible with serial numbers starting with 21 and up on model 8351VV.

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

This is a replacement spark electrode. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a burnt-out or faulty spark electrode in various models of gas stoves and ranges.Spark electrodes provide a spark that will catch the gas in order to ignite the burner. If the burners will not light, or the gas igniter glows but won't ignite, this part may be the issue. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any appliances. Please make sure that the stove is entirely disconnected from gas and power before starting the repair work. Proper tools may be required to install this part. For more accurate information on how and where to install this spark electrode, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this spark electrode is suitable for use on several different models of refrigerators manufactured by Whirlpool, Maytag, KitchenAid, Amana, and other Whirlpool brands. This is a genuine part made of high-quality, durable, non-corrosive materials and is sold individually.

The Burner Cap is an OEM replacement part for Whirlpool gas cooktops and ranges. This cap sits atop the burner head and is responsible for evenly distributing the flame for consistent heating. Made from durable materials, it ensures efficient cooking performance while protecting the burner head from debris and spills.

Causes of a bad Burner Cap can include physical damage such as cracks or chips due to accidental drops, exposure to excessive heat over time, or buildup of food and grease that affects its functionality. A poorly fitting cap can also result in uneven flame distribution or inefficient cooking.

Symptoms of a bad Burner Cap include:

• Uneven flame or difficulty in lighting the burner
• Visible damage such as warping, cracks, or chips
• Food or grease buildup that is hard to clean

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The front venturi is the front section of the burner venturi tube that mixes air with incoming gas for proper burner combustion. Replacing a damaged or clogged venturi helps restore reliable ignition and a steady flame. What it does:

• Directs and mixes air with gas before the burner to support stable, even flames.
• A worn, cracked, bent, or clogged venturi can cause weak flames, uneven heat, or difficulty lighting.
• Sits at the front portion of the burner venturi assembly and aligns gas flow into the burner head.
• Works with the rest of the burner components to maintain proper combustion characteristics.

• Turn off gas supply and unplug appliance before servicing; follow all local codes for gas work.
• Remove burner grates and burner head to access the venturi; handle carefully to avoid deforming the tube.
• Inspect surrounding burner parts and clean any debris before reassembly.
• After reinstalling, check for correct ignition and a steady flame; perform a leak check if gas lines were disturbed.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

Rear venturi directs the gas/air flow from the valve to the burner for proper ignition and heating. Replacing a damaged or clogged venturi helps restore consistent flame and improve dryer heating performance. What it does:

• Channels and shapes the air/gas mixture to the burner assembly for reliable ignition.
• Helps maintain consistent burner flame and steady heating during operation.
• Commonly replaced when the dryer has weak or no flame, reduced heat, or intermittent heating.
• Fits the rear mounting location and mates to the burner/gas valve interface.

• Turn off the gas supply and unplug the dryer before beginning work; only service when the appliance is cool.
• Remove the dryer rear panel or access cover to reach the burner housing and venturi; handle internal components carefully.
• Inspect gaskets and seal surfaces; replace any damaged seals and check gas connections for leaks after reassembly.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This is the replacement cooktop, also called the main top, for sealed-burner gas units. It forms the cooking surface around the burners to contain spills, restore appearance, and keep grates and burner parts seated securely for safe, even heating.

• Forms the main cooking surface and supports burner heads/caps and grates
• Sealed-burner design helps keep spills on top, protecting components below
• Maintains proper burner alignment and flame pattern
• Common symptoms: cracks, chips, dents, rust, or warping; wobbly grates or gaps around burner openings

• Disconnect power and shut off the gas supply before servicing
• Remove grates, burner caps, and the screws securing burner heads; lift off the old top
• Transfer/reconnect igniters and wiring as equipped; avoid pinching wires during reassembly
• Restore gas and power, verify ignition on all burners, and check for leaks

This brass seal is used on range and cooktop tubing connections to create a tight, leak-resistant joint. Replace a deformed or worn seal whenever the line is serviced so the burner system operates safely. What it does:

• Forms a tight seal in a compression-style fitting between the tube and mating connector
• Helps prevent gas odors or hissing at the joint
• Can improve ignition and flame stability when a leaking connection is corrected
• Intended to be replaced when the connection is disassembled or the old seal is crushed/deformed

• Shut off gas supply and power before servicing; allow components to cool
• Inspect tubing and fitting surfaces; replace any nicked, bent, or out-of-round parts
• Align the tube squarely and tighten per OEM guidance—do not overtighten
• After assembly, leak-test the joint with an approved solution; if leaks persist, stop.
