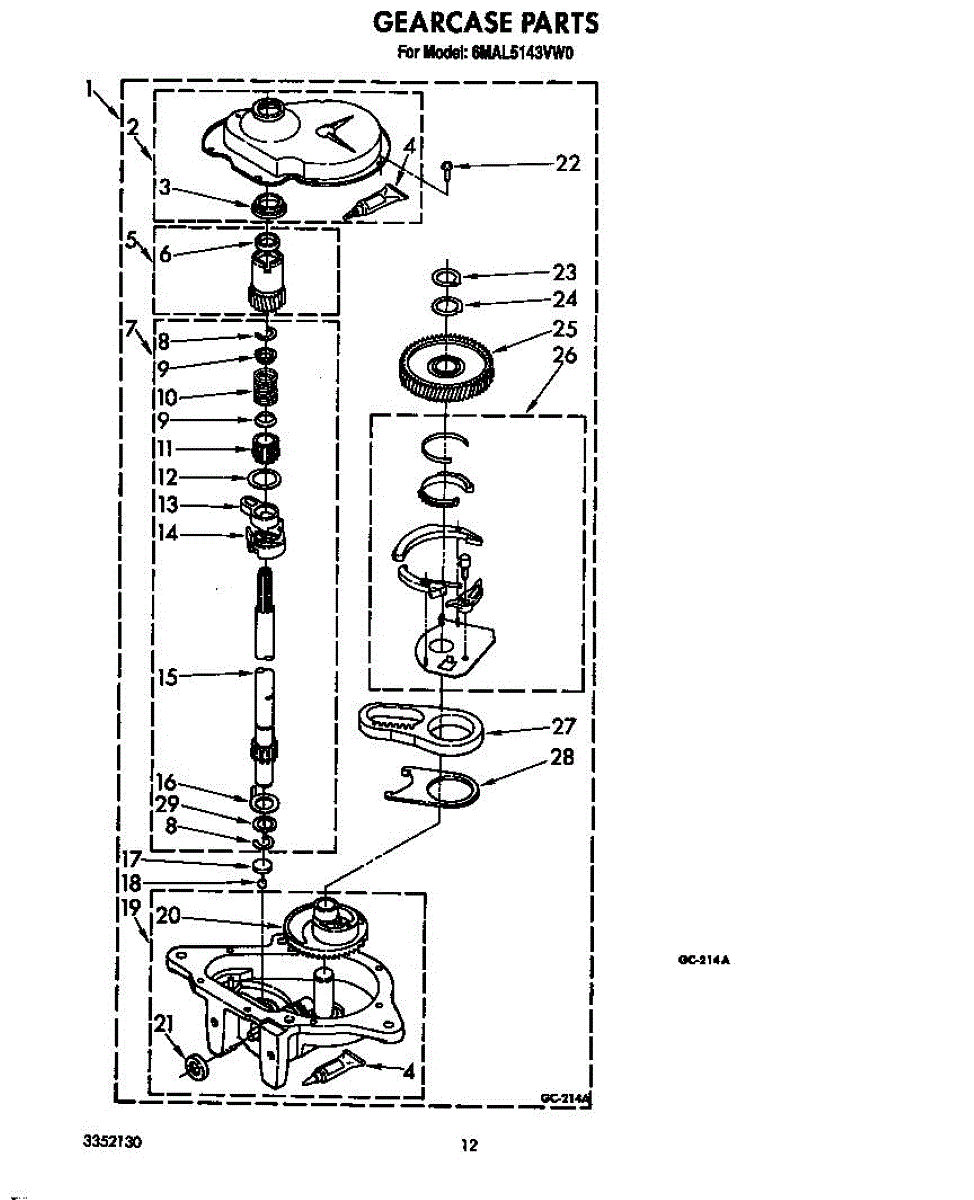

Parts for Whirlpool 6MAL5143VW0: Gearcase Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This gearcase assembly transfers motor motion to the dishwasher's wash components so spray arms and wash mechanisms turn smoothly for consistent cleaning performance. Durable housing aligns gears and bearings for reliable operation. What it does:

• Transfers drive from the motor to the spray arms and wash assembly
• Houses gears and bearings that control rotation and torque
• Helps restore normal spray-arm rotation and wash action
• Commonly replaced when rotation is sluggish, noisy, or intermittent
• Can reduce grinding noises or irregular wash performance when faulty

• Disconnect power (and water, if applicable) before beginning repair
• Remove access panels and other components as shown in your service manual
• Inspect surrounding seals and fasteners; replace damaged parts as needed

The Cover Seal is an OEM part for Whirlpool washing machines. This seal ensures a tight fit between the washer's cover and the tub, preventing water from leaking during the wash cycle. It helps maintain the efficiency and cleanliness of the washing process by keeping water contained within the tub.

Common causes of a bad seal include wear and tear over time, exposure to harsh detergents, or physical damage from regular use.

Symptoms of a bad cover seal include:

• Water leaking from the washer
• Excess moisture around the washer
• Visible cracks or deformities in the seal
• Reduced washing efficiency

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: .20 Fl. Oz. (6 ml)

The Transmission is an OEM part for Whirlpool washing machines. This integral component is at the heart of the washing machine's operation, translating the motor's power into action by driving the agitator and spinning the drum.

Regular inspection and maintenance can prolong the life of the transmission, but if these symptoms occur, it may be time to replace this critical component.

Symptoms of a bad Transmission include:

• The washing machine making unusual noises during the wash or spin cycles, such as grinding or whining sounds.
• The washer failing to agitate properly, affecting the cleanliness of the laundry.
• The drum not spinning during the spin cycle, leaving clothes wetter than usual.
• Leakage of transmission fluid beneath the washing machine.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Shaft Seal is an OEM replacement part for Whirlpool washing machines. It is designed to create a watertight seal around the tub shaft, preventing water from leaking out during the wash cycle. This seal ensures the proper functioning of the washer by maintaining the integrity of the water containment within the machine.

Over time, the shaft seal can degrade due to continuous exposure to water, detergent, and the mechanical stresses of the wash cycles. This wear and tear can lead to the seal becoming brittle or cracked, compromising its ability to prevent leaks. Additionally, improper installation or misalignment can also cause the seal to fail prematurely.

Symptoms of a bad shaft seal include:

• Water leaking from the bottom of the washing machine
• Excessive moisture or pooling water around the washer
• Unusual noises during the spin cycle
• Visible cracks or damage to the seal itself

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This agitator drive shaft sits inside the washer's gearcase and transfers motion to the agitator. Replacing a worn or stripped shaft restores firm engagement and reliable wash action while helping reduce slip and grinding during agitation.

• Transfers oscillating motion from the transmission to the agitator
• Provides the splined interface that engages the agitator/coupler
• Common symptoms include no agitation, intermittent/slipping agitation, or grinding/clicking from the gearcase
• Visible wear, rounded splines, or a bent shaft can lead to a loose or non-moving agitator

• Disconnect power and water; use proper PPE
• Requires removing the cabinet and gearcase; drain and reseal the gearcase per service procedures
• Keep gears, spacers, and clips in order; reassemble in the original orientation
• Inspect mating parts (agitator coupler/splines, drive block, seals) and replace if worn

This agitator drive shaft sits inside the washer's gearcase and transfers motion to the agitator. Replacing a worn or stripped shaft restores firm engagement and reliable wash action while helping reduce slip and grinding during agitation.

• Transfers oscillating motion from the transmission to the agitator
• Provides the splined interface that engages the agitator/coupler
• Common symptoms include no agitation, intermittent/slipping agitation, or grinding/clicking from the gearcase
• Visible wear, rounded splines, or a bent shaft can lead to a loose or non-moving agitator

• Disconnect power and water; use proper PPE
• Requires removing the cabinet and gearcase; drain and reseal the gearcase per service procedures
• Keep gears, spacers, and clips in order; reassemble in the original orientation
• Inspect mating parts (agitator coupler/splines, drive block, seals) and replace if worn

A replacement thrust bearing that supports the washer transmission shaft to reduce axial wear and help the gearbox rotate more smoothly. Use this bearing to address noisy transmission operation and reduce metal-on-metal wear when the original is worn. What it does:

• Supports axial load on the transmission/gearcase shaft to reduce friction and wear
• Helps prevent grinding, scraping, or other metal-on-metal noises from the gearbox
• Can reduce rough or noisy spin and improve agitation when a worn bearing is the cause
• Helps maintain proper alignment of transmission components for smoother operation

• Disconnect power and water supply and drain the washer before beginning any work.
• Replacement requires accessing the agitator/gearcase per the OEM service manual and may involve transmission/gearcase disassembly.
• Inspect nearby seals, fasteners and other bearings while servicing; replace damaged parts to avoid premature failure.

The Transmission is an OEM part for Whirlpool washing machines. This integral component is at the heart of the washing machine's operation, translating the motor's power into action by driving the agitator and spinning the drum.

Regular inspection and maintenance can prolong the life of the transmission, but if these symptoms occur, it may be time to replace this critical component.

Symptoms of a bad Transmission include:

• The washing machine making unusual noises during the wash or spin cycles, such as grinding or whining sounds.
• The washer failing to agitate properly, affecting the cleanliness of the laundry.
• The drum not spinning during the spin cycle, leaving clothes wetter than usual.
• Leakage of transmission fluid beneath the washing machine.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Gearcase Oil Seal is an OEM part for Whirlpool washing machines. This seal is located in the gearcase, preventing oil from leaking out while ensuring the internal components are properly lubricated. The kit contains two plastic seals that slide over the shaft to create a tight oil barrier.

Causes of a bad oil seal can include wear and tear over time, exposure to high friction and heat, or accidental damage during maintenance. A faulty oil seal can lead to oil leaks, which may cause further damage to the gearcase and other components.

Symptoms of a bad gearcase oil seal include:

• Oil leaks underneath the washer
• Loud noises during operation
• Washer not spinning or agitating properly
• Visible wear or damage to the seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Thrust washer kit with snap ring.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Neutral Drain Kit is an OEM part for Whirlpool washing machines. This kit facilitates the neutral drain function, which allows the washer to drain water without spinning the tub, ensuring efficient water removal before the spin cycle begins.

Causes of a bad neutral drain kit can include wear and tear over time, mechanical failure of the components, or damage due to improper installation or handling. A faulty neutral drain kit can lead to draining issues, affecting the overall performance of the washing machine.

Symptoms of a bad neutral drain kit include:

• Washer not draining properly
• Extended or incomplete drain cycles
• Water remaining in the tub after the drain cycle

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White.

Use only in brake shoe assembly on roller & pin. Color: White/Grey.

Catches lint, threads, and strings.

This syphon breaker prevents dirty drain water from being siphoned back into the dishwasher, helping maintain proper draining and protect wash water from contamination. It's a direct-replacement drain air-break for compatible dishwashers. What it does:

• Stops backflow/siphoning from the household drain into the dishwasher
• Helps maintain proper drain performance and prevents wastewater re-entry
• Can reduce odors and cloudy or soiled dishes caused by contaminated wash water
• Works as part of the dishwasher's drain plumbing to preserve wash hygiene

• Disconnect power to the appliance and turn off water supply before servicing
• Replace only with identical part and ensure correct hose routing and secure clamps
• Inspect adjacent drain hoses and connections; replace damaged hoses or clamps as needed

Color: Gray. Size: 13 oz. can. Used for coating the dryer drum interior. Acrylic appliance paint.

The Gear Case Oil is an OEM part for Whirlpool washing machines. It lubricates the gears and components within the washing machine’s transmission, ensuring smooth and efficient operation during the wash and spin cycles.

Causes of bad gear case oil can include degradation over time, contamination from water or debris, and leaks due to worn seals or gaskets.

Symptoms of a bad gear case oil include:

• Loud or unusual noises during the wash or spin cycles
• The washing machine not agitating or spinning properly
• Oil leaks visible under the washing machine
• Increased friction or overheating of the transmission components

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
