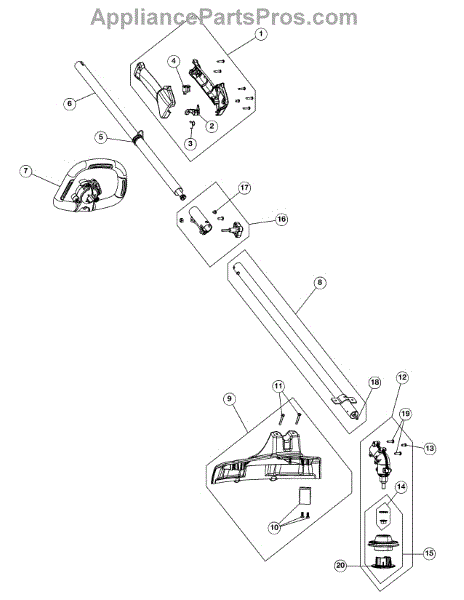

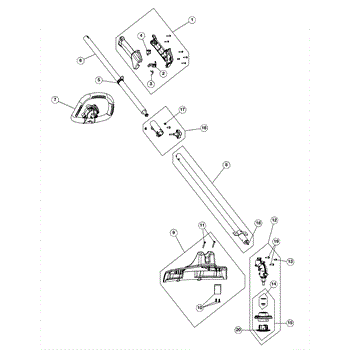

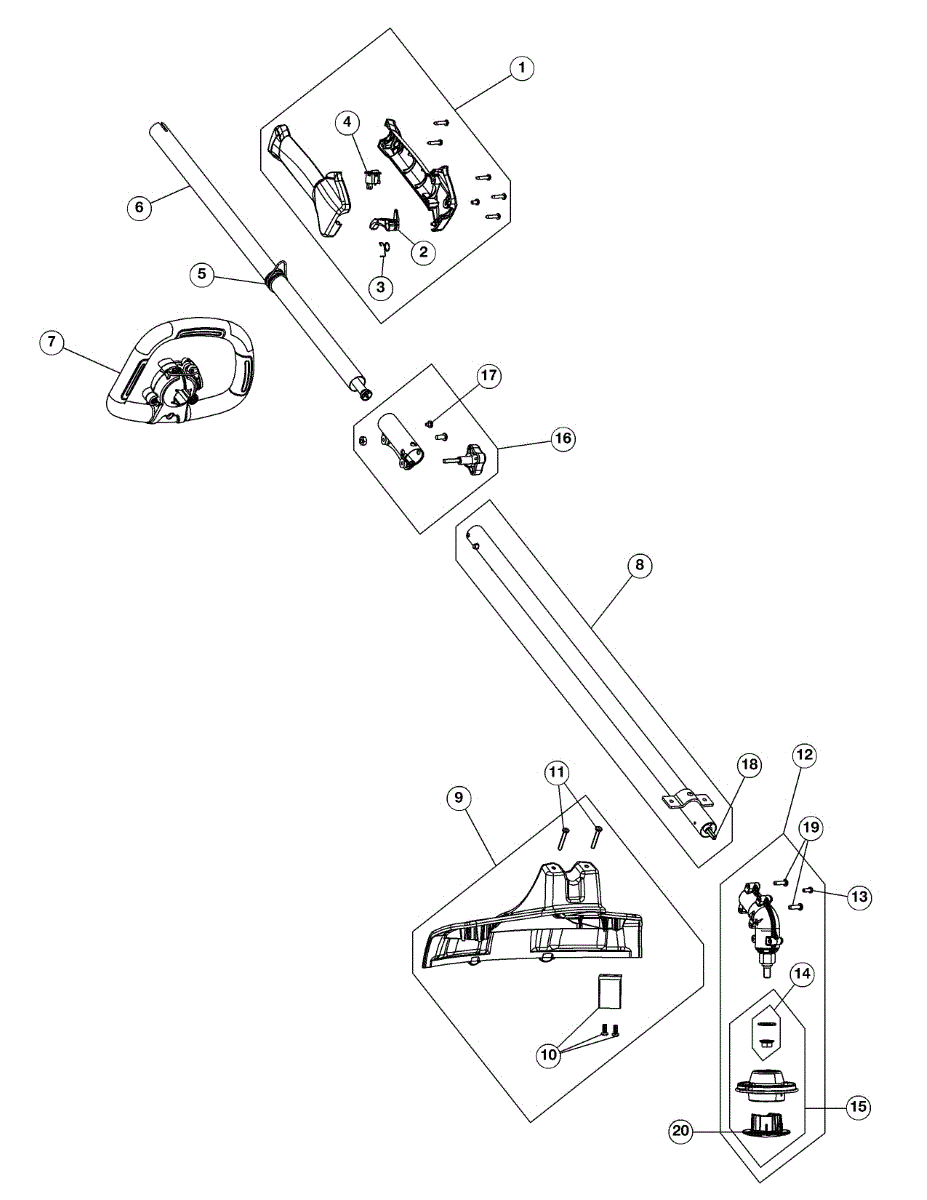

Parts for Craftsman 41ADZ24C799: General Assembly Parts

Throttle trigger handle for gas line trimmers. Mounts on the main handle shaft to control engine speed. Replace if cracked, broken, or unresponsive.

Replacement throttle trigger spring for gas line trimmers. Installs inside the throttle trigger assembly. Needed when original spring is broken or missing.

The On/Off Switch is an OEM part for MTD outdoor power equipment. This switch is a crucial component for the safe operation of various types of lawn and garden equipment, including lawn mowers, snow blowers, and other powered tools.

Causes of damage to the On/Off Switch often involve wear and tear from regular use, exposure to harsh outdoor conditions that can corrode or damage electrical components, or accidental impacts that can physically damage the switch.

Symptoms of a bad On/Off Switch include:

• The equipment failing to start
• The machine not stopping when the switch is turned to the off position
• Intermittent power or erratic starting and stopping

This OEM replacement part can be used on trimmers from Craftsman, Yard-Man, Cub Cadet, Bolens, Ryobi, Huskee, Troy-Bilt, MTD, Murray, and Yard Machines.

Upper boom assembly for gas line trimmers. Connects the engine housing to the cutting head. Replace if cracked, bent, or structurally damaged.

This OEM replacement part is a blade guard assembly. The blade guard assembly is the plastic piece attached to the side of a lawnmower which directs the grass outward away from the motor. With regular use, a blade guard will eventually begin to wear down. If the blade guard is cracked or broken in a way where it no longer attaches to the mower, it will need to be replaced. Luckily replacing a blade guard is a very simple repair.To replace the blade guard, simply pop the old guard out of its mounting attachment by pulling up and pushing it off of the mower. Once removed, snap the new blade guard into its mounting brackets and make sure it is locked in place. Once secured, it is ready to for use.This genuine replacement part is sold individually and is compatible with MTD brand lawnmowers.

Fastener hardware set for line trimmers. Replace missing, stripped, or damaged screws and nuts that secure internal components. Sold as individual set.

This is a genuine replacement for the line trimmer gearbox on select outdoor power trimmers. The gearbox is the housing that holds the gears responsible for turning the line reel. When the line reel turns, the string cuts grass and weeds. This part is made of durable metal, but it is also exposed to the elements and a lot of constant vibration, so it can become damaged over time and will need to be replaced. If the trimmer head stops spinning or there is a sudden grinding noise, it could indicate that this part needs replaced. It's important to use an OEM replacement for best results. This unit is sold as a complete assembly and includes the mounting hardware, three screws, head assembly, and the cap. A hex screwdriver, socket or wrench set, and Phillips screwdriver will be necessary to replace this part. Be sure to allow the unit to cool and wear gloves whenever performing repairs.This genuine OEM line trimmer gearbox is manufactured by MTD and compatible with machines from Craftsman.

Mounting screw for line trimmers and hedge trimmers. Secures components to the housing or engine assembly. Replace if stripped, missing, or damaged.

Replace your gas line trimmer's worn or broken head assembly. This component houses the cutting line spool and installs at the trimmer shaft end.

This is a coupler assembly that connects sections of the drive shaft inside a line trimmer, transmitting rotational power from the engine to the cutting head. It consists of interlocking components that click together to form a secure joint. Replace this assembly if the trimmer head stops spinning, spins intermittently, or if you hear rattling from the shaft area indicating a worn or broken coupler.

Fastening screw for lawn mowers, snow throwers, and trimmers. Secures components together. Replace if stripped, corroded, or missing during repairs.

Lower flexible drive shaft for line trimmer attachments. Mounts inside the lower boom housing to drive the trimmer head. Replace when worn round or cracked.

Replacement screw for lawn tractors, tillers, and trimmers. Used throughout various assemblies. Replace if lost, stripped, or damaged during repairs.

This tube line is a genuine MTD part, sold individually. This tube line can be used as a replacement part for string trimmers. The function of the tube line for a string trimmer is to spool out of the trimmer head assembly and rotate such that it can cut through grass, hedges, bushes, and other greenery. Over the standard lifespan of an average string trimmer, the tube line might suffer damage that can stop it from rotating and cutting properly. If the tube line is knotted and cannot be unspooled from the head assembly, it can be repaired. However, if this happens frequently or if the problem is not solvable with the existing tube line, the broken or malfunctioning tube line should immediately be replaced by this genuine OEM replacement part before using the string trimmer again. Remember to wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, and it is sold individually. This tube line is compatible with the following brands: MTD and Craftsman.
