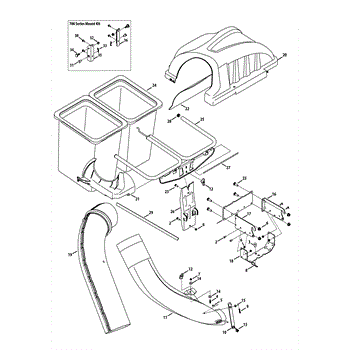

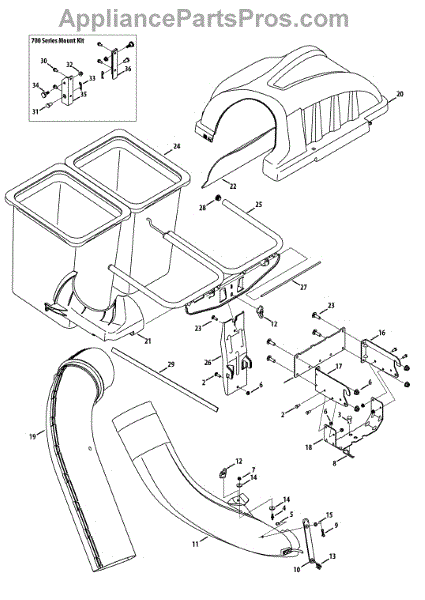

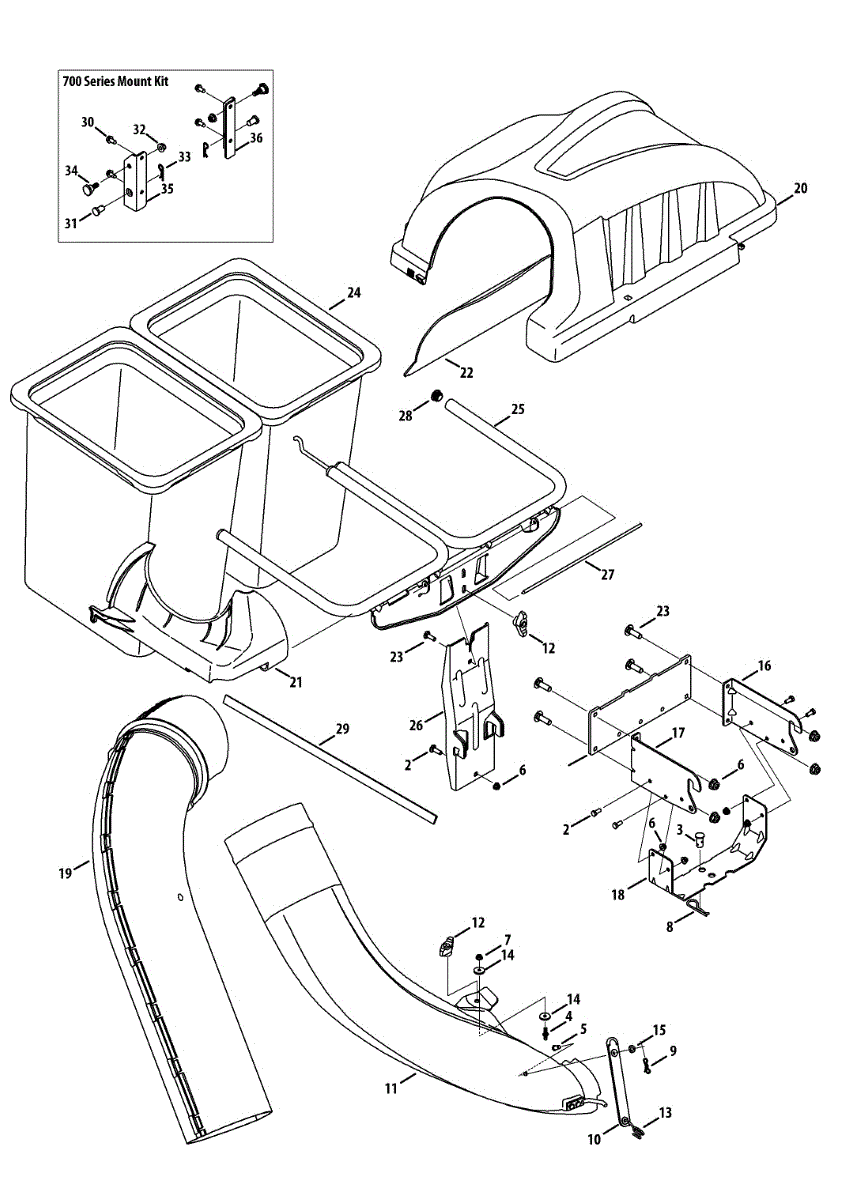

Parts for Oem-Attachments 19A30003OEM / 2012: General Assembly Parts

Mounting bracket kit for attaching grass bagger to lawn tractors. Replace broken, cracked, or missing brackets. Complete hardware included for secure install.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

Clevis pin for lawn tractors and zero-turn mowers. Secures linkage connections in steering, deck lift, or control systems. Replace if bent, worn, or missing.

Secures the discharge chute elbow on grass catchers and lawn mowers. Replace if pin is missing, bent, or broken to properly attach the chute assembly.

Secures components on grass catchers and lawn equipment. Replace if pin is bent, broken, or missing to restore proper attachment and safe operation.

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

Secures pins and shafts on lawn tractors and riding mowers. Replace if bent, missing, or worn. Bow-tie design inserts through pre-drilled holes.

Secures the chute assembly on your grass catcher attachment. Replace if the strap is cracked, broken, or missing to properly hold the chute in place.

Hex cap screw fastener for outdoor power equipment. Secures components with hexagon-shaped head. Replace if stripped, broken, or missing threads.

Replaces cracked or broken lower chute on lawn mowers. Durable plastic housing that protects internal components. Direct fit replacement for worn parts.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Wing knob for lawn mowers and snow blowers. Secures chutes, bagger frames, and adjustable components. Replace if cracked, broken, or missing.

Torsion spring for lawn equipment grass catchers. Replace if spring loses tension or bag won't stay properly positioned. Verify fit with your model number.

Flat washer for lawn tractors and outdoor power equipment. Secures fasteners and prevents loosening. Replace if worn, damaged, or missing during repair.

Flat washer flange for lawn mowers, snow throwers, tillers, and edgers. Replace when washer is missing, damaged, or worn to ensure proper assembly.

Support bracket that mounts grass bag attachment to lawn tractor frame. Replace if bracket is bent, cracked, broken, or missing to secure bagger system.

Grass clippings not reaching the bag? This upper chute assembly connects the lower chute to your bagging system. Replaces deteriorated plastic chutes.

Upper chute for lawn tractor grass catcher attachment. Protects internal parts. Replace if cracked, broken, or damaged from impact or wear.

Replace your grass catcher bagger cover screen when damaged or clogged to restore proper airflow and clipping collection. Verify fit with your model number.

Carriage bolt fastener for lawn and garden equipment. Replaces worn, stripped, or missing bolts that secure deck components and attachments.

Collection bag for grass catcher attachments on lawn tractors. Replaces worn, torn, or missing bags. Installs on rear-mounted grass catchers.

This part is a replacement handle plug. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective or broken handle plug in tillers.This handle plug ensures that the opening at the end of the handle is sealed properly. This part can easily become worn, detached, or lost and thus will require replacement with a genuine part. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this handle plug, the appropriate owner's manual and equipment diagrams should be referred to. This handle plug is a genuine OEM part made of durable materials and is sold individually. It is suitable for use with tiller models that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

Adhesive foam tape for grass catcher assembly on lawn tractors. Replaces worn, cracked, or missing tape that secures components and dampens vibrations.

Hex head self-tapping screw for outdoor power equipment. Securely fastens components throughout your machine. Replace if missing, stripped, or worn.

Metal clevis pin secures parts on lawn tractors and riding mowers. Replace if bent, worn, or missing to restore proper attachment and connection.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

Click pins are used in various lawn equipment machines to hold the wheels on. For larger riding lawn mowers, click pins are only used on the smaller front wheels. The click pin penetrates through the axle spindle to hold the tire in place. The part can get lost, damaged, or wear out with regular use. It's also possible to misplace the click pin when changing a tire because it has to be removed first before working on the wheel. A missing, damaged, or worn click pin must be replaced.Click pins are very easy to replace with only a pair of pliers. Wear gloves when making the repair. Start by pulling out the old click pin from its location with the pliers. Insert the new click pin back into the hole located in the spindle.This click pin is a genuine OEM replacement part. It is made with durable, high-quality metal. It is supplied by the manufacturer. It is compatible with both MTD and Murray brands. The equipment the click pin can be used with includes lawn tractors, lawn machines, and other lawn equipment. It is sold as an individual unit.

Replacement shoulder screw for walk-behind mowers. Secures components and maintains proper spacing. Needed when original is stripped, missing, or damaged.

Mounting bracket that secures grass catcher bag to mower deck. Replace if bracket is bent, cracked, or broken preventing secure attachment of bagger.

Bracket assembly for lawn equipment that connects internal components. Replace if bracket is cracked, bent, broken, or missing to restore secure mounting.
