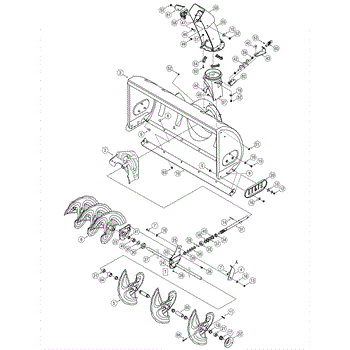

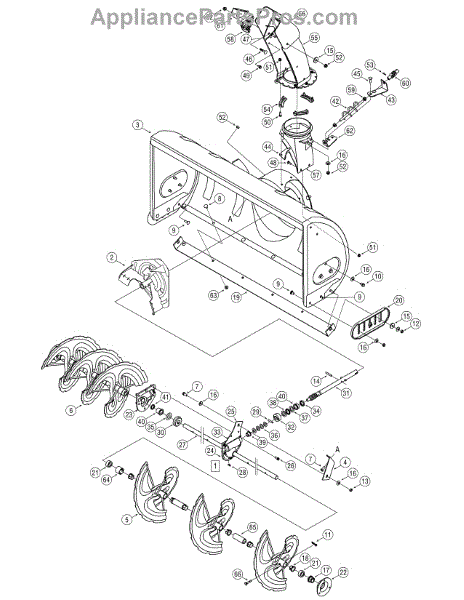

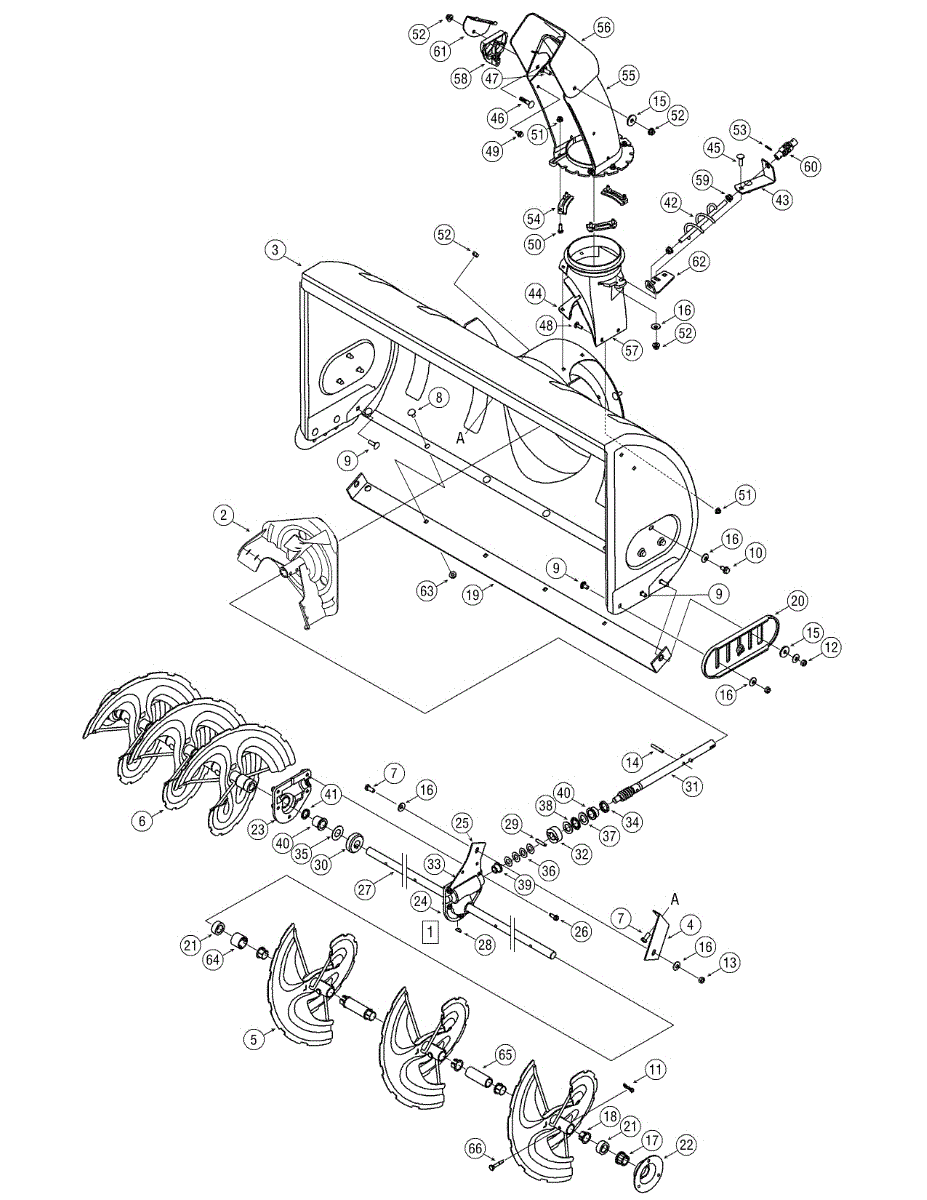

Parts for Oem-Attachments OEM-190-032 / 2008: General Assembly Parts

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

This carriage bolt is a fastener with a flat tip and a round head with threading along the shank. Also known as coach bolts and plow bolts, the item can be used with many types of lawn and garden equipment. This is a 5/16 carriage bolt that resists turning after the bolt has been tightened. Wear and tear or impact can cause damage to a carriage bolt and lead to the need to replace them.Removing a carriage bolt requires twisting the nut loose from the end of the bolt and then hitting the nut with a hammer. This will begin to move the shoulder out of the lawn equipment. Continue the process until the bolt is loose enough to remove. Installing a new carriage bolt simply requires sliding the bolt into the hole, adding the nut, and tightening things up.This carriage bolt is designed for use with Craftsman, MasterCut, Toro, Yard-Man, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines lawn and garden equipment. It can be used with lawnmowers, chainsaws, snowblowers, edgers, and tillers. This is a genuine OEM product sourced directly from the manufacturer as an individual component.

This is a self-tapping screw that can be used on a wide variety of lawn and garden equipment in many applications. A self-tapping screw is used to secure metal, wood, plastic, and brick together. When using a self-tapping screw, there's no need to drill a pilot hole since the screw makes its own hole. The only exception is with metal, which will still need a drilled hole before installation. There are many situations when a screw may need to be replaced. Some screws are damaged or broken, while others can become loose and no longer hold materials together. Screw heads can become stripped, which will also mean they need to be replaced. A visual inspection can often give an indication of whether you should replace a self-tapping screw. This is a genuine OEM hex head screw that can be used on various lawn and garden equipment, including wood chippers, lawn mowers, snowblowers, log splitters, tillers, edgers, and leaf blowers. It's compatible with products by MasterCut, Craftsman, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Troy-Bilt, Montgomery Wards, Murray, Huskee, Yard Machines, MTD, and more. This screw is sold individually.

A cotter pin, also known as a hitch pin, is used to secure pins and shafts in place. Meant for snowblowers, riding lawnmowers, and lawn tractors, this bow-tie shaped cotter pin has a double-end design making it easy to pull or push through either side of a pre-drilled hole. This pin snaps into a locked position without tension, keeping it secure during operation. Designed for lawn and garden maintenance equipment, this part ensures secure fastening. If the power equipment is used frequently, cotter pins may have to be replaced regularly so it would be practical to keep extra bow tie cotter pins on hand. It is highly recommended that work gloves be worn during the installation of this part. This part is compatible with Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and MasterCut brands of lawn mower, snowblower, and log splitters. This is a genuine OEM replacement part that is sold individually.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This replacement part is a flange bushing, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This flange bushing is typically found in snow throwers but is compatible with other devices as well. The flange bushings are an important part of many appliances as they help reduce friction inside the machine. A new flange bushing might be needed if the current ones are broken or damaged in any way. It is common that different machinery needs multiple flange bushings. These small but important parts are placed around tubes or poles and are meant to assist during the rotating or sliding mechanisms. Be sure the machine is completely powered off and cooled down as the area with the bushings is often hot from friction. See the owner's manual for more exact instructions before attempting to replace this part. These flange bushings are sold as a set and are OEM replacement parts. These flange bushings are compatible with lawn equipment made by MTD.

This part is a replacement spacer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a defective or broken spacer in outdoor power equipment. Spacers ensure that vibration, friction, and heat are kept to a minimum when components are moving. They are subject to significant wear and tear over time or with regular usage, thus requiring replacement when no longer effective. When working on or near an engine, it's important to ensure that the equipment is powered off and completely cool before beginning any repairs. For more accurate information on how and where to place this spacer, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this spacer is suitable for use on outdoor power equipment manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Please note that this is a genuine part made of high-quality, durable metal and is sold individually.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

This worm shaft is a genuine MTD part, sold individually. This worm shaft can be used as a replacement part for a lawnmower, a lawn tractor, or a snowblower. This worm shaft provides a mounting on which the impeller can rotate within a centrifugal pump mechanism.The worm shaft might have to be replaced within the standard lifespan of such an outdoor appliance if it suffers damage that renders the component beyond functionality. This damage could take the form of punctures, scrapes, tears, or erosion to the metal material of which the worm shaft is compromised. If this occurs, the worm shaft should be removed and replaced with this genuine OEM replacement part. Remember to wear work gloves as a safety precaution while repairing or replacing parts within an outdoor appliance. This is an OEM part sourced directly from the manufacturer. It is sold individually. This worm shaft is compatible with the following outdoor appliance brands: MTD, Yard Man, and Troy-Bilt.

This replacement part is a thrust collar. It is a genuine replacement part made by MTD. Thrust collars are small but important in many different types of machines and appliances. They are used to secure two different parts together.A new thrust collar might be needed if the user notices that the current one is damaged or missing. Due to the nature of this part, it is common that it can become stripped over time or misplaced from its position. Be sure to refer to the proper owner's manual for more details on how to replace this part. It is recommended that the user wear work gloves when replacing this part. This thrust collar is sold individually and is sourced directly from the manufacturer. This is also a genuine OEM replacement part to ensure proper fit and long-lasting use.

This grease plug is a genuine OEM replacement part sourced directly from the manufacturer. It is found on snowblowers and other outdoor yard machines on the gearcase assembly, which houses the auger gear. The grease plug seals the oil port on the gearbox. This keeps lubrication inside the gearbox and is the access point for adding more when needed. If this plug is lost, the gearbox's oil could leak out, and contaminants could get into the gearbox.Lubricate the contents of the gearbox before installing the new grease plug. Locate and remove the two screws on the side to drain the gearbox. Install the grease plug in the bottom. Refill the oil using the vent hole. Continue filling until oil is coming out the top side screw. Close everything back up, and the machine is ready for use. To prepare the equipment for long storage, remove the grease plug and check the oil level. If it is not to the top, add more lubricant before sealing the grease plug.This grease plug is made of durable black molded plastic and is sold as an individual unit. It is compatible with snowblowers and snow throwers manufactured by Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, and Husky.

This is a genuine OEM oil seal sourced directly from the manufacturer for use in the engines of snowblowers and snowthrowers. Oil leaks are prevented using this oil seal on the worm shaft and beside the bearing-flange. It is made from durable plastic that is designed for heavy use; however, over time, the seal can become worn or damaged. Damage or wear to the oil seal can result in oil leaks and loss of engine performance. The oil seal will need to be replaced if oil is leaking from the snowblower. Replacing the oil seal will require a wrench set, pliers, and socket set. Following the diagram for the correct equipment model, disassemble the engine to reach the worm shaft and remove the damaged oil seal. Clean any old lubricant on the area. Install the new oil seal with fresh lubricant. Replace the engine parts in reverse order. Regular lubrication of the worm shaft will add to the engine's performance and prolong the life of the oil seal.This oil seal is sold individually. It is made for snowblowers and snow throwers manufactures by Ryobi, MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.

This flange bearing is a genuine MTD part, sold individually. A flange bearing can be used as a replacement part in a snowblower or a chainsaw. The purpose of this genuine OEM part for one of these outdoor appliances is to facilitate the rotation of one or more components within the internal machinery of the appliance while reducing friction between the components.The flange bearing in a snowblower or a chainsaw might need to be replaced if the component ceases to serve its typical function for the appliance. If the flange bearing has been subject to damage in the form of puncturing, denting, cracking, warping, or eroding to the extent that it has diminished functionality, it should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This flange bearing is compatible with the following outdoor appliance brands: MTD, Cub Cadet, and Yard Machines.

This carriage bolt is a fastener with a flat tip and a round head with threading along the shank. Also known as coach bolts and plow bolts, the item can be used with many types of lawn and garden equipment. This is a 5/16 carriage bolt that resists turning after the bolt has been tightened. Wear and tear or impact can cause damage to a carriage bolt and lead to the need to replace them.Removing a carriage bolt requires twisting the nut loose from the end of the bolt and then hitting the nut with a hammer. This will begin to move the shoulder out of the lawn equipment. Continue the process until the bolt is loose enough to remove. Installing a new carriage bolt simply requires sliding the bolt into the hole, adding the nut, and tightening things up.This carriage bolt is designed for use with Craftsman, MasterCut, Toro, Yard-Man, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines lawn and garden equipment. It can be used with lawnmowers, chainsaws, snowblowers, edgers, and tillers. This is a genuine OEM product sourced directly from the manufacturer as an individual component.

This is a carriage bolt, which is found on lawnmowers, snowblowers, and many other types of lawn and garden equipment. The carriage bolt is made of metal and the location will vary based on the model of the tool. The carriage bolt is used to fasten together two components on lawn and garden equipment. It can become damaged, break, or stripped and will need to be replaced.If the carriage bolt is broken, stripped, or has damage, a wrench will be needed to replace it. Make sure that the spark plug wire has been disconnected and the tool is turned off before you begin. Use the wrench to remove the carriage bolt before installing the new part in the same location. Replace any additional disassembled components removed to gain access to the bolt before using the tool.This carriage bolt is sold as an individual component. It is a genuine OEM replacement part that is sourced directly from the manufacturer. The bolt is designed to work with lawnmowers, chainsaws, snowblowers, tillers, and leaf blowers manufactured by Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Husky, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

This spacer is a genuine MTD part that can be used as a replacement part for several different kinds of small engines, including lawn mowers, snowblowers, and wood-chippers. A spacer's function is to serve as a means to lengthen the distance between parts by fitting over a bolt or a screw to secure and maintain that distance. A reason to replace a spacer might be simply losing or misplacing the spacer itself, as it is small and can easily fall through cracks or unscrew itself over long periods of time. Other reasons include the gradual rusting, deterioration, bending, or cracking materials that can be attributed to general overuse or long-term exposure. If a spacer is subject to any of this kind of damage, it is best to replace it before using an appliance that requires a functioning spacer, as the malfunctioning spacer might cause permanent or serious damage. Always wear gloves when handling, repairing, and operating outdoor equipment. This spacer part is compatible with the brands MTD, Troy-Bilt, Yard Machines, and Yard-Man. This part is sold individually.
