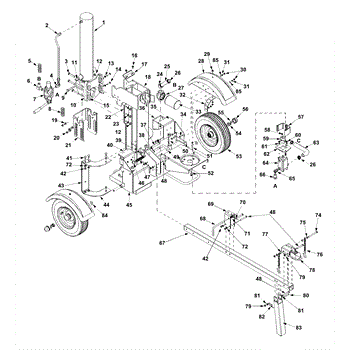

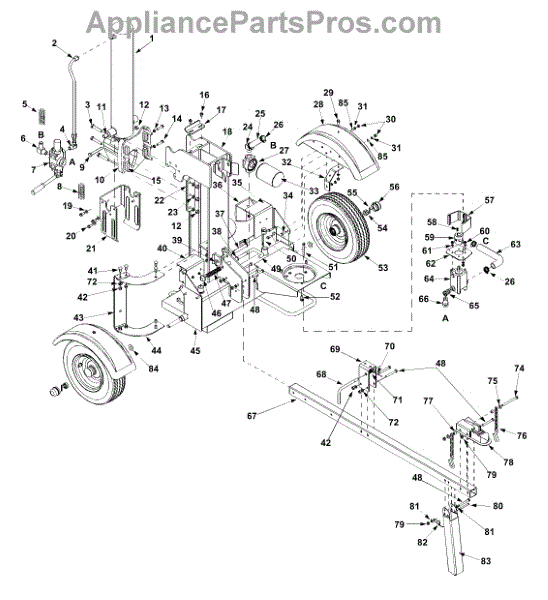

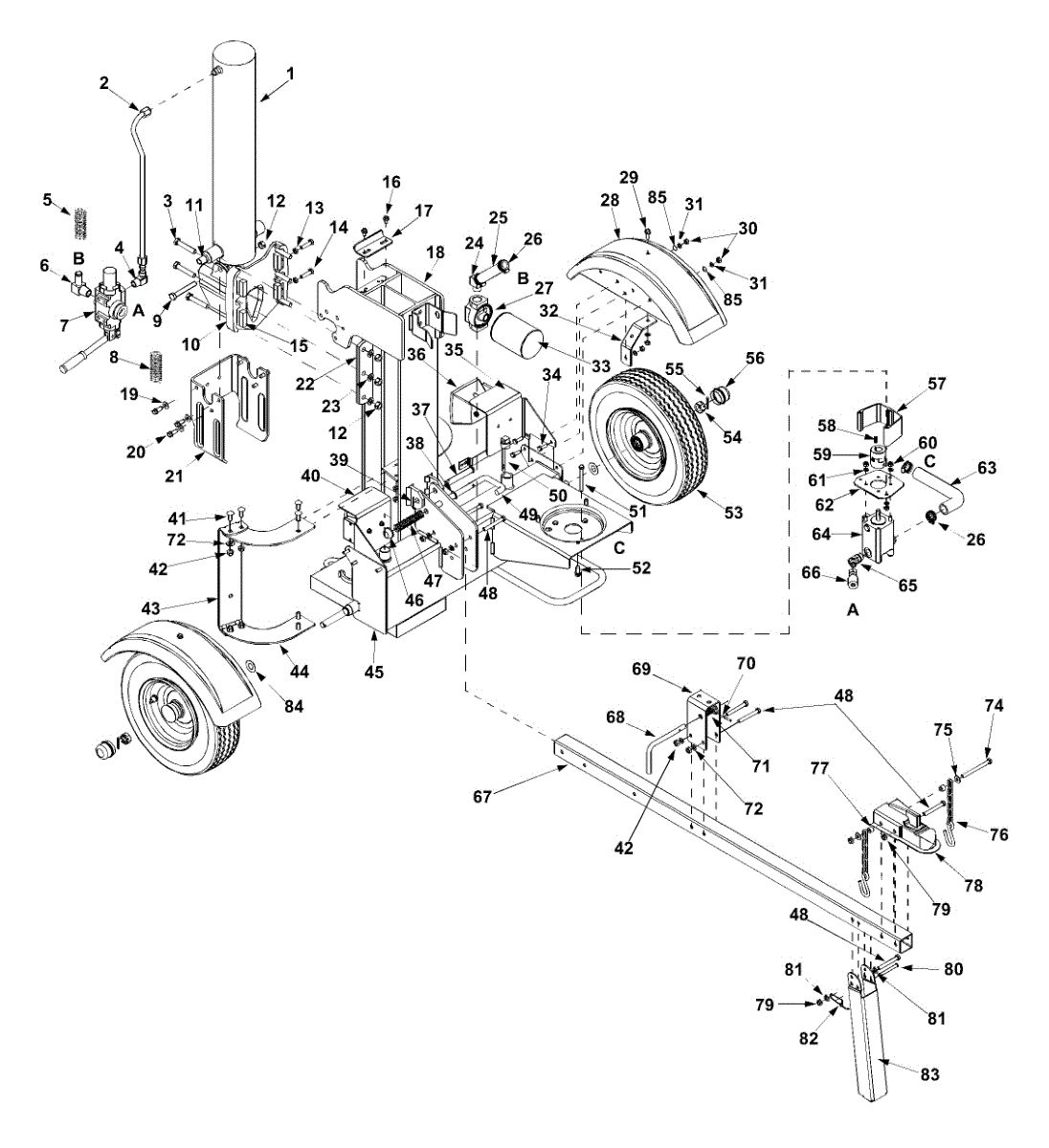

Parts for Yard Machines 24BF560D062 / 2004: General Assembly Parts

This seal kit is a genuine MTD part, sold individually. This seal kit provides a variety of replacement seals for use in a log splitter.The seal kit in a log splitter might have to be ordered as a complete replacement part if one or more seals show signs of damage. If the seals in a log splitter allow external materials such as dirt, debris, pebbles, and dust to pass into the appliance or if there are frequent oil leaks stemming from the area of one or more seals, this seal kit should be ordered as a genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This seal kit is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, and Yard Machines.

This part is a replacement cylinder seal kit. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace worn, broken, or defective seals in a variety of log splitter models.This cylinder seal kit provides all necessary replacement seals for a log splitter cylinder. Seals are important for preventing leaks and ensuring smooth running of equipment. They are subject to significant wear and tear and can easily become brittle, cracked, or otherwise damaged over time. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install these cylinder seals, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this cylinder seal kit is suitable for use on several different models of log splitters manufactured by MTD, Yard Machines, Cub Cadet, Yard Man, Bolens, and Troy-Bilt. This is a genuine part made of high-quality, durable materials and is sold individually.

This part is a replacement hydraulic hose. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a defective or broken hydraulic hose in a variety of log splitter models. The hydraulic hose is what moves hydraulic fluid from the log splitter's valve to the hydraulic cylinder. This part is essential for proper equipment functionality and will need to be replaced if bent, dented, snapped, or rendered ineffective in any way. When working on or near an enginee, it is important to ensure the equipment is powered down and completely cool before beginning repairs. For more accurate information on how and where to place this hydraulic hose, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this hydraulic hose is suitable for use on log splitters manufactured by MTD, Craftsman, Troy-Bilt and other brands. Please note that this is a genuine part made of high-quality, durable materials and is sold individually.

Replacement hex bolt for lawn tractors, log splitters, and wood chippers. Secures components when original is stripped, missing, or corroded.

Threaded nipple pipe connector for lawn tractors, log splitters, and chippers. Replace if cracked, stripped, or leaking to restore secure fitting.

Secures bolts and prevents loosening on mowers and tractors. This hex jam nut locks standard nuts in place for reliable fastening. Easy installation.

Hex screw for lawn mowers and outdoor power equipment. Replaces lost, stripped, or damaged hardware. Secures components and panels during assembly.

This part is an adjustable gib that is used on log splitters and chipper shredders. This component is also called a keyway. The adjustable gib locks two shafts together so that they can rotate.A new adjustable gib may be needed if the shaft is freely spinning and will not spin with the drive shaft. If the adjustable gib is cracked, broken, or damaged in any way, it will need to be replaced. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment. Never perform care and maintenance on outdoor power equipment that is powered on.This adjustable gib is a genuine MTD part. It is sold individually. This specific adjustable gib is compatible with log splitters and chipper shredders that are manufactured by MTD, Yard Machines, Cub Cadet, Yard-Man, Husky, and Troy-Bilt.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This part is a replacement return hose. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or detached return hose in a variety of outdoor power equipment. The return hose returns any excess fuel from the carburetor back into the fuel pump. Over time, this part can become worn or may be punctured, which can cause fuel leaks. In this case, it should be replaced immediately before the equipment is used again. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this return hose, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this return hose is suitable for use on several different models of chippers, shredders, and log splitters manufactured by MTD, Troy-Bilt, Yard Man, Cub Cadet, Husky, and Yard Machines. This is a genuine part made of high-quality, durable materials and is sold individually.

This is an oil filter designed for use in larger gasoline-powered landscaping and outdoor equipment such as log splitters and chippers. An oil filter is an essential safeguard to maintain a good operating condition and ensure long life in a gas engine. Oil filters remove toxic chemicals as small pieces of debris that can end up in the engines. Because these contaminants, if improperly removed, could also end up in the air or in the environment in other ways, oil filters must be meet EPA emission regulations. This filter not only meets federal environmental standards but also is an OEM guaranteed replacement part that is manufactured to the identical specification of the original parts being replaced. By the very nature of what it's supposed to accomplish, eventually, the filter will need to be replaced. Over time the filter's elements will become full of debris, and failing to replace it in a timely manner runs the risk of allowing the captured pollutants to escape back into the engine oil. When replacing the old filter, make sure to follow environmental guidelines as well, disposing of the oil and filter according to posted regulations. Replacing the filter is the ideal time to replace the engine oil as well. This filter is compatible with Husky, Cub Cadet, Troy-Bilt, Yard-Man, and MTD equipment.

Hex cap screw for securing components on lawn mowers, tractors, and outdoor power equipment. Replace if stripped, rusted, or missing hardware.

Replace a lost, stripped, or corroded nut on your lawn mower, tractor, or outdoor power equipment. Secures components for safe operation.

This OEM replacement push cap can be used in a variety of lawn and garden equipment. The push cap is secured to the end of a shaft, providing protection to the user from the sharp metal edge of the shaft. The push caps that are included with the machines may wear out over time or fall off in some cases, creating an injury risk involving sharp metal edges. These push caps are high-quality and made from durable plastic. They are easy to install. The OEM push cap is a genuine part made by the original manufacturer, to ensure quality and s proper fit. The push caps can be used on lawn tractors, chippers, shredders, log splitters, and other equipment. Some of the brands that this push cap is compatible with include MTD, Husky, Yard-Man, Bolens, Troy-Bilt, Ryobi, Yard Machines, and cub Cadet.

Replacement spring for lawn tractors and riding mowers. Restores tension and function when original spring is broken, stretched, or missing.

Replacement locking rod for log splitters. Secures and fastens components together. Order a new rod if yours is bent, broken, or missing.

Log Splitters use this plug pipe to cover the oil tube and measure the amount of oil in the engine with the included dipstick. The dipstick sits inside the oil tube, and when it is pulled out, the amount of oil is determined by the markings on the dipstick. If the plug pipe is lost or misplaced while replacing the oil or making repairs to the engine, it will need to be replaced to prevent oil from leaking and to keep the pressure inside the oil tube optimal. Maintaining the correct oil level in all engines is critical to keeping the engine running. If the engine runs without oil, major damage can be done to the pistons and other parts, making the engine seized and have to be replaced. It is less expensive to maintain the oil than it is to replace the engine. This plug pipe with dipstick is an OEM replacement part that is sourced directly from the manufacturer. It is a gold-colored metal part with an attached dipstick. It is sold as an individual unit that is designed to be used on log splitters manufactured by MTD, Troy-Bilt, Yard-Man, Cub Cadet, and Yard Machines.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

Replacement tire and rim assembly for chipper shredders and log splitters. Installs on wheel axle for easy equipment transport. Order when damaged or worn.

This nut, or slotted nut, is a genuine MTD part. It is a replacement part for use on lawn mowers, log splitters, wood chippers, lawn tractors, and chipper shredders. It is hexagonal in shape.The uses for this nut vary greatly depending on the machine with which owners plan to use it. Generally speaking, nuts work to secure various parts of components together. Loosening and tightening most nuts can be accomplished with a wrench. Before making any repairs, be sure that the engine has completely cooled, empty the fuel tank to avoid spillage, and disconnect the spark plug or battery. Wear work gloves and other protective gear.This nut is a genuine OEM part sourced directly from the manufacturer. It is sold individually; very often, more than one nut is used on machines such as these, so be sure to check how many are needed. It is designed for compatibility with various machines made by Agway Craftsman, Cub Cadet, Duerr, MTD, Lawn Chief, OEM, Ranch King, Remington, Ryobi, White Outdoor, Yard Machines, and Yard-Man.

Secures wheels and attachments to axles on lawn mowers and tractors. Replace if bent, rusted, broken, or lost to restore safe equipment operation.

This hubcap is an authentic OEM replacement part sourced directly from the manufacturer for use on log splitter and chipper wheels. The hubcap covers the central opening of the wheel assembly. This prevents dirt and debris from getting into the wheel assembly. If the hubcap comes off during use or is lost when replacing tires, a new one should be installed. The machine will work without a hubcap; however, the interior wheel assembly will be open to flying debris and could be damaged if rocks or large limbs go into the wheel assembly. During routine inspection and maintenance, the hub caps should be checked for damage and to make sure they are in place.The hubcap is easily removed and replaced with a screwdriver needed to pry the old hubcap off if it is still on the machine. The new hubcap simply snaps into place. This hubcap is made of high-quality metal and is sold individually. This hubcap is designed to be used with log splitters and chippers manufactured by MTD, Cub Cadet, Troy Bilt, Husky, and Yard-Man.

This replacement part is a coupling shield. This is a genuine replacement part made by MTD. This small part is important to many different types of machinery. This part is commonly used to assist pipes in or around the engine so that everything is able to run smoothly and effectively. A new coupling shield might be needed if the parts are no longer holding in place. Wear and tear over time can cause the parts to become loose. If this is the case, they should be replaced or repaired. Coupling shields are made of durable metal and will last a long time. Be sure the engine is shut down and cooled off before replacing this part. This part is also a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer for long-lasting use.

Log splitter won't engage or makes grinding noises? This jaw coupling connects drive shafts and absorbs shock loads. Moderately easy DIY repair.

Log splitter won't engage or pump shaft disconnected? This .875 coupling connects the engine shaft to the hydraulic pump for proper power transfer.

Fixes jaw coupling connection issues in chipper shredders. This spider bushing transmits torque between metal hubs. Simple replacement part.

Hydraulic hose transports fluid between ports in log splitters and lawn equipment. Replace if cracked, leaking, or damaged. Verify fit with your model.

Replace the tongue tube on your log splitter. This structural component connects the unit to your towing vehicle. Order a new tube if yours is bent or damaged.

Log splitter won't stay closed or latch broken? This latch secures your log splitter for safe operation. Direct-fit replacement restores proper function.

This flat washer is used to attach the idler pulley in a number of small and medium sized gasoline powered engines. These engines include snow blowers, log splitters, riding mowers, lawn tractors, and chippers. Because the idler pulley is subject to a great deal of resistance when the pulley is engaged, eventually the pulley will wear out. Should there be a squealing sound when engaging the drive, the problem is likely the idler pulley. In these cases, the pulley must be replaced. It is a good idea to replace the surrounding hardware when replacing the idler pulley; tNhis includes the flat washer, which is subject to corrosion during heavy use. To replace the idler pulley, first detach the spark plug cap. If on a mower or tractor, drop the mower deck. Remove the original pulley and install in order: replacement pulley, hex bolt, flat washer, flange nut. Apart from dropping the mower deck, the only tools required to complete this installation may be a 9/16 ratchet and combination wrench. This washer is a genuine OEM replacement part, designed to perfectly replicate the original piece. This washer is compatible with Troy-Bilt, Yard Man, Yard Machines, MTD, and Craftsman devices.

Hex center nut secures components on lawn mowers and outdoor power equipment. Replace if stripped, corroded, or missing to ensure proper assembly.
