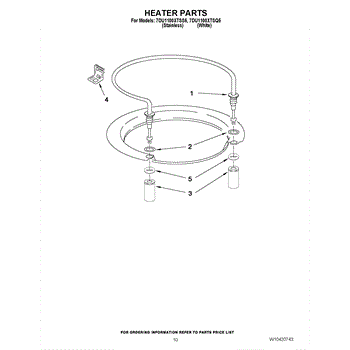

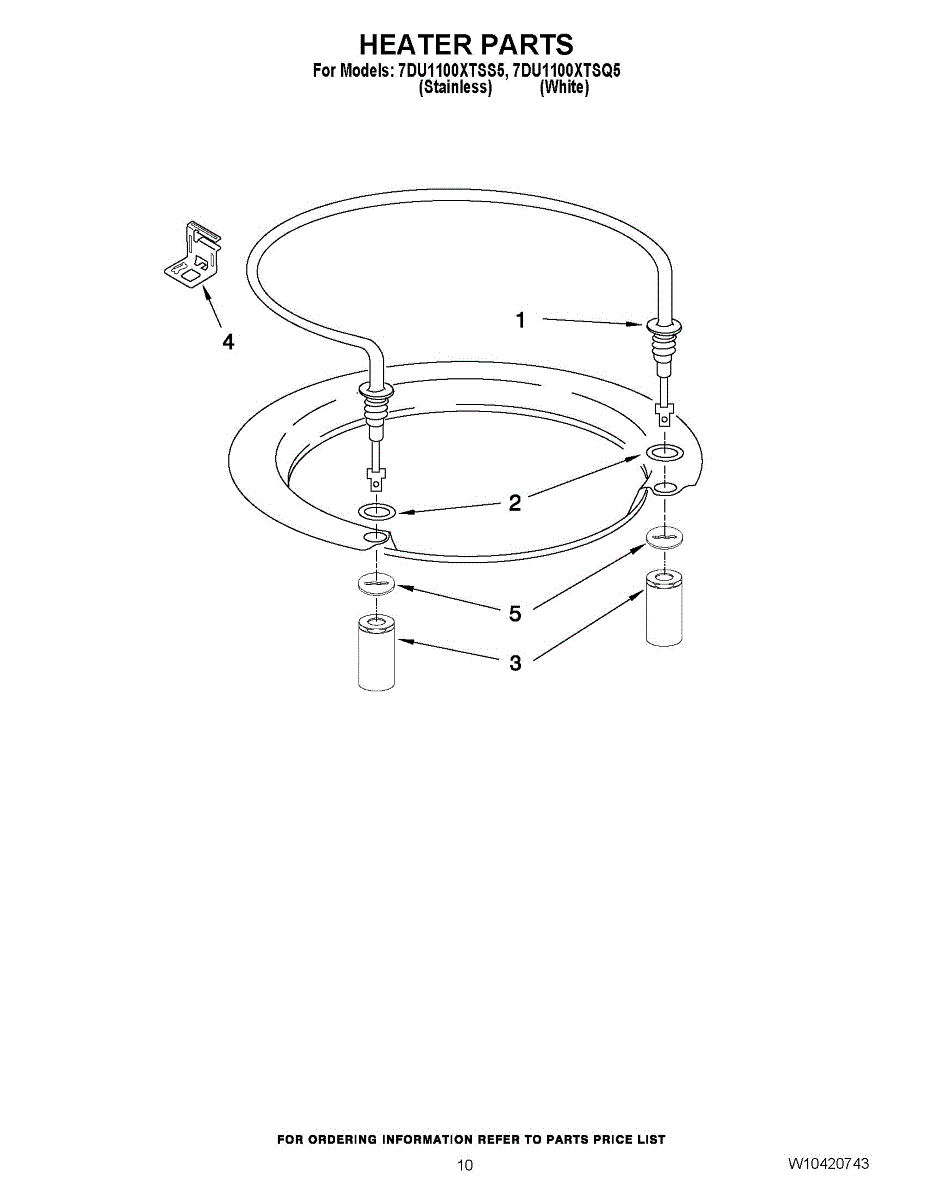

Parts for Whirlpool 7DU1100XTSQ5: 08 - Heater Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Dishwasher Heating Element is an OEM replacement part for Whirlpool dishwashers. It is a vital heating component that raises water temperatures sufficiently for sanitizing dishes during hot rinse cycles. Proper heat is essential to drying fully.

Causes of a bad heating element can include scaling or mineral deposition over time that insulates it from conducting heat. Physical damage like burnouts or breaks in coils/wires are also possible.

Symptoms of a faulty element are:

• Dishes failing to get fully dry at the end of cycles
• Low wash water temperatures
• Buzzing, clicking or strange noises from under the dishwasher

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, and other Whirlpool-manufactured dishwashers.

The Rubber Washer is an OEM part for Whirlpool dishwashers. This washer plays a role in ensuring a leak-proof seal at various connection points within the dishwasher, such as at the water inlet valve or hose connections. Its primary function is to prevent water from leaking out of the dishwasher during operation, thereby ensuring efficient and safe use of the appliance.

Over time, rubber washers can deteriorate due to the constant exposure to water and chemicals found in dishwasher detergents.

Symptoms of a bad Rubber Washer in a dishwasher include:

• Visible signs of wear or damage to the washer, such as cracks, brittleness, or deformation.
• Water leaking from the dishwasher, particularly around areas where hoses and valves connect.
• A decrease in dishwasher performance due to water not being contained properly during cycles.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Dishwasher plastic heating element nut. Used to hold down the heating element.

This heater support holds the heating element securely in place inside the appliance, maintaining correct alignment and clearance for reliable operation. Replacing a worn or broken support helps prevent sagging, noise, or damage from an out-of-position element.

• Secures the heating element to its mounting point to keep it stable
• Maintains proper spacing from nearby components and surfaces
• Helps reduce vibration, rubbing, or rattling noises
• Replace if the original support is cracked, warped, missing, or the element appears misaligned

• Disconnect power to the appliance before servicing; allow hot components to cool
• Access the heater per your model's service information; note the original orientation and routing
• Seat the support fully and handle element leads carefully to avoid damage

This replacement shield fits over the heater/probe area to provide a protective barrier. It helps prevent direct contact and excessive radiant heat exposure, protecting nearby components and supporting accurate temperature sensing for consistent operation. What it does:

• Shields the heating element and adjacent temperature probe/sensor area
• Helps prevent heat damage to nearby plastics, wiring, and components
• Reduces the chance of items contacting or striking the heater/probe
• Common signs it's needed: cracked, warped, or missing shield; discoloration; rattling or an exposed probe/heater area

• 1 shield

• Disconnect power and allow all heated parts to cool before servicing
• Access the heater/probe area and note the original shield orientation
• Seat the shield fully; secure with existing clips/fasteners if applicable
• Verify clearances around the heating element before restoring power
