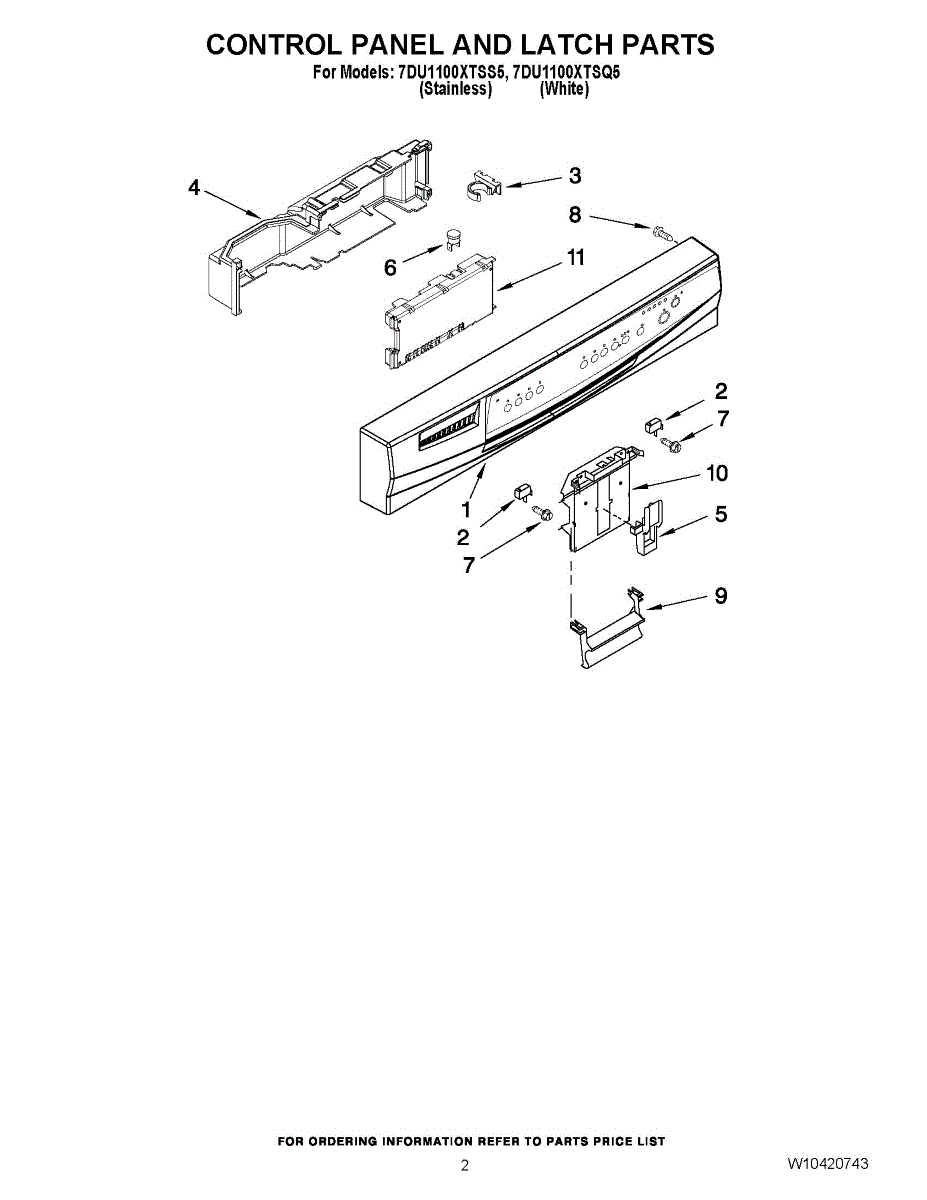

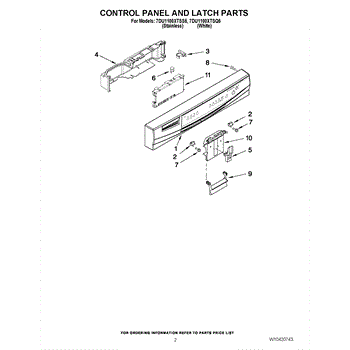

Parts for Whirlpool 7DU1100XTSQ5: 02 - Control Panel And Latch Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is the front control panel for the appliance's console. It houses the user interface and protects the electronic controls, restoring a clean look and proper button/selector operation when the original panel is damaged or worn.

• Provides the surface and mounting for the console's buttons and indicators
• Replaces panels that are cracked, discolored, loose, or unresponsive at the buttons
• Can help resolve issues like sticking keys or difficulty selecting cycles
• Cosmetic and functional refresh for a worn or broken console face

• Disconnect power to the appliance before servicing
• Open the door or access area to remove mounting screws from the existing panel
• Carefully transfer and reconnect any control board, keypad ribbon, or harnesses in the same orientation
• Test all functions before fully reassembling

The Console Assembly is an OEM part for Whirlpool dishwashers. This assembly includes the control panel and the associated electronic controls, allowing users to select and monitor the dishwasher's various cycles and functions. It is essential for interfacing with the dishwasher, providing buttons or touchpads to control the wash settings.

Over time, the console assembly can become worn out or damaged due to regular use, moisture exposure, or accidental impacts.

Symptoms of a bad console assembly include:

• Unresponsive buttons or touchpads
• Display not illuminating or showing error codes
• Inability to start or stop cycles
• Inconsistent operation of dishwasher functions

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Switch is an OEM part for Whirlpool dishwashers. It plays a crucial role in ensuring the dishwasher operates only when the door is securely closed. The switch signals the control board that the door is shut, allowing the wash cycle to begin safely.

You should replace the door switch if it becomes faulty or damaged. Causes of a bad door switch can include wear and tear from regular use, electrical issues, or physical damage from forceful closing of the door.

Symptoms of a bad door switch include:

• The dishwasher not starting or stopping mid-cycle
• Error codes related to the door latch or door switch
• The dishwasher operating with the door open (safety issue)
• No response when pressing the start button

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Latch Actuator is an OEM part for Whirlpool dishwashers. This part securely latches the dishwasher door, ensuring that it stays closed during operation and that the wash cycles run smoothly. The actuator interacts with the door latch to activate the locking mechanism, providing a secure seal to prevent leaks.

Causes of a bad door latch actuator can include regular wear and tear, mechanical failure, or damage from accidental impacts.

Symptoms of a bad door latch actuator include:

• Dishwasher door not staying closed
• Dishwasher not starting because the door isn’t securely latched
• Difficulty latching or unlatching the door
• Leaks around the door during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermal Fuse Kit is a genuine OEM Replacement part. This kit is designed to cut off power to the dishwasher if it overheats. The fuse ensures that your appliance operates safely and effectively. If your dishwasher is not starting, it may be due to a failed thermal fuse. Investigate what caused the dishwasher to overheat before replacing the thermal fuse.

This Kit Includes:

• (1) Thermal Cutoff (TCO)
• (1) Harness Assembly
• (2) Zip Ties
• Instructions

Specs:

• Electrical specs: 86°C, 187°F fuse
• Construction: metal/plastic
• Fuse dimensions: 5/8""L x 5/8""W x 1-1/4""H
• Harness and plug dimensions: 4-7/8""L
• Zip tie dimensions: 6-3/4""L

Repair your dishwasher today with the Thermal Fuse Kit and ensure that your appliance operates safely and efficiently for years to come.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This is a genuine 4-24 x 3/8 screw used to fasten trim and components on compatible appliance assemblies. It provides a secure, vibration-resistant connection so panels and parts stay properly aligned during use. What it does:

• Secures panels, brackets, or components to the appliance frame
• Helps prevent rattling or loosening from normal vibration
• Works with threaded or self-tapping holes sized for a #4-24 fastener
• Common replacement for stripped, rusted, or missing mounting screws

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread damage
• Replace any corroded or damaged screws in sets when multiple fasteners show wear
• Disconnect power and follow appliance safety guidance before servicing

This replacement screw secures appliance panels and components so they stay tight and aligned. Replace a missing, rusty, or stripped fastener to restore a solid hold and reduce vibration or rattling during operation. What it does:

• Fastens and secures panels, brackets, trim, or internal components as specified for your model
• Replaces missing, corroded, or stripped hardware to restore a proper fit
• Helps prevent vibration, rattling, and misalignment caused by loose fasteners
• Addresses issues like a loose panel/handle or a screw head that's rounded off

• 1 screw

• Disconnect power; if applicable, shut off gas and water before servicing
• Use the correct driver size; start by hand to avoid cross-threading
• Tighten snugly—do not overtighten into plastic or thin sheet metal
• Keep track of original screw locations and lengths during reassembly

Color: White

Color: Black

The Door Latch Bracket is an OEM part for Whirlpool dishwashers. This bracket is crucial for securing the dishwasher door latch, ensuring that the door stays closed during operation. A properly functioning door latch bracket helps maintain a tight seal, preventing water leaks and enabling the dishwasher to run efficiently.

Causes of a bad door latch bracket can include regular wear and tear, damage from repeated door openings and closings, or physical impact that compromises its integrity. A malfunctioning bracket can lead to door alignment issues and ineffective sealing.

Symptoms of a bad door latch bracket include:

• The dishwasher door not latching or staying closed
• Water leaking from around the door during cycles
• The door appearing misaligned or loose
• Difficulty starting the dishwasher due to improper door closure

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Handle not included. For black handle use WP8534984. For white handle use WP8534985. For bisque use 8534986

The OEM Electronic Control Board is an OEM replacement part for Whirlpool dishwashers. It is a circuit board that controls all of the functions of the dishwasher, including the wash cycles, water temperature, and detergent dispensing.

Causes of failure involve damage from liquid intrusion shortening circuits or component deterioration over extended use reducing precision.

Symptoms include:

• Dishwasher fails to start selected cycle
• Lights, displays or programming malfunctions
• No response from control buttons
• Dishwasher appears dead or powerless

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
