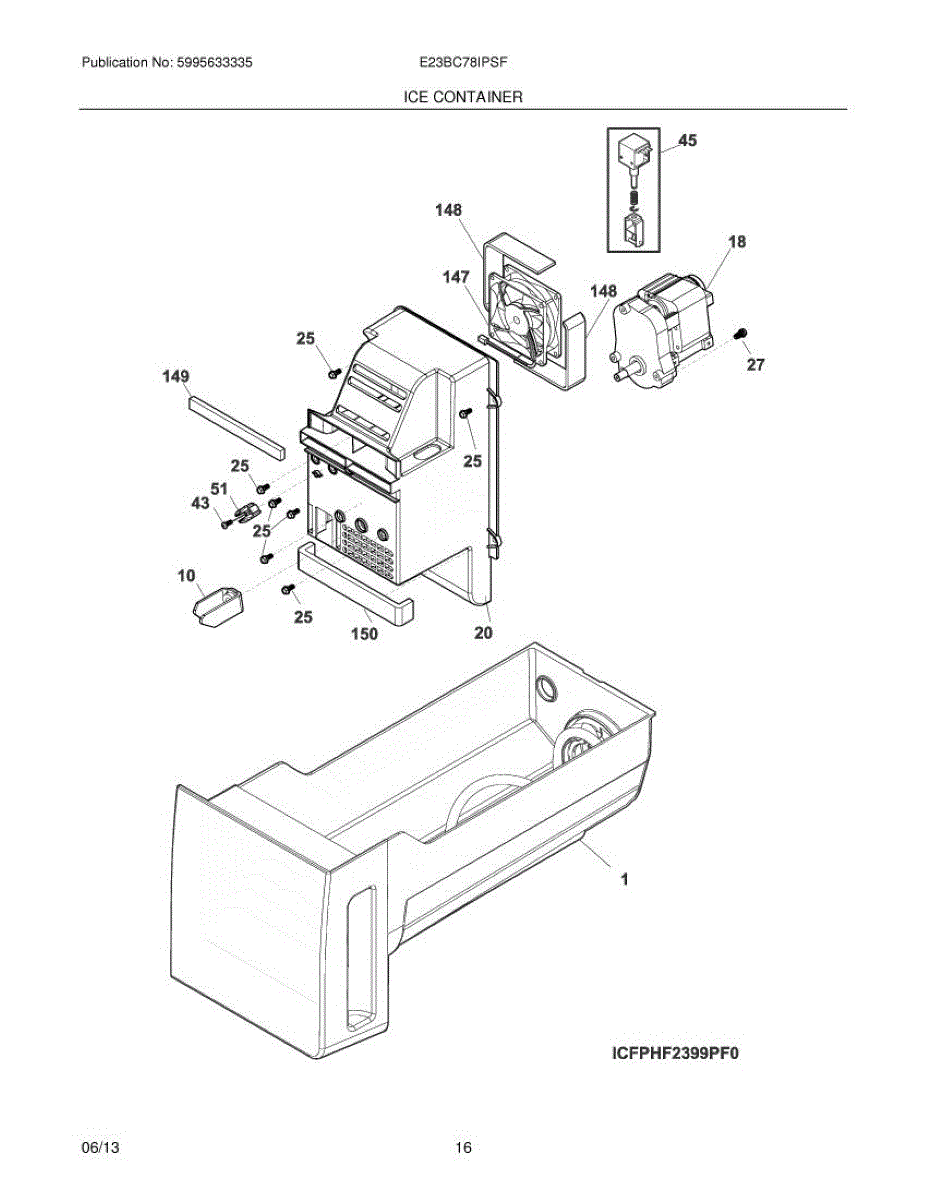

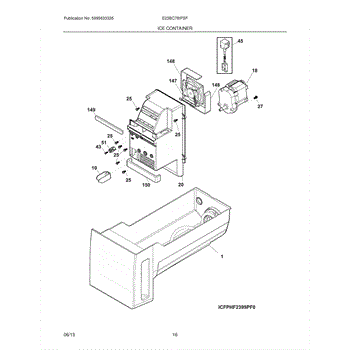

Parts for Frigidaire E23BC78IPSF: 15 - Ice Container Parts

This ice container assembly collects and stores ice from the refrigerator icemaker so you have ready ice on demand. Durable molded plastic keeps ice contained and helps the dispenser feed cubes cleanly. What it does:

• Holds and stores ice produced by the built-in icemaker
• Guides ice toward the dispenser or auger for reliable delivery
• Helps prevent ice from spilling into the freezer compartment
• Addresses symptoms like overflowing or jammed dispenser and loose or missing ice bin

• Disconnect power to the refrigerator before beginning any work.
• Remove the old ice container by sliding or lifting per fridge instructions; handle ice chutes and plastic edges carefully.
• Seat the new container fully in its track and restore power and run one or two cycles to ensure proper ice feed and dispenser operation.

This auger drive bar links the dispenser motor to the ice bucket auger, transmitting torque to move cubes or crushed ice to the chute. Replacing a worn or stripped bar restores consistent, reliable ice dispensing. What it does:

• Couples the dispenser motor to the auger/crusher assembly
• Transfers rotation so ice advances to the dispenser chute
• Interfaces with the cube/crush selector mechanism
• Common symptoms include the motor running but no ice dispensing, intermittent dispensing, the auger not turning, or grinding/clicking from the dispenser

• 1 auger drive bar

• Disconnect power and remove the ice bucket before servicing
• Note the bar's orientation; remove any retainers and separate it from the yoke/coupler
• Align the new bar with the mating parts and seat it fully; transfer any reusable retainers
• Reinstall the bin and test both cube and crush selections

The Dispenser Auger Motor is an OEM part for Frigidaire refrigerators. It powers the auger that dispenses ice from the ice maker through the dispenser chute, ensuring smooth and efficient delivery of ice to the user.

Causes of a bad auger motor can include electrical issues, wear and tear from regular use, or mechanical failure. A malfunctioning auger motor can prevent ice from dispensing properly, impacting the overall functionality of the ice maker.

Symptoms of a bad dispenser auger motor include:

• The ice dispenser not dispensing ice
• The auger not turning or making unusual noises
• The dispenser motor not responding when activated
• Ice jams or blockages in the dispenser chute

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This air handler housing is the molded cabinet that supports and protects the blower and internal air-handling components, helping direct airflow and maintain proper alignment for reliable cooling and heating performance. What it does:

• Forms the structural enclosure for the blower/air handler assembly and related components
• Channels and directs airflow through the evaporator and into the ductwork
• Helps maintain component alignment to prevent rubbing, vibration, and airflow loss
• Can reduce air leaks and restore proper circulation when a cracked or damaged housing causes performance issues

• Intended for technicians or experienced DIYers; disconnect power before starting work
• Remove surrounding panels and note screw/clip locations to ensure correct reassembly
• Inspect adjacent parts (blower wheel, seals, mounting tabs) and replace if damaged
• Use care to avoid cracking plastic during removal and reinstallation; do not force parts into place

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This is a replacement screw used to secure appliance panels and components. It restores proper fastening to stop rattles and keep parts aligned for reliable operation. What it does:

• Secures trim, brackets, or small panels to the appliance
• Prevents loose parts that can cause vibration, noise, or improper sealing
• Restores factory fastening where a screw is missing or damaged
• Simple, single-purpose fastener — use where the original screw was installed

• Use the matching screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage
• Disconnect power or follow appliance safety steps when working near electrical components
• Replace only the screw(s) that match the original size and type

The Solenoid and Yoke Assembly is an OEM part for Frigidaire refrigerators. It is used in the ice dispensing system to control the movement of the ice chute, allowing ice to be dispensed from the refrigerator door.

Causes of a bad solenoid and yoke assembly can include electrical issues such as a burnt-out solenoid, wear and tear from regular use, or physical damage due to mishandling or impact.

Symptoms of a bad solenoid and yoke assembly include:

• Ice not dispensing or dispensing intermittently
• Strange noises when attempting to dispense ice
• The ice chute not opening or closing properly
• Error codes related to the ice dispensing system

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This anti-twist pin secures mating parts to stop unwanted rotation and keeps linked components aligned for reliable operation. Replace a worn or broken pin to restore proper fit and reduce twisting, rubbing and noise. What it does:

• Keeps connected components from rotating or shifting, preserving alignment and part engagement.
• Helps prevent rubbing, scraping, or noisy operation caused by a loose or missing pin.
• Replaces a damaged or worn locating/retention pin that can allow assemblies to bind or move out of position.
• Simple mechanical replacement that restores intended part geometry and fit.

• Disconnect power to the appliance before servicing to avoid electrical or motion hazards.
• Remove any covers or panels as needed to access the pin; keep track of fasteners and orientation.
• Install the pin in the same orientation as the original; components move freely and are properly engaged before reassembly.

The Ice Maker Cooling Fan and Gasket Kit is an OEM part for Frigidaire refrigerators. This kit includes both the cooling fan and the necessary gasket, which work together to ensure the ice maker operates efficiently.

Causes of a bad cooling fan can include electrical issues, wear and tear from continuous use, and blockages or debris impeding the fan's operation.

Symptoms of a bad ice maker cooling fan and gasket include:

• Reduced ice production or no ice being made
• Ice melting or clumping together
• Unusual noises coming from the ice maker area
• Visible wear, cracks, or gaps in the gasket

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This H-shaped evaporator gasket creates a tight seal around the evaporator housing to help control airflow and reduce frost buildup in the freezer compartment. It replaces a worn or cracked gasket to restore proper cooling performance. What it does

• Seals the evaporator housing to prevent warm, moist air from entering the evaporator area.
• Helps maintain consistent airflow over the evaporator for efficient defrosting and cooling.
• Reduces frost and ice buildup caused by gaps or leaks around the evaporator.
• Commonly used when you see excessive frost, poor cooling, or visible gasket damage near the evaporator.

• One H-shaped evaporator gasket.

• Disconnect power to the appliance before starting any repair.
• Remove freezer panels and the evaporator cover to access the gasket; handle evaporator fins carefully to avoid damage.
• Clean mating surfaces and remove old adhesive or residue before installing the new gasket for a proper seal.
• If adhesive is required, use a refrigerator-safe sealant recommended by the manufacturer.

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow
