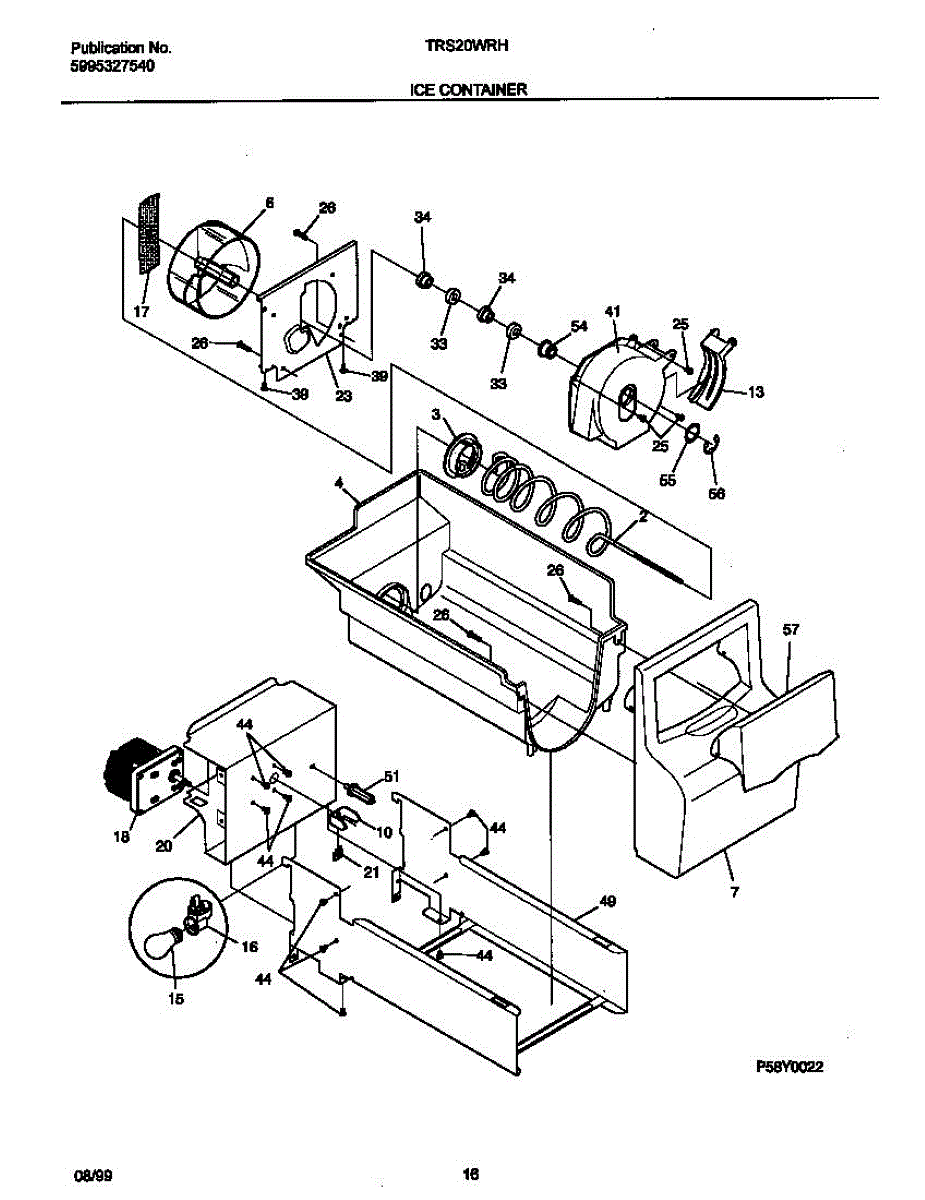

Parts for Frigidaire TRS20WRHD2: 09 - Ice Container Parts

An ice auger rotates inside the freezer's ice bin to move cubes to the crusher and out the dispenser chute. Replacing a worn or broken auger restores consistent dispensing and helps eliminate jams and grinding from a slipping spiral.

• Advances ice through the bin toward the crusher/dispenser chute
• Works with the crusher assembly to deliver cubed or crushed ice based on the selector
• A stripped or cracked auger may result in little/no ice dispensing while the motor runs
• Damage can cause ice jams, uneven dispensing, or grinding noises from the bin

• Unplug the refrigerator; remove and empty the ice bin, allowing any frost to thaw
• Wear cut-resistant gloves—crusher blades and sheet-metal edges are sharp
• Disassemble the crusher/blade stack and note the exact blade/spacer order
• Transfer the blade stack, bushings, and hardware to the new auger; reassemble and confirm smooth rotation before reinstalling

This drive cam is the rotating plastic cam used in the refrigerator's ice system. It transfers the motor's motion to linked parts to advance the cycle so ice can be produced and dispensed smoothly.

• Transfers rotation from the motor to move internal levers/gears in the ice assembly
• Advances the ice-making/dispensing cycle
• Wear or cracks can cause stalling, clicking/grinding, or no/weak ice dispensing
• May lead to ice not ejecting or jamming mid-cycle

• Disconnect power and shut off water before servicing
• Remove the ice bin; access the ice maker or dispenser mechanism as your model requires
• Note the cam's orientation and alignment marks; seat the new cam fully on the shaft
• Reassemble, restore power, and run a test cycle to confirm operation

The Ice Bucket Housing is an OEM part for Frigidaire refrigerators. This component serves as the main enclosure for the ice bucket, supporting and protecting the ice maker's storage bin. It is designed to fit securely within the freezer compartment, helping to maintain the ice in a solid state by insulating it from varying freezer temperatures and ensuring that ice production is efficient and consistent.

Symptoms of a failing Ice Bucket Housing include:

• Ice melting or clumping together due to poor insulation
• Difficulty in removing or replacing the ice bucket because of misalignment or damage to the housing
• Cracks or damage in the housing that can lead to frost buildup or leakage
• Unusual noises from the ice dispenser if the housing obstructs the dispensing mechanism

Causes of a bad ice bucket housing often involve physical impacts from handling, thermal stress from fluctuating freezer temperatures, or degradation of materials over time, leading to brittleness and breakage.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models

Note: For the complete ice container assembly with auger and moving parts, order part number 241860803.

The Ice Dispenser Drum is an OEM part for Frigidaire refrigerators. This component is essential for the proper dispensing of ice, rotating to move ice from the storage bin to the dispenser chute.

You should replace the ice dispenser drum if it becomes damaged or worn out. Causes of a bad ice dispenser drum can include physical damage from ice jams, wear and tear from regular use, or issues with the motor that drives the drum.

Symptoms of a bad ice dispenser drum include:

• The ice dispenser not dispensing ice properly
• Grinding or clicking noises from the dispenser area
• Ice getting stuck or jammed in the dispenser
•  Reduced ice flow or inconsistent dispensing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement ice container front is the front cover for the freezer's ice bucket. It restores a secure front wall so cubes stay contained and the bucket seats and dispenses correctly. What it does:

• Forms the front face of the ice container to keep ice contained
• Helps the bucket fit and align for proper dispensing
• Replaces a cracked, broken, loose, or missing front panel
• May help if ice spills from the bin or the bucket won't slide in or latch properly

• 1 ice container front (front cover only)

• Unplug the refrigerator and remove the ice bucket from the freezer
• Empty the bucket; transfer any screws, clips, or labels from the old front to the new part
• Align tabs and snap/fasten the new front to the bucket; do not overtighten screws
• Reinstall the bucket and check seating and dispenser operation

The Ice Auger Drive Bar is an OEM replacement part for Frigidaire refrigerators. It plays an important role in allowing the icemaker assembly to function properly by transmitting rotational force from the motor to the ice auger. Without a properly functioning drive bar, ice cubes may not be dispensed as needed. Please Note: The nut is no longer separate. It is now part of this drive bar.

Causes of a bad ice auger drive bar can include wear and tear from frequent use, damage due to heavy ice loads, or corrosion from moisture exposure. A malfunctioning drive bar can result in inefficient ice dispensing or complete failure of the ice dispensing mechanism.

Symptoms of a bad drive bar include:

• Ice cubes not dispensing when requested
• Noise or grinding sounds coming from the icemaker area
• Stalling or failure of the icemaker assembly to rotate fully
• Inability to harvest or eject ice from the ice molding trays

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

The Ice Crusher Housing is an OEM part for Frigidaire refrigerators. This housing encloses the ice crusher assembly, ensuring that ice is crushed efficiently and delivered smoothly through the dispenser. It is designed to securely hold the crusher components in place and guide the ice into the dispenser chute.

You should replace the ice crusher housing if it becomes damaged or worn out. Causes of a bad ice crusher housing can include repeated impact from ice, cracks or breaks from overloading, or wear and tear from regular use.

Symptoms of a bad ice crusher housing include:

• Ice not crushing properly
• Leaks or moisture around the ice crusher area
• Loud or unusual noises during operation
• Visible cracks or damage to the housing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator light socket holds and powers the interior bulb so you can clearly see inside. Replace a cracked, heat-damaged, or loose socket to restore reliable illumination when the interior light won't work or flickers.

• Provides the electrical connection and mounting point for the compartment light bulb
• Fixes symptoms such as no interior light with a known-good bulb
• Addresses intermittent flickering when the door is opened or closed
• Helps resolve visible charring, melting, or broken contacts on the socket
• Corrects a loose bulb that won't stay seated or lit

• Disconnect power to the refrigerator before servicing; remove the light lens/cover and bulb
• Note wire positions; release the old socket from its mount
• Transfer wires to the new socket one lead at a time and seat the socket fully
• Reinstall the bulb and cover; restore power and test
• Use only the bulb type and wattage specified for your model

The Drive Blade is an OEM part for Frigidaire refrigerators. This component is crucial for the ice maker, as it helps to crush and dispense ice properly. The drive blade ensures that ice cubes are broken down to the desired size and pushed through the dispenser efficiently.

Over time, the drive blade can wear out or become damaged due to repeated use, ice buildup, or mechanical stress. Replacing a faulty drive blade is necessary to maintain the ice maker's functionality and ensure a continuous supply of ice.

Symptoms of a bad drive blade include:

• The ice maker not dispensing ice properly
• Unusual noises coming from the ice maker
• Ice cubes being dispensed in irregular sizes or not at all
• Visible damage or wear on the blade

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Auger Drive Bar is an OEM replacement part for Frigidaire refrigerators. It plays an important role in allowing the icemaker assembly to function properly by transmitting rotational force from the motor to the ice auger. Without a properly functioning drive bar, ice cubes may not be dispensed as needed. Please Note: The nut is no longer separate. It is now part of this drive bar.

Causes of a bad ice auger drive bar can include wear and tear from frequent use, damage due to heavy ice loads, or corrosion from moisture exposure. A malfunctioning drive bar can result in inefficient ice dispensing or complete failure of the ice dispensing mechanism.

Symptoms of a bad drive bar include:

• Ice cubes not dispensing when requested
• Noise or grinding sounds coming from the icemaker area
• Stalling or failure of the icemaker assembly to rotate fully
• Inability to harvest or eject ice from the ice molding trays

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

Front plate restores the appliance's front-facing cabinet, protecting internal components and improving appearance. It replaces cracked, dented or worn front trim so the appliance looks finished and covers internal parts. What it does:

• Covers and protects internal components behind the appliance's front cabinet.
• Restores cosmetic appearance when the existing front is dented, cracked, or scratched.
• Helps maintain proper fit and alignment of adjacent trim and access points.
• Reduces exposure of internal components to dust and incidental contact.

• Always disconnect power (and water, if applicable) before beginning work.
• Removal typically requires removing fasteners, clips or adjacent trim panels—keep track of all screws.
• Handle carefully; edges may be sharp and panels can be awkward to position alone.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Specs: 10-16 X 0.500

This spacer fits the refrigerator door hinge to set proper clearance and alignment so the door swings smoothly and seals correctly. Replace a worn or missing spacer to eliminate rubbing and uneven gaps at the door.

• Maintains the specified distance between hinge components for correct door height and alignment
• Helps the door open and close without rubbing or binding
• Supports consistent gasket contact for a reliable seal
• Common signs of wear: door sagging, scraping noises, uneven gaps, or the door not closing flush

• Unplug the refrigerator; remove items from the door and support the door before working on the hinge
• Note the order of any washers, cams, and spacers during disassembly for correct reassembly
• Reinstall hardware in the same sequence; do not overtighten fasteners to avoid deforming the spacer
• After reassembly, check door alignment and gasket seal; adjust as needed

This spacer is a small positioning piece used in refrigerator assemblies to maintain proper clearance and alignment between parts. Replacing a worn or missing spacer helps restore smooth operation and prevents rubbing or binding. What it does:

• Maintains the designed gap between mating parts to prevent friction and wear
• Helps keep assemblies aligned for smooth, consistent movement
• Reduces looseness, rattling, or poor fit caused by a missing or deformed spacer
• Typical signs include visible damage or a missing spacer and misalignment or scraping noises in the area it installs

• 1 spacer

• Disconnect power; if working near water components, shut off the water supply
• Use your model's parts diagram to determine exact location and orientation
• Retain and reuse original fasteners or clips unless damaged
• Do not overtighten hardware; ensure smooth operation after installation

The Ice Crusher Housing is an OEM part for Frigidaire refrigerators. This housing encloses the ice crusher assembly, ensuring that ice is crushed efficiently and delivered smoothly through the dispenser. It is designed to securely hold the crusher components in place and guide the ice into the dispenser chute.

You should replace the ice crusher housing if it becomes damaged or worn out. Causes of a bad ice crusher housing can include repeated impact from ice, cracks or breaks from overloading, or wear and tear from regular use.

Symptoms of a bad ice crusher housing include:

• Ice not crushing properly
• Leaks or moisture around the ice crusher area
• Loud or unusual noises during operation
• Visible cracks or damage to the housing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

Replacement ice bin rail that supports and guides the freezer ice bin for smooth sliding and secure positioning. Restores proper bin alignment so the ice bin removes easily and reduces binding, rattling, and accidental drops.

• Supports and guides the ice bin so it slides in and out without sticking
• Keeps the bin properly aligned to prevent tipping or falling when removing
• Reduces noise caused by a loose or worn support rail
• Commonly replaced when the bin binds, catches, or sits unevenly

• Disconnect power to the appliance before beginning any work
• Remove the ice bin and any loose ice before removing the old rail
• Install by seating the rail into the mounting locations and securing with the original fasteners; basic hand tools may be required

This augur nut is a genuine Frigidaire part, sold individually. It can be used as a replacement part for a refrigerator. This augur nut serves as a fastening component for the augur of an ice maker located inside the refrigerator; this nut maintains the placement of components within the ice maker so that ice and water can be dispensed properly and efficiently.An augur nut might have to be replaced if it is lost, misplaced, or stripped to the point that it is rendered ineffective. The primary sign of an augur nut that is missing or stripped is an ice maker that cannot dispense ice. If this is occurring, the infrastructure of the ice maker should be inspected, and if it is revealed that the augur nut is missing or has been stripped to the point that it cannot fasten its components, this genuine OEM replacement part should be ordered.This is an OEM part sourced directly from the manufacturer. It is sold individually. This augur nut is compatible with the following appliance brands: Frigidaire, Kenmore, Electrolux, Westinghouse, Tappan, Crosley, Gibson, and Universal.

This flat metal washer provides a durable spacer and load-distributing surface for a matching fastener, helping secure assemblies and reduce wear. It's a small but essential hardware piece for routine repairs and reassembly. What it does:

• Distributes fastening load to protect softer materials and prevent pull-through
• Creates a smooth bearing surface for nuts and bolts to seat evenly
• Helps reduce vibration and loosening in moving assemblies
• Commonly used on panels, brackets, and mounting hardware where a flush fit is needed

• One flat metal washer as shown

• Disconnect power and water (if applicable) and access the assembly before replacing hardware
• Use the matching bolt/nut size and washer ID/OD for correct fit; do not force oversized fasteners
• Hand-start fasteners to avoid cross-threading, then tighten to the equipment manufacturer's spec
• Keep small parts secure during disassembly to avoid loss or damage

This E-ring is a small retaining clip used in Frigidaire refrigerators to hold components on a grooved shaft or pin. It keeps assemblies secure and operating smoothly by preventing parts from sliding off during normal use. What it does:

• Retains parts on a grooved shaft or pin to prevent axial movement
• Helps keep mechanisms aligned and reduces wobble or separation
• Common symptoms when missing or damaged: loose or fallen-off parts, scraping/rattling noises, or poor operation of the affected assembly

• 1 E-ring

• Unplug the refrigerator before servicing; wear eye protection (spring clips can snap)
• Use needle-nose pliers or an E-clip tool to compress and seat the ring in the groove
• Verify the ring is fully seated and flush in the groove before reassembly
• Keep any spacers/washers in the original order during removal and reinstallation

Access door provides a finished cover for the appliance's service opening, protecting internal components from dust and damage while keeping the unit looking tidy and allowing access for maintenance and repairs. What it does:

• Covers the service or access opening and protects wiring, valves, and other internal parts.
• Allows access to controls, connections, or components for inspection and repair without removing major panels.
• Helps prevent debris, pets, or fingers from contacting internal parts.
• Replace a missing, cracked, or damaged access door to restore appearance and reduce exposure of internal components.

• Always disconnect power (and gas for gas appliances) before removing panels or working on the appliance.
• Handle the door and surrounding edges carefully to avoid cuts; keep original fasteners and reuse if undamaged.
• Align tabs/clips and secure with manufacturer screws; do not overtighten.
