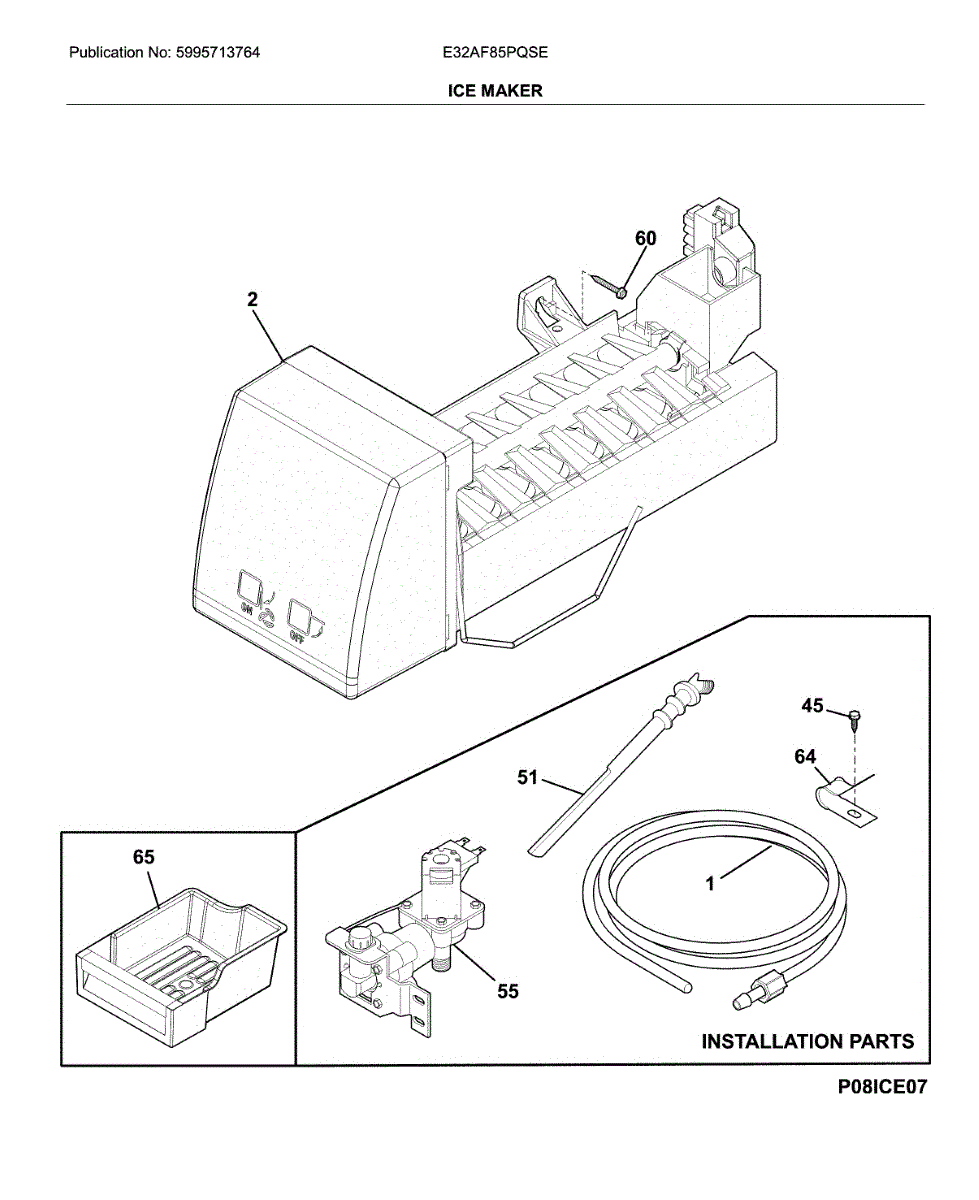

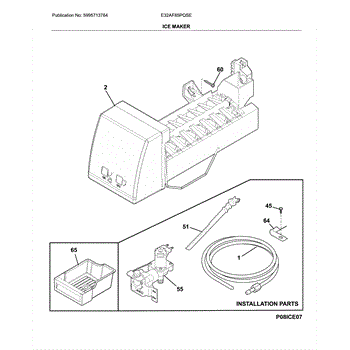

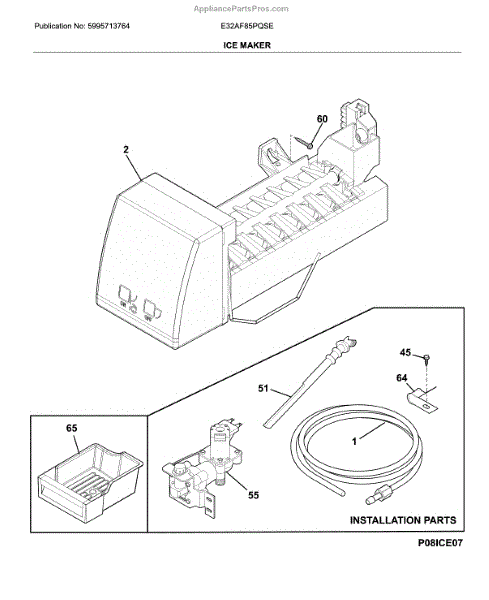

Parts for Electrolux E32AF85PQSE: Ice Maker Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Directs water from valve to dispenser or ice maker in your freezer. Replace if cracked, kinked, or leaking. Restores proper water flow to internal system.

This icemaker assembly replaces the automatic ice maker in your freezer. It restores dependable ice production by controlling the fill–freeze–eject cycle, providing a steady supply of properly sized cubes to the bin when operating correctly.

• Automates the fill, freeze, and harvest cycle to produce ice cubes and drop them into the bin
• Sends power to the water inlet valve during the fill portion of the cycle; stops production when the bin is full (shut-off arm, if equipped)
• Common symptoms of a failed icemaker include no ice production, slow or small cubes, cubes not ejecting, or leaking/overflowing from the icemaker area
• Replaces a worn or seized icemaker module to restore normal cube production

• Disconnect power and shut off the water supply before servicing
• Remove the ice bin for access; detach the old unit and disconnect its wire harness
• Mount the new assembly; ensure the fill tube is aligned and the shut-off arm moves freely
• Restore power and water; discard the first batch and allow up to 24 hours for production to normalize

Factory fastener that secures panels, brackets, and internal components. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattling.

Replaces a cracked, brittle, or damaged fluid transfer tube in your upright freezer. Restores secure connections and prevents leaks in the system.

Ice maker not filling or leaking water? The water inlet valve controls flow to your ice maker and dispenser. Moderate DIY repair with video guide.

Secures refrigerator hoses to fittings with spring tension to prevent leaks. Replace when clamp loses grip or shows rust. Verify fit with model number.

Seals internal refrigerator components to prevent air leaks and moisture intrusion. Replace when worn to maintain proper airflow and temperature control.
