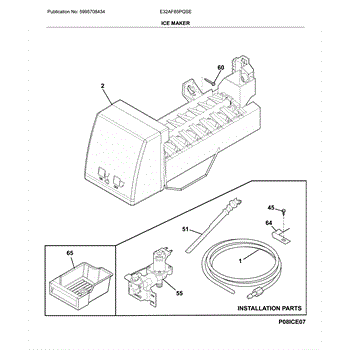

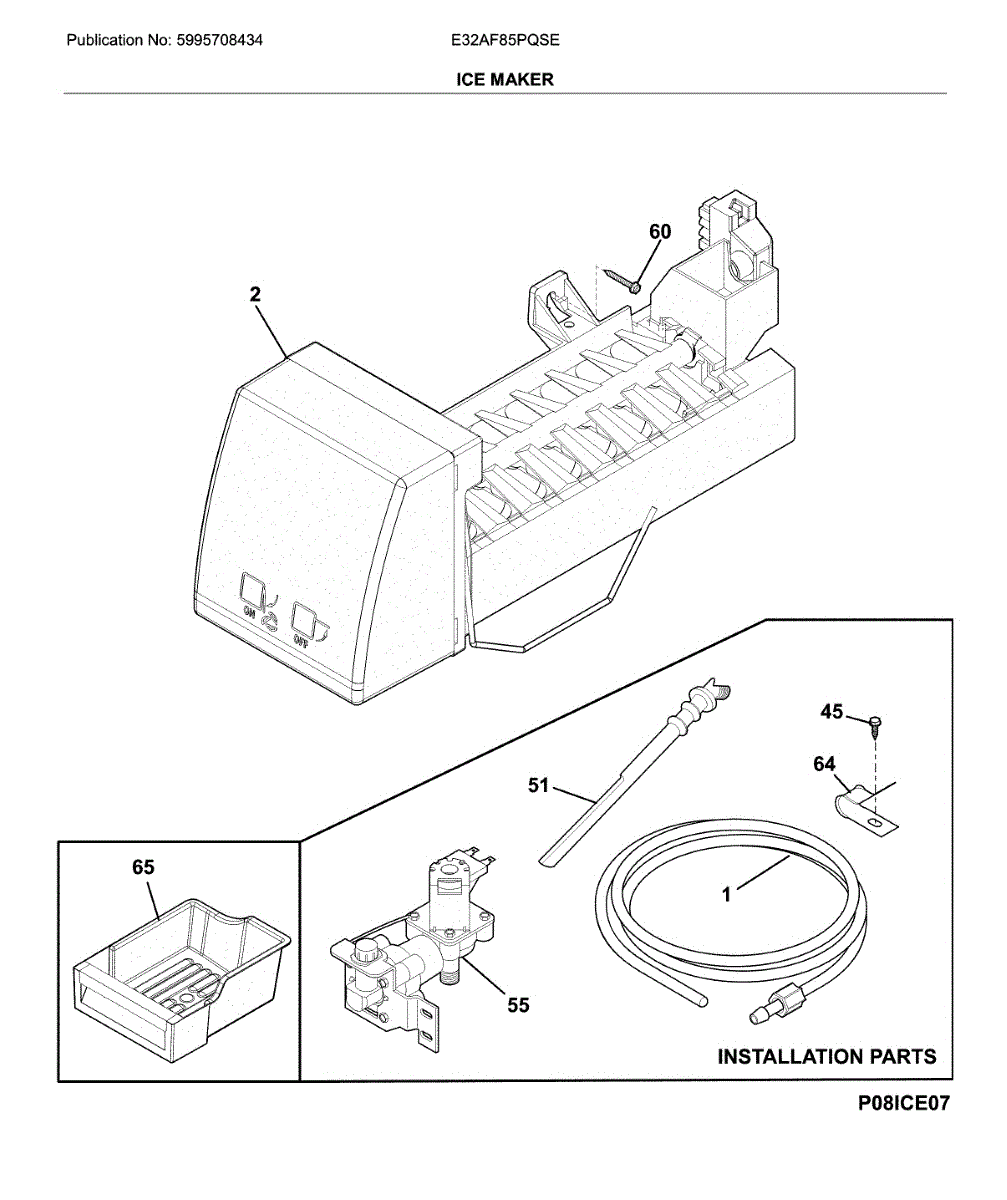

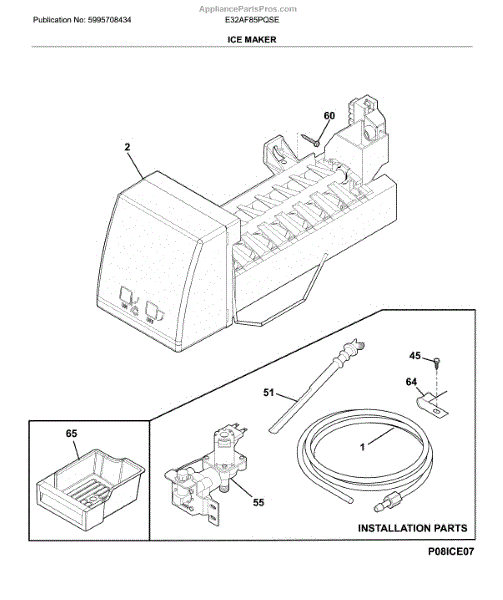

Parts for Electrolux E32AF85PQSE: Ice Maker Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This water inlet tube directs incoming water from the valve to the refrigerator's dispenser/ice system, restoring proper water delivery and reducing leaks. Reliable tubing helps maintain normal dispenser and ice-maker operation. What it does:

• Channels water from the inlet valve to internal dispenser or ice-maker lines
• Prevents leaks caused by damaged, cracked, or clogged inlet tubing
• Restores normal water flow for ice production and door dispenser use
• Helps eliminate intermittent dispensing or slow ice production related to inlet line issues

• One water inlet tube as shown

• Disconnect power and shut off the water supply before starting any repair
• Inspect fittings and seals; replace any damaged clamps or grommets for a secure connection
• Use appropriate tools and tighten fittings to OEM torque—do not overtighten plastic fittings

This icemaker assembly replaces the automatic ice maker in your freezer. It restores dependable ice production by controlling the fill–freeze–eject cycle, providing a steady supply of properly sized cubes to the bin when operating correctly.

• Automates the fill, freeze, and harvest cycle to produce ice cubes and drop them into the bin
• Sends power to the water inlet valve during the fill portion of the cycle; stops production when the bin is full (shut-off arm, if equipped)
• Common symptoms of a failed icemaker include no ice production, slow or small cubes, cubes not ejecting, or leaking/overflowing from the icemaker area
• Replaces a worn or seized icemaker module to restore normal cube production

• Disconnect power and shut off the water supply before servicing
• Remove the ice bin for access; detach the old unit and disconnect its wire harness
• Mount the new assembly; ensure the fill tube is aligned and the shut-off arm moves freely
• Restore power and water; discard the first batch and allow up to 24 hours for production to normalize

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement tube restores a secure, leak-resistant fluid path in your refrigerator/freezer. Replacing a damaged or brittle tube helps prevent water where it shouldn't be and keeps the system flowing as designed.

• Provides a dedicated pathway for fluid movement within the appliance
• Helps prevent leaks caused by cracks, splits, or loose connections
• Replaces kinked or clogged tubing that can restrict flow
• Common symptoms include water leaking inside or under the unit and visible damage to the existing tube

• Disconnect power and, if applicable, shut off the water supply before servicing
• Note the original routing and connection points to ensure proper reinstallation
• Transfer and reuse any original clamps, grommets, or fittings if not supplied with the part
• Push connections fully home, secure clamps, and check for leaks after reassembly

The Water Valve is an OEM part for Frigidaire refrigerators. It is crucial for controlling the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control to supply water when needed, ensuring efficient operation and reliable delivery of ice and water.

Symptoms of a bad Water Valve include:

• No water being dispensed
• The ice maker not producing ice or producing very small ice cubes
• Water leaking from the valve

Causes of a bad water valve can include mineral deposits blocking the valve, electrical failures preventing the valve from opening, or wear and tear from normal use leading to leaks or operational failures.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service
