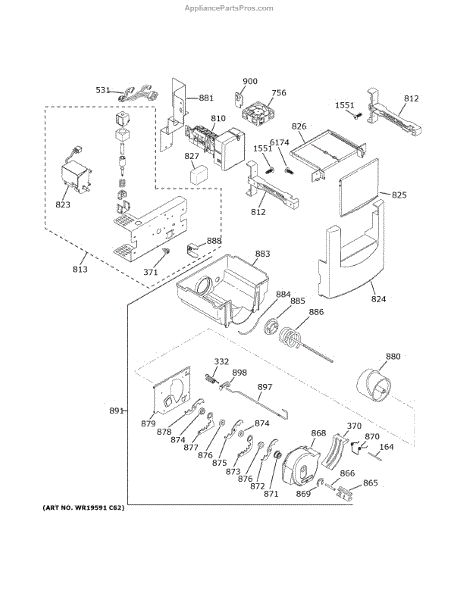

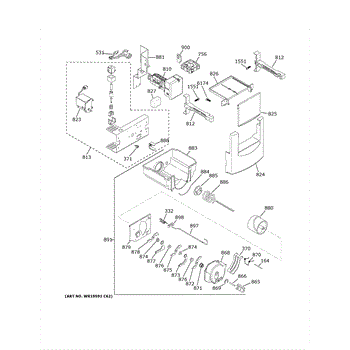

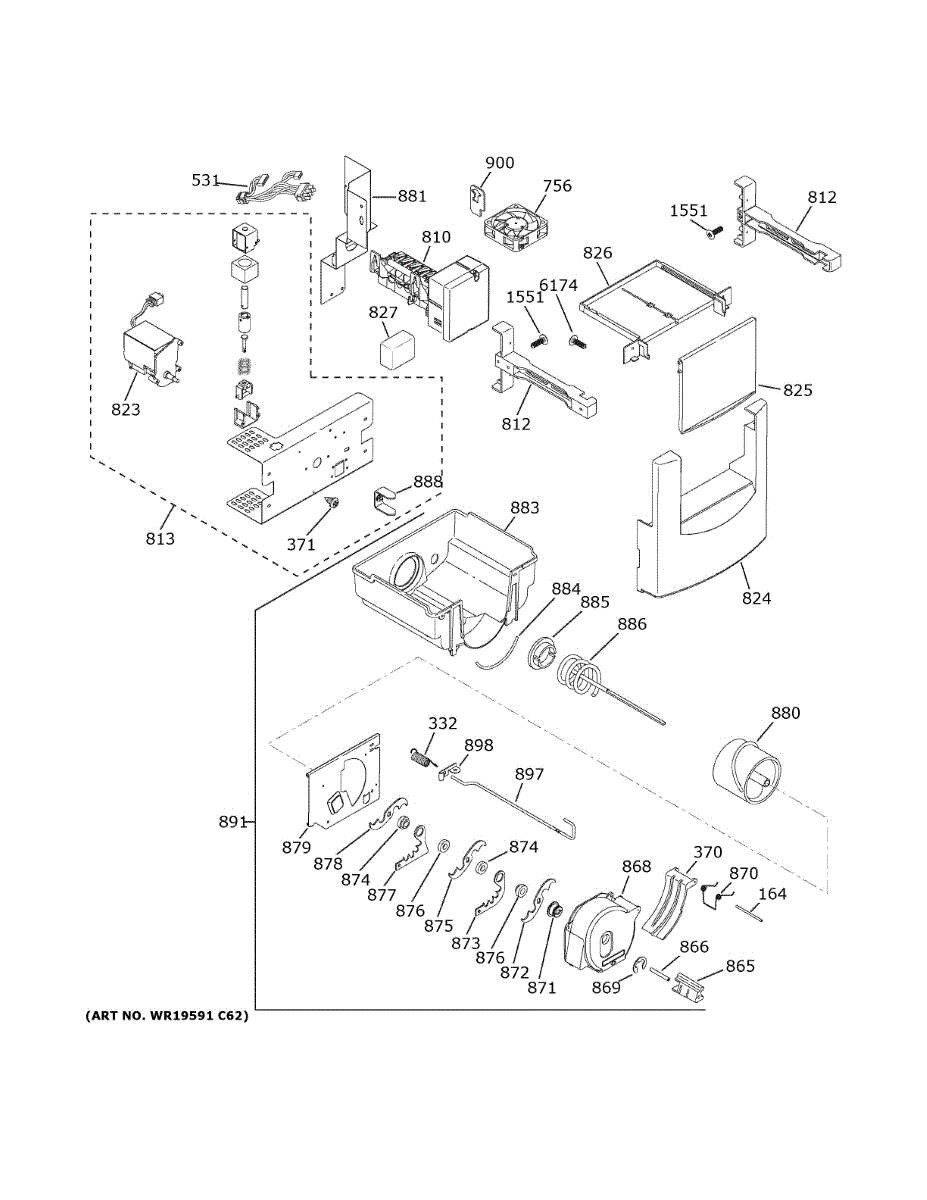

Parts for Ge CSB42YP2NES1: Ice Maker & Dispenser Parts

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

This screw fastens appliance panels, brackets, and trim so parts stay secure and aligned. Replace a missing, stripped, or rusty screw to stop rattles and restore a tight, factory fit.

• Secures covers, brackets, and trim to the appliance cabinet or liner
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration noise and loose or misaligned parts
• Maintains proper fit of guards, kickplates, or internal panels

• Disconnect power; turn off water supply if working near water lines
• Match to the original fastener to size and thread
• Start threads by hand to avoid cross-threading; tighten snugly, not excessively
• If threading into plastic, avoid overtightening to prevent damage

This small icemaker jumper harness connects the dispenser/ice maker control circuit to the refrigerator's wiring, restoring electrical continuity for proper ice and dispenser operation. Designed for direct replacement where the jumper is damaged or corroded. What it does:

• Provides the electrical connection between the dispenser/ice maker module and the main wiring harness
• Helps restore dispenser actuation or icemaker signaling when the factory jumper is broken or loose
• Commonly used when intermittent dispenser function, no-ice production, or wiring damage is diagnosed
• Passive component — does not include switches, motors, or control boards

• One small icemaker jumper harness (as pictured)

• Disconnect power to the appliance before servicing to avoid shock or injury
• Inspect mating connectors and surrounding wiring for damage or corrosion; replace any compromised components
• Secure harness routing to avoid interference with moving parts or closing doors

This icemaker fan motor circulates air around the icemaker assembly to help ice freeze evenly and prevent clumping. Replacing a failed fan restores proper airflow for reliable ice production and consistent cube quality. What it does:

• Moves cold air across the icemaker and ice bin to maintain even freezing
• Helps prevent ice from forming large clumps or partial cubes
• Reduces frost buildup around the icemaker area when operating correctly
• Supports proper operation when the icemaker runs but ice production is poor or irregular

• Disconnect power to the appliance before inspecting or replacing the fan
• Access may require removing interior panels or the icemaker assembly
• Handle the fan blades and motor carefully to avoid bending blades or damaging the connector

The Icemaker is an OEM part compatible with GE refrigerators. It is responsible for producing ice cubes and depositing them into the ice bucket or ice storage bin. The icemaker is designed to automatically monitor ice levels and produces just the right amount of ice on demand.

Causes of a bad icemaker can include mechanical failure or wear of components like the water inlet valve, ice ejector mechanism, or ice mold heater. Minerals or scale buildup can also impact the icemaker's efficiency over time.

Symptoms of a bad icemaker include:

• Insufficient or inconsistent ice production
• Ice cubes sticking together or malformed shapes
• Leaks or water spills from the icemaker area
• Loud buzzing or grinding noises during the operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This replacement auger motor drives the dispenser auger to move ice from the freezer bin to the dispenser chute, restoring reliable ice delivery. Fits dispenser assemblies that use the WR60X10276 auger motor. What it does:

• Turns the auger shaft to push ice through the dispenser chute for user-activated dispensing
• Replaces a motor that hums, fails to turn, or stops feeding ice
• Helps stop intermittent or no-ice-dispense symptoms when the auger motor is the faulty component
• Works as the mechanical drive for auger-style ice dispensers in compatible refrigerators

• One auger motor (WR60X10276)

• Disconnect power to the appliance before starting any repair
• Remove the freezer door liner or dispenser housing to access the motor and auger assembly
• Note wiring locations and mounting orientation during removal; reconnect wiring and secure mounting when installing
• Test dispenser operation with power restored and handle ice bin components carefully to avoid damage

This door ice bin is the removable plastic container that stores ice made by your refrigerator's icemaker. It keeps ice contained in the door for easy access and helps prevent spills inside the fresh-food compartment. What it does

• Holds and stores cubed ice produced by the icemaker so it's ready at the door
• Keeps ice from spilling into the refrigerator cavity when the door is opened
• Replaces cracked, damaged, or missing ice storage bins that cause leaks or loose ice
• Restores proper alignment with the door shelf for smooth removal and replacement

• Empty any loose ice before removing the old bin to avoid spills
• Typically installs by sliding into the door shelf track; lift slightly to remove
• Inspect door shelf guides for damage and align bin carefully when reinstalling
• Wear gloves when handling cold ice and avoid forcing the bin to prevent cracking

This replacement ice bin door track guides the dispenser door or ice bin slide so the ice chute opens and closes smoothly, helping restore proper ice dispensing and reduce jams or binding. What it does:

• Provides the sliding/tongue surface for the ice bin door to move smoothly.
• Restores proper alignment when the dispenser door sticks or drags.
• Helps stop the ice bin door from binding or catching during operation.
• Useful when worn, cracked, or damaged track edges cause noisy or uneven motion.

• Disconnect power to the refrigerator before beginning any repair.
• Inspect surrounding trim and fasteners; replace any stripped screws to ensure secure fit.
• Installation typically requires basic hand tools; handle plastic parts carefully to avoid cracking.

Includes 12 retainer rings.

This stationary display blade secures and positions the appliance's front display/overlay so controls and indicators stay aligned and visible. It replaces a cracked, loose, or missing display blade to restore a stable display surface. What it does:

• Holds the display/overlay in the correct position behind the control panel
• Prevents the display from rattling or shifting during normal use
• Restores a flush, aligned appearance when the original blade is broken or worn
• Helps keep buttons and indicators properly supported for reliable operation

• Disconnect power to the appliance before starting any repair.
• Removal usually requires removing the front/display trim or bezel; use basic hand tools.
• Handle small plastic parts carefully to avoid cracking during removal/installation.

This spacer is a small mounting support used to maintain proper clearance and alignment between refrigerator panels, doors, or components. It helps reduce rubbing, vibration, and noise by restoring correct spacing and fit. What it does:

• Keeps panels, trim, or components spaced correctly to prevent metal-on-metal contact and wear
• Helps align doors and panels for a flush fit and smoother operation
• Reduces vibration and rattling caused by misaligned parts
• Used wherever a fixed clearance or gap is required during reassembly

• Disconnect power to the appliance before beginning any service that requires panel or component removal
• Inspect mating surfaces for damage or debris before installing the spacer; replace any damaged fasteners
• Install in the same orientation and location as the original spacer; do not overtighten mounting hardware

This front dispenser plate replaces the exterior trim that surrounds the refrigerator dispenser opening, restoring a clean look and proper alignment for the ice and water dispenser area. It helps seal and protect internal dispenser components from dirt and damage. What it does:

• Covers the dispenser opening and provides a finished surface for the ice/water delivery area
• Helps guide ice and water into the drip tray and prevents interference with dispensing
• Protects internal dispenser switches and mechanisms from spills and debris
• Common signs you need this part: cracked, broken, warped or missing trim; loose or misaligned dispenser face

• Disconnect power to the appliance before beginning any work
• Removal typically requires releasing trim clips or removing a few screws; keep hardware for reassembly
• Handle carefully to avoid scratching the finish; align clips/screw holes before securing

According to GE you must also replace part number WR17X4341 auger when replacing this part.

This replacement ice bin holds and delivers cubed ice from the freezer dispenser so your fridge dispenses ice reliably. Fits refrigerators with top-mount icemaker dispensers. What it does

• Holds and stores ice produced by the icemaker for dispenser use
• Guides ice toward the dispenser chute for smooth delivery
• Helps prevent ice jams when the bucket is intact and properly positioned
• Replaces cracked, warped or damaged bins that cause leaks or dispensing problems

• One replacement ice bucket

• Disconnect power to the appliance before removing or installing the bucket
• Remove any shelf or freezer components blocking access; handle the bucket carefully to avoid damage
• Ensure the bucket is seated and aligned with the dispenser mechanism before restoring power
• If dispensing problems persist after installation, check the actuator/drive components and icemaker assembly

Replacement bucket seal that fits around the refrigerator ice bucket to restore a snug fit and help keep ice contained while reducing frost, spills and water pooling. What it does

• Seals the ice bucket to the cabinet/shelf to help keep ice from spilling or shifting.
• Reduces frost build-up and melting around the ice bin area.
• Helps prevent minor water pooling from melting ice.
• Restores proper fit so the bucket sits flush and operates as intended.

• Disconnect power to the appliance before beginning any service.
• Remove the ice bucket and carefully peel out the old seal; clean the mounting surface of ice, debris and residue.
• Press the new seal into place, making sure it is fully seated and oriented correctly around the bucket.

The Ice Bucket is an OEM replacement part for GE refrigerators. It stores and dispenses ice from the freezer compartment. Causes of a bad ice bucket can include wear and tear over time or damage to the bucket or its parts due to mishandling or impact.

Symptoms of a faulty ice bucket include:

• Ice not dispensing properly or getting stuck
• Leaks or drips from the ice dispenser
• Difficulty removing ice from the bucket

If you notice cracks, breaks, or any damage to the ice bucket, it may be time for a replacement. This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This genuine replacement screw secures appliance components and restores proper fit and function. Use it when original fasteners are missing, stripped, or corroded to stop loose panels and rattling and keep parts aligned. What it does

• Fastens panels, brackets, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose trim or rattling noises
• Restores secure fit where threads are stripped or corroded
• Helps prevent further damage from loose parts by maintaining correct alignment

• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread and tighten by hand first, then snug — avoid over-tightening which can strip threads or crack plastic
• Disconnect power to the appliance before working on internal components
• Consider replacing the mating nut or insert for a secure repair

A 6 x 1/2 inch pan-head Phillips screw used to fasten panels, trim, brackets and small assemblies on appliances. Replacing worn or missing screws restores secure mounting and reduces vibration or rattling. What it does:

• Fastens panels, brackets and trim where a 6 x 1/2 in. pan-head Phillips screw is required.
• Stops loose or rattling parts caused by missing, stripped or corroded screws.
• Provides the correct head profile for a Phillips driver to allow proper torque and seating.
• Used in non-structural fastening points on appliances.

• Always disconnect power and unplug the appliance before beginning repairs.
• Use the correct-size Phillips screwdriver to avoid cam-out and head damage.
• Do not over-tighten; over-torquing can strip threads or deform mating parts.
• Inspect mating threads and replace damaged components before installation.
