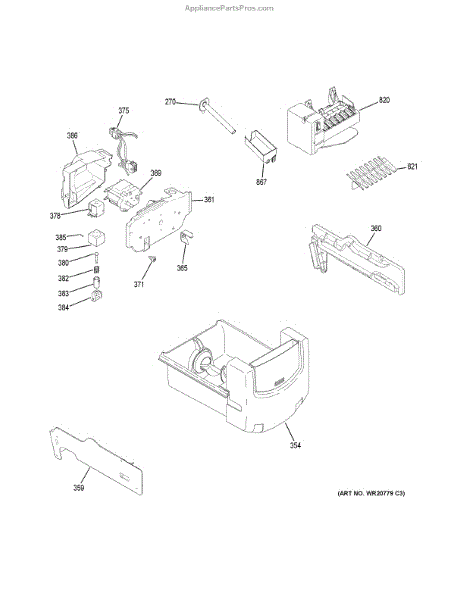

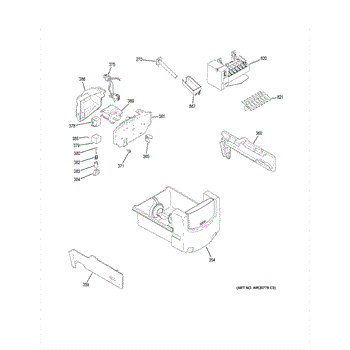

Parts for Ge CZS25TSEBFSS: Ice Maker & Dispenser Parts

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bucket and auger assembly moves ice from the freezer storage bin to the dispenser, restoring reliable ice delivery for refrigerators with built-in ice dispensers. It replaces the broken or jammed ice transport components. What it does

• Houses and feeds ice to the dispenser using a rotating auger
• Restores dispensing when ice won't move or dispense
• Helps clear jams when the auger shaft or flights are damaged
• Works with the dispenser motor and switch to deliver measured ice

• Disconnect power to the refrigerator before starting any work
• Handle edges and plastic parts carefully to avoid damage
• Align the auger shaft and connector with the dispenser motor during installation
• Test dispenser operation after reassembly and restore power only when parts are secure

This left-hand glide bucket is the replacement bin that supports and guides the dispenser assembly, restoring smooth dispensing and proper alignment. Durable plastic construction maintains correct position for reliable operation in compatible dispenser housings. What it does:

• Replaces the left-side glide bucket that holds and guides the dispenser door/drawer
• Helps restore proper alignment and smooth sliding action of the dispenser components
• Can address issues like a loose or misaligned dispenser drawer, scraping or uneven movement
• Works with the dispenser assembly to help secure internal components during use

• One left-hand glide bucket

• Basic snap-in/fasten installation;
• Power off and disconnect appliance before beginning any repair
• Inspect surrounding clips and mounting posts; replace any damaged hardware to ensure secure fit
• Use only manufacturer-recommended parts to maintain proper fit and function

This is the rear motor cover used in select GE refrigerators. It shields the motor area at the back of the compartment, helping direct airflow and protect the fan/motor assembly for reliable cooling performance.

• Protects the motor/fan area from debris and damage
• Helps channel air correctly through the compartment
• Cracks, broken tabs, or missing cover can lead to noise, poor airflow, frost, or temperature swings
• Restores proper fit and finish inside the compartment

• Unplug the refrigerator before servicing
• Remove shelves/bins obstructing access; retain screws/clips
• Carefully release locking tabs and transfer any reusable hardware
• Ensure the cover seats fully and resecure all fasteners before powering on

The Ice Maker Auger Drive Coupler is an OEM replacement part for GE refrigerators. It is located inside the automatic icemaker assembly. The coupler works together with the auger motor shaft to drive the rotation of the ice transport auger.

Over time, the drive coupler can wear out or become damaged due to regular use, jamming, or improper handling. If the coupler is compromised, it can hinder the ice dispensing process.

Symptoms of a bad Auger Dispenser Drive Coupler include:

• Ice not dispensing properly
• Grinding or unusual noises from the dispenser
• The auger not rotating when the dispenser is activated
• Loose or wobbly coupler connection

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Auger Motor is an OEM part for GE refrigerators. It powers the auger that moves ice from the ice maker into the dispenser, allowing for smooth and efficient ice dispensing. Functioning at 115V, 60 Hz, and 3.2 Amps, it is crucial for the operation of the ice dispenser.

You should replace this ice auger motor if it fails due to wear and tear, electrical issues, or mechanical damage. A malfunctioning motor can result in the ice not dispensing properly, or the motor may make unusual noises indicating it’s struggling to function.

Symptoms of a bad ice auger motor include:

• Ice not dispensing from the refrigerator
• Grinding or buzzing noises from the ice dispenser
• Auger not turning or moving ice
• Intermittent or no ice flow

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-18 Hi/Lo hex-washer screw is a direct-use replacement fastener for appliance panels, brackets and components. It restores secure mounting and helps stop loose trim, rattling or parts that shift during use. What it does:

• Secures panels, trim pieces, mounting brackets and similar components that use a 10-18 thread with a hex-washer head
• Restores proper fit where screws are missing, stripped, or corroded
• Helps eliminate rattling, vibration noise, and misaligned parts caused by loose fasteners
• Matches OEM head and thread style for a correct mechanical fit in specified locations

• Turn power or gas to the appliance off before working on electrical or gas-equipped units; unplug when applicable
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging thin sheet metal
• If replacing multiple fasteners in a load-bearing area, replace all to ensure even fit and alignment

This wiring harness connects and supplies power to the dispenser motor so the dispenser operates reliably. It replaces a worn or damaged dispenser motor harness to restore electrical continuity and dependable dispenser function. What it does:

• Carries voltage and signals between the control and the dispenser motor
• Restores power when a broken or frayed harness prevents the motor from running
• Helps stop intermittent dispenser operation caused by loose or damaged wiring
• Provides proper connector fit to maintain a secure electrical connection

• Disconnect power to the appliance before inspecting or replacing the harness
• Handle connectors gently and verify correct orientation before mating
• Route harness following original wire paths and secure with existing clips to avoid pinching
• If corrosion or other damaged components are present, inspect surrounding parts and replace as needed

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This cover fits over the refrigerator auger motor to protect internal components and help guide ice through the dispenser. It keeps the motor area enclosed to reduce debris intrusion and supports smooth auger movement. What it does

• Protects the auger motor and gearbox from ice, frost, and debris
• Helps guide ice from the bin into the auger for consistent dispensing
• Common symptom: reduced or intermittent ice dispensing, unusual noises from the dispenser area

• One cover

• High-level replacement — remove power to the refrigerator before starting
• Handle components gently to avoid damaging the auger or wiring
• If the auger still doesn't turn after replacement, check the motor, wiring, and control components

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

The Ice Stripper is an OEM Replacement Part designed for rear-mount icemakers in GE refrigerators. This part measures approximately 7.25 x 2.5 inches. The ice stripper functions during the ejection cycle to remove ice from the icemaker mold. This white and plastic part facilitates the transfer of ice cubes from the ice maker into the ice bucket.

Causes of a bad ice stripper can include regular wear and tear from frequent use, exposure to hard water deposits, and accidental impacts or mishandling. Over time, the stripper can crack, break, or become inefficient at removing ice cubes.

Symptoms of a bad ice stripper include:

• Ice cubes not being properly dispensed into the ice bin
• Ice cubes getting stuck in the mold
• The ice maker not producing ice as efficiently
• Visible damage or wear on the stripper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
