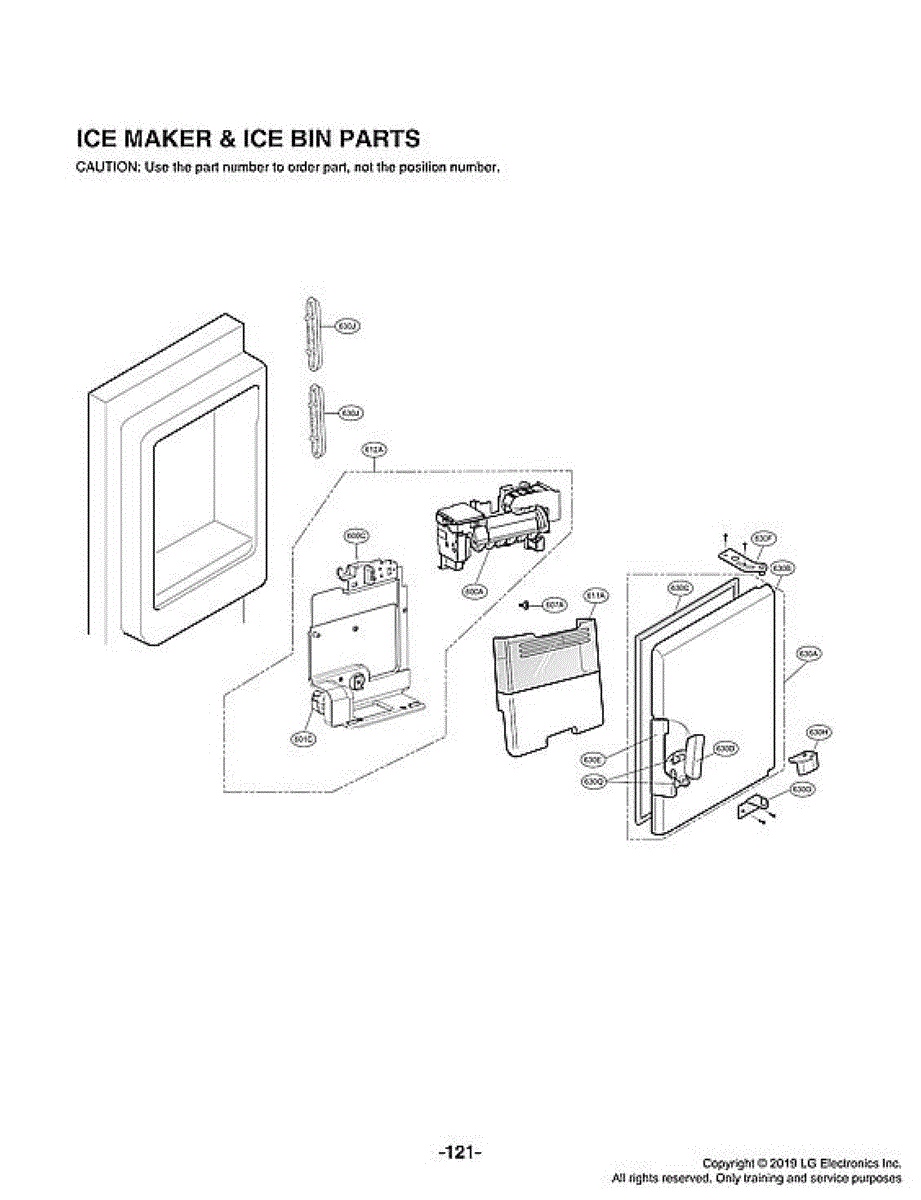

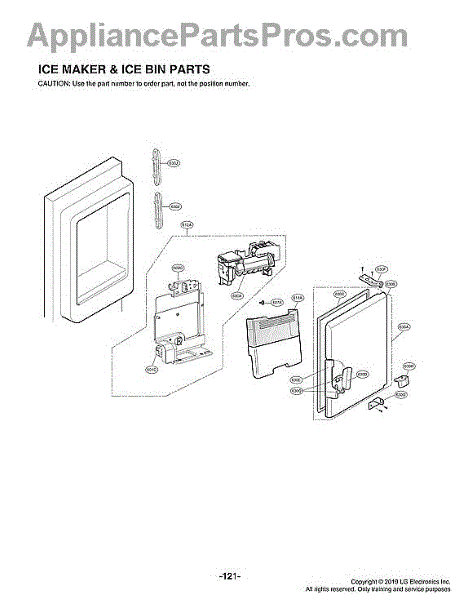

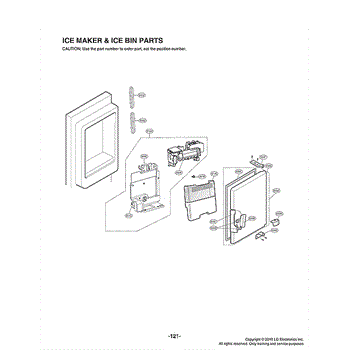

Parts for Lg LMXS28596S/01: Ice Maker / Ice Bin Parts

Replacement mounting screw for refrigerators. Secures internal components and panels. Order when original hardware is stripped, lost, or damaged.

Replacement screw for securing refrigerator panels and trim pieces. Restores proper fit when original fasteners are damaged, missing, or stripped.

Replacement mounting stud for refrigerator door handles. Installs inside the door to secure handle assembly. Needed when stud is damaged or missing.

Water funnel assembly for bottom-mount refrigerators. Directs water flow in the ice and water dispenser system. Replace if cracked or damaged.

Plastic drain tube that channels defrost water from evaporator coils to drain pan. Replace if cracked, melted, broken, or causing water leaks in freezer.

Leveling leg for refrigerators. Installs at bottom corner to elevate and stabilize the appliance. Replace if broken, compressed, or no longer secure.

Control board cover assembly for bottom-mount refrigerators. Protects the PCB housing. Replace if cracked, broken, or missing to secure electronics.

Replacement drawer tray assembly for bottom-mount refrigerators. Restores storage organization when original tray is cracked, broken, or damaged.

Replacement drawer tray assembly for bottom-mount refrigerators. Restores organization when original tray is cracked, broken, or missing.

Replace a cracked, broken, or missing refrigerator shelf. This shelf installs inside your bottom-mount refrigerator to organize and store food items.

Glass shelf assembly with frame for bottom-mount refrigerator fresh food compartment. Replace cracked, broken, or missing shelves to restore storage.

Door bin net shelf for bottom-mount refrigerators. Replaces cracked, broken, or missing net shelf inserts in refrigerator door storage bins.

Replacement shelf net organizer that installs on refrigerator shelves to secure bottles and prevent items from shifting. Needed when original is broken or missing.

Glass shelf for bottom-mount refrigerator fresh food compartment. Replace cracked, chipped, or missing shelves to restore storage space and organization.

Replace a cracked, broken, or missing refrigerator shelf assembly. Restores storage space with a stable surface for food and containers.

This is the glass or plastic cover that sits on top of the crisper drawers in the fresh food compartment, serving as both a shelf and a humidity barrier for the produce drawers below. It typically includes the frame and any attached supports. Replace this cover if it is cracked, broken, or if the crisper drawers are no longer maintaining proper humidity levels for fruits and vegetables.

Glass shelf assembly with frame for bottom-mount refrigerator fresh food compartment. Replace cracked, broken, or missing shelves to restore storage.

Glass shelf assembly with frame for bottom-mount refrigerator fresh food compartment. Replace cracked, broken, or missing shelves to restore storage.

Replacement shelf holder for bottom-mount refrigerators. Secures and supports shelves in place. Needed when original is cracked, broken, or missing.

Replacement fresh room tray assembly for bottom-mount refrigerators. Restores deli drawer storage when original is cracked, broken, or missing.

Air duct connector for refrigerators. Channels airflow between compartments. Replace if cracked, broken, or missing to restore proper air circulation.

Replaces a cracked, broken, or missing tray cover in your bottom-mount refrigerator. Restores clean appearance and helps contain spills in tray area.

This is a decorative front panel that attaches to the deli or fresh food drawer inside the refrigerator. It serves as the visible face of the drawer and provides a handle area for opening and closing it. Replace this cover if it is cracked, warped, discolored, or if the mounting tabs have broken, causing the panel to detach from the drawer.

This is a white decorative cover that conceals the fresh air filter compartment inside the refrigerator. It snaps into place over the air filter housing, providing a clean appearance while allowing airflow through the filter. Replace this cover if it is cracked, broken, or will no longer stay securely attached to the filter housing.

Replaces broken or cracked crisper drawer in bottom-mount refrigerators. Restores organized storage for fruits and vegetables with smooth-sliding design.

Removable crisper drawer for storing and organizing fruits and vegetables in your refrigerator. Replace if cracked, warped, broken, or missing.

Dim or uneven refrigerator lighting? This lamp cover protects and diffuses your interior light. Direct-fit replacement lens, simple installation.

Replaces a cracked, broken, or missing tray cover in your bottom-mount refrigerator. Protects tray surface and prevents spills or contamination.

Replacement rail guide assembly for bottom-mount refrigerator drawers. Install when original guide is cracked, broken, or worn, causing drawer misalignment.

Rail guide assembly for refrigerator drawers and bins. Supports and guides sliding components along tracks. Replace if cracked, broken, or worn.

Replace worn freezer door insulation causing poor temperature control, frost buildup, or condensation. Restores cold retention in the door cavity.

Replaces worn freezer door foam insulation to restore sealed fit and reduce air leakage. Improves temperature stability and prevents frost buildup. Confirm fit with your model number before ordering.

Replace worn freezer door insulation causing poor temperature control, frost buildup, or condensation. Restores cold retention in the door cavity.

Replaces worn freezer door foam insulation to restore sealed fit and reduce air leakage. Improves temperature stability and prevents frost buildup. Confirm fit with your model number before ordering.

Magnetic door gasket that seals the refrigerator or freezer door to maintain cold temperatures and prevent frost buildup. Replace if door doesn't seal, frost accumulates, or gasket is torn.

This flexible rubber gasket lines the perimeter of the freezer door and creates an airtight seal when the door is closed. It prevents warm air from entering the freezer compartment, helping maintain proper temperature and efficiency. Replace this gasket if you notice frost buildup inside the freezer, the door not sealing properly, or visible tears, cracks, or warping in the rubber.

Seals the refrigerator door to keep cold air in and warm air out. Replace if torn, cracked, or causing frost buildup. Confirm fit with your model number.

Covers and protects the refrigerator door hinge assembly. Replace this cap if cracked, missing, or worn to restore a finished appearance and keep hinges clean.

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

Handle assembly for bottom-mount refrigerator freezer drawers. Includes handle and operating mechanism. Replace if cracked, broken, or loose from wear.

If your refrigerator door sweats or doesn't hold temperature well, the door foam insulation may be worn. This assembly restores proper insulation.

Insulates refrigerator door to maintain temperature and reduce heat transfer. Replace if cooling is inconsistent or energy use increases. Verify fit.

Replaces damaged or warped home bar door to restore proper seal and insulation. Essential when bar compartment won't close correctly. Verify fit with model.

This replacement home bar case is the inner door shelf that holds bottles and small items in the refrigerator door, restoring storage function and a finished interior look. It fits the refrigerator's dedicated home/bar compartment. What it does:

• Provides a secure shelf for bottles, cans, and small containers in the door's home/bar area
• Restores proper spacing and support so items sit level and stay in place
• Replaces cracked, broken, or missing door-shelf housings that cause items to fall or rattle
• Helps maintain the refrigerator's intended interior organization and appearance

• One home bar case (single inner door shelf housing)

• Remove food and items from the door before replacing; handle glass or plastic shelves carefully
• Usually installs with snap-in tabs or a small number of screws—do not force parts; align tabs before pressing
• If your door has wiring or lighting nearby, disconnect power to the refrigerator before working on the door

Seals your refrigerator's beverage compartment to maintain cold temperatures and prevent air leaks. Replace if torn, cracked, or loose. Verify fit.

Seals the refrigerator door to prevent cold air leaks, frost buildup, and temperature fluctuations. Replace if torn, cracked, or no longer sealing tightly.

The Refrigerator Flipper Assembly is an OEM part for LG refrigerators. This assists in the smooth opening and closing of the refrigerator door. It ensures an airtight seal when the door is closed, preventing cool air from escaping and maintaining the refrigerator's internal temperature.

Causes of a malfunctioning Refrigerator Flipper Assembly can range from physical damage, such as cracks or breakage, to wear and tear from regular use.

Symptoms of a bad Refrigerator Flipper Assembly include:

• Difficulty in opening or closing the refrigerator door
• A noticeable gap when the door is supposed to be sealed shut
• Increased energy consumption as the refrigerator works harder to maintain its temperature
• Spoilage of food items quicker than expected due to poor temperature regulation

This OEM LG part is also compatible with some Kenmore models.

Replacement drawer guide for bottom-mount refrigerators. Restores smooth tracking and alignment when original is cracked, broken, or worn. Installs inside drawer cavity.

Replacement door basket for bottom-mount refrigerators. Restores door storage for bottles, jars, and containers. Needed when original is cracked or broken.

Replacement door bin for bottom-mount refrigerators. Mounts on the inner door panel to organize condiments, beverages, and small items. Needed when cracked or broken.

Molded plastic door basket that mounts on the refrigerator door to hold bottles, jars, and condiments. Replace a cracked, broken, or missing bin.

Clear plastic storage basket that mounts inside your refrigerator door. Holds condiments, spreads, and small items. Replace if cracked, broken, or missing.

Door stopper assembly for refrigerators. Installs on the door to limit opening angle and prevent wall damage. Replace if cracked, broken, or missing.

Stabilizes rotating assemblies in your refrigerator to reduce wobble, wear, and noise. Replace when you notice excessive movement or grinding sounds.

Lower hinge assembly supports and pivots your refrigerator door for smooth operation. Replace if door sags, misaligns, or doesn't seal properly. Confirm fit with your model number.

Mounts at the hinge to limit your refrigerator door's opening angle. Replace if cracked, broken, or missing to prevent over-swing and protect the hinge.

Hinge assembly for refrigerator doors. Installs at door pivot point to support door weight and enable smooth opening/closing. Replace if cracked or worn.

Replace a loose, cracked, broken, or missing refrigerator door handle assembly. Restores a solid grip on the fresh food door and refreshes appearance.

Replace a worn, loose, or broken refrigerator door handle with this complete handle assembly. It restores a secure, comfortable grip so you can open and close the refrigerator door easily while maintaining the unit's original look. What it does:

• Attaches to the refrigerator door to provide a sturdy handhold
• Replaces cracked, broken, or missing handles
• Helps correct a loose or wobbly handle that won't stay secure
• Restores the factory appearance of the door

• 1 refrigerator door handle assembly

• Disconnect power and protect the door surface with tape or a cloth before starting
• Remove any trim/caps as needed and loosen the hidden set screws or mounting bolts on the old handle
• Position the new handle, then tighten fasteners evenly—do not overtighten
• Reinstall any caps/trim and ensure the handle is secure

This button assembly is the user interface component that replaces worn or unresponsive control buttons on the appliance control panel, restoring normal button feedback and selection control for cycles and features. What it does:

• Provides the tactile/button contact surface for the appliance control panel so button presses register correctly
• Restores proper input for cycle selection, start/pause, and option buttons when original buttons are damaged or worn
• Can resolve symptoms like unresponsive or sticking buttons and intermittent button activation
• Works as the direct replacement part designed to fit the OEM control overlay and button housing

• One button assembly as shown

• Disconnect power to the appliance before starting any repair to avoid shock or unintended operation
• Access may require removing the control panel or console; handle the control ribbon/cable and plastic tabs carefully to avoid damage
• Keep small screws and clips organized; test button operation before reassembling fully

Drawer rail guide assembly for bottom-mount refrigerators. Mounts inside the cabinet to guide drawer movement. Replace if cracked, broken, or worn.

Connector assembly for refrigerators. Installs to join electrical components. Replace if cracked, broken, or connection points are worn or damaged.

Connector assembly for refrigerators. Installs to join electrical components. Replace if cracked, broken, or connection points are worn or damaged.

Replace worn drawer rail slides to restore smooth gliding and stable support for refrigerator contents. Fixes sticking or misaligned drawers. Confirm fit.

Slide rail that guides and supports refrigerator drawers for smooth gliding. Replace if your rail is cracked, bent, broken, or causing drawer misalignment.

This harness assembly restores the electrical connections between components, replacing a damaged or worn wiring harness to help re-establish reliable power and signal paths for the appliance. What it does

• Replaces a damaged or frayed wire harness that can cause intermittent or no power to components
• Restores factory wiring routes and connector fit to ensure correct electrical signaling
• Prevents shorts or open circuits caused by broken wires or loose terminals
• Helps resolve symptoms like components not powering, erratic operation, or connector damage

• One harness assembly as shown

• Disconnect power and any water supply before starting; confirm appliance is fully de-energized
• Compare connectors and wire lengths to the original part before installation
• Route harness along factory clips and secure fasteners to prevent pinching or chafing

Ice maker grinding or not ejecting cubes? This gear drives the ejector blades to push ice from the tray into the bin. Restores harvest cycles quickly.

Replacement ring for your refrigerator. Installs on internal components to secure or seal parts. Order a new ring if yours is cracked or missing.

Center hinge assembly supports and pivots your refrigerator door at mid-point. Replace when door sags or won't close flush. Verify fit by model number.

Center door hinge assembly supports refrigerator door pivot for smooth opening and closing. Replace if door sags, misaligns, or won't seal properly. Verify fit with your model number.

This is a ring intended for use in refrigerators. The ring is used to adjust the height of the door. Genuine OEM replacement rings are necessary for the repair to ensure a proper fitting.If the refrigerator door no longer opens or closes easily, or if it is not sealing properly, the rings may need to be replaced. Visual inspection can determine if there are problems with the refrigerator door rings. Make sure to unplug the device before starting any of the disassemblies of the machine. Wear gloves.This ring is an authentic OEM replacement part. It is sold as an individual unit. The ring is made of high-quality, durable materials. The replacement piece is sourced directly from the manufacturer. It can be installed in several models of refrigerators. The genuine OEM replacement ring is compatible with refrigerators produced by both LG and Kenmore.

The Spanner Wrench is an OEM replacement part for LG refrigerators. This tool allows you to adjust the door hinges to ensure the doors are level and aligned properly. A well-aligned door is crucial for maintaining the internal temperature and efficiency of the refrigerator, preventing energy loss and ensuring food is stored under optimal conditions.

Symptoms that you might need to adjust the door hinges and potentially need this wrench include:

• Doors not closing properly or sealing tightly
• Visible gaps between the door and the main body of the refrigerator
• The refrigerator tilting or not sitting level

This spanner wrench is also compatible with some Sears/Kenmore refrigerators.

Secures and aligns your refrigerator door at the top hinge point. Replace if door sags, binds, or seals unevenly. Confirm fit with your model number.

Secures and pivots your refrigerator door at the top for proper alignment and smooth operation. Replace if door sags or seals poorly. Verify fit.

Secures and aligns your refrigerator door for smooth operation. Replace if door sags, misaligns, or seals poorly. Verify fit with your model number.

Replaces damaged duct vent cap assembly on your refrigerator. Install when cap is cracked, broken, or missing to restore proper airflow. Verify fit with your model number before ordering.

Lever spring for bottom-mount refrigerators. Provides tension for internal lever mechanisms. Replace if broken, stretched, or missing to restore proper fit.

If your refrigerator lever won't return to position or feels loose, this lever return spring restores proper tension for smooth operation. Direct-fit part.

Connector link between refrigerator door and cabinet. Replace if original is broken, cracked, or worn. Essential for smooth door operation and alignment.

Internal bracket assembly that mounts and secures the door handle to your refrigerator door. Replace if the bracket is cracked, broken, or stripped threads.

Fix a dispenser lever that won't activate ice or water flow. This refrigerator dispenser lever restores easy push-button operation in minutes.

Magnetic gasket strip that ensures your refrigerator door closes securely and maintains an airtight seal. Replace when door won't stay closed or seal feels weak. Confirm fit with your model number.

Rubber cap for bottom-mount refrigerators. Installs on various internal components. Replace if cracked, worn, missing, or damaged to restore appearance.

Refrigerator not cooling or running constantly? The compressor circulates refrigerant to maintain proper temperature. This repair requires expertise.

Fix a refrigerator not cooling or freezing over with a new evaporator coil assembly. This part circulates refrigerant to cool your fridge compartments.

Rattling or loose parts in your refrigerator? This retaining pin secures moving components and keeps them aligned for smooth, quiet operation.

Support roller that mounts to the refrigerator base, allowing the unit to roll for cleaning or service. Replace if worn, broken, or causing uneven positioning.

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

Fix a refrigerator not cooling properly with this compressor sealing pipe. Essential sealed system component for restoring proper refrigeration.

Drain tray assembly that collects condensation beneath your refrigerator. Replace if cracked, broken, or missing to prevent water leakage issues.

Replaces a cracked, scratched, or damaged front panel on your bottom-mount refrigerator. Restores appearance and protects internal components.

Vibration-isolating grommet that mounts between the compressor and chassis. Replace if cracked, worn, or missing to restore proper cushioning.

Front cover panel for your refrigerator door. Snaps into place to restore appearance and protect controls. Replace if cracked, broken, or missing clips.

Rear machinery compartment cover assembly for bottom-mount refrigerators. Replaces cracked, broken, or missing covers that protect compressor components.

This is a small retainer clip that secures the compressor in place at the base of the refrigerator. It helps prevent the compressor from shifting or vibrating excessively during operation. Replace this clip if your refrigerator produces unusual rattling or vibrating noises from the back, or if the compressor appears loose or has shifted from its mounting position.

This restrainer is a small retaining clip that helps secure moving or removable components in place, reducing rattles and keeping parts aligned for reliable operation. It's a simple replacement for worn or broken clips. What it does:

• Holds a cover, panel, or door-related component in proper position to prevent shifting
• Reduces noise caused by loose or vibrating parts
• Restores original fit where a broken or missing clip allows movement
• Simple mechanical function — no electrical connections or calibration

• One restrainer

• Disconnect power (and water if applicable) before beginning repairs
• Inspect surrounding mounting points for damage; replace any broken tabs or fasteners
• Typically installs with basic hand tools; align clip and press or snap into place until secure

This noise damper reduces vibration and rattling sounds from refrigerant lines in your refrigerator. It cushions the copper tubing against the cabinet to prevent metal-on-metal contact that creates annoying noises. Install this damper if your refrigerator makes clicking, rattling, or vibrating sounds, especially when the compressor cycles on and off.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

This condenser assembly connects and secures the refrigerator condenser components, helping the cooling system run reliably. It replaces damaged or corroded condenser wiring to restore proper condenser function and airflow. What it does:

• Provides the OEM-configured wiring and mounting for the condenser to ensure consistent electrical connection.
• Restores proper condenser operation when original wires are cut, burnt, corroded, or loose.
• Helps prevent intermittent cooling or compressor issues caused by faulty condenser connections.
• Maintains correct routing and strain relief for condenser lines to reduce wear and chafing.

• One condenser assembly with attached wiring and mounting hardware as shown.

• Recommended for technicians or confident DIYers; disconnect power before starting and unplug the appliance.
• Inspect surrounding components for damage; replace any compromised parts.
• Use proper tools and tighten mounting hardware to OEM torque where specified; avoid pinching wires.

Fix uneven cooling or warm spots in your refrigerator with a new evaporator fan blade. This part circulates cold air throughout the unit for consistent temps.

Fix a warm fridge or squealing fan noise with a new condenser fan blade. Circulates air over condenser coils. DIY repair takes about 30 minutes.

Refrigerator making loud noise or overheating? This fan grille assembly shields fan blades, directs airflow, and reduces noise. Direct-fit replacement.

Fix refrigerator lights staying on or not turning off when door closes. This magnetic door switch is a common solution. Simple DIY repair in 15 minutes.

Fix a stuck or non-working ice/water dispenser with this micro switch. Common cause of dispensers running continuously or not activating. Easy DIY repair.

This DC motor drives the evaporator fan that circulates cold air from the evaporator coils throughout the refrigerator and freezer compartments. It is essential for maintaining even, consistent temperatures inside the unit. Replace this motor if the refrigerator is not cooling properly, the freezer is cold but the fresh food section is warm, or you hear unusual buzzing or grinding noises coming from behind the interior back panel.

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

What's included:

• One cover motor

Install notes:

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

Uneven cooling or noisy damper? This damper motor support bracket secures the air control assembly for proper airflow between compartments. DIY fix.

Refrigerator not cooling properly? This damper motor support secures the air damper assembly that controls airflow between compartments. Simple DIY fix.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

This door stopper cushions and limits the travel of a refrigerator door to prevent slamming and reduce wear on the hinge and cabinet. Replaces a worn or broken stopper to restore smooth, controlled door movement. What it does:

• Acts as a bumper and travel limiter to prevent the door from hitting the cabinet
• Absorbs impact to reduce noise and protect hinge components
• Helps the door close and align properly when opening and closing
• Commonly replaced when cracked, missing, or excessively worn

• Turn off and unplug the appliance or disconnect power before starting any work
• Remove the hinge or door trim as needed to access the stopper following the manufacturer service instructions
• Replace the stopper by removing the old piece and securing the new stopper in the same position; retain original fasteners unless replacement is required

Fix ice buildup in your refrigerator with this defrost heater. Melts frost from the evaporator during defrost cycles to restore consistent cooling.

LED light assembly for refrigerator interior lighting. Installs in fresh food or freezer compartment. Replace if cracked, dim, or not illuminating properly.

Fix a dim or flickering refrigerator interior with this LED light assembly. Direct replacement part restores bright, even lighting in minutes.

Refrigerator not cooling evenly or running constantly? This DC motor assembly drives the fan to restore proper airflow and temperature control in your fridge.

Fixes refrigerator not cooling, temperature fluctuations, or dispenser failures. Central control board regulates all fridge functions. Moderate difficulty.

This display cover assembly replaces the damaged or faded clear panel that protects and frames the appliance control display, restoring a clean appearance and keeping the control area protected from dust and spills. What it does

• Protects the control board and display window from dust, moisture, and everyday wear
• Restores a clear viewing surface when the original cover is cracked, scratched, or discolored
• Helps maintain proper button alignment and cosmetic finish on the control console
• Keeps controls visible and reduces risk of debris interfering with buttons or touch controls

• One cover assembly (display) as shown

• Disconnect power to the appliance before beginning any work
• Remove any trim or bezel panels covering the control area to access mounting screws or clips
• Handle the cover carefully to avoid scratching; use non-marring tools to release clips

Ice maker not dumping or stopped making ice? This complete assembly kit includes motor, harness, and hardware. DIYers report straightforward replacement.

The Auger Motor is an OEM part for LG refrigerators. It is responsible for dispensing ice from the icemaker into the ice bucket.

Symptoms of a bad auger motor include:

• Slow or incomplete ice filling of the ice bucket
• Ice clumping or jamming in the auger assembly
• Grinding or rubbing noises coming from the icemaker region
• The icemaker not producing any ice at all

Causes of a bad auger motor can be wear and tear over time, freezing or ice buildup preventing proper operation, or failure of internal motor components.

This OEM LG part is also compatible with select Sears/Kenmore models.

Fix inaccurate temperature readings or sensor errors with this refrigerator sensor control board. Restores proper sensor communication and feedback.

If your refrigerator display is dead, shows error codes, or behaves unpredictably, this sub PCB assembly processes inputs and controls specific functions.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

Ice bucket assembly collects and stores ice from your refrigerator's ice maker. Replace if cracked, broken, or not dispensing ice properly. Confirm fit with your model number.

Fix a dispenser that won't activate or feels stuck with this refrigerator dispenser lever. Direct replacement part for bottom-mount models. Easy repair.

Rubber cap for bottom-mount refrigerators. Covers and protects screws, bolts, or openings. Replace if cracked, missing, or worn to restore appearance.

This is a complete ice maker and auger motor assembly that mounts inside the freezer compartment of your refrigerator. It produces ice and uses the auger motor to move ice cubes from the storage bin to the dispenser chute. Replace this assembly if your refrigerator stops making ice, the dispenser is not pushing ice out, or you hear unusual grinding or clicking noises from the ice maker area.

Stores and supplies water to your refrigerator's dispenser and ice maker. Replace if cracked, leaking, or damaged from mineral buildup or freezing.

Leaking water line connections? This inline tube connector joins two sections of tubing for a secure, leak-resistant seal. Quick 10-minute fix.

Fix no water or ice issues with this water inlet valve. Common when ice maker won't fill or dispenser trickles. Easy 10-minute DIY with video guide.

Leaking water from your refrigerator or no water/ice from dispenser? This water inlet valve controls flow to ice maker and dispenser. DIY repair in 30 min.

Plastic cover cap for bottom-mount refrigerators. Snaps over mounting screws or fasteners to conceal hardware. Replace if cracked, broken, or missing.

This is a replacement filter cover that secures the air filter in place and protects internal components. It restores the proper fitment of the filter and helps maintain intended airflow and filtration performance. What it does:

• Holds the air filter securely so air passes through the filter media as designed
• Protects internal components from dust and debris
• Prevents gaps that can reduce filtration efficiency or allow unfiltered air bypass
• Helps reduce rattling or vibration caused by a loose or damaged cover

• One filter cover

• Disconnect power before accessing internal parts
• Remove the old cover by releasing retaining tabs or fasteners and align new cover until it snaps or locks into place
• Inspect nearby seals and the filter; replace if damaged
• Handle plastic parts gently to avoid cracking; do not force into place

Replace a broken or leaking water filter housing that prevents water flow to your dispenser and ice maker. Direct fit for bottom-mount refrigerators.

Removes impurities and contaminants for clean, fresh-tasting water and ice. Replace every 6 months or when water flow decreases. Verify fit with your model.

Secures and protects your refrigerator's air filter, maintaining proper airflow and filtration. Replace if cracked or loose. Verify fit with your model.

Complete freezer door assembly for bottom-mount refrigerators. Replaces cracked, dented, or damaged freezer doors. Includes door shell and inner components.

Home bar cover panel for bottom-mount refrigerators. Replaces cracked, broken, or missing exterior home bar covers. Restores appearance and finish.

Secures and pivots the ice bank door for smooth opening and proper sealing. Replace if door sags, won't close, or ice dispenser misaligns. Confirm fit.

Seals your refrigerator door to keep cold air in and warm air out. Replace if torn, cracked, or not sealing properly. Confirm fit with your model number.

The Lever Cover is an OEM part for LG refrigerators. This cover fits neatly over the freezer door lock mechanism, protecting its internal lever and hardware.

Causes of a bad lever cover can include damage from regular opening and closing of the freezer door over time. Accidental impacts or heavy impacts from moving the refrigerator could also crack or weaken the plastic material.

Symptoms of a bad lever cover include:

• Exposure of the lock mechanism that allows dust and debris to enter
• Improper shielding of lock parts leading to potential jamming issues
• Cracking or breakage of the plastic allowing outside contaminants inside

This OEM LG part is also compatible with some Kenmore models.

Replaces a cracked, broken, or missing ice dispenser door handle on your refrigerator. Installs on the exterior dispenser for easy ice access.
