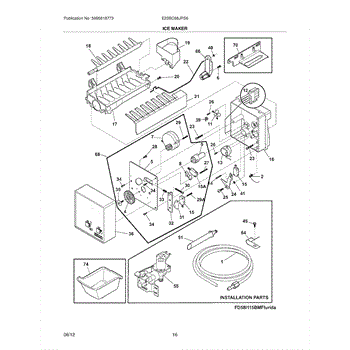

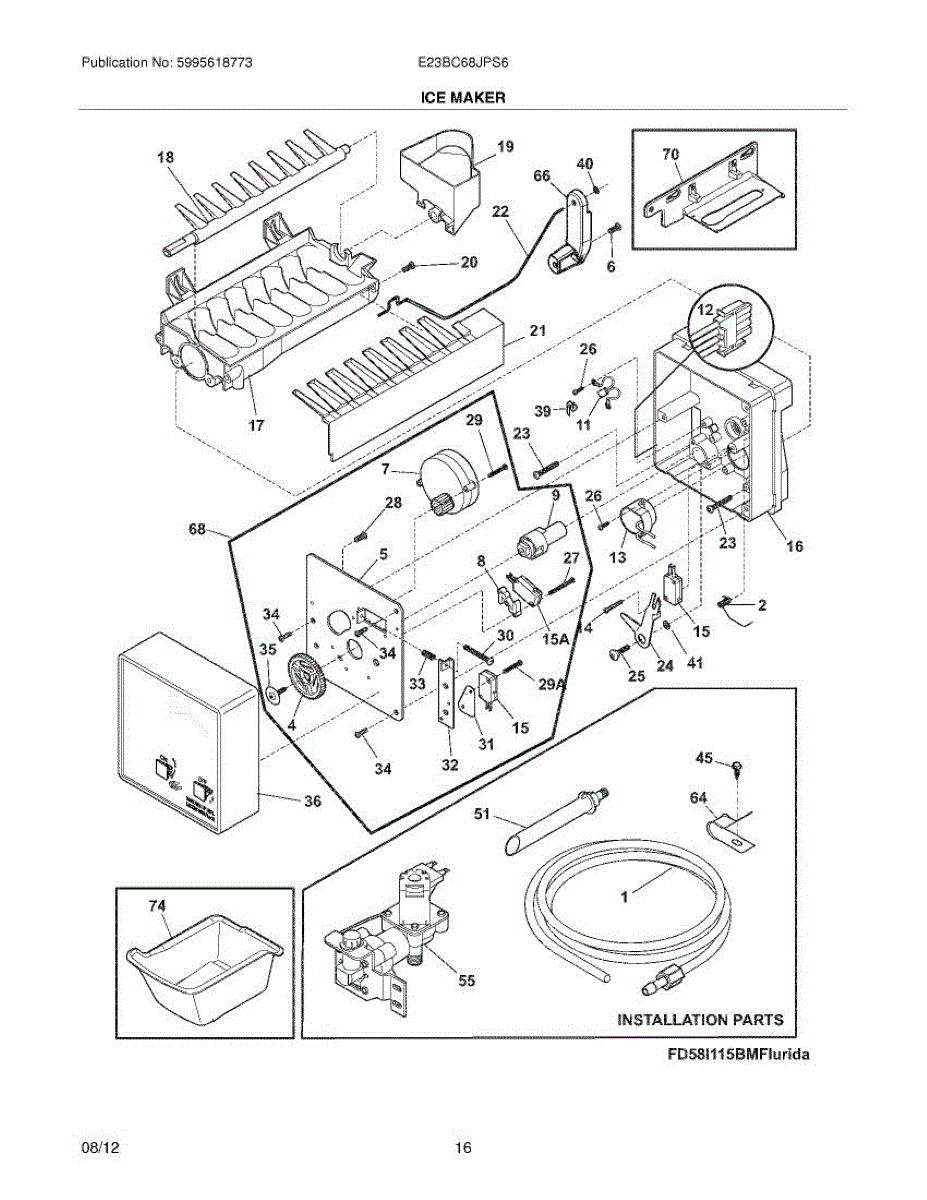

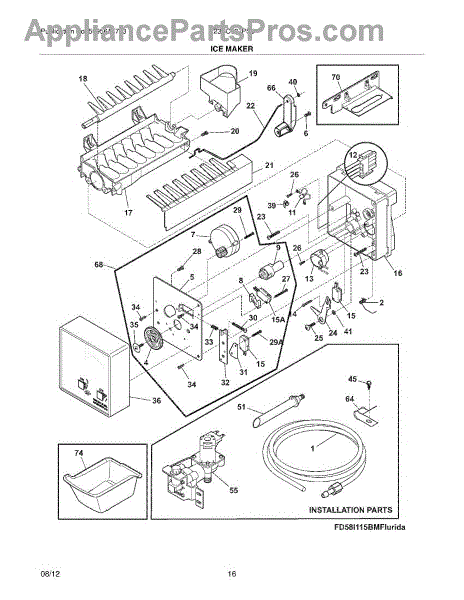

Parts for Electrolux E23BC68JPS6: 15 - Ice Maker Parts

This is the drive gear for the ice maker module. It transfers motor power to the ejector/harvest mechanism so cubes release consistently; worn or stripped teeth can cause clicking, stalls, or little to no ice production.

• Transfers motor torque to rotate the ejector and complete the harvest cycle
• Replaces a cracked, stripped, or worn gear that prevents proper ice ejection
• Typical symptoms: no ice production, icemaker stuck mid-cycle, clicking or grinding from the module
• Helps restore reliable ice maker cycling

• Unplug the refrigerator before service; turn off the water supply if moving the icemaker
• Remove the icemaker assembly for access; note the original gear's orientation before removal
• Align the new gear with the shaft; do not force it—inspect mating parts for wear
• After reassembly, verify the ejector turns freely; restore power and run a test cycle

This ice ejector is the plastic arm that pushes cubes out of the ice maker mold and into the ice bin, restoring proper ice ejection and dispenser function. It's a direct-replacement component for affected ice maker assemblies. What it does:

• Physically strips and pushes formed ice cubes from the mold into the bin or dispenser
• Helps restore normal ice dispensing when cubes remain stuck in the mold
• Works with the ice maker's motor/gear train to time ejection during the harvest cycle
• Commonly replaced when the ejector is broken, cracked, or worn and no longer contacts cubes

• One ice ejector (ejector arm)

• Disconnect power to the refrigerator before starting any repairs
• Remove the ice maker/cover or access panel as required to reach the ejector
• Inspect related components (drive gear, motor, and mounting pins) for wear while replacing the ejector
• After installation, run a test harvest/dispense cycle to correct operation

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement screw used to secure appliance components and panels so parts stay aligned and stable during normal use. Installing the correct screw restores proper fit and helps eliminate loose panels or rattling. What it does:

• Fastens panels, brackets, or small assemblies to the appliance frame
• Keeps components aligned to prevent gaps and vibration
• Replaces stripped, rusted, or lost hardware to restore secure attachment
• Compatible with the original mounting point and thread form when matching the OEM PN

• Disconnect power or unplug the appliance before starting repairs
• Use the properly sized driver to avoid cam-out or head damage
• Do not overtighten; tighten until snug to avoid stripping threads
• Keep removed hardware before final reassembly

This is a single replacement screw used to secure appliance panels and components. It restores proper fastening so parts sit securely and reduces rattling or loose trims. What it does

• Secures panels, brackets, or trim pieces to the appliance frame
• Helps stop rattling, vibration noise, and loose or sagging parts
• Replaces stripped, corroded, or missing fasteners for a snug fit
• Works as a direct replacement when the original screw is lost or damaged

• One replacement screw

• Turn power off and unplug the appliance before servicing
• Use the correct driver and avoid over-tightening to prevent stripping
• Keep replacement screws dry and use corrosion-resistant screws in wet areas

A small flat washer used as a spacer or load-distribution washer in the appliance. Replaces a worn or missing washer to help maintain proper part alignment and reduce metal-on-metal wear. What it does:

• Provides a stable bearing surface between fasteners and mating parts
• Maintains correct spacing and alignment for rotating or stationary components
• Helps reduce wear, vibration, and noise where mounted
• Commonly replaced when corroded, bent, or missing

• Disconnect power and water before servicing the appliance
• Replace with an identical washer size and thickness to maintain fit and function
• Use appropriate hand tools; avoid overtightening fasteners
• If unclear where this washer fits, consult your model's parts diagram

This water tube kit restores the refrigerator's water path. Replacing damaged or brittle tubing helps stop leaks and brings back reliable water flow to the dispenser and/or ice maker.

• Provides a secure route for water from the inlet valve through the refrigerator
• Replaces kinked, cracked, or leaking tubing that can restrict flow
• Helps resolve little/no water dispensing, slow/no ice production, or water drips/leaks
• Matches original routing and connection style on applicable units

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel to catch residual water and depressurize the line
• Note tube routing; cut ends square and fully seat tubing into fittings; avoid kinks
• Restore water and power, then check all connections for leaks and purge air by dispensing water

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replace a damaged refrigerator bracket to restore secure mounting of the associated component. This part holds the component firmly in place to maintain proper alignment and reliable performance inside the appliance.

• Provides a solid mounting point for the related interior part or assembly
• Helps maintain correct alignment and spacing of the component
• Reduces movement and vibration that can lead to noise or wear
• Common signs it may be bad: cracked or broken bracket, stripped holes, loose or misaligned component, rattling

• Disconnect power and shut off water supply before service; wear cut-resistant gloves
• Clear shelves/panels to access the bracket area and note part orientation
• Remove fasteners, swap the bracket, and reuse existing hardware if applicable
• Do not overtighten screws; confirm proper fit and alignment before reassembly

This replacement refrigerator storage container keeps food organized and contained so shelves stay tidy and items are easier to access. Durable molded plastic design restores usable storage space and helps prevent spills. What it does:

• Holds and organizes food items or produce to maximize usable shelf space
• Provides a removable bin for easy access and cleaning
• Replaces a cracked, broken or missing refrigerator bin to restore proper storage
• Helps contain spills and crumbs to simplify cleanup

• Remove fridge contents and shelves as needed before installing the bin
• Slide the container into its tracks or seating location until it rests securely
• Wash container with mild soap and warm water before first use
• Handle carefully to avoid chipping; do not use abrasive cleaners

Color: Black/natural. Nylon

The Screw is an OEM part for Frigidaire refrigerators. As a common fastener used throughout the appliance, screws hold panels, handles, components and more securely in place. Reliable performance depends on intact assemblies.

Causes of a bad screw can include wear and corrosion over time from constant vibration, as well as stripping or shearing from repeated securing and removal of parts during repairs.

Symptoms of a loose, damaged, or missing screw include:

• Rattling noises and vibration
• Doors, handles, or panels that are no longer flush or tightened securely
• Internal components that have shifted position

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Freezer Ice Maker is an OEM part for Frigidaire freezers. It is responsible for producing ice within the freezer compartment, providing a steady supply of ice cubes.

Causes of a bad ice maker can include wear and tear over time, issues with the water supply line, or electrical problems affecting the ice-making cycle.

Symptoms of a bad ice maker include:

• The ice maker not producing ice
• Ice cubes being smaller or misshapen
• Unusual noises coming from the ice maker
• Water leaks around the ice maker area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
