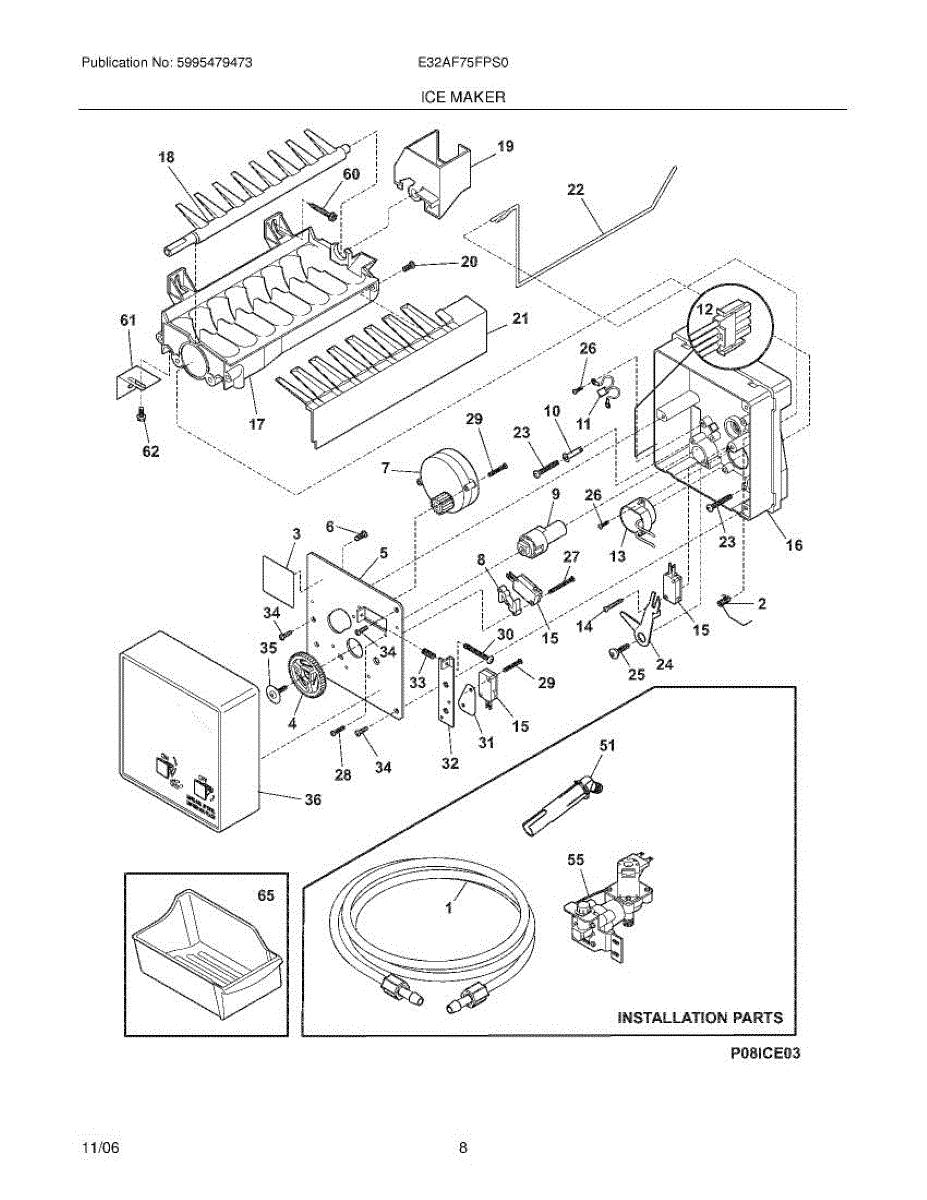

Parts for Electrolux E32AF75FPS0: 09 - Ice Maker Parts

Frigidaire PureAir® Refrigerator Air Filter combines activated carbon, Zeolite and real baking soda to reduce odors from foods such as onions, garlic, fish, stale milk and over-ripe fruits and vegetables. Recommended air filter replacement is every six months. Dimensions: 4-1/2" x 2-1/2"

Water inlet tube routes incoming water from the refrigerator's supply line to the dispenser and ice maker, restoring proper water flow and helping stop leaks when a cracked or damaged inlet tube is the problem. What it does:

• Directs incoming water to the ice maker and dispenser; a damaged tube can cause weak or no water flow and reduced ice production.
• Cracks, splits, kinks or loose connections commonly produce visible leaks under or behind the refrigerator.
• Replacing the inlet tube restores reliable water delivery and helps prevent continued water damage from a compromised line.
• Inspect nearby fittings and clamps during replacement — loose or corroded fittings are a common related cause of leaks.

• Turn off the water supply and disconnect power before starting — uncontrolled water or live electrical parts create safety hazards.
• Relieve residual water pressure and catch any drips; have towels or a shallow pan ready.
• Replace any damaged clamps, seals, or fittings and tighten connections to factory torque; inspect surrounding tubing for additional damage.

This is the drive gear for the ice maker module. It transfers motor power to the ejector/harvest mechanism so cubes release consistently; worn or stripped teeth can cause clicking, stalls, or little to no ice production.

• Transfers motor torque to rotate the ejector and complete the harvest cycle
• Replaces a cracked, stripped, or worn gear that prevents proper ice ejection
• Typical symptoms: no ice production, icemaker stuck mid-cycle, clicking or grinding from the module
• Helps restore reliable ice maker cycling

• Unplug the refrigerator before service; turn off the water supply if moving the icemaker
• Remove the icemaker assembly for access; note the original gear's orientation before removal
• Align the new gear with the shaft; do not force it—inspect mating parts for wear
• After reassembly, verify the ejector turns freely; restore power and run a test cycle

The Replacement Icemaker is an OEM part for Frigidaire side-by-side refrigerators. It serves the critical function of automatically producing batches of ice cubes on demand. Note: The Icemaker Kit comes with an adaptor harness that may be needed for some applications. The harness converts a 4 pin connector to a 3 pin connector.

Causes of a malfunctioning icemaker can vary. They may stem from failed control sensors affecting conductivity and freeze times, scaled or corroded water lines, or an ice basket mold with broken fins and louvers.
Symptoms of a bad icemaker include:

• Reduced or inconsistent ice production
• Ice cubes getting jammed or fused together
• Water leaks or spray inside the freezer
• Strange sounds or mechanisms not working

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This temperature control thermostat regulates refrigerator cooling by cycling the compressor and fans to maintain set temperatures. Replaces a faulty thermostat to restore proper temperature control and more consistent cooling. What it does

• Senses cabinet temperature and closes or opens the electrical circuit to run the compressor and cooling system
• Helps maintain steady temperatures so food stays properly chilled or frozen
• Commonly replaces a thermostat that causes the unit to run constantly, not run at all, or fail to reach set temperatures
• Works with the fridge's control assembly to respond to user temperature adjustments

• One temperature control thermostat

• Disconnect power to the appliance before starting any repair
• Locate the thermostat behind the control knob or panel; refer to your model's service manual for exact access
• Handle the capillary tube and sensor bulb carefully to avoid kinks or damage

This micro switch detects door or lid position and tells the appliance when the door is closed so cycles can start or safety interlocks stay engaged. It restores reliable door sensing and helps prevent operation with the door open. What it does:

• Acts as a position sensor that completes or breaks the control circuit when the door/lid is closed or opened
• Keeps the appliance from starting or continuing a cycle if the door is open (safety interlock)
• Common symptom fix: appliance won't start, stops mid-cycle, or shows door-related error codes
• Small electrical switch designed to mount at the door latch or frame and connect to the appliance wiring harness

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removing panels, trim, or the door latch assembly; keep track of screws and fasteners
• Observe wiring orientation and connector positions; replace exactly as removed or tag wires

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This ice ejector is the plastic arm that pushes cubes out of the ice maker mold and into the ice bin, restoring proper ice ejection and dispenser function. It's a direct-replacement component for affected ice maker assemblies. What it does:

• Physically strips and pushes formed ice cubes from the mold into the bin or dispenser
• Helps restore normal ice dispensing when cubes remain stuck in the mold
• Works with the ice maker's motor/gear train to time ejection during the harvest cycle
• Commonly replaced when the ejector is broken, cracked, or worn and no longer contacts cubes

• One ice ejector (ejector arm)

• Disconnect power to the refrigerator before starting any repairs
• Remove the ice maker/cover or access panel as required to reach the ejector
• Inspect related components (drive gear, motor, and mounting pins) for wear while replacing the ejector
• After installation, run a test harvest/dispense cycle to correct operation

Specs: 4 - 40 x 0.375

Specs: 4 - 24 x 0.750

This is a Plazcrew #8-10 screw used to fasten appliance panels, trim and components. It replaces lost or damaged screws to restore secure fit and reduce rattling or loose parts. What it does:

• Secures panels, brackets, trim pieces and small appliance components
• Restores proper alignment and prevents vibration-related noise
• Replaces missing or stripped fasteners that cause loose or wobbly parts
• Matches OEM fit for repair and maintenance where this screw is specified

• Disconnect power and follow appliance safety procedures before working
• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Keep small parts away from children and work over a tray to avoid loss

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This replacement tube restores a secure, leak-resistant fluid path in your refrigerator/freezer. Replacing a damaged or brittle tube helps prevent water where it shouldn't be and keeps the system flowing as designed.

• Provides a dedicated pathway for fluid movement within the appliance
• Helps prevent leaks caused by cracks, splits, or loose connections
• Replaces kinked or clogged tubing that can restrict flow
• Common symptoms include water leaking inside or under the unit and visible damage to the existing tube

• Disconnect power and, if applicable, shut off the water supply before servicing
• Note the original routing and connection points to ensure proper reinstallation
• Transfer and reuse any original clamps, grommets, or fittings if not supplied with the part
• Push connections fully home, secure clamps, and check for leaks after reassembly

The Water Valve is an OEM part for Frigidaire refrigerators. It is crucial for controlling the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control to supply water when needed, ensuring efficient operation and reliable delivery of ice and water.

Symptoms of a bad Water Valve include:

• No water being dispensed
• The ice maker not producing ice or producing very small ice cubes
• Water leaking from the valve

Causes of a bad water valve can include mineral deposits blocking the valve, electrical failures preventing the valve from opening, or wear and tear from normal use leading to leaks or operational failures.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

The Ice Container is an OEM replacement part for Frigidaire refrigerators. It is responsible for storing ice produced by the ice maker.

Causes of a bad ice container can include wear and cracks that develop over repeated use and cleaning. Minerals or scale deposits may also accumulate inside over time.

Symptoms of a bad ice container include:

• Ice spilling or leaking out of the container
• Cracks or breaks that compromise the storage cavity
• Chipping of the plastic coating inside the container

This OEM Frigidaire replacement part is compatible with refrigerators from Electrolux, Gibson, and Kelvinator as well.

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

This refrigerator replacement icemaker includes the cover, fill cup, bail arm and a four pin plug harness.

The Icemaker Kit is an OEM part for Frigidaire refrigerators. This kit includes everything needed to install or replace the icemaker in the freezer, ensuring a steady supply of ice.

Causes of a bad icemaker can include wear and tear over time, water line blockages, electrical failures, or mechanical issues within the icemaker components. Regular use and exposure to hard water can also contribute to the icemaker's decline.

Symptoms of a bad icemaker include:

• No ice production
• Low ice output
• Ice cubes that are smaller than usual or misshapen
• Leaks around the icemaker area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: The icemaker used in this kit is 241798231 and the water valve is 242252603.
