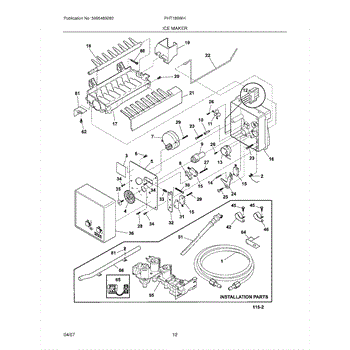

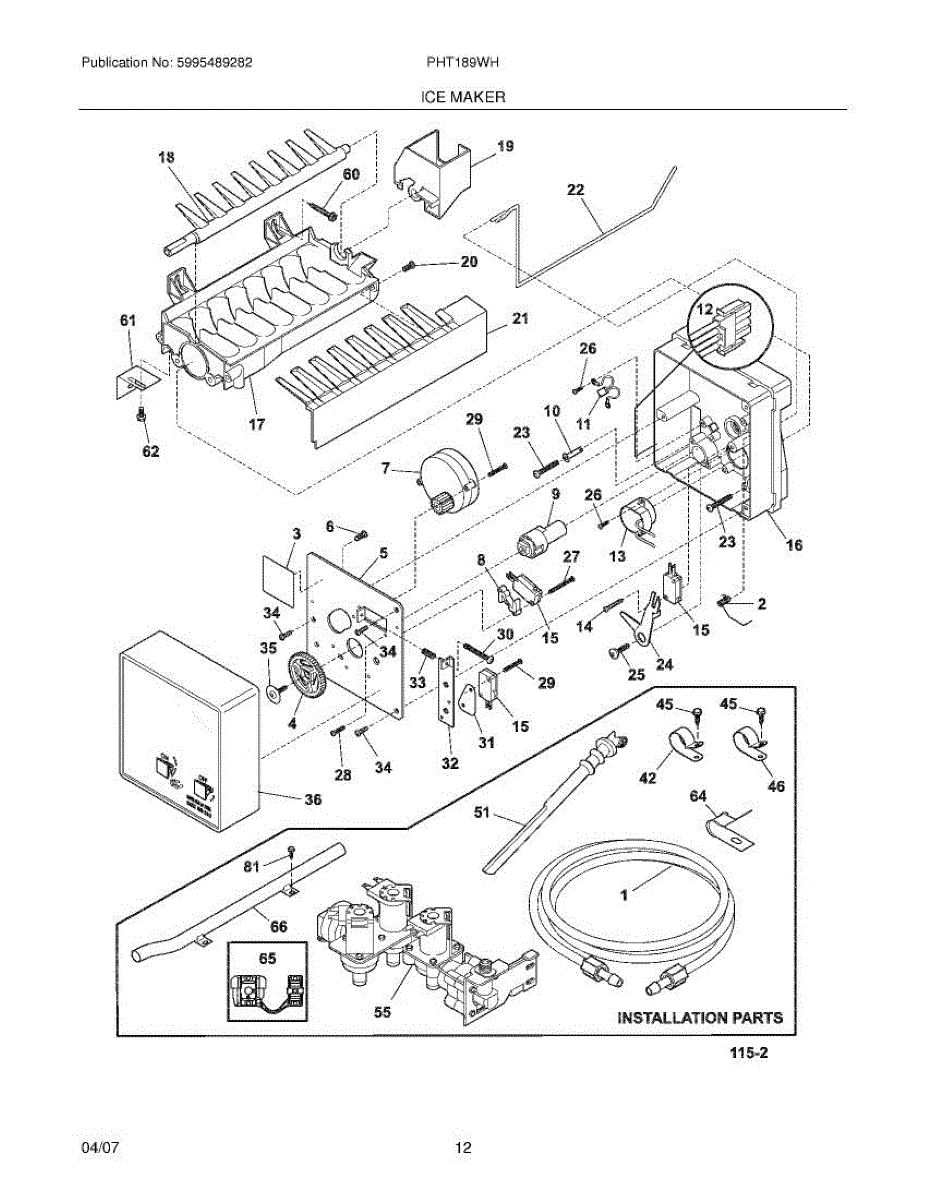

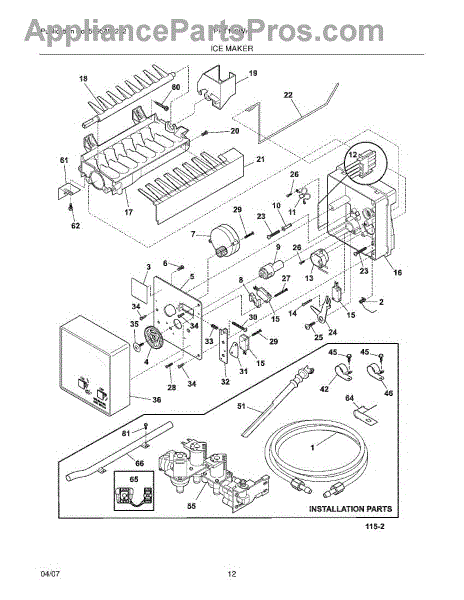

Parts for Frigidaire PHT189WHSM2: 11 - Ice Maker Parts

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Inlet valve to icemaker

This name plate is the replacement identification label that mounts to the appliance exterior to display model, rating and manufacturing information — making it easier to identify and service the unit. What it does:

• Provides the factory identification label with model and rating details for accurate appliance identification
• Restores legibility when the original plate is scratched, faded or missing
• Helps technicians confirm correct replacement parts and service information
• Supports resale value and safety by ensuring required labeling is visible

• One replacement name plate

• Always disconnect power and shut off gas or water supply before servicing
• Clean and dry the mounting surface before installing to ensure proper adhesion or fit
• This part replaces the visible identification plate only; the part number on the plate matches your unit before installation
• If mounting hardware or adhesive is required, use the method specified by your model's service instructions

This is the drive gear for the ice maker module. It transfers motor power to the ejector/harvest mechanism so cubes release consistently; worn or stripped teeth can cause clicking, stalls, or little to no ice production.

• Transfers motor torque to rotate the ejector and complete the harvest cycle
• Replaces a cracked, stripped, or worn gear that prevents proper ice ejection
• Typical symptoms: no ice production, icemaker stuck mid-cycle, clicking or grinding from the module
• Helps restore reliable ice maker cycling

• Unplug the refrigerator before service; turn off the water supply if moving the icemaker
• Remove the icemaker assembly for access; note the original gear's orientation before removal
• Align the new gear with the shaft; do not force it—inspect mating parts for wear
• After reassembly, verify the ejector turns freely; restore power and run a test cycle

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This mechanical temperature control thermostat replaces the factory temperature sensing switch to restore proper refrigerator temperature regulation. It helps the appliance maintain set temperatures for safe food storage and normal cooling performance. What it does:

• Senses cabinet temperature and opens/closes the cooling circuit to regulate compressor run time.
• Commonly used when the refrigerator runs constantly or cycles too quickly.
• Works as the user-adjustable temperature control for manual-style refrigerator controls.

• Disconnect power to the appliance before starting any repair.
• Handle the sensing bulb/capillary tube gently; avoid kinks or sharp bends.
• Verify correct placement of the sensing bulb in the evaporator/probe clip per OEM location.

This micro switch detects door or lid position and tells the appliance when the door is closed so cycles can start or safety interlocks stay engaged. It restores reliable door sensing and helps prevent operation with the door open. What it does:

• Acts as a position sensor that completes or breaks the control circuit when the door/lid is closed or opened
• Keeps the appliance from starting or continuing a cycle if the door is open (safety interlock)
• Common symptom fix: appliance won't start, stops mid-cycle, or shows door-related error codes
• Small electrical switch designed to mount at the door latch or frame and connect to the appliance wiring harness

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removing panels, trim, or the door latch assembly; keep track of screws and fasteners
• Observe wiring orientation and connector positions; replace exactly as removed or tag wires

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This ice ejector is the plastic arm that pushes cubes out of the ice maker mold and into the ice bin, restoring proper ice ejection and dispenser function. It's a direct-replacement component for affected ice maker assemblies. What it does:

• Physically strips and pushes formed ice cubes from the mold into the bin or dispenser
• Helps restore normal ice dispensing when cubes remain stuck in the mold
• Works with the ice maker's motor/gear train to time ejection during the harvest cycle
• Commonly replaced when the ejector is broken, cracked, or worn and no longer contacts cubes

• One ice ejector (ejector arm)

• Disconnect power to the refrigerator before starting any repairs
• Remove the ice maker/cover or access panel as required to reach the ejector
• Inspect related components (drive gear, motor, and mounting pins) for wear while replacing the ejector
• After installation, run a test harvest/dispense cycle to correct operation

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Note: The ice stripper is no longer available. Order complete icemaker by model number.

This replacement screw secures appliance components so panels, trim, or brackets stay fastened and aligned. Use it to replace lost or stripped fasteners and stop rattling, loose panels, or parts that won't sit flush. What it does

• Fastens panels, trim pieces, brackets, and small components to the appliance frame
• Replaces worn, stripped, or missing screws that cause rattling or gaps
• Restores secure mounting and alignment for doors, controls, or interior parts
• Works wherever the OEM screw 5304456677 is specified

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Compare new screw to the original to ensure correct fit before installation
• Disconnect power to the appliance if working near electrical components

This is a replacement screw used to secure panels, trim and other appliance components to restore proper fit and reduce rattling. It matches the OEM part form and fastening function for compatible Frigidaire appliances. What it does:

• Secures panels, brackets or trim to maintain proper alignment and appearance
• Replaces missing, stripped or damaged screws that cause loose parts or vibration
• Helps prevent rattling and keeps components seated for safe operation
• Restores original fastening where a worn or corroded screw failed

• Disconnect power to the appliance before beginning any repair to avoid electrical hazard
• Use the correct screwdriver or driver bit and hand-start threads to avoid cross-threading
• Tighten until snug; avoid overtightening which can strip threads or damage panels
• If thread damage is present, replace with the correct OEM fastener (do not force)

Galvanized Steel

The Icemaker Fill Tube is an OEM part for Frigidaire refrigerators. This tube is responsible for directing water from the water supply line to the icemaker, allowing for the production of ice. It ensures that water is efficiently delivered to the icemaker without leaks or blockages.

You should replace the icemaker fill tube if it becomes damaged or blocked. Causes of a bad fill tube can include mineral deposits or debris clogging the tube, cracks or leaks from wear and tear, or damage from mishandling during maintenance.

Symptoms of a bad icemaker fill tube include:

• No ice production
• Leaks around the icemaker area
• Ice cubes being smaller than usual
• Water overflowing or not reaching the icemaker

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This water inlet tube directs incoming water from the household supply to the refrigerator's dispenser and ice-making system, restoring proper flow and preventing leaks at the appliance connection. Ideal when the original tube is cracked, clogged, or damaged. What it does:

• Carries water from the home supply line into the refrigerator's internal water system.
• Helps ensure the ice maker and dispenser receive a steady water flow.
• Commonly replaced when you see leaks at the inlet, reduced or no water flow, or visible tube damage.
• Works with the refrigerator's inlet fittings and seals to maintain a watertight connection.

• Disconnect power to the appliance and shut off the water supply before starting.
• Inspect and replace any worn seals or fittings when installing the new tube.
• Avoid sharp bends or kinks; route the tube as the OEM tubing was positioned.
• Turn the water back on and check all connections for leaks after installation.

This replacement label provides the appliance's identification and rating information so you can restore clear model, serial, and safety marking visibility. It helps owners specifications and service details at a glance. What it does:

• Displays model, serial, and electrical rating information for the appliance
• Restores worn or missing safety and regulatory markings
• Keeps identification visible for warranty and service calls

• One replacement identification/rating label

• Clean and dry the mounting surface before applying; remove any dirt, grease, or old adhesive
• Align carefully and press firmly to ensure full adhesion; allow adhesive to set per room temperature conditions
• Do not place over vents, moving parts, or control openings
• For safety, disconnect power to the appliance before accessing internal areas to reach the original label location

This 1/4" compression nut and ring is used to connect the water supply line to the water valve inlet. Can be used anywhere a 1/4" compression fitting is needed.

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.
