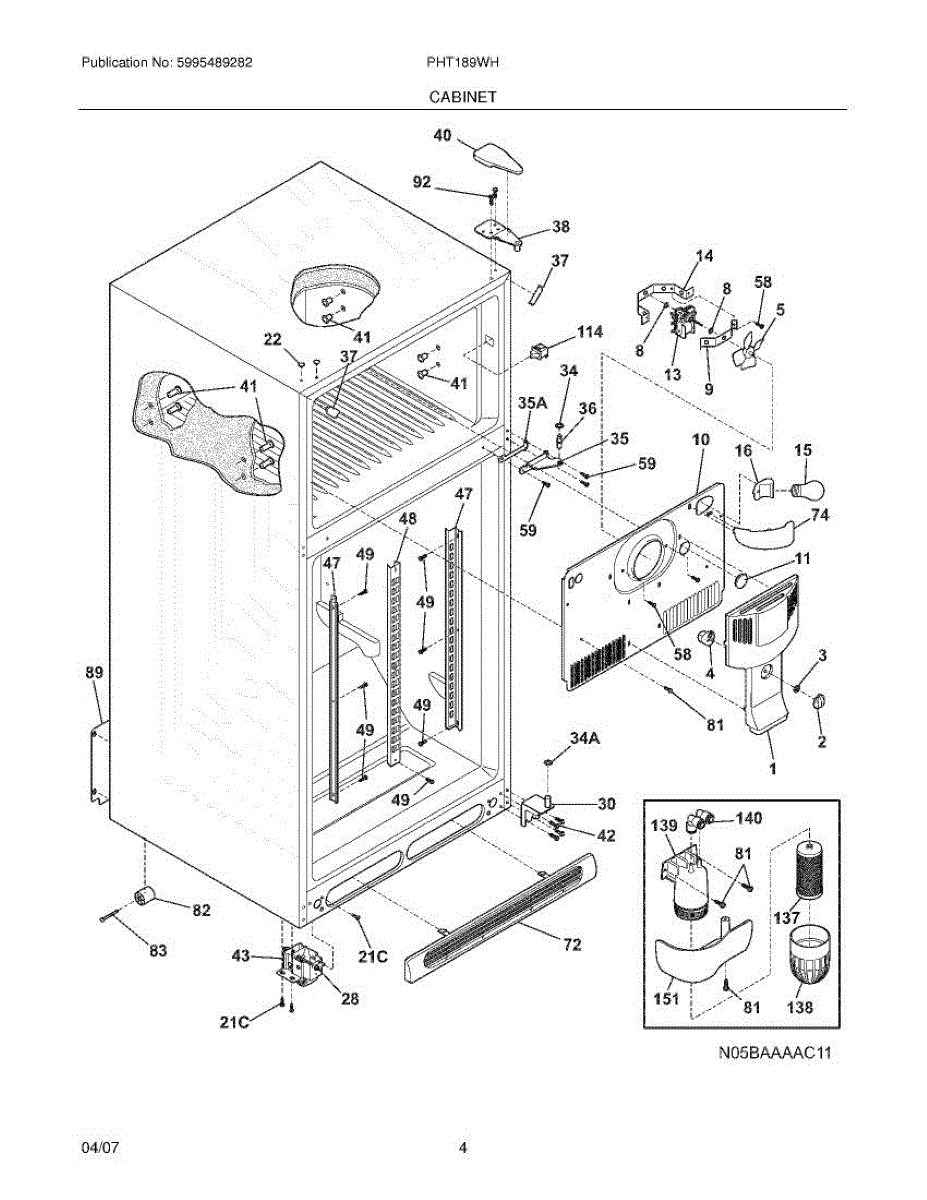

Parts for Frigidaire PHT189WHSM2: 05 - Cabinet Parts

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This evaporator fan cover protects and directs airflow around the evaporator fan to help maintain proper cooling and reduce fan noise. Replacing a damaged cover restores airflow and helps prevent fan interference from ice or debris. What it does:

• Channels cold air from the evaporator across the compartments for more even cooling.
• Shields the evaporator fan from ice buildup, frost, and loose insulation that can block airflow.
• Prevents fan blade contact with debris or wiring that can cause scraping, rattling, or excessive noise.
• Common symptoms: poor or uneven cooling, loud/scraping fan noise, visible cracks or broken mounts on the cover.

• Disconnect power to the appliance before starting any repair.
• Remove the freezer/refrigerator access panel and any shelves; handle sharp sheet metal carefully.
• Inspect the fan blade and motor while the cover is off; clear any ice or debris and ensure the fan turns freely before reassembly.
• Ensure the replacement cover seats securely and any mounting tabs align to restore proper airflow direction.

This damper control knob fits the refrigerator's air damper. It attaches to the damper control so you can open or close airflow between the freezer and fresh food compartments when the original knob is cracked, stripped, or missing.

• Attaches to the damper control shaft to adjust airflow from the freezer into the refrigerator compartment
• Direct replacement for a knob that is broken, missing, or stripped
• Symptoms can include a loose or slipping control, difficulty turning, or settings that won't stay in place
• If the control can't be turned, temperature response to damper adjustments may be inconsistent

• Disconnect power to the refrigerator before servicing
• Pull the old knob straight off the control shaft; avoid prying to prevent damage
• Align the new knob with the shaft and press it on until fully seated
• Rotate through the full range to ensure smooth operation without forcing

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This fan motor mounting bushing is used in refrigerator fan motor assemblies to prevent vibrations between the fan motor and the surrounding components. Over time, the rubber on the bushing may become cracked or broken and fall off. Loud noises coming from the refrigerator's freezer section where it is mounted are a good indicator that the bushing needs to be replaced. To start, disconnect the refrigerator's power and empty the refrigerator and freezer's contents into an ice chest to keep them cold until the motor mount bushing is replaced. Open the freezer door and remove the plastic access panel on the back wall; the fan blade and motor are located behind it. Gently pull the fan blade off the center post. Remove the screws holding the motor in place and remove the motor. Take the old bushing off and install the new bushing. Replace the panel. Put the food contents back inside the freezer and refrigerator and restore the power.This motor mounting bushing is an authentic OEM replacement part sourced directly from the manufacturer. It is sold individually. It is designed for use in refrigerators manufactured by Frigidaire, Kenmore, Gibson, and Kelvinator.

Front evaporator fan motor mounting bracket

This plug covers the small factory test opening on an appliance cabinet or liner. Replacing a missing or damaged plug helps close the opening to maintain a better seal and restore a clean, finished appearance.

• Seals the factory test opening in the cabinet/panel
• Helps limit air and moisture infiltration through the hole
• Reduces condensation or frost forming around the opening
• Restores a finished look when the original cap is missing or damaged

• Disconnect power before servicing the appliance
• Clean and dry the opening area for proper fit
• Align and press the plug in by hand until it sits flush—do not force or enlarge the hole
• Avoid sharp tools or sealants that could damage the liner or insulation

The Evaporator Fan Motor Kit is an OEM part for Frigidaire refrigerators. It is crucial for the circulation of air over the evaporator coils, helping to distribute cold air throughout the refrigerator and freezer compartments. This ensures that the appliance maintains the correct temperature to keep food fresh and prevent spoilage.

Causes of a bad Evaporator Fan Motor Kit can include motor burnout due to continuous use, obstructions that hinder fan movement, or electrical issues that prevent the motor from functioning correctly.

Symptoms of a bad Evaporator Fan Motor Kit include:

• The refrigerator or freezer section is too warm
• Unusual noises emanating from the fan area
• The motor does not run despite power to the refrigerator

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This refrigerator bracket and bushing assembly secures a moving component and provides a stable wear/pivot surface for smooth operation. Replace it when the original parts are worn or broken and causing looseness, scraping noises, or poor alignment.

• Provides a mounting point and bearing surface for rotational or sliding movement
• Helps maintain alignment and smooth, quiet operation
• Can help address wobble, scraping/binding, or a component that sags or sits out of position
• Replace if the bracket is bent/cracked or the bushing is worn/missing

• Disconnect power before servicing; turn off water supply if working near dispenser lines
• Support the attached component while removing fasteners; note the original orientation
• Transfer any spacers/clips from the old parts if present and tighten fasteners evenly
• After installation, verify smooth movement and proper alignment

The Light Bulb is an OEM part for Frigidaire refrigerators. It illuminates the interior of the refrigerator, making it easy to see and access your food items, even in low light conditions. This bulb is designed to fit seamlessly into the refrigerator's lighting socket, providing reliable and efficient lighting.

You should replace the light bulb if it burns out or becomes damaged. Common causes of a bad light bulb can include normal wear and tear over time, electrical surges, or physical damage due to impact or mishandling. A faulty bulb can result in inadequate lighting inside the refrigerator, making it difficult to locate items.

Symptoms of a bad light bulb include:

• No light when the refrigerator door is opened
• Flickering or dim light
• Blackened or broken bulb filament

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Light Socket is an OEM part for Frigidaire refrigerators. It is responsible for holding the light bulb in place and providing the electrical connection needed to illuminate the refrigerator's interior. This ensures visibility inside the refrigerator, helping you easily find and access your stored food items.

Causes of a bad light socket can include electrical malfunctions, wear and tear over time, or damage due to bulb replacements or impact.

Symptoms of a bad light socket include:

• The refrigerator light not turning on
• Flickering or dim light
• Visible damage to the socket
• Electrical sparking or unusual noises when the light is on

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Screw is an OEM replacement part for Frigidaire refrigerators. This small but essential component is used to secure various parts of the appliance, such as panels, brackets, or internal fixtures, ensuring the refrigerator's structural integrity and proper operation.

Over time, screws may become loose, stripped, or corroded due to regular use, environmental factors, or maintenance work. A damaged or missing screw can lead to misaligned parts or reduced stability of the appliance.

Symptoms of a bad or missing screw include:

• Loose or wobbly components within the refrigerator
• Panels or fixtures coming apart or misaligned
• Difficulty securing parts during maintenance or repair
• Rattling or unusual noises during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This turntable roller assembly sits under the glass tray to support and guide it as it rotates. Replacing a worn or damaged ring helps restore smooth tray movement for more even heating and dependable microwave performance.

• Supports the glass tray and allows smooth, consistent rotation
• Helps prevent tray wobble, binding, or scraping noises
• Can address issues like the tray not turning or uneven cooking
• Replaces cracked, warped, or missing roller rings

• Disconnect power before servicing
• Remove the glass tray, lift out the old ring, and clean the cavity floor
• Place the new ring wheels-down, seat the tray on the coupler, and test rotation
• Do not operate the microwave without the roller ring and tray properly installed

The Door Hinge Washer is an OEM part for Frigidaire refrigerators. The washer acts as a protective barrier that reduces friction and wear on the hinge and frame, facilitating a quieter operation and extending the lifespan of the door mechanism.

Over time, hinge washers can become worn or damaged due to the constant opening and closing of the refrigerator door.

Symptoms of a bad Door Hinge Washer include:

• The refrigerator door is difficult to open or close
• Squeaking or grinding noises when the door is moved
• Looseness or sagging of the door, indicating misalignment
• Excessive wear on the hinge or the area of the frame where the hinge is attached

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This center hinge bracket mounts to the refrigerator cabinet at the middle hinge location. It provides a secure mounting point for the hinge, keeping the door aligned for smooth operation and a reliable gasket seal.

• Secures the middle hinge to the cabinet to support the door
• Helps maintain alignment for smooth opening/closing and proper gasket contact
• Common fix for a sagging, rubbing, or misaligned door
• Replaces a bent, cracked, or worn bracket

• Disconnect power and support the door before loosening center hinge fasteners
• Remove the old bracket and transfer the hinge and any spacers/washers to the new bracket if applicable
• Install the new bracket, align the door, then tighten screws securely
• Verify smooth swing and full gasket contact; readjust if needed

This center hinge spacer sits on the refrigerator's center hinge pin to keep the door properly spaced and pivoting smoothly. Replacing a worn spacer helps restore even door alignment and a reliable gasket seal for easier opening and closing. What it does

• Maintains the correct gap between the door and center hinge to prevent metal-to-metal wear
• Supports smooth, quiet door movement on the hinge pin
• Helps keep the door level so the gasket seals evenly
• Worn or missing spacers can lead to door sagging, rubbing/squeaking, or doors that don't close cleanly

• One center hinge spacer

• Disconnect power and remove items from the door; support the door before loosening hinge hardware
• Lift the door off the center hinge pin and remove the old spacer
• Place the new spacer on the hinge pin, reinstall the door, and check alignment and seal
• Re-tighten hinge fasteners and verify the door opens/closes smoothly

This center hinge pin supports the refrigerator door at the middle hinge and serves as the pivot point. Replacing a worn pin restores smooth door movement and helps the door align and seal properly.

• Acts as the pivot shaft for the door on the center hinge bracket
• Helps maintain correct door height and alignment for consistent sealing
• Wear or damage may show as door sagging, rubbing, squeaking, or not sealing/closing reliably
• Can reduce wobble or looseness felt at the center hinge

• Unplug the refrigerator and remove items from the door before service
• Support the door, remove hinge cover and screws, then lift the door off the center hinge
• Replace the pin in the center hinge/bracket, transferring any original spacers/washers as found
• Reinstall and level the door; verify the gasket seals evenly all around

The Upper Hinge is an OEM part for Frigidaire refrigerators. It is responsible for securing the top of the refrigerator door to the cabinet, allowing the door to open and close smoothly and securely. This hinge ensures proper alignment and functionality of the refrigerator door.

Causes of a bad upper hinge can include wear and tear over time, damage from excessive force or impact, or corrosion due to moisture exposure. A faulty upper hinge can lead to issues with door alignment and sealing.

Symptoms of a bad upper hinge include:

• The refrigerator door not closing properly
• A sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Here is a replacement shelf support grommet that is used in freezers and refrigerators. The grommets are used to provide stability for the shelves in the refrigerator. If they are broken or missing, the shelves will not sit correctly, and owners won't be able to put anything onto the shelves. A replacement grommet should slide into place, but may need to be gently tapped to ensure a proper seal is made.The shelf support grommet is for use with certain refrigerator models from Frigidaire, Kenmore, Gibson, and Crosley. This is a genuine OEM replacement part that was sourced directly from the manufacturer. It is important to note that the grommets are sold individually. If more than one is needed, owners will need to order multiple.

Specs: Hex head ,1/4-20 x 5/8

This turntable roller assembly sits under the glass tray to support and guide it as it rotates. Replacing a worn or damaged ring helps restore smooth tray movement for more even heating and dependable microwave performance.

• Supports the glass tray and allows smooth, consistent rotation
• Helps prevent tray wobble, binding, or scraping noises
• Can address issues like the tray not turning or uneven cooking
• Replaces cracked, warped, or missing roller rings

• Disconnect power before servicing
• Remove the glass tray, lift out the old ring, and clean the cavity floor
• Place the new ring wheels-down, seat the tray on the coupler, and test rotation
• Do not operate the microwave without the roller ring and tray properly installed

This #10-32 x 3/4-inch machine screw secures appliance components such as panels, brackets, and handles. Using the correct length and thread helps restore a snug, rattle-free hold wherever this screw is specified by the manufacturer.

• Fastens components with a #10-32 machine thread and 3/4-inch length
• Helps keep panels, trim, brackets, or handles secured and aligned
• Replaces missing, stripped, or corroded hardware
• Common signs include loose or wobbly parts, rattling, missing screws, or damaged screw heads/threads

• Disconnect power before servicing; if working near a water connection, shut off the water supply
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping plastic or threads
• Reuse any model-specific washers or spacers if present

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This replacement rear compressor base roller supports the refrigerator compressor on the cabinet rear base, helping keep the compressor properly seated and reducing wear from vibration and movement. What it does

• Provides a rolling support under the compressor to keep it aligned and off the cabinet floor
• Helps reduce vibration and rattling that can occur from a loose or worn compressor mount
• Prevents compressor body from dragging or scraping the cabinet base
• Commonly replaced when the roller is cracked, worn flat, missing, or causing noise

• Disconnect power to the appliance before starting any work
• Support or secure the compressor and cabinet before removing the old roller to avoid sudden movement
• Basic hand tools usually required; inspect mounting hardware and replace any damaged fasteners
• Do not attempt sealed-system repairs.

This rivet is a metal fastener used to permanently secure panels, brackets, or internal components in your appliance. Replacing a damaged or missing rivet restores a tight fit and helps prevent vibration, rattles, and looseness.

• Permanently joins thin metal parts where screws or nuts aren't used
• Maintains alignment and structural integrity of housings and frames
• Helpful when panels or components are loose, rattling, or won't stay secured
• Direct replacement for a worn, broken, corroded, or drilled-out factory rivet

• Disconnect power and shut off gas/water (as applicable) before servicing
• Support the part being fastened; drill out the old rivet head if needed
• A hand riveter/rivet tool may be required to set the new rivet
• Wear eye and hand protection during drilling/riveting

The Access Cover is an OEM replacement part for Frigidaire refrigerators. It serves as a protective barrier, covering the internal cooling system and wiring components.

Causes of a faulty access cover can include normal wear from frequent technician access. Exposure to temperature fluctuations may cause seal deterioration over time.

Symptoms of an inadequate access cover include:

• Cracks, breaks, or loose/unsecured fitment to refrigerator framework
• Cold air leaks entering the cabinet from poor access cover seal
• Improper or inefficient refrigeration system performance
• Inability to perform repairs that require access cover removal

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerators.

This replacement screw secures refrigerator components such as brackets, trims, and covers. Replace missing or stripped hardware to keep parts tight and aligned, helping eliminate rattles and restoring a solid, reliable fit.

• Fastens interior or exterior components to the cabinet or doors
• Replaces missing, rusty, or stripped hardware
• Helps reduce vibration noises from loose parts
• Restores proper fit and alignment of panels, trims, or covers

• Disconnect power; turn off water supply if working near the dispenser or ice system
• Retain and reuse any original spacers or washers
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace one fastener at a time to maintain alignment

The Light Switch is an OEM part for Frigidaire refrigerators. It is designed to control the interior lighting of the refrigerator; the switch activates when the door is opened and deactivates when closed.

Causes of a bad Light Switch can include mechanical wear from frequent use, which may cause the switch to fail to engage or disengage properly. Electrical issues such as short circuits or loose connections can also prevent the switch from functioning correctly.

Symptoms of a bad Light Switch include:

• The refrigerator light staying on when the door is closed
• The light not turning on when the door is opened
• Flickering or intermittent lighting when the door position changes

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This filter wrench is a ring-style tool used to loosen or tighten a refrigerator's water filter housing or canister. It provides extra leverage to free a stuck filter cup and helps ensure an even, secure reinstallation.

• Provides leverage to loosen a stuck water filter housing/cup
• Assists with secure, even tightening during reinstallation
• Useful when the housing is difficult to turn by hand
• Helpful in tight spaces where hand access is limited

• Turn off the water supply and dispense water to relieve pressure
• Position the wrench around the filter housing/cup; turn counterclockwise to loosen
• After replacing the filter, tighten the housing until snug—do not overtighten
• Restore water supply and check for leaks

The Frigidaire PureSource Plus WFCB Refrigerator Water Filter is an OEM part for Frigidaire refrigerators. This water filter is specifically engineered to reduce impurities and contaminants in your drinking water and ice, including chlorine taste and odor, lead, cysts, and particulates.

Regular replacement of the water filter is recommended to maintain the best water quality and flow rate. Over time, the filter can become clogged with particles and contaminants, which can reduce its effectiveness and potentially affect the taste and odor of your water.

Symptoms of a filter that needs replacement include:

• Reduced water flow from the dispenser
• Unpleasant taste or odor in the water and ice
• The refrigerator's water filter indicator light turns on

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Frigidaire Refrigerator Water Filter Cover is an OEM part for Frigidaire refrigerators. It serves as a protective casing for the water filter, ensuring it is shielded from damage and securely in place within the appliance. This cover helps maintain the aesthetic integrity of the interior of your refrigerator while also providing easy access for filter changes.

Causes of a bad water filter cover can include physical damage such as cracks or breaks, which may occur from accidental impacts or during the filter replacement process.

Symptoms of a bad Water Filter Cover include:

• Difficulty in accessing or replacing the water filter
• Loose fit that can lead to vibration or noise
• Visible damage like cracks or warping

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Water Filter O-ring is an OEM replacement part for Frigidaire refrigerators. It is specifically designed to create a secure seal for the water filter, preventing leaks and ensuring that the filtration system operates effectively.

Causes for a malfunctioning Water Filter O-ring can include wear and tear from regular use, improper installation that leads to damage, or material degradation that affects its sealing capability.

Symptoms of a bad Water Filter O-ring include:

• Water leaks around the filter area
• Reduced effectiveness in water filtration
• The need for frequent filter replacements due to compromised seals
• Visible damage or wear to the O-ring

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Frigidaire Refrigerator Water Filter Housing is an OEM part for Frigidaire refrigerators. It is designed to securely hold the water filter in place, ensuring proper filtration of water that flows into the ice maker and water dispenser.

Causes of a bad water filter housing can include cracks or damage from over-tightening the filter, wear and tear from regular use, or leaks caused by compromised seals. A malfunctioning water filter housing can result in water leaks, reduced water flow, and ineffective filtration.

Symptoms of a bad water filter housing include:

• Water leaks around the filter area
• Decreased water flow from the dispenser
• Water not being properly filtered
• Difficulty in installing or removing the water filter

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: For the o-ring order 218904301. For the filter order wfcb. For the cup order 240434401.

This is a push on John Guess design elbow used to connect two 5/16" plastic lines together.

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

Nylon
