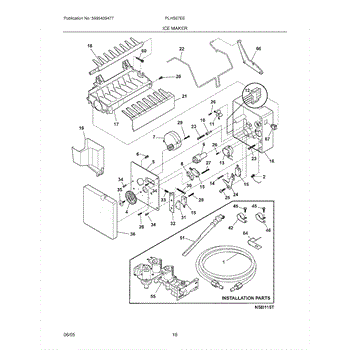

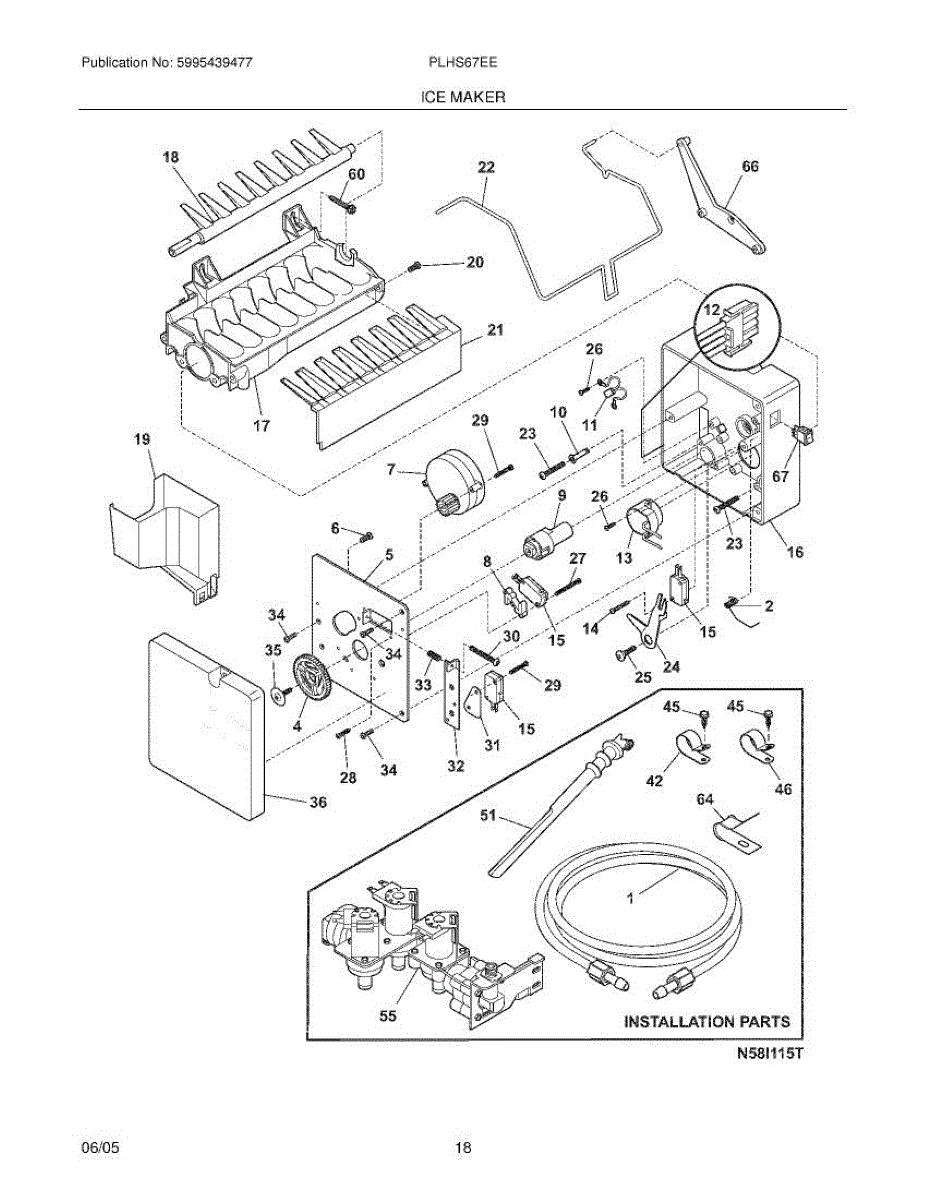

Parts for Frigidaire PLHS67EESB5: 19 - Ice Maker Parts

This Frigidaire Refrigerator Water Filter is an OEM replacement part for select Frigidaire brand refrigerators with a slide-out cartridge in the front compartment. Your refrigerator water filter reduces the chorine taste and odor from your water. It also effectively helps filter out sediment, including dirt, sand, and rust,

The filter is easy to install without the need for special tools and should be changed every 6 months. With an operating temperature range of 33-100°F and a pressure range of 30-100 PSI, this OEM part offers reliable performance. The filter measures approximately 6-3/4" x 5-1/4" x 2-1/4" and features a high-grade coconut carbon filter media.

For filter bypass order 242227702.

The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is the drive gear for the ice maker module. It transfers motor power to the ejector/harvest mechanism so cubes release consistently; worn or stripped teeth can cause clicking, stalls, or little to no ice production.

• Transfers motor torque to rotate the ejector and complete the harvest cycle
• Replaces a cracked, stripped, or worn gear that prevents proper ice ejection
• Typical symptoms: no ice production, icemaker stuck mid-cycle, clicking or grinding from the module
• Helps restore reliable ice maker cycling

• Unplug the refrigerator before service; turn off the water supply if moving the icemaker
• Remove the icemaker assembly for access; note the original gear's orientation before removal
• Align the new gear with the shaft; do not force it—inspect mating parts for wear
• After reassembly, verify the ejector turns freely; restore power and run a test cycle

This micro switch detects door or lid position and tells the appliance when the door is closed so cycles can start or safety interlocks stay engaged. It restores reliable door sensing and helps prevent operation with the door open. What it does:

• Acts as a position sensor that completes or breaks the control circuit when the door/lid is closed or opened
• Keeps the appliance from starting or continuing a cycle if the door is open (safety interlock)
• Common symptom fix: appliance won't start, stops mid-cycle, or shows door-related error codes
• Small electrical switch designed to mount at the door latch or frame and connect to the appliance wiring harness

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removing panels, trim, or the door latch assembly; keep track of screws and fasteners
• Observe wiring orientation and connector positions; replace exactly as removed or tag wires

The Icemaker Assembly is an OEM part for Frigidaire refrigerators. This assembly is responsible for producing and dispensing ice cubes, ensuring that you always have a steady supply of ice for your beverages or food storage needs.

Causes of a bad Icemaker Assembly include mechanical wear and tear that affects the ice ejector arms or the heating element that loosens the ice, and electronic failures that impair the control module's ability to regulate the ice-making process.

Symptoms of a bad Icemaker Assembly include:

• Failure to produce ice
• Producing small or misshapen ice cubes
• Leaking water in the freezer compartment
• Unusual noises during the ice-making cycle

Fits many Frigidaire side-by-side refrigerators where the icemaker mounts to the back wall of the freezer compartment.

If you experience an issue with the arm hitting the shelf, you may also need to replace the shelf due to manufacturer changes; part number 241691701,

Specs: 4 - 40 x 0.375

Specs: 4 - 24 x 0.750

This is a Plazcrew #8-10 screw used to fasten appliance panels, trim and components. It replaces lost or damaged screws to restore secure fit and reduce rattling or loose parts. What it does:

• Secures panels, brackets, trim pieces and small appliance components
• Restores proper alignment and prevents vibration-related noise
• Replaces missing or stripped fasteners that cause loose or wobbly parts
• Matches OEM fit for repair and maintenance where this screw is specified

• Disconnect power and follow appliance safety procedures before working
• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Keep small parts away from children and work over a tray to avoid loss

This ice maker cover protects the ice-making assembly and helps direct ice into the bin for reliable operation. It replaces a cracked, broken, or missing plastic cover to restore proper protection and alignment of the ice maker. What it does:

• Shields the ice maker mechanism from debris and accidental contact
• Helps guide and contain ice as it ejects into the storage bin
• Prevents water or ice from spilling into adjacent compartments
• Restores proper fit and alignment when original cover is warped or damaged

• One ice maker cover

• Disconnect power to the refrigerator before beginning any service
• Remove the ice bin and any front trim to access the ice maker housing as needed
• Align tabs and mounting bosses, then secure with the original screws; do not overtighten

Galvanized Steel

This tube clamp secures small tubing and lines inside the appliance to prevent movement and reduce wear. It keeps hoses and tubes routed properly so they don't rub against sharp edges or vibrate during operation. What it does:

• Holds water, drain or refrigerant tubing in place to prevent sagging and chafing
• Reduces vibration and rattling from loose lines
• Helps prevent tubing wear that can lead to leaks or pinch damage
• Keeps hoses routed neatly for reliable appliance operation

• Disconnect power and shut off water supply before beginning any repair
• Remove any access panels needed to reach the clamp location; use caution around sharp sheet metal
• Replace only the damaged clamp with the same style and secure tubing firmly but without over-tightening
• If tubing shows damage where it was rubbing, replace or repair the tubing before reinstalling the clamp

This water fill tube directs water from the inlet valve into the ice maker's fill cup. Replace a cracked, kinked, or frozen tube to restore reliable ice production and help prevent leaks or splashing inside the freezer.

• Routes water from the rear inlet valve to the ice maker fill area
• A damaged or blocked tube can cause no ice, small cubes, leaks near the back/freezer, or ice buildup at the fill spout
• Formed design helps aim water into the fill cup for proper filling
• Replace if the tube is cracked, brittle, kinked, or repeatedly freezing

• Disconnect power and shut off the water supply before servicing
• Access the rear and freezer liner; disconnect the old tube at the valve and liner/fill area
• Seat the new tube fully through the liner and into the ice maker fill cup; reconnect to the valve and secure any reused clips/seals
• Restore water and power, then check for proper fill and leaks

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

This switch kit is an electrical switch assembly used to restore reliable control of affected appliance functions. It replaces a worn or failed switch so the unit responds correctly to user inputs and power commands. What it does:

• Replaces a faulty or unresponsive control switch that can prevent operation or cause intermittent power/command issues
• Restores proper opening/closing or on/off signaling for the associated control circuit
• Helps eliminate symptoms like no response to button presses, intermittent operation, or a stuck switch
• Matches OEM fit and mounting points for a direct replacement when the original switch has failed

• One switch kit assembly

• Turn off and unplug the appliance or disconnect power at the breaker before beginning work
• Follow the appliance manufacturer's disassembly steps to access the switch; avoid damaging nearby wiring or components
• Verify electrical connections are secure and oriented as original; test function before fully reassembling

This 1/4" compression nut and ring is used to connect the water supply line to the water valve inlet. Can be used anywhere a 1/4" compression fitting is needed.

Inlet valve to door

This replacement ice deflector guides ice from the ice maker/dispenser into the bin or chute to reduce spills and misdirected cubes. It restores proper ice flow and helps keep the dispenser area tidy. What it does:

• Directs ice from the ice maker or dispenser chute into the ice bin
• Helps prevent ice from falling outside the bin or jamming the dispenser
• Reduces spillage and misalignment of ice cubes during dispensing
• Restores intended ice flow after a cracked, warped, or missing deflector

• Basic snap-in or screw-in replacement—inspect mounting tabs before installation
• Power off the refrigerator (or dispenser) and remove ice/ice bin before working on the deflector
• Handle part gently to avoid breaking thin plastic tabs; replace any damaged fasteners

Inlet valve filter

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

Inlet valve to icemaker

The Icemaker Assembly is an OEM part for Frigidaire refrigerators. This assembly is responsible for producing and dispensing ice cubes, ensuring that you always have a steady supply of ice for your beverages or food storage needs.

Causes of a bad Icemaker Assembly include mechanical wear and tear that affects the ice ejector arms or the heating element that loosens the ice, and electronic failures that impair the control module's ability to regulate the ice-making process.

Symptoms of a bad Icemaker Assembly include:

• Failure to produce ice
• Producing small or misshapen ice cubes
• Leaking water in the freezer compartment
• Unusual noises during the ice-making cycle

Fits many Frigidaire side-by-side refrigerators where the icemaker mounts to the back wall of the freezer compartment.

If you experience an issue with the arm hitting the shelf, you may also need to replace the shelf due to manufacturer changes; part number 241691701,
