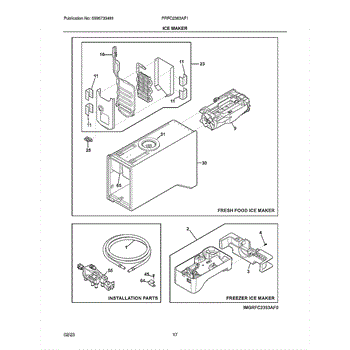

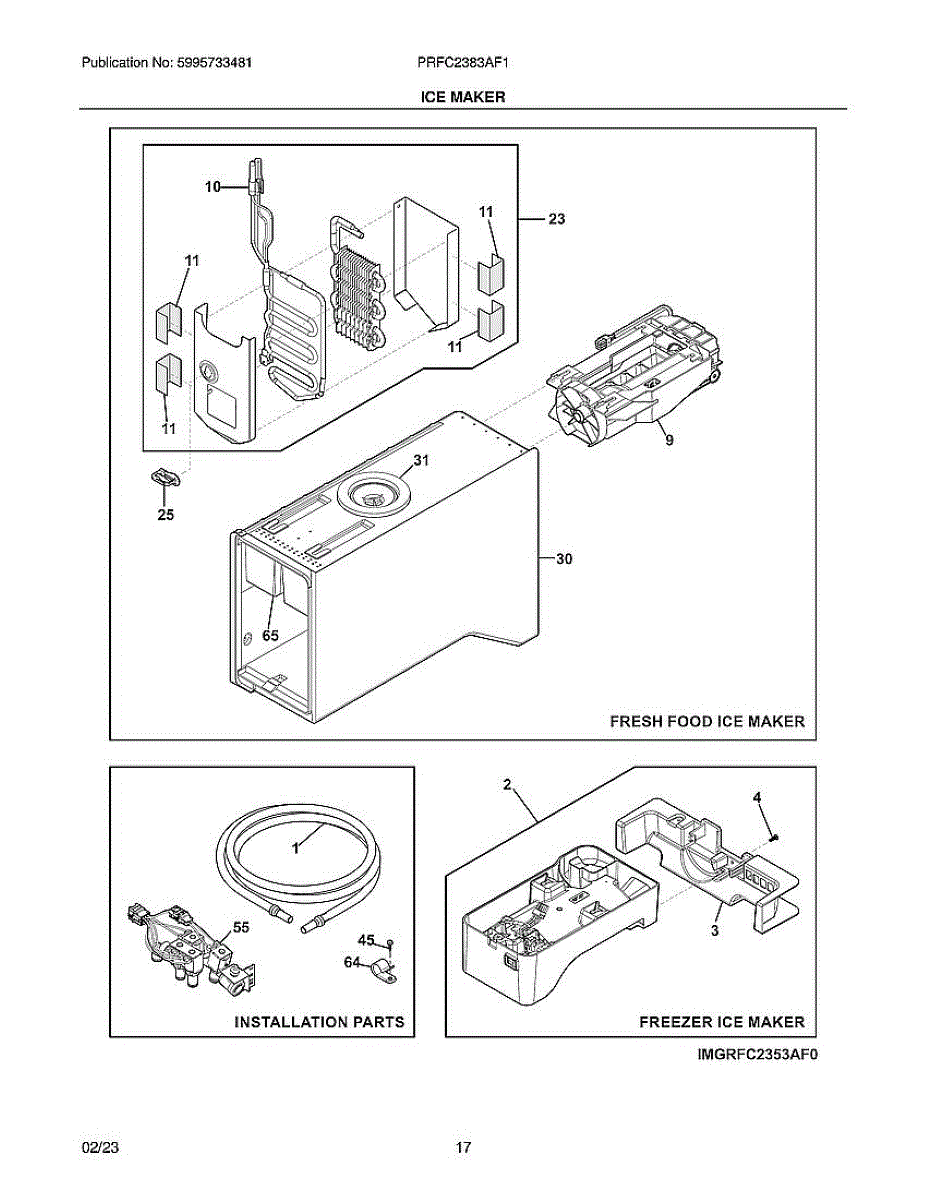

Parts for Frigidaire PRFC2383AF1: Ice Maker Parts

This replacement refrigeration tube routes water between the dispenser/valve and internal components to restore reliable water flow and drainage. It's a simple, low-cost part that helps stop leaks and restore proper water delivery. What it does

• Channels water from the inlet valve to internal lines or dispenser components
• Replaces cracked, kinked, or clogged tubing that can cause leaks or reduced flow
• Helps stop visible drips under or inside the refrigerator when the original tube fails
• Works as a direct-fit service part when the OEM tube is damaged

• One replacement tube as shown

• Disconnect power and shut off the water supply before beginning any work
• Inspect fittings and clamps; replace any damaged fasteners to prevent leaks
• Route the tube following original path; avoid sharp bends and pinch points

This ice maker assembly replaces the freezer-mounted twist-style ice maker to restore automatic ice production and delivery. Designed to fit compatible Frigidaire freezer units, it makes fresh ice without manual filling. What it does:

• Produces and ejects ice cubes using a twist-eject mechanism
• Automatically cycles to fill, freeze and harvest ice
• Stops ice production when the bin is full to prevent overfilling
• Commonly used to resolve no-ice or slow-ice production symptoms and visible damage to the existing ice maker

• Disconnect power to the appliance before starting any repair
• Remove the freezer shelf and ice bin to access the existing ice maker
• Mount unit and reconnect electrical connector; verify proper alignment of fill tube and bin
• Test operation after restoring power and allow several cycles for normal ice production

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

The ICE MAKER is an OEM part for Frigidaire refrigerators. It automatically produces batches of ice cubes which are then dispensed through the freezer door. The icemaker is designed to work with the refrigerator's water supply and cooling system to efficiently freeze water into usable ice cubes.

Causes of a bad icemaker may include mineral or limescale buildup affecting components over time, or wear and damage to parts like the mold heating element or water valve.

Symptoms of a bad icemaker include:

• Failure to produce ice cubes or inconsistent ice cube sizes
• Leaks or water spillage around the icemaker area
• Loud buzzing or grinding noises during the operation
• Errors codes displayed on control panels related to icemaker functions

This OEM Frigidaire replacement icemaker is also compatible with French door and bottom-mount freezer configurations by brands including KitchenAid, Maytag, Jenn-Air, and select Kenmore designs.

This connector is a factory-style wire harness connector that secures electrical wiring and provides a reliable plug-in connection for appliance circuits. It helps restore proper electrical contact and prevents loose or intermittent connections. What it does:

• Joins wiring circuits with a keyed plug to ensure correct polarity and secure connection
• Restores power or signal continuity when an original plug is cracked, corroded, or loose
• Reduces arcing and intermittent operation caused by damaged connector ends
• Fits inline with existing harness locations to maintain OEM routing and function

• One replacement connector

• Always disconnect power at the breaker or unplug the appliance before starting
• Inspect adjoining wires and terminals; trim damaged insulation and use proper crimps if required
• Push connector fully onto mating plug until it latches; secure any retaining clips or harness ties
• If you see melting, heavy corrosion, or damaged wiring, replace the harness.

This dual-solenoid water valve controls water flow to the refrigerator dispenser and icemaker, restoring fill and dispensing when the machine calls for water. Replaces a worn or leaking valve to stop drips and restore normal water delivery. What it does:

• Opens and closes water flow to the icemaker and dispenser when energized
• Stops water flow when the appliance signals a fill cycle is complete
• Commonly replaced for leaks, no water to dispenser, or no water to the icemaker
• Works with the refrigerator's water supply line and wiring harness

• Turn off water supply and disconnect power before starting any repairs
• Inspect and replace any worn inlet tubing or mounting hardware as needed

Color: Black/natural. Nylon

This replacement tube routes water inside the refrigerator to the dispenser or ice maker, helping restore proper water flow and prevent leaks. It's a direct-fit replacement when the original tube is cracked, pinched, or clogged. What it does

• Directs water from the inlet to the dispenser or ice maker so the system can deliver water and ice.
• Prevents leaks caused by damaged, split, or kinked tubing.
• Restores normal water flow when old tubing is clogged or collapsed.
• Works as an internal fluid pathway; not an electrical component.

• One replacement tube as shown.

• Turn off water supply and unplug the appliance before starting to avoid flooding and electrical shock.
• Inspect fittings and clamps during replacement; replace any damaged hardware for a secure seal.
• Route the tube along the original path and avoid sharp bends or kinks that can restrict flow.

This replacement tube routes water inside the refrigerator to the ice maker or dispenser, restoring reliable water flow and helping prevent leaks. It's a direct-fit plumbing tube used where the factory line is damaged or worn. What it does

• Carries water from the internal water line to the ice maker or dispenser
• Helps stop leaks caused by cracked, kinked, or corroded tubing
• Restores normal filling when the ice maker or dispenser is not getting water
• Works as the OEM replacement part specified for the fridge's internal water routing

• Disconnect power and shut off the household water supply before starting.
• Inspect and clean connection fittings; replace clamps or seals if damaged.
• Use proper tubing cutters and avoid sharp bends or kinks when routing the tube.

This genuine replacement wiring harness restores electrical connections between appliance components so controls and motors receive consistent power and signals. It helps repair failures caused by broken, burned, or loose wiring to return reliable operation. What it does:

• Routes power and signal connections between control boards, switches, and major components
• Replaces damaged or frayed wiring that can cause intermittent operation, loss of power, or non-responsive controls
• Re-establishes secure plug-to-plug connections and correct wire routing to prevent electrical faults
• Used when visibly damaged wires, melted insulation, or connector failure are present

• Disconnect power to the appliance before service to avoid shock or injury
• Compare new harness to the old harness for connector placement and routing before installation
• Route harness away from heat sources and moving parts; secure with existing clips or ties

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

The Thermistor Kit is an OEM part for Frigidaire refrigerators. Consisting of a thermistor temperature sensor and mounting bracket, this kit plays a key role in refrigeration system operation. Strategically positioned inside the unit, the sensor continually monitors interior temperatures to maintain proper cooling levels throughout all compartments.

Symptoms of a bad thermistor kit include:

• Fluctuating or uncontrollable temperatures within sections of the fridge
• The condenser or evaporator fans running excessively long periods
• Ice buildup inside compartments disrupting temperature regulation

Causes can involve thermistor degradation over time losing sensitivity and providing inaccurate reads to system computers.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.
