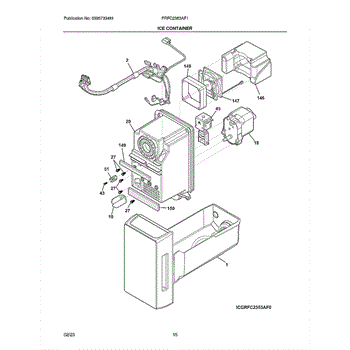

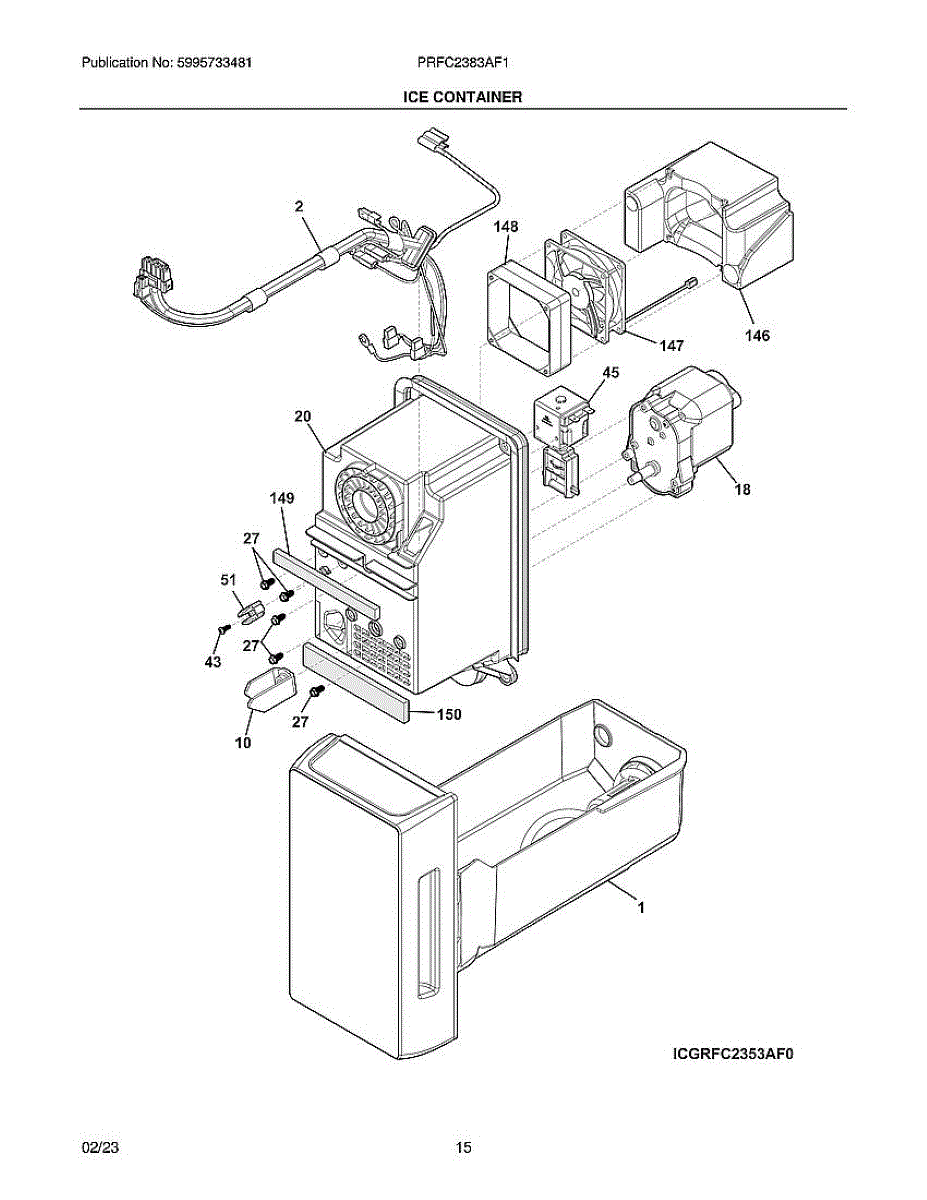

Parts for Frigidaire PRFC2383AF1: Ice Container Parts

This genuine replacement wiring harness restores electrical connections between appliance components so controls and motors receive consistent power and signals. It helps repair failures caused by broken, burned, or loose wiring to return reliable operation. What it does:

• Routes power and signal connections between control boards, switches, and major components
• Replaces damaged or frayed wiring that can cause intermittent operation, loss of power, or non-responsive controls
• Re-establishes secure plug-to-plug connections and correct wire routing to prevent electrical faults
• Used when visibly damaged wires, melted insulation, or connector failure are present

• Disconnect power to the appliance before service to avoid shock or injury
• Compare new harness to the old harness for connector placement and routing before installation
• Route harness away from heat sources and moving parts; secure with existing clips or ties

This auger drive bar links the dispenser motor to the ice bucket auger, transmitting torque to move cubes or crushed ice to the chute. Replacing a worn or stripped bar restores consistent, reliable ice dispensing. What it does:

• Couples the dispenser motor to the auger/crusher assembly
• Transfers rotation so ice advances to the dispenser chute
• Interfaces with the cube/crush selector mechanism
• Common symptoms include the motor running but no ice dispensing, intermittent dispensing, the auger not turning, or grinding/clicking from the dispenser

• 1 auger drive bar

• Disconnect power and remove the ice bucket before servicing
• Note the bar's orientation; remove any retainers and separate it from the yoke/coupler
• Align the new bar with the mating parts and seat it fully; transfer any reusable retainers
• Reinstall the bin and test both cube and crush selections

This evaporator fan motor circulates cold air across the freezer and refrigerator evaporator coil to keep compartments at the correct temperature and maintain even cooling. What it does

• Spins the evaporator fan blade to move cold air through the evaporator and into the cabinet.
• Helps prevent frost buildup on the evaporator coil by maintaining steady airflow.
• Common symptoms: refrigerator runs but won't stay cold, uneven cooling between compartments, or loud/grinding noise from the freezer area.
• Replacing the motor restores airflow and can stop temperature problems caused by a failed fan motor.

• One evaporator fan motor (motor only). Mounting hardware or fan blade included only if explicitly stated on the product page.

• Unplug the appliance before starting work to avoid electrical shock.
• Remove interior panels or evaporator cover per the service manual; be cautious of sharp sheet metal and cold/freezer components.
• Verify blade orientation and secure wiring harness as shown in the OEM manual; do not force connectors.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This is a replacement screw used to secure appliance panels and components. It restores proper fastening to stop rattles and keep parts aligned for reliable operation. What it does:

• Secures trim, brackets, or small panels to the appliance
• Prevents loose parts that can cause vibration, noise, or improper sealing
• Restores factory fastening where a screw is missing or damaged
• Simple, single-purpose fastener — use where the original screw was installed

• Use the matching screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage
• Disconnect power or follow appliance safety steps when working near electrical components
• Replace only the screw(s) that match the original size and type

This solenoid is the electromagnetic actuator that moves or opens a valve or lever in compatible Frigidaire appliances, restoring correct mechanical action so the affected function operates reliably again. What it does:

• Converts electrical signals into mechanical movement to open/close a valve or actuate a latch
• Commonly controls water or ice fill, dispenser valves, or mechanical releases
• Replacing a failed solenoid can stop symptoms like no water/ice dispensing, valves not opening, or unresponsive mechanical actuators
• Designed to fit and perform like the original part when installed according to manufacturer instructions

• One solenoid

• Disconnect power (and water, if applicable) before starting any repair
• Inspect wiring and connectors for damage; test continuity with a meter

This anti-twist pin secures mating parts to stop unwanted rotation and keeps linked components aligned for reliable operation. Replace a worn or broken pin to restore proper fit and reduce twisting, rubbing and noise. What it does:

• Keeps connected components from rotating or shifting, preserving alignment and part engagement.
• Helps prevent rubbing, scraping, or noisy operation caused by a loose or missing pin.
• Replaces a damaged or worn locating/retention pin that can allow assemblies to bind or move out of position.
• Simple mechanical replacement that restores intended part geometry and fit.

• Disconnect power to the appliance before servicing to avoid electrical or motion hazards.
• Remove any covers or panels as needed to access the pin; keep track of fasteners and orientation.
• Install the pin in the same orientation as the original; components move freely and are properly engaged before reassembly.

This evaporator fan support secures the evaporator fan assembly in the freezer/refrigerator evaporator compartment, keeping the fan correctly positioned for reliable airflow and quiet operation. What it does:

• Holds the evaporator fan motor and blade in place to maintain proper airflow across the evaporator coil
• Reduces fan vibration and noise caused by a loose or broken support
• Helps prevent airflow loss that can lead to uneven cooling or frost buildup
• Restores correct fan alignment after damage or wear

• Disconnect power to the appliance before beginning any service.
• Access typically requires removing the evaporator cover; handle foam/plastic tabs and wiring carefully.
• Inspect surrounding clips and fasteners and replace if damaged to ensure a secure fit.

The Ice Maker Cooling Fan and Gasket Kit is an OEM part for Frigidaire refrigerators. This kit includes both the cooling fan and the necessary gasket, which work together to ensure the ice maker operates efficiently.

Causes of a bad cooling fan can include electrical issues, wear and tear from continuous use, and blockages or debris impeding the fan's operation.

Symptoms of a bad ice maker cooling fan and gasket include:

• Reduced ice production or no ice being made
• Ice melting or clumping together
• Unusual noises coming from the ice maker area
• Visible wear, cracks, or gaps in the gasket

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This rubber grommet cushions and secures appliance components, reducing vibration and wear while helping maintain proper alignment. It's a small replacement part that restores quiet operation and prevents metal-on-metal contact. What it does:

• Cushions or isolates moving parts to reduce noise and vibration
• Provides a snug mount or seal where components pass through panels
• Helps keep trim, panels or wiring from rubbing and wearing
• Commonly replaced when parts become loose, cracked, or noisy

• Disconnect power before attempting any repair.
• Access may require removing a panel or trim piece; use trim tools to avoid damage.
• Ensure the grommet seats fully in the mounting hole and that retained parts align correctly.
• Replace if torn, hardened, or deformed; do not install a damaged grommet.

This gasket seals the evaporator housing to help maintain proper airflow and refrigeration circuit integrity. It prevents air leaks that can cause frost buildup and reduced cooling performance. What it does:

• Seals the evaporator housing to keep cold air contained and airflow directed
• Helps prevent excessive frost accumulation on the evaporator
• Reduces the chance of warm air infiltration that leads to temperature problems
• Supports consistent cooling and proper defrosting operation

• One evaporator housing gasket

• Disconnect power to the appliance before beginning any work
• Remove evaporator cover and any ice buildup before replacing the gasket
• Clean mating surfaces and align the gasket carefully for a proper seal
• Inspect housing and mounting surfaces for damage; replace if cracked or warped

This refrigerator door gasket creates a tight seal around the door to help keep cold air in and reduce energy loss. Replacing a worn or torn gasket restores proper door sealing and helps the refrigerator maintain temperature. What it does:

• Seals the gap between the door and cabinet to prevent cold-air leaks
• Helps reduce frost build-up and limits warm-air infiltration
• Supports consistent internal temperatures for food safety
• Can resolve symptoms like condensation on the door, visible gaps, or excessive compressor run time

• Inspect the door frame and mating surface for debris or damage before installing
• Warm the gasket slightly to make it more flexible for fitting if needed
• Press the gasket evenly into the door channel and verify full seating around the perimeter
