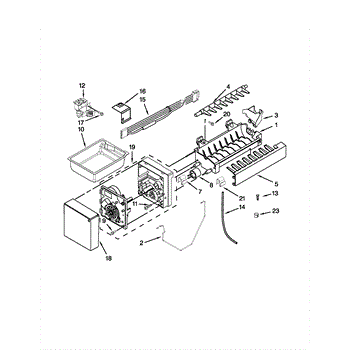

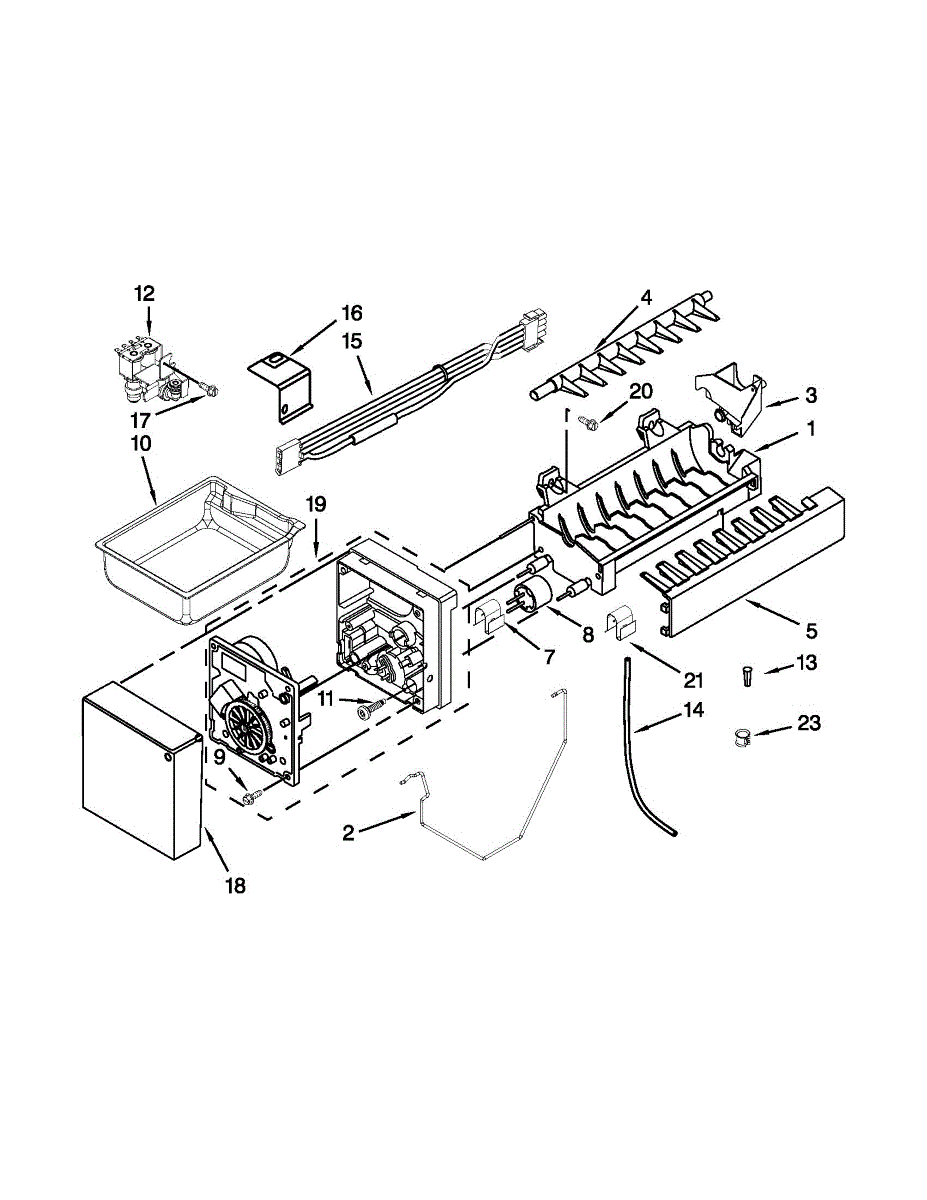

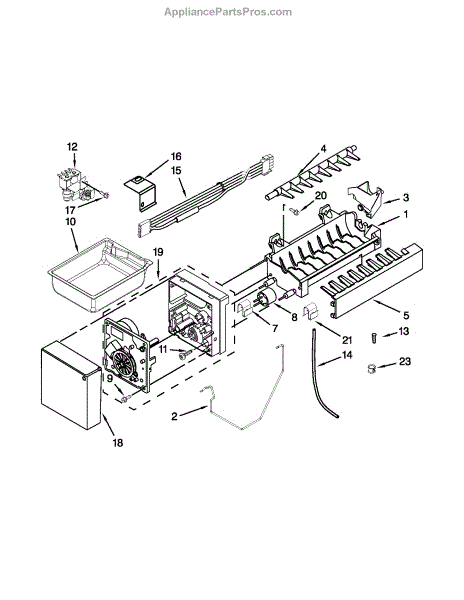

Parts for Kenmore 596.79539018 (59679539018, 596 79539018): Ice Maker Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Ice cubes stuck in tray or not releasing? This ice mold and heater assembly warms the tray during harvest to release cubes cleanly into the bin.

Ice bin overflowing or ice maker won't stop making ice? The shut off arm signals when to stop production. Simple install in under an hour.

The Icemaker Fill Cup Sensor is an OEM part for Whirlpool bottom-mount and side-by-side refrigerators. Located inside the icemaker assembly, the fill cup sensor works to automatically detect when an ice scoop or bucket is in place below the icemaker chute. It signals the icemaker to drop ice cubes into the receptacle below.

Causes of a bad fill cup sensor can include mineral or dirt build-up inhibiting sensor response, moisture damage to its electronic functioning, or physical damage to the sensor head.

Symptoms of a bad fill cup sensor include:

• Ice failing to dispense or drop when a container is in place
• Ice clumping in the chute instead of dispensing properly
• The icemaker continuing to run even with ice present below
• Inability to sense when ice is removed from the bucket

This OEM Whirlpool replacement fill cup sensor is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore bottom-mount and side-by-side refrigerators.

This ejector arm sweeps across the ice maker mold to push finished ice cubes out and into the storage bin. It is a dual-arm design for an 8-cube ice maker tray. Replace this part if ice cubes are not being released from the mold, the arm is bent or broken, or the ice maker is cycling but not dispensing ice into the bin.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Cracked ice bin causing jams or leaks? This refrigerator ice container stores cubes beneath the icemaker and guides them to the dispenser door.

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

Ice maker stopped working or leaking water in freezer? This water inlet valve controls flow to your ice maker and dispenser. Moderate DIY repair.

Fix water leaks in your refrigerator's ice maker or water line. This tube insert reinforces plastic tubing for leak-resistant compression fittings.

Ice maker not working? This wire harness restores power connection between ice maker and control board. Common fix for melted or damaged connectors.

Ice maker shifting or loose? This mounting bracket secures your ice maker assembly in place to restore stable positioning and reliable ice production.

Screw: 8-16 x 3/8 inch.

Replaces a cracked, broken, or missing ice chute door cover on your refrigerator. Restores the front panel appearance and protects internal components.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.

Fix a refrigerator that stopped making ice with this complete ice maker assembly. DIY-friendly installation takes about 10 minutes with basic tools.
