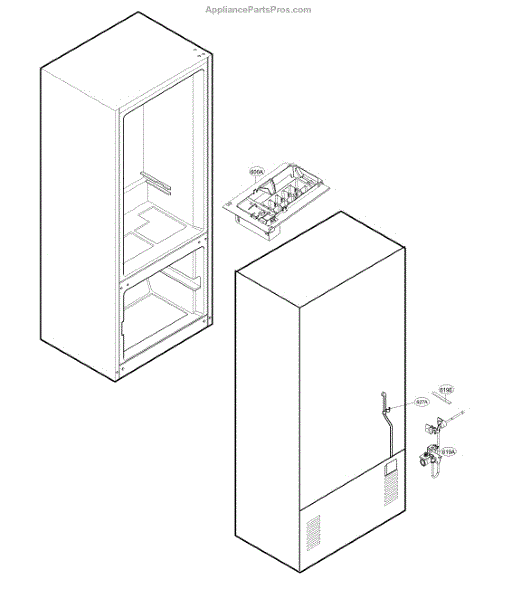

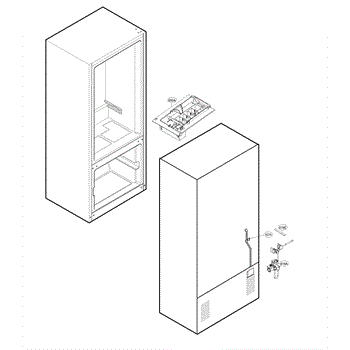

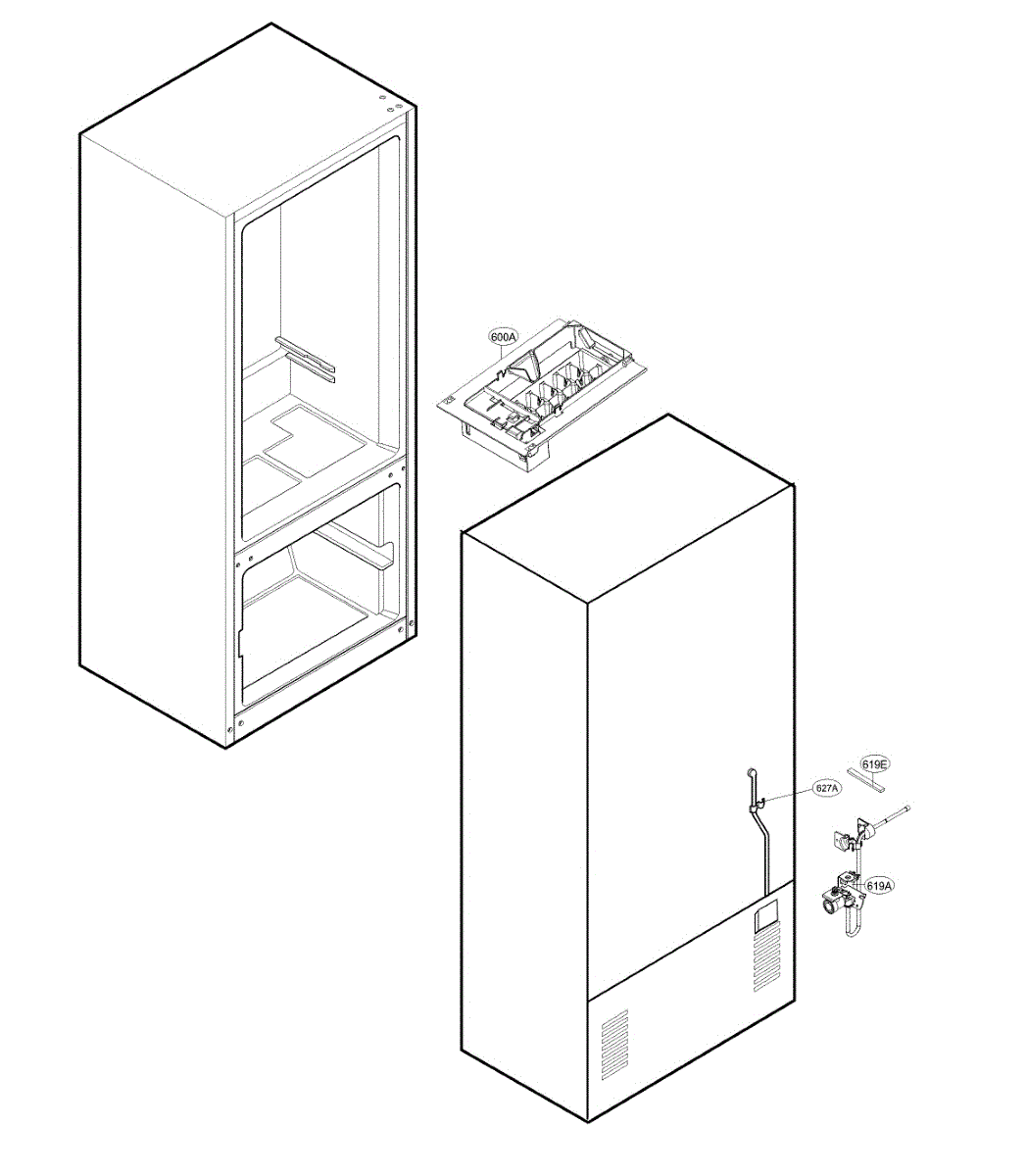

Parts for Kenmore Elite 79579044314: Ice Maker Parts

This screw is a direct-fit replacement fastener that secures panels, brackets, and internal components. Replacing a missing or stripped screw helps stop rattling and keeps parts aligned for reliable operation. What it does:

• Secures panels, trim, brackets, or internal components to restore proper fit
• Replaces missing or damaged hardware that can cause rattling or loose parts
• Restores alignment so doors, shelves, or assemblies operate smoothly
• Provides a straightforward hardware fix without replacing larger assemblies

• Use the matching screwdriver or driver bit to avoid stripping the head
• Do not overtighten — snug until seated to avoid damaging threads or plastic parts
• Disconnect power or follow appliance safety instructions before servicing electrical areas
• Keep removed hardware organized and save any damaged parts for inspection

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This adjustable leveling leg assembly supports and stabilizes the refrigerator. Replacing a worn or damaged leg restores proper leveling, reduces vibration and noise, and helps doors align and seal correctly.

• Provides height adjustment at the cabinet corner to level the appliance on uneven floors
• Helps prevent rocking, rattling, and excessive vibration
• Promotes proper door alignment and gasket sealing
• Replace if the foot is broken, missing, bent, or the threads are stripped and won't hold adjustment

• Disconnect power and turn off the water supply before servicing
• Protect the floor; with a helper, carefully tip and support the refrigerator
• Unscrew the old leg; hand-thread the new leg, then fine-tune height with a wrench until level
• Ensure both front legs share the load evenly and recheck door operation

The Guide Assembly Rail (RH) is an OEM part for LG refrigerators. This Right-hand rail is responsible for guiding the movement of drawers or shelves within the refrigerator, ensuring smooth and secure sliding. It helps maintain proper alignment and stability of the drawers, making it easier to access stored food items.

Causes of a bad guide rail can include wear and tear over time, damage due to heavy loads or excessive force when opening and closing the drawers, or misalignment from improper installation. A faulty rail can affect the performance of the drawer, leading to difficulties in accessing the refrigerator’s contents.

Symptoms of a bad guide rail include:

• Drawers not sliding in and out smoothly
• Misaligned or wobbly drawers
• Difficulty opening or closing drawers completely

This OEM LG part is also compatible with Sears/Kenmore.

The Guide Assembly, Rail (LH) is an OEM part for LG refrigerators. This component is located within the fridge compartment and is responsible for guiding and supporting the bottom drawer, ensuring it opens and closes smoothly along the right-hand side. The guide rail assembly helps the drawer maintain proper alignment and prevents it from tilting or binding during operation.

Causes of a bad guide rail assembly can include wear and tear from regular use, damage from overloading the drawer, or accidental impacts that may bend or misalign the rail.

Symptoms of a bad Guide Assembly, Rail (LH) include:

• Difficulty opening or closing the drawer
• The drawer not aligning properly
• Unusual noises when opening or closing the drawer

This OEM LG part is also compatible with Sears/Kenmore models.

This is the ice bucket that stores ice dispensed by your refrigerator's ice maker. A cracked, warped, or stuck bin can jam the auger or spill ice, leading to poor dispensing and messy freezers.

• Holds and dispenses harvested ice from the ice maker to the door chute or bin access
• Common failure signs: cracked bucket, ice not dispensing, auger not turning, ice clumping or spilling
• Restores smooth ice dispensing and proper storage in the freezer
• Built to fit the original mounting and drive interface for an easy swap

• Unplug the refrigerator and wear cut-resistant gloves
• Remove the old bin carefully; thaw any ice buildup before transferring
• Inspect the auger drive coupling for wear before installing the new bucket
• Seat the bucket fully so the drive engages; test dispense with a small amount of ice

A small protective cap that covers and protects a component connection or opening from dirt and moisture, helping maintain proper function and prolong component life. Simple replacement when the original cap is cracked, missing, or worn. What it does:

• Covers exposed fittings, terminals, or openings to keep out debris and moisture
• Helps prevent leaks or contamination at the sealed connection
• Restores a secure fit when the original cap is cracked, split, or degraded
• Commonly used where a small, removable protective seal is required

• Inspect mating surface and surrounding gasket/seal before installing; replace other damaged parts as needed
• Press the cap firmly into place until fully seated; no special tools usually required
• Wear gloves and disconnect power or water supply if working near energized or pressurized components

This roller is the small wheel that lets a sliding component move smoothly along its track. Replacing a worn or cracked roller restores easy, quiet operation and helps prevent binding, noise, and uneven travel.

• Supports and guides a moving bin, drawer, or rack on its track
• Reduces friction for smooth, even motion
• Common symptoms: sticking or hard-to-open movement, grinding/clicking noises, wobbling/misalignment, or a cracked/missing wheel
• Helps protect tracks and brackets from excess wear

• Disconnect power before servicing; wear gloves to protect hands
• Remove the sliding component to access the roller
• Release the clip/fastener, install the new roller, and transfer/reuse original hardware if applicable
• Test movement to ensure the roller is fully seated and tracking correctly; replace in pairs when applicable for even travel

Roller assembly approx. 1".

Roller assembly approx. 2".

This drawer tray assembly replaces a damaged or worn refrigerator drawer tray to restore stable storage and proper organization. Durable molded tray designed to fit the factory drawer opening and support produce and packaged items. What it does:

• Provides a stable surface for storing fruits, vegetables and other refrigerated items
• Replaces cracked, warped or broken trays that allow items to shift or fall
• Helps contain spills and pooled liquids for easier cleanup
• Restores proper drawer fit and sliding when the original tray is damaged

• 1 drawer tray assembly

• Remove food and empty the drawer before beginning; follow manufacturer manual for access
• Typical replacement uses existing drawer slides/clips; inspect hardware and retain any mounting clips or screws
• Handle plastic parts carefully to avoid cracking during removal/installation

Restore a sturdy, clean storage surface inside your refrigerator with this replacement drawer tray. It replaces a cracked or missing tray so food stays organized and the drawer fits and functions as intended. What it does:

• Provides the flat base/support for a refrigerator storage drawer
• Helps keep food organized and prevents items from tipping or falling
• Maintains proper fit and alignment of the drawer within the compartment
• Common symptoms: cracks, broken tabs, warping, drawer not sitting level or sliding smoothly

• 1 drawer tray

• Empty and remove the drawer before replacing the tray
• Align and seat the new tray fully in the guides; ensure it is level before reloading
• Transfer any reusable hardware from the old tray if applicable
• Handle plastic carefully to avoid stress cracks; do not force into place

A direct-replacement refrigerator shelf that restores usable storage space and a level surface for food and containers. This glass shelf provides a clean, sturdy platform that helps keep items organized and visible. What it does:

• Replaces a broken, chipped or missing refrigerator shelf to restore storage capacity
• Provides a flat, stable surface for bottles, containers and deli items
• Helps prevent spills from reaching lower compartments when used with proper trays
• Improves interior organization and visibility of stored food

• Remove food and any loose items before installing the shelf.
• Slide shelf into the existing side rails or supports until it seats securely.
• If the original shelf supports or rails are damaged, replace them before use.
• Handle glass carefully and wear gloves to reduce risk of cuts; unplug appliance only if working near electrical components.

A replacement glide rail assembly that supports and guides a refrigerator/freezer drawer for smooth opening and closing. Restores proper drawer tracking and helps prevent sticking or misalignment. What it does:

• Provides the rail and mounting components that the drawer slides on for stable operation
• Restores smooth drawer movement and alignment when original rail is bent or worn
• Helps reduce drawer sticking, scraping, or uneven travel
• Intended for use where the OEM glide/rail assembly is specified

• One glide rail assembly

• Follow the appliance manufacturer's service manual for removal and installation steps
• Disconnect power and empty the drawer before working to prevent injury or damage
• Inspect mounting hardware and drawer slides; replace any damaged fasteners
• Use basic hand tools;

This guide assembly rail replaces a worn or damaged drawer slide to restore smooth, stable drawer movement and proper alignment. It helps reduce sticking, misalignment, and rattling for a secure fit and quiet operation. What it does:

• Guides and supports the drawer or compartment during open/close cycles
• Restores smooth sliding action and consistent alignment
• Reduces noise caused by worn or bent rails or guides
• Helps prevent drawers from catching or binding

• Disconnect power and empty the drawer before beginning service
• Removal of the drawer and access panel may be required; keep fasteners for reassembly
• Align the rail before tightening fasteners; use basic hand tools

This rail holder secures the microwave door rail so the door stays aligned and operates smoothly. Replaces a worn or broken holder to reduce door wobble and improve closing action. What it does:

• Secures and supports the door rail assembly for proper door alignment
• Keeps the rail from shifting, preventing rubbing, rattling or uneven gaps
• Helps restore smooth opening and closing of the door
• Fits where the rail mounts to the door frame or trim

• One rail holder

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver/trim tool) and handle plastic parts gently to avoid breakage
• Inspect surrounding clips/rails for damage and replace if needed for a lasting repair

This rail holder is the replacement support that secures an appliance rail in place, restoring proper alignment and smooth movement. It helps keep sliding components stable so drawers or rails track correctly and safely. What it does:

• Secures the rail or slide to the appliance frame to prevent sagging or misalignment
• Restores smooth, controlled movement of sliding parts
• Helps eliminate rattling, binding or uneven travel caused by a loose or broken holder
• Works as a direct-fit support when the original holder is damaged or worn

• Disconnect power and remove any movable components before beginning work
• Installation typically requires basic hand tools; keep fasteners from the original part for reuse if undamaged
• Inspect adjoining rails, slides and mounting points; replace any damaged hardware for best results

This rail guide assembly replaces a worn or damaged drawer/rack guide to restore smooth, stable movement and help prevent the rack or drawer from binding or coming off track. Fits original mounting points for a direct replacement. What it does:

• Guides and supports the drawer or rack so it slides in and out smoothly
• Helps keep the rack/drawer aligned to prevent derailment or sticking
• Replaces broken or worn plastic or metal guide components that cause noisy or rough movement
• Restores intended fit and function of the sliding mechanism

• Disconnect power and remove contents from the drawer/rack before starting any work
• Basic hand tools may be required; follow OEM instructions for orientation and attachment
• Inspect mating slides and fasteners; replace any damaged clips or screws for secure fit

This Tray Assembly is the replacement vegetable-drawer pan that holds produce and helps contain spills inside the fridge. Restores a secure storage surface so fruits and vegetables sit level and are easier to organize. What it does:

• Replaces a cracked, warped or broken vegetable drawer pan that no longer supports produce
• Contains leaks and small spills to help keep the refrigerator interior cleaner
• Provides a stable base for crisper/vegetable drawers to slide and sit properly
• Helps restore proper drawer alignment and prevents items from falling through gaps

• Remove fresh food and open/slide out the affected drawer; lift to disengage and remove the old pan
• Align new tray with drawer rails and slide in until it seats; verify smooth operation before loading
• Handle glass or brittle plastics with care to avoid chips or cracks during installation

This genuine replacement knob shutter restores the control panel's knob opening and protects internal switches from debris while allowing knobs to engage properly. It helps maintain smooth knob operation and reduces dirt buildup behind the control surface. What it does:

• Covers the knob opening and guides the control knob into place for reliable engagement
• Protects internal switches and electronics from dust, crumbs, and spills
• Helps prevent accidental knob movement when not in use
• Restores proper fit and appearance of the control panel area

• One knob shutter

• Power off and unplug the appliance before beginning any work to avoid electrical shock
• Small fasteners or clips may need to be removed; use appropriate hand tools and keep track of hardware

This replacement vegetable tray is the clear crisper bin that holds and organizes produce in the refrigerator, restoring storage space and keeping fruits and vegetables contained and accessible. What it does:

• Replaces a cracked, chipped or missing crisper bin so produce stays contained
• Restores proper storage space and prevents items from spilling onto lower shelves
• Helps maintain organized refrigerator layout for easier access to fruits and vegetables
• Fits into the refrigerator's bottom shelf area and slides or seats into the crisper opening

• Remove all food from the area before removing the old tray
• Typically slides in/out — lift slightly to disengage then pull straight out; reverse to install
• Do not force into place; check for obstructions or damaged rails before seating
• Clean with mild soap and water; avoid abrasive cleaners or high-heat drying

This tray cover creates a level, protective surface over a storage tray or bin inside the appliance. Replacing a cracked or missing cover restores proper support, helps contain spills, and keeps drawers or trays operating smoothly.

• Provides a flat support surface above the tray/bin to hold items
• Helps contain small spills for easier cleanup
• Maintains correct spacing so drawers/trays slide and close properly
• Common failure symptoms: cracked or broken plastic, missing tabs, sagging shelf, drawer not sliding or closing right

• Disconnect power and clear the area around the affected tray
• Remove the tray/bin, then lift out the damaged cover; note orientation and support tabs
• If applicable, transfer any removable components from the old cover
• Seat the new cover fully into the supports and reinstall the tray/bin

This cover assembly is a molded panel that shields and finishes a designated section of the appliance. It restores a secure fit and clean appearance when the original cover is cracked, warped, or missing.

• Covers and protects the specified component area from damage and debris
• Maintains proper fit and alignment where the cover interfaces with tabs or fasteners
• Helps reduce rattling or vibration noise from a loose or damaged panel
• Common signs of failure: visible cracks, broken tabs, loose/missing cover, poor fitment

• Disconnect power before servicing; allow moving parts to stop
• Note the orientation and fastener locations before removal (take a photo)
• Transfer any clips, screws, or labels from the original cover as needed
• Install gently and do not overtighten fasteners to avoid cracking the plastic

This supporter cover is a replacement rear support/trim piece that helps secure and protect the back of the television cabinet, restoring proper fit and finish. It's a direct-fit OEM-design part for models that list PN MJH62434203. What it does:

• Provides structural support to the TV rear cabinet and helps keep internal components properly positioned.
• Covers and protects rear openings from dust and incidental contact.
• Restores original appearance where a damaged or missing cover left gaps or exposed hardware.
• Helps prevent rattling or vibration caused by loose or broken rear trim.

• One supporter cover (PN MJH62434203) as shown.

• Follow manufacturer disassembly instructions for access; keep power disconnected and TV laid on a soft, flat surface to avoid screen damage.
• Use proper fasteners from the original unit; only install if the mounting points are intact.
• If internal components were shifted or damaged, inspect for additional repair needs before reassembly.

This decor tray is a cosmetic trim panel designed to restore the appliance's exterior appearance and cover the underlying frame. It replaces a scratched, dented, or missing trim piece to give the unit a clean, finished look. What it does

• Restores the appliance's exterior appearance by covering damaged or worn trim areas
• Protects underlying components from incidental contact and debris
• Helps maintain a uniform finish across the front/side where installed
• Suitable when the existing trim is bent, cracked, or cosmetically worn

• Disconnect power to the appliance before beginning any service
• Typically secures with clips or screws; keep fasteners and mounting orientation noted for reassembly
• Handle carefully to avoid scratching the finish during installation

The Tray Cover Assembly is an OEM part for LG refrigerators. It is designed to cover compartments within the refrigerator, such as crisper drawers or specific storage trays. This assembly helps maintain optimal humidity levels and temperatures in covered sections, enhancing the preservation of fruits, vegetables, and other perishables.

Symptoms of a bad Tray Cover Assembly include:

• Cracks or breaks in the cover, which can compromise its structural integrity and aesthetic appearance,
• Difficulty fitting the cover properly in its designated space,
• Condensation issues or improper sealing that affects food preservation.

Causes of tray cover assembly damage often include mishandling, excessive weight placed on the cover, or degradation from frequent cleaning and exposure to food acids.

This OEM LG part is also compatible with Sears/Kenmore.

This refrigerator glass shelf replaces a cracked, broken, or missing shelf to restore safe, level storage space. It provides a sturdy surface for food containers and helps keep the compartment organized so you can use the full capacity again.

• Provides a flat, stable surface for storing food and containers
• Replaces damaged or missing shelf glass
• Restores original shelf capacity and organization
• Typical symptoms include cracked or shattered glass, an unstable/tilting shelf, and reduced usable space

• Remove items from the area and support the shelf with both hands when removing or installing
• Slide the shelf into the designated supports/rails until fully seated and level
• Handle glass carefully; wear gloves and avoid applying pressure to edges or corners
• Verify the shelf is secure before reloading items

This door gasket assembly seals a refrigerator/freezer door to keep cold air in and humidity out, helping maintain proper temperature and reduce frost buildup. It restores a tight door seal for better efficiency and food preservation. What it does:

• Replaces a worn, torn, or warped door seal that lets cold air escape
• Helps stop excessive frost or ice buildup and reduces condensation
• Improves cooling efficiency and can help stabilize internal temperature
• Reduces rattling or uneven door closure caused by a damaged gasket

• One door gasket assembly

• Disconnect power and remove stored food before starting the repair
• Inspect the door and sealing surface for damage or debris; clean before installing
• Seat the gasket evenly into the channel and work around the perimeter to avoid twists
• If needed, warm the gasket slightly for easier fitting; avoid open flames or excessive heat

This small stopper fits inside the handle assembly to limit travel and keep the handle properly seated. Replacing a worn or missing stopper restores a solid, secure feel when opening and closing your appliance.

• Provides a positive stop for handle movement
• Helps keep the handle aligned and seated against its mounts
• Replaces a cracked, deformed, or missing stopper
• Common signs: handle feels loose or wobbly, over-rotates, or shifts/clicks during use

• Unplug the appliance before servicing to prevent injury
• Support the handle and protect the finish while removing fasteners
• Note the original stopper's orientation and install the new one the same way
• Tighten fasteners evenly; do not overtighten to avoid damaging plastic or finishes

The Refrigerator Set Screw is an OEM part for LG refrigerators. This small but crucial component is used to secure various parts of the refrigerator, ensuring stability and proper alignment of the internal components. This set screw is sold individually.

Causes of a bad set screw can include stripping due to over-tightening, corrosion from moisture exposure, or wear and tear over time. A loose or missing set screw can lead to instability and misalignment of the refrigerator parts, potentially causing operational issues.

Symptoms of a bad refrigerator set screw include:

• Loose or wobbly internal components
• Doors not closing properly or misaligned
• Unusual noises from inside the refrigerator
• Parts becoming detached or misaligned

This OEM LG part is also compatible with Sears/Kenmore models.

This door gasket assembly is the refrigerator door seal that helps maintain an airtight closure to keep cold in and moisture out. Replacing a worn gasket restores proper sealing and helps the appliance run efficiently. What it does:

• Seals the refrigerator door to prevent warm air infiltration and cold air loss
• Helps reduce frost build-up and prevents water pooling around the cabinet
• Restores even cooling and can reduce excessive run time caused by leaks
• Fits around the door perimeter and compresses to form a continuous seal

• One door gasket assembly

• Remove power to the appliance before removing the old gasket
• Peel back the old gasket; check for a retainer or screws that may secure the assembly
• Warm the new gasket (per OEM guidance) for easier positioning and to eliminate twists before final fastening
• Inspect door edge and latch for damage; ensure gasket seats evenly and the door closes fully

This drawer guide is the replacement rail that helps a freezer or refrigerator drawer open and close smoothly, restoring proper alignment and reducing sticking or grinding during use. Designed to match OEM fit and function. What it does:

• Guides the drawer along its track to ensure smooth, even movement
• Keeps the drawer aligned to prevent binding, rubbing, or tipping
• Reduces noise from scraping or catching when opening or closing
• Helps restore proper drawer seating and overall compartment accessibility

• One drawer guide (rail) as shown

• Inspect mating track and adjacent hardware for damage before installing
• Remove power or follow manufacturer safety guidance for accessing interior components
• Install with original fasteners; tighten securely but avoid over-torquing
• If multiple guides are worn or damaged, replace matching guides on the other side for best performance

A replacement pitcher guide that secures the water pitcher or pitcher-style container in the refrigerator door, helping keep the pitcher aligned and stable for smooth door operation and organized storage. What it does:

• Holds and aligns the refrigerator pitcher so it sits securely in the door bin.
• Reduces pitcher movement, rattling and tipping that can occur when opening or closing the door.
• Prevents the pitcher from shifting and potentially obstructing the door or other bins.

• Often snaps into the door bin or slides into a track; you may need to remove the bin or liner to access the guide.
• Use basic hand tools if required and avoid forcing parts to prevent damage.
• Follow the refrigerator service manual or OEM instructions for model-specific removal/installation steps.
• Disconnect power or follow safety guidance in the service manual when working near electrical components.

Replace a cracked or missing bin on your refrigerator door with this door basket assembly. It restores safe, organized storage so condiments, jars, and bottles stay upright, visible, and easy to reach.

• Mounts to the inner door liner to hold bottles, jars, and small items
• Helps keep contents upright during door opening/closing
• Direct replacement for damaged, warped, or missing bins
• Common symptoms: bin won't stay seated, broken tabs, loose/sagging fit, or tipping items

• Remove items from the old bin and lift straight up to release it from the door slots
• Align the new bin's hooks/tabs with the slots and press down until fully seated
• Confirm a secure fit before loading; distribute weight evenly and avoid overloading
• Handle plastic carefully; allow the bin to reach room temperature before installation if delivered cold

This door basket is the bin that mounts on the refrigerator door to hold bottles, condiments, and small items. Replacing a cracked or loose bin restores secure, organized door storage and helps prevent spills or items falling.

• Provides stable, easy-access storage on the refrigerator door
• Replaces a broken, missing, or loose door bin
• Common symptoms: cracked plastic, broken locking tabs, won't stay seated, falls off the door
• Helps keep smaller containers upright and organized

• Remove items from the old bin; lift it up and out of the door liner slots
• Align the new bin's hooks with the door guides for the intended position and press down until fully seated
• Verify it is locked in place before loading; avoid overloading

The Door Basket is an OEM part for LG refrigerators. It provides additional storage space on the refrigerator door, allowing for the organization and easy access to items such as bottles, jars, and condiments. The basket is designed to fit securely into the door, maximizing the available storage area.

Causes of a bad door basket can include wear and tear from regular use, cracks or breaks due to overloading, or damage from accidental impacts. These factors can compromise the basket's ability to hold items securely.

Symptoms of a bad door basket include:

• Cracks or breaks in the basket material
• Items not staying in place or falling out when the door is opened
• Difficulty in fitting the basket securely onto the door

This OEM LG part is also compatible with Sears/Kenmore.

The Door Closing Cam is an OEM part for LG refrigerators. This part ensures the refrigerator door closes smoothly and securely. It helps guide the door into the correct position and ensures a tight seal, which is essential for maintaining the internal temperature and efficiency of the appliance.

Causes of a bad door closing cam can include wear and tear over time, damage from repeated use, or accidental impacts that can misalign or break the cam.

Symptoms of a bad Door Closing Cam include:

• The door not closing properly or securely
• Difficulty in opening or closing the door
• Unusual noises when operating the door
• Misalignment of the door

This OEM LG part is also compatible with some Kenmore models.

RAIL,SLIDE-LEFT

RAIL,SLIDE-RIGHT

This replacement door shelf bar secures items on a refrigerator door shelf, restoring proper storage and helping keep bottles and containers from sliding or falling when the door is opened. A simple, direct fix for broken or missing shelf retainers. What it does

• Holds door-bin items in place so bottles, jars and containers stay secure during normal use
• Replaces cracked, warped or missing shelf retainer bars that allow items to tip or fall
• Helps restore proper shelf function and usable door storage
• Designed to match the OEM fit and mounting points for a direct replacement

• Remove contents from the door shelf before replacing the bar
• Install by aligning with the shelf slots or mounting tabs and snapping or sliding into place per the original orientation
• Use gentle pressure to avoid damaging surrounding bins or trim; do not force metal parts
• Refer to your refrigerator's owner's manual for model-specific instructions and safety guidance

This connector assembly links refrigerator components with a secure, factory-style connection. Replace a damaged or loose connector to restore reliable operation and prevent intermittent performance of the part(s) attached to it. What it does:

• Joins two factory leads/components with a secure locking interface
• Restores a stable connection so the attached component operates reliably
• Helps address intermittent operation, no response, or flickering due to worn or heat-damaged connectors
• Replaces connectors with broken locking tabs, loosened contacts, or visible melting/corrosion

• 1 connector assembly

• Disconnect power before servicing; if working near water lines, also shut off the water supply
• Note connector orientation and routing; take photos to aid reassembly
• Depress the locking tab to release; avoid pulling on wires
• Seat the new connector fully until it locks; route away from sharp edges and moving parts

Note: Top LEFT Hinge

Note: Top RIGHT hinge

This center hinge assembly supports the refrigerator door at the mid-cabinet position. It carries the door's weight and provides a smooth pivot so the door aligns properly and the gasket seals as designed to help prevent rubbing and air leaks. What it does:

• Provides the middle pivot and vertical support for a refrigerator door
• Helps maintain door alignment for proper gasket contact and smooth opening/closing
• Wear or damage may cause door sagging, binding/squeaking, gaps, or poor sealing
• Restores correct door positioning after hinge wear or impact

• 1 center hinge assembly

• Disconnect power; protect floors and support the door with a helper
• Remove mounting screws, lift the door off, and take off the old hinge
• Transfer any spacers/shims/bushings from the old hinge if not pre-installed
• Install the new hinge in the same orientation; set door, tighten hardware, and verify alignment and gasket seal

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This damper cushions and isolates the refrigerator compressor to reduce vibration and noise for smoother operation. It helps maintain stable compressor mounting and prevents metal-to-metal contact that can cause wear or rattling. What it does:

• Absorbs compressor vibrations to reduce noise and movement
• Helps protect the compressor housing and mounting points from shock
• Can reduce rattling or knocking sounds originating near the compressor area
• Supports proper alignment of the compressor assembly during operation

• One compressor damper (mounting isolator)

• Turn off power at the breaker and unplug the appliance before servicing
• Inspect mounting area and hardware; replace any damaged fasteners before installing the damper
• Position the damper on the compressor mount as shown in the service manual and secure per OEM guidance

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This foam door gasket seals the refrigerator/freezer door edge to help maintain a tight seal, reduce air leaks, and improve cooling efficiency. It replaces worn or compressed foam seals that allow warm air inside. What it does:

• Creates a compressible seal along the door edge to prevent air infiltration
• Helps reduce frost buildup and uneven temperatures caused by leaking seals
• Improves energy efficiency by maintaining consistent cabinet temperature
• Reduces cycling noise caused by the compressor working harder to compensate

• Disconnect power to the appliance before starting any repair
• Clean and dry the door edge thoroughly; remove old adhesive and residue for best adhesion
• Some installations use adhesive or clips—use the OEM adhesive or hardware if required

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder secures the dryer-related assembly in place to reduce movement and wear, helping maintain proper alignment and quieter operation. It's a simple replacement that restores part stability in the appliance. What it does:

• Secures a dryer assembly or component to the appliance frame to prevent shifting
• Helps reduce vibration and rubbing noises caused by a loose part
• Maintains correct alignment so related parts operate smoothly
• Used when the existing holder is cracked, broken, or missing

• Disconnect power before replacing any dryer components to avoid shock or injury
• Access location and removal steps vary by model; follow the appliance's service manual or exploded view
• Keep fasteners and adjacent parts organized for reassembly; replace any damaged clips or screws

This motor bracket is the OEM-style mounting bracket that secures the appliance motor to the cabinet, keeping the motor aligned and reducing vibration for reliable operation. It helps restore proper motor support and stable running. What it does:

• Provides a secure mounting point to hold the motor in correct position
• Maintains motor alignment to prevent belt slip and uneven wear
• Reduces vibration and noise caused by a loose or damaged motor mount
• Can resolve symptoms such as unusual motor noise, excessive vibration, or motor movement during operation

• Disconnect power (and gas if applicable) before starting any repair
• Basic hand tools are typically required; follow the appliance service manual for access steps
• Inspect surrounding components (mounting fasteners, motor and belts) and replace any damaged parts

This replacement condenser assembly includes the attached wiring harness that secures and connects condenser-area components. It restores the factory wiring path for the condenser and associated electrical connections to help re-establish proper operation. What it does:

• Provides the condenser mounting/connection assembly and pre-attached wire harness for condenser-area components
• Restores factory routing and connector locations for reliable electrical connections
• Commonly replaced when condenser-area wiring is damaged, frayed, or disconnected
• Can resolve symptoms such as cooling loss, intermittent condenser fan operation, or electrical faults localized to the condenser area

• One condenser assembly with attached wire harness

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the rear service panel; keep fasteners and grounding in mind
• Match connectors and wire routing to the original layout; avoid pinching or sharp bends

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

The Defrost Control Assembly is an OEM part for LG refrigerators, crucial for regulating the defrost cycle within the unit. This component plays a pivotal role in ensuring that the evaporator coils are periodically defrosted, preventing the build-up of ice that can impede airflow and cooling efficiency.

Causes of a bad Defrost Control Assembly can include electrical failures, sensor malfunctions, or damage to the assembly itself, which can disrupt the defrost cycle.

Symptoms of a bad Defrost Control Assembly include:

• The refrigerator or freezer compartment becoming too warm due to blocked airflow from ice accumulation
• A noticeable build-up of frost or ice on the evaporator coils or in the freezer compartment
• The refrigerator running continuously without cycling off
• Unusual noises coming from the refrigerator as ice builds up and interferes with the fan

This OEM LG part is also compatible with Sears/Kenmore.

The Evaporator Fan Motor is an OEM part for LG refrigerators. It powers the evaporator fan located inside the refrigerator's cooling system. The evaporator fan circulates chilled air through ducts and into food storage compartments, helping maintain an even temperature.

Causes of a bad evaporator fan motor include failure due to bearing wear, component fatigue from continuous operation, damage from debris accumulation over time inhibiting rotation, or failure of electronic components controlling motor function.

Symptoms of a faulty evaporator fan motor include:

• Temperature fluctuations in refrigerator and freezer sections
• Intermittent cooling or inability to cool fully
• Abnormal fan noise or abnormal vibration
• Frost or moisture buildup within refrigerator ducts

This LG part is also compatible with some Kenmore models.

This motor support damper sits between the refrigerator's compressor and base to absorb vibration and movement. Replacing a worn damper helps quiet rattles and humming from the back of the cabinet and keeps the compressor properly supported.

• Cushions the compressor to reduce transmitted vibration and noise
• Helps quiet humming, buzzing, or rattling from the lower rear of the refrigerator
• Maintains proper compressor alignment and support on the base pan
• Common signs of wear: increased vibration/noise, a cracked or flattened damper, or noticeable compressor movement when running

• Unplug the refrigerator and pull it forward to access the rear; allow the compressor to cool before working
• Support the compressor to remove load from the mount before loosening hardware
• Replace the damper and tighten mounting hardware evenly without over-compressing the rubber
• Avoid bending or stressing refrigerant tubing; wear gloves and eye protection

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

This sheath heater is the heating element used in compatible electric dryers to generate hot air for drying. Replaces a worn or failed heater element to restore normal drying performance and reduce extended dry times. What it does:

• Heats air inside the dryer cabinet so clothes can dry efficiently.
• Commonly linked to symptoms like clothes not drying, extended drying cycles, or no heat from the dryer.
• Works with the dryer's thermostats and thermal fuses; a faulty heater can mimic other heat-related failures.

• Disconnect power at the breaker before servicing — this part involves live AC voltage.
• Inspect and replace any open thermal fuses or failed thermostats at the same time as recommended by the model service guide.
• Handle the element carefully to avoid bending or damaging the sheath; follow OEM instructions and torque specs during reassembly.

This cover assembly protects the appliance's printed circuit board from debris, moisture and accidental contact, helping preserve reliable control operation. It provides a secure enclosure that keeps the PCB mounted and shielded during normal use. What it does:

• Shields the control board from dust, moisture splash and foreign objects that can cause shorts or component damage.
• Keeps wiring and connectors routed and secured to reduce strain and intermittent connections.
• Helps maintain correct spacing and alignment of the PCB for reliable electrical contacts.
• Useful when the original plastic cover is cracked, warped, missing or allows board exposure.

• One cover assembly for PCB.

• Disconnect power to the appliance before beginning any service to avoid shock or damage.
• Handle the PCB and connectors carefully; avoid touching board components or bending traces.
• Align cover over the PCB and fasten with the original screws or clips; do not overtighten plastic fasteners.

The PCB Assembly, Main is an OEM part specifically designed for LG refrigerator units. It serves as the central processing control, regulating cooling functions and temperature levels across storage compartments.

Causes of a bad PCB Assembly, Main include natural wear of circuitry from years of continuous usage. Water damage poses risks of short-circuiting sensitive pathways over time as well.

Symptoms incorporate:

• Inconsistent cooling making temperatures fluctuate erratically
• Unusual humming or knocking noises within refrigerator walls
• Failure to achieve or maintain temperature set points as designed

Replacing with this genuine LG board revives the full intended operation. Circulation of conditioned air throughout is optimized once more with upgraded components. This replacement ensures refrigeration performs reliably to keep foods fresher and longer. It also fits Sears/Kenmore models.

The Ice Maker Assembly Kit is an OEM part for LG refrigerators. This kit includes all the components necessary to produce ice efficiently, ensuring a steady supply of ice cubes for your household needs. This particular 12-cube ice maker assembly features a 10-wire harness.

Causes of a bad ice maker assembly can include wear and tear over time, issues with the water supply, or mechanical malfunctions that prevent the ice maker from operating correctly. These issues can lead to a reduction in ice production or complete failure of the ice maker.

Symptoms of a bad ice maker assembly include:

• No ice production
• Ice cubes being smaller than usual
• Leaks around the ice maker area
• Unusual noises during the ice-making process

This OEM LG part is also compatible with Sears/Kenmore.

The Gasket, Foam is an OEM part for LG refrigerators. This foam gasket creates an essential seal around the refrigerator door, helping to maintain cool interior temperatures and block warm air from entering. It also assists in preventing moisture exchange, keeping contents dry.

Symptoms of a damaged gasket include:

• Warm or unpleasant air feeling around the edges of the door
• Higher energy costs from poor insulation
• Extra frost or moisture buildup inside
• Visible air gaps when the door is closed

Causes may be general wear and breakdown over time due to repeated opening and closing of the door. Replace this LG OEM foam gasket to restore an efficient seal and optimal refrigerator performance. This gasket is compatible with models produced by Kenmore, Sears, Samsung, Electrolux, and GE as well.

The Inlet Water Valve Assembly is an OEM part for LG refrigerators, designed to manage the flow of water into the refrigerator's ice maker and water dispenser. This part ensures that your refrigerator provides clean, fresh water and ice on demand by controlling the water pressure and flow through the system. The valve assembly is key to maintaining the refrigerator's functionality and the freshness of the water and ice it dispenses.

Causes of a bad Valve Assembly, Water can include mineral build-up from hard water, which can block the valve and prevent it from opening or closing properly.

Symptoms of a bad Valve Assembly include:

• No water dispensed
• Leaking water from the refrigerator
• Ice maker not producing ice
• Strange noises coming from the refrigerator when the dispenser is used

This OEM LG part is also compatible with some Kenmore models.

This door switch cover houses and protects the refrigerator/freezer door switch, keeping the switch secure and aligned so the interior light and door-sensing functions work reliably. It's a direct-fit replacement for damaged or cracked covers. What it does:

• Protects the door switch from impacts, spills, and debris that can cause intermittent contacts or failure
• Keeps the switch properly positioned so the interior light turns on/off when the door opens and closes
• Helps ensure consistent door-sensing for control logic that manages defrost and cooling cycles
• Reduces the risk of moisture reaching the electrical switch components

• One door switch cover

• Power off and unplug the appliance before beginning any repair to avoid shock or damage
• Handle gently to avoid breaking the plastic tabs; some models use snap-in tabs or screws for mounting
• Verify switch alignment and operation before fully reassembling the door trim
• Replace the switch assembly as needed

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power

The Temperature Sensor is an OEM part for LG refrigerators. It monitors the internal temperature and sends this information to the control board, ensuring that the refrigerator maintains the correct temperature for optimal food preservation.

Over time, temperature sensors can fail due to electrical issues, exposure to moisture, or wear and tear from continuous use.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• The refrigerator or freezer being too warm or too cold
• The refrigerator running constantly or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.
