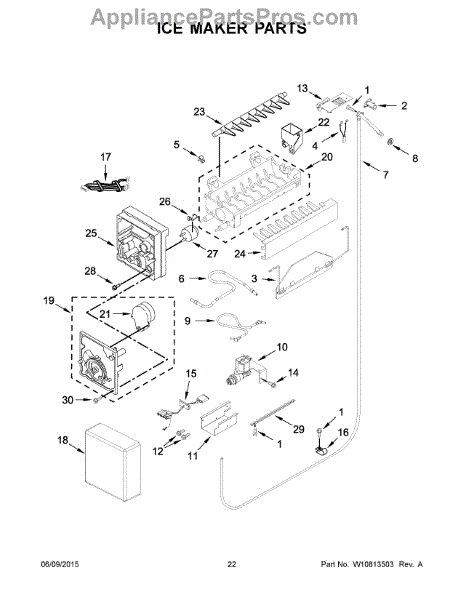

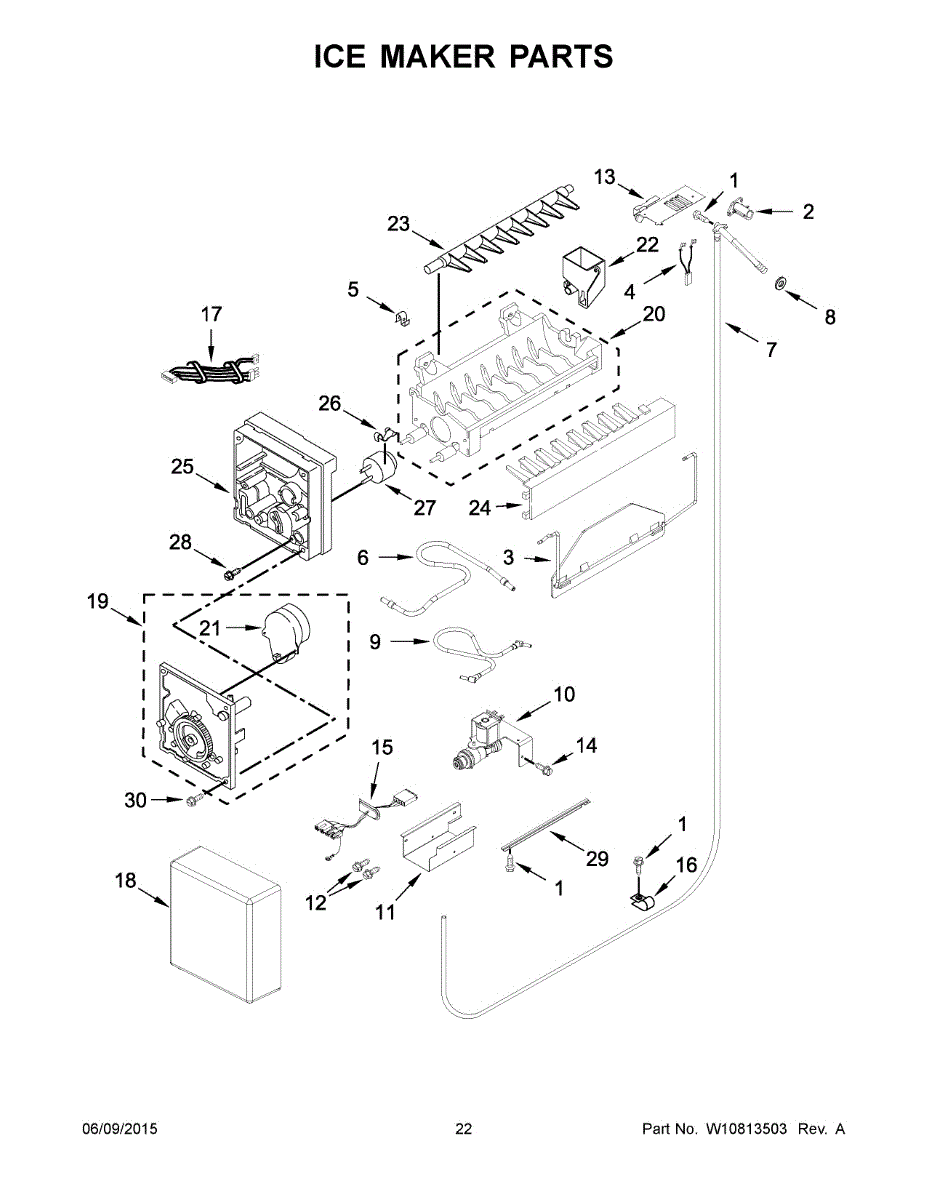

Parts for Kitchenaid KBFN402EPA01: 12 - Ice Maker Parts

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This heater fill tube channels water from the inlet valve to the appliance's heater/fill assembly, restoring proper fill performance and reducing the risk of leaks. Replace a damaged tube to re-establish correct water flow and operation. What it does:

• Directs water from the inlet valve into the heater/fill assembly so the unit can fill as intended.
• Commonly replaced when the tube is cracked, split, blocked, or leaking.
• Faulty tubes can cause water pooling, intermittent or no fill, or visible leaks at the connection.
• Works with existing seals and clamps to maintain a watertight connection when installed correctly.

• Disconnect power to the appliance and shut off the water supply before starting.
• Drain residual water from lines and remove necessary access panels to reach the tube.
• Inspect and replace any worn clamps or seals during installation to ensure a secure, leak-free connection.

The Ice Level Arm is an OEM part for Whirlpool refrigerators. It is an component of the ice maker, responsible for sensing the ice level in the ice bin and controlling the ice production cycle. When the ice bin reaches capacity, the ice level arm signals the ice maker to stop producing ice, ensuring efficient operation.

You should replace this ice level arm if it becomes faulty. Causes of a bad ice level arm can include mechanical wear and tear, accidental damage, or issues with the connection to the ice maker mechanism.

Symptoms of a bad Ice Level Arm include:

• Continuous ice production, leading to overfilling
• The ice maker not producing ice even when the bin is empty
• The ice level arm not moving freely or appearing stuck

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

This replacement water tube directs water through the appliance's dispenser/ice delivery path, restoring a secure routed water connection to prevent leaks and loss of water flow. Designed to match the OEM part's shape and fit. What it does:

• Routes water between the main water valve and dispenser/ice components for normal dispensing and ice fill.
• Replaces cracked, split, or kinked tubing that can cause leaks or reduced water flow.
• Helps stop visible drips or pooling under the appliance when the original tube is damaged.
• Restores proper water delivery to the dispenser and ice maker when worn tubing is the cause.

• One replacement water tube.

• Turn off and disconnect the water supply and power before starting work to avoid leaks and electrical hazards.
• Inspect fittings and seals; replace any damaged clips or O-rings to ensure a watertight connection.

This gasket/seal creates a tight barrier between two mating parts in your appliance to prevent leaks and performance loss. Replacing a worn gasket restores proper sealing and helps stop seepage at the joint. What it does

• Forms a reliable seal between components to prevent fluid or air leaks
• Maintains proper operation by keeping the sealed area contained
• Replaces gaskets that are brittle, cracked, flattened, or swollen
• Common signs include residue or moisture around the joint, visible wear on the old gasket, or a loose/poor seal

• 1 gasket/seal

• Disconnect power and any water or gas supply before servicing
• Note the gasket's orientation; compare old and new parts before installation
• Clean and dry mating surfaces; remove old adhesive and debris
• Seat the gasket evenly; do not overtighten fasteners; test for leaks after reassembly

This water tube replaces a damaged or leaking refrigerator water line to restore proper water flow to the dispenser or ice system. Durable molded tubing routes water between the valve and internal components without kinking. What it does:

• Directs water from the inlet valve to the dispenser/ice assembly
• Restores normal water flow when cracked or pinched tubing reduces output
• Stops leaks and puddling caused by split or brittle lines
• Helps prevent contamination from damaged or degraded tubing

• One molded water tube

• Shut off the refrigerator and the water supply before starting
• Inspect and replace any worn fittings or clamps when reinstalling
• Hand-tighten connections, then check carefully for leaks after restoring water

This water inlet valve controls water flow to the refrigerator's dispenser and ice maker, restoring reliable water delivery and ice production. Replaces a failed or leaking valve to stop drips and restore normal operation. What it does:

• Directs incoming water to the dispenser and ice maker when the system calls for water
• Stops water flow when the dispenser or ice maker is idle to prevent leaks or flooding
• Commonly replaces valves that fail to open, causing no water or no ice production
• Also replaces valves that leak or cause low water flow at the dispenser

• Turn off power to the appliance and shut off the water supply before starting work
• Disconnect water lines and electrical connectors carefully; expect residual water in lines
• Inspect supply fittings and hoses for damage; replace if needed to ensure a secure seal
• Test the valve and check for leaks after installation before restoring normal use

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This wire harness routes power and signals between the appliance control and its components, restoring reliable electrical connections so switches, sensors and motors receive the correct inputs. Use the harness when wiring is damaged, burned or intermittent. What it does:

• Provides factory-style electrical connections between control board and components
• Replaces damaged, frayed or corroded wiring that can cause intermittent operation
• Restores power and signal paths to switches, motors, valves or lights
• Helps stop failures such as no-start, unresponsive controls, or components not running

• Disconnect power to the appliance before starting any repair
• Match connectors and routing to the original harness; do not force connectors
• Secure harness with existing clips or brackets to avoid chafing and heat exposure
• Inspect surrounding insulation and connectors; replace if visibly damaged

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

This wire harness connects a unit's controls and components to deliver power and signals, restoring proper electrical connections for affected circuits. It's a direct-fit replacement designed to match the OEM routing and terminals. What it does

• Replaces a damaged or frayed harness to restore electrical continuity to controls and components
• Re-establishes secure connector connections used by control boards, switches, or sensors
• Commonly used when controls are unresponsive, intermittent, or when visible wiring is burned or broken
• Helps eliminate loose or exposed wires that can cause shorts or intermittent operation

• One replacement wire harness as shown

• Disconnect power (unplug or shut off breaker) before starting any repair
• Follow OEM routing and connector placements; secure harness with original clips and fasteners
• Inspect connectors and mating terminals for damage before installing; replace if corroded or melted

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cup fill directs the refrigerator's water flow for the ice maker or dispenser to prevent spills and ensure proper fill cycles. Replaces a worn or cracked cup that can leak or misdirect water. What it does:

• Captures and channels water during the ice maker fill cycle
• Prevents water from spilling into the ice box or freezer compartment
• Helps maintain consistent ice production by directing fill flow
• Commonly replaced when cracked, warped, or leaking

• One cup fill

• Disconnect power and turn off the water supply before starting work
• Remove surrounding trim or components as needed to access the fill cup
• Handle carefully to avoid cracking plastic; install with factory-style seals and clips

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A single replacement screw used to secure appliance panels and components. Restores proper fastening to reduce vibration and keep parts aligned for safe, quiet operation. What it does:

• Fastens panels, brackets or assemblies to the appliance frame
• Helps eliminate rattling or looseness from unsecured parts
• Maintains component alignment for reliable operation
• Matches the OEM fastening point and thread where specified

• Disconnect power and water before beginning work
• Use the correct screwdriver or bit to avoid stripping the head
• Install in the original location and hand-start threads to avoid cross-threading
• Do not overtighten; tighten to snug fit per service literature

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replacement icemaker assembly that produces, harvests and deposits ice into the freezer bin, restoring automatic ice production so the refrigerator refills the ice bin on its normal cycle. What it does:

• Freezes, ejects and drops standard ice cubes during the appliance's harvest cycle.
• Replaces a failed or intermittently working icemaker.
• Common symptoms this part addresses: no ice production, slow ice production, ice stuck in the mold, or ice that won't eject.
• Matches original fit and operation to work with the refrigerator's existing fill tube and wiring.

• Disconnect power and turn off the water supply before beginning any service.
• Access the icemaker through the freezer compartment; follow the manufacturer's service manual for removal and mounting steps.
• After installation, restore power and water, run the icemaker test cycle, and discard the first few batches of ice.
• If you notice leaks or the icemaker still doesn't run, verify the water inlet valve, fill tube and electrical connections.
