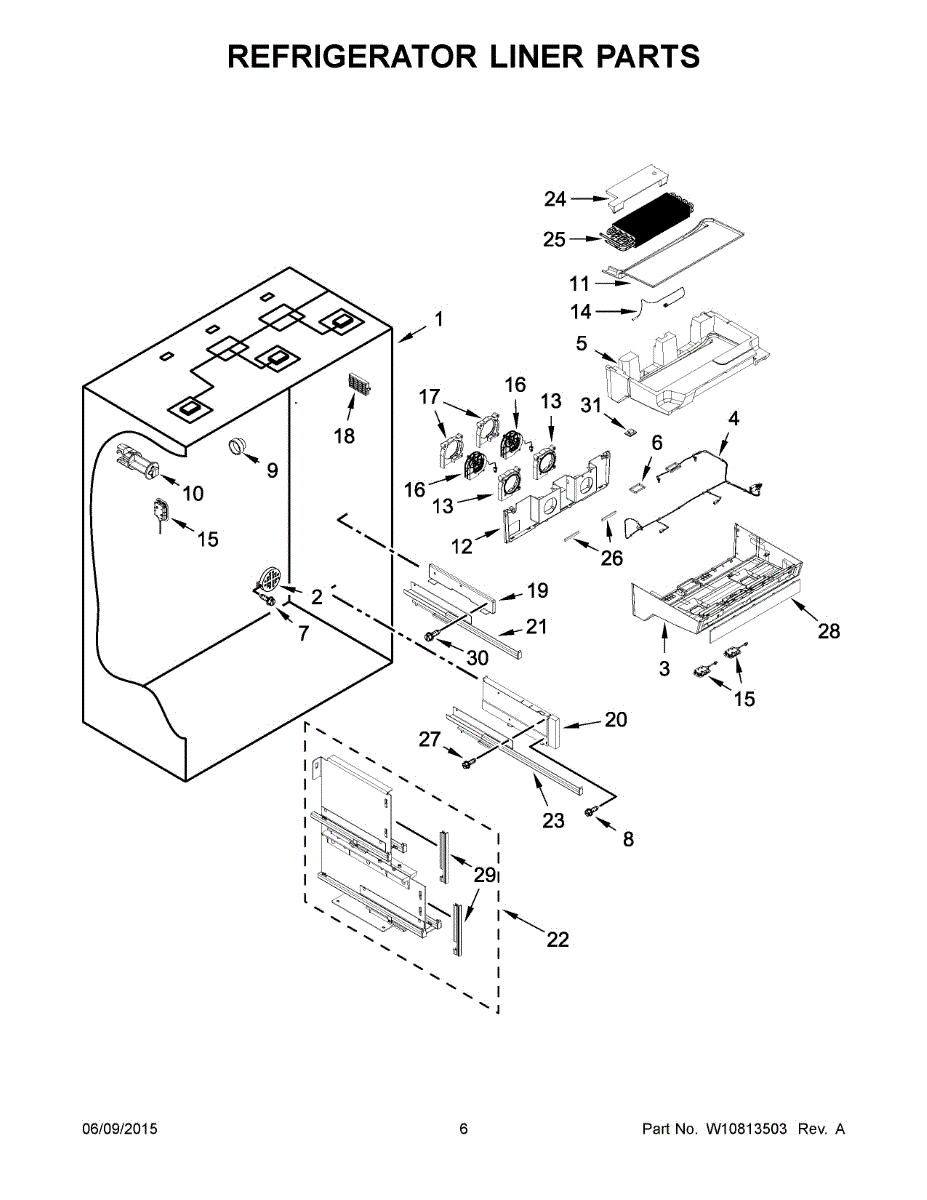

Parts for Kitchenaid KBFN402EPA01: 04 - Refrigerator Liner Parts

This wire harness assembly routes power and signals between appliance components so controls and motors operate reliably. Replace a damaged harness to restore electrical connections and correct intermittent or failed functions. What it does:

• Connects control boards, switches and motors with factory-style wiring and terminals
• Restores lost or intermittent electrical continuity that can cause erratic operation
• Prevents shorted or exposed wires from causing component failures
• Ensures correct signal routing for timed cycles and safety circuits

• Disconnect power to the appliance before starting any work to avoid electrical shock
• Inspect connectors and wire routing; replace any harness with exposed insulation or damaged terminals
• Reconnect all plugs fully and secure the harness along original clips or guides to prevent chafing

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This thermistor is the refrigerator temperature sensor that monitors cabinet temperature and sends readings to the control board so the appliance maintains consistent cooling. Replaces a failed sensor to restore proper temperature sensing and cycling. What it does:

• Senses internal refrigerator/freezer temperature and reports readings to the control board.
• Helps the control board regulate compressor and fan cycles for consistent cooling.
• Commonly fails when readings are erratic or the refrigerator runs too cold or too warm.
• Safe, widely reported symptom: temperature not stable or incorrect defrost behavior.

• One thermistor temperature sensor.

• High-level replacement: access may require removing interior liners or control covers.
• Disconnect power before testing or replacing to avoid shock or damage.
• Handle the sensor and wiring gently to avoid damage; secure connectors fully.

The LED Module Kit is an OEM component specifically designed for Whirlpool refrigerators. This kit contains 12 individual LED lights that illuminate targeted refrigerator sections.

As the primary light source, the module kit is responsible for clearly illuminating refrigerated spaces to easily locate and identify stored items. Uniform lighting is essential for accessible organization.

Causes of malfunctioning LED modules include bulb burnout over time or intermittent electrical connections.

Symptoms of a failing module kit involve:

• Dim lighting throughout compartments
• Flickering or hot spots within illuminated areas
• Entire sections are left in shadow making visibility poor

Note: The factory changed to a warmer color instead of the old cool blue design.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

Size: 8-18 x 1 1/4 inch.

This machine screw secures components in place to maintain proper alignment and stability during appliance operation. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, noise, or loosening parts.

• Provides a secure mechanical fasten for panels, brackets, or internal assemblies
• Helps correct rattling, vibration, or loose-fitting parts
• Useful when an original screw is stripped, corroded, or lost
• Sized to match 8-18 thread applications in compatible units

• Disconnect power and shut off water or gas before servicing
• Note original screw location and orientation for correct reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace any damaged clips or mounts the screw engages
