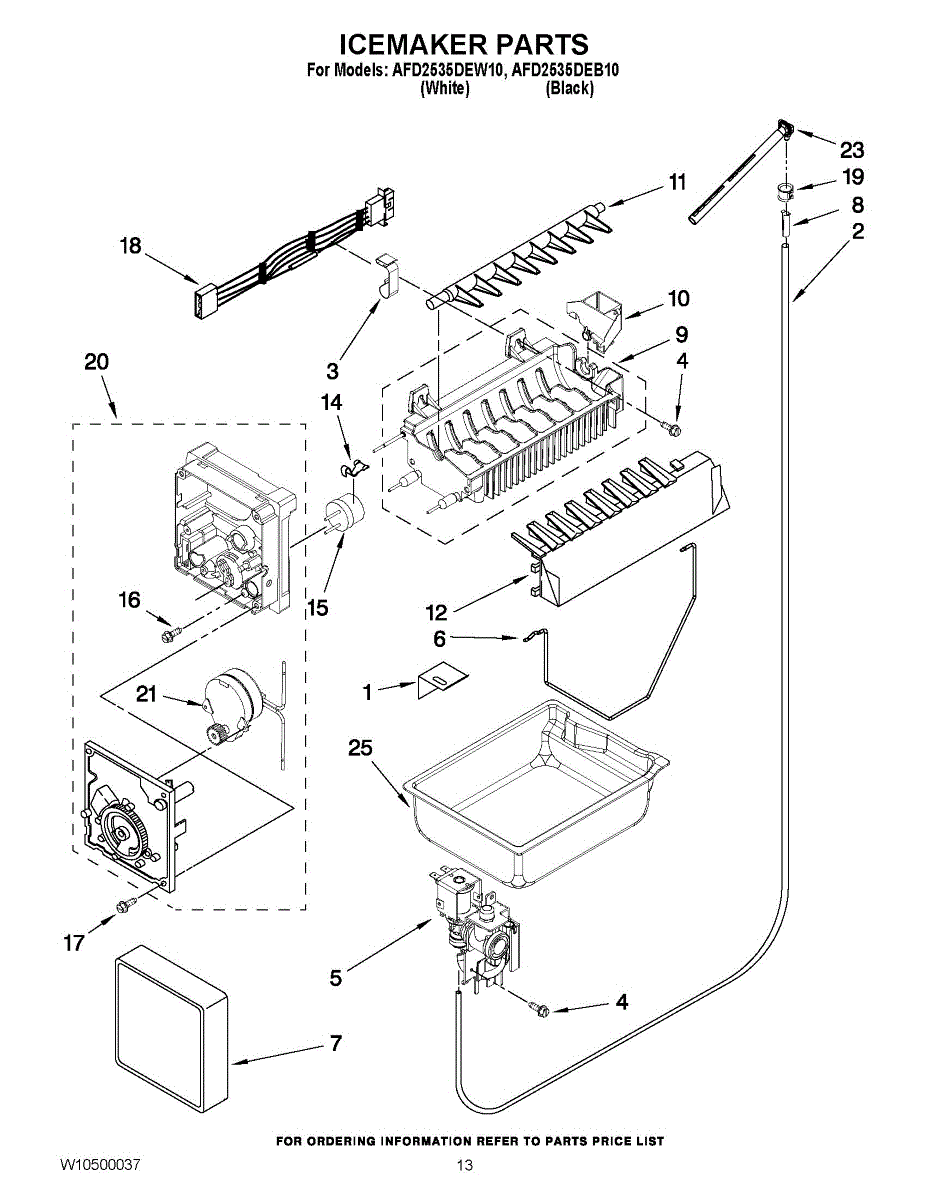

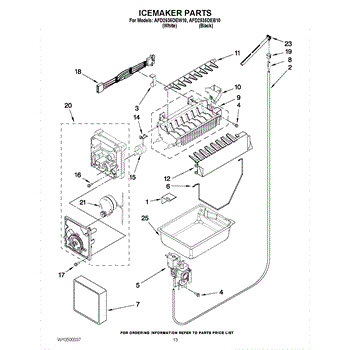

Parts for Amana AFD2535DEW10: 07 - Icemaker Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Ice maker shifting or loose? This mounting bracket secures your ice maker assembly in place to restore stable positioning and reliable ice production.

This is a replacement screw fastener used to secure appliance components and panels. It restores proper fastening and helps stop loose parts from vibrating or shifting during operation. What it does:

• Secures panels, brackets, or components in place to maintain appliance stability
• Stops rattling, vibration noise, and intermittent contact caused by loose fasteners
• Restores proper alignment where original screws have stripped, corroded, or been lost
• Functions as a direct-fit hardware replacement when the OEM screw is needed

• One replacement screw (quantity: 1)

• Use appropriate driver and moderate torque to avoid stripping threads or damaging parts
• Disconnect power and follow appliance safety procedures before working on the unit
• Repair or replace the mating component as needed

Ice maker stopped working or leaking water in freezer? This water inlet valve controls flow to your ice maker and dispenser. Moderate DIY repair.

This shutoff arm is the replacement shut-off actuator for an automatic ice maker. It stops ice production when the storage bin is full, helping prevent overflow and ensuring the ice maker cycles correctly. What it does:

• Acts as the bin-level sensor that signals the ice maker to stop making ice when the bin is full
• Prevents overfilling and ice spillage by physically blocking the ice maker's harvest cycle
• Commonly replaced when the arm is broken, bent, or fails to hold the "up" (off) position
• Restores normal tank/ice production control when functioning correctly

• One ice maker shutoff arm

• Disconnect power to the refrigerator before servicing to avoid electrical shock
• This arm typically snaps or mounts onto the ice maker assembly; handle plastic parts carefully to avoid cracking
• Test operation by manually moving the arm through its travel before reassembling the cabinet or bin

Replaces a cracked, broken, or missing ice chute door cover on your refrigerator. Restores the front panel appearance and protects internal components.

Fix water leaks in your refrigerator's ice maker or water line. This tube insert reinforces plastic tubing for leak-resistant compression fittings.

Ice cubes stuck in tray or not releasing? This ice mold and heater assembly warms the tray during harvest to release cubes cleanly into the bin.

The Icemaker Fill Cup Sensor is an OEM part for Whirlpool bottom-mount and side-by-side refrigerators. Located inside the icemaker assembly, the fill cup sensor works to automatically detect when an ice scoop or bucket is in place below the icemaker chute. It signals the icemaker to drop ice cubes into the receptacle below.

Causes of a bad fill cup sensor can include mineral or dirt build-up inhibiting sensor response, moisture damage to its electronic functioning, or physical damage to the sensor head.

Symptoms of a bad fill cup sensor include:

• Ice failing to dispense or drop when a container is in place
• Ice clumping in the chute instead of dispensing properly
• The icemaker continuing to run even with ice present below
• Inability to sense when ice is removed from the bucket

This OEM Whirlpool replacement fill cup sensor is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore bottom-mount and side-by-side refrigerators.

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

Ice cubes jamming or hanging up in the ice maker? This stripper arm guides cubes off ejector fingers into the bin. Requires removing ice maker to install.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Ice maker not working? This wire harness restores power connection between ice maker and control board. Common fix for melted or damaged connectors.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.

Fix a refrigerator that stopped making ice with this complete ice maker assembly. DIY-friendly installation takes about 10 minutes with basic tools.
