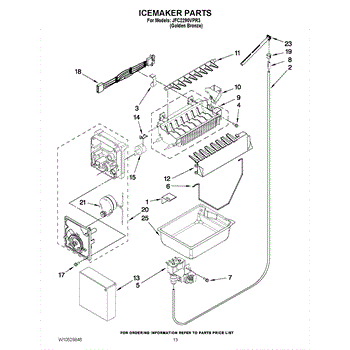

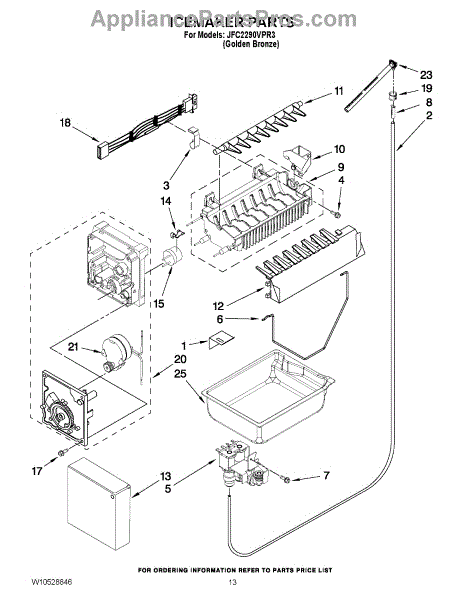

Parts for Jenn-Air JFC2290VPR3: 07 - Icemaker Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Ice maker shifting or loose? This mounting bracket secures your ice maker assembly in place to restore stable positioning and reliable ice production.

Ice maker not filling or leaking? This water tube routes water from the inlet to the ice maker fill valve. Replaces cracked or clogged tubing in your fridge.

Ice maker stopped working or leaking water in freezer? This water inlet valve controls flow to your ice maker and dispenser. Moderate DIY repair.

Ice bin overflowing or ice maker won't stop making ice? The shut off arm signals when to stop production. Simple install in under an hour.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Fix water leaks in your refrigerator's ice maker or water line. This tube insert reinforces plastic tubing for leak-resistant compression fittings.

Ice cubes stuck in tray or not releasing? This ice mold and heater assembly warms the tray during harvest to release cubes cleanly into the bin.

The Icemaker Fill Cup Sensor is an OEM part for Whirlpool bottom-mount and side-by-side refrigerators. Located inside the icemaker assembly, the fill cup sensor works to automatically detect when an ice scoop or bucket is in place below the icemaker chute. It signals the icemaker to drop ice cubes into the receptacle below.

Causes of a bad fill cup sensor can include mineral or dirt build-up inhibiting sensor response, moisture damage to its electronic functioning, or physical damage to the sensor head.

Symptoms of a bad fill cup sensor include:

• Ice failing to dispense or drop when a container is in place
• Ice clumping in the chute instead of dispensing properly
• The icemaker continuing to run even with ice present below
• Inability to sense when ice is removed from the bucket

This OEM Whirlpool replacement fill cup sensor is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore bottom-mount and side-by-side refrigerators.

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

Ice cubes jamming or hanging up in the ice maker? This stripper arm guides cubes off ejector fingers into the bin. Requires removing ice maker to install.

Replaces a cracked, broken, or missing ice chute door cover on your refrigerator. Restores the front panel appearance and protects internal components.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Ice maker not working? This wire harness restores power connection between ice maker and control board. Common fix for melted or damaged connectors.

Speed clip slides over panel edges to create captive threads for mounting screws. Replace worn, missing, or broken clips to restore secure attachment.

Replacement icemaker fill tube that directs water from the valve to the ice tray. Replace if cracked, leaking, or causing water to freeze in the freezer.

This ice pan is the molded plastic tray that sits beneath the ice maker to collect melted ice and runoff, helping keep the freezer compartment dry and the ice maker area tidy. It replaces a cracked or warped tray to restore proper drainage. What it does

• Collects melted ice and minor overflow from the ice maker area to prevent water from pooling in the freezer
• Provides a stable platform and channeling for ice melt toward the drain
• Helps reduce nuisance leaks and moisture that can cause frost buildup around the ice maker
• Fits into the ice maker housing to maintain proper clearance and alignment

• One ice pan

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove the ice maker or access panel as needed to reach and remove the old pan; keep track of fasteners
• Inspect surrounding components and clear any debris before installing the new pan
• Reassemble panels and restore power, then check for proper seating and absence of leaks

Fix a refrigerator that stopped making ice with this complete ice maker assembly. DIY-friendly installation takes about 10 minutes with basic tools.
