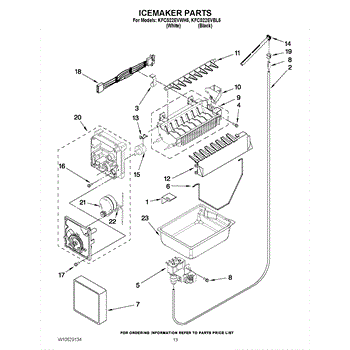

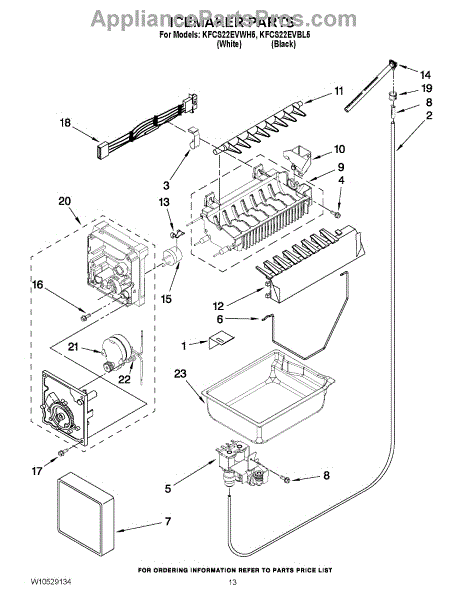

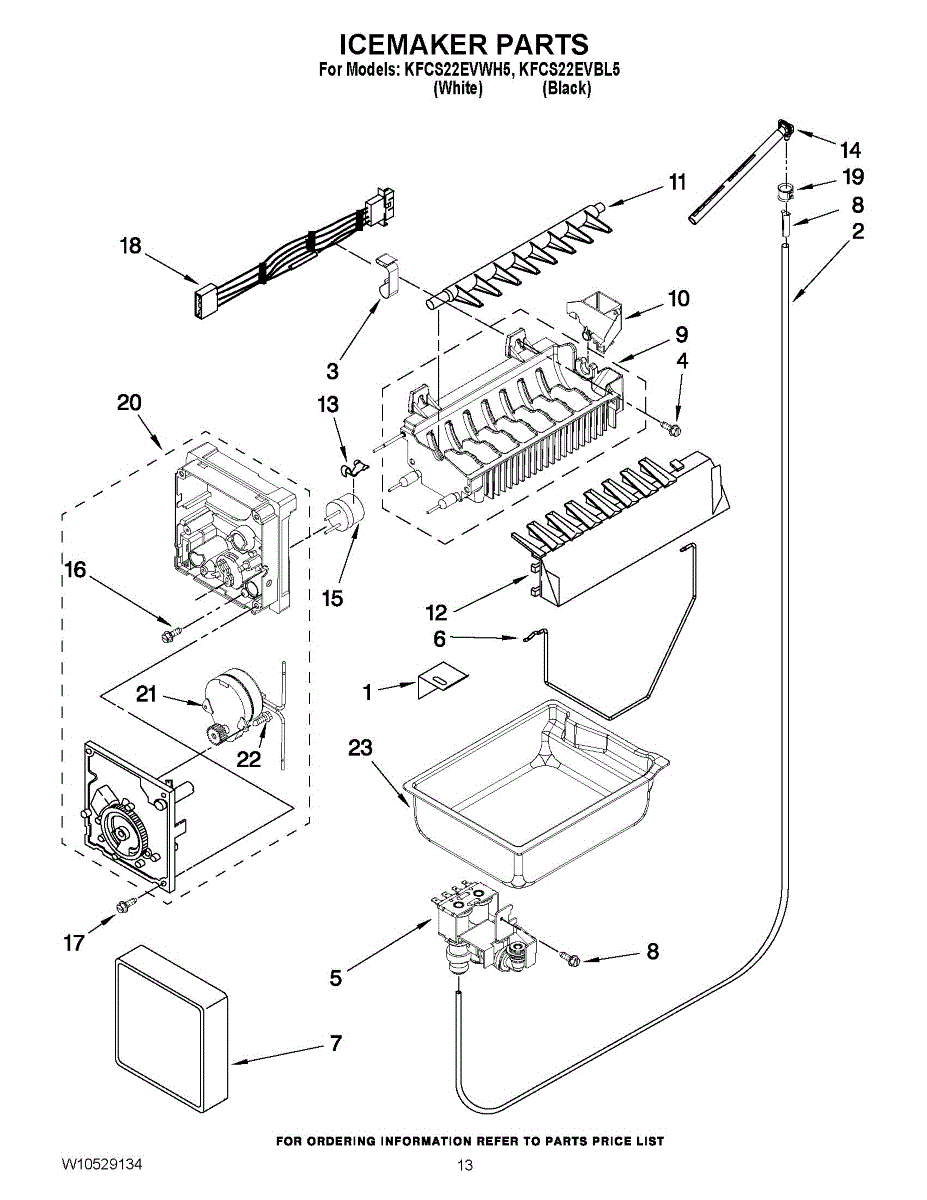

Parts for Kitchenaid KFCS22EVWH5: 07 - Icemaker Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement bracket secures the refrigerator ice maker assembly so it stays properly positioned for reliable ice production. It restores stable mounting and helps prevent the ice maker from shifting or coming loose. What it does:

• Holds the ice maker assembly in place on the freezer liner or mounting frame
• Keeps the ice maker aligned for proper operation and water fill
• Helps stop vibration or movement that can cause noisy operation or misfeeds
• Useful when the original bracket is bent, broken, or missing

• Disconnect power to the refrigerator and shut off the water supply before starting
• Remove the ice maker to access the bracket mounting screws
• Reuse existing screws if undamaged; tighten to secure but avoid overtightening
• If mounting points or surrounding plastic are damaged, replace or repair before reinstalling

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. It controls the flow of water to the ice maker and water dispenser, ensuring the appliance receives the right amount of water for ice production and dispensing. The valve opens and closes to regulate water flow, facilitating efficient operation of the refrigerator’s ice and water features.

You should replace this water inlet valve if it becomes clogged, damaged, or fails to operate correctly. Common causes of a bad valve include mineral buildup from hard water, wear and tear from regular use, or electrical issues that prevent the valve from opening or closing properly.

Symptoms of a bad water inlet valve include:

• No water to the ice maker or dispenser
• Slow or inconsistent water flow
• Leaks or drips from the valve area
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Shut Off Arm is an OEM part for Whirlpool ice makers in refrigerators. This component plays a critical role in regulating ice production by signaling the ice maker to stop producing ice once the ice bin is full. It ensures that the ice maker does not overflow, maintaining efficient ice production and storage.

Over time, wear and tear, accidental impacts, or mechanical failures can impair its ability to accurately detect the ice level.

Symptoms of a bad Shut Off Arm include:

• Ice maker continuously producing ice even when full
• Ice maker not producing ice at all
• Ice overflowing from the ice bin
• Unusual noises from the ice maker mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Maker is an OEM part compatible with Whirlpool refrigerators. It is a crucial component responsible for producing and dispensing ice cubes for your convenience and enjoyment.

Note: This replacement icemaker has a plastic tray on the bottom. If you are replacing this part the original icemaker you have to remove the plastic tray from this icemaker so the bracket will connect to hold the icemaker in place

Symptoms of needing to replace the ice maker include:

• Reduced or no ice production
• Ice cubes sticking together or clumping
• Unusual noises or grinding sounds from the ice maker
• Water leaks or condensation buildup around the ice maker area

Causes of needing a new ice maker can include normal wear and tear over time, issues with the water supply or filtration system, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This small insert slides into the end of plastic water tubing to reinforce it for a compression-style connection. It helps create a secure, leak-resistant seal at valves and couplings on appliance water lines.

• Supports the tubing wall so the ferrule and compression nut can tighten without collapsing the tube
• Helps prevent drips or seepage at the connection point
• Useful when the tubing end is cracked, deformed, or won't hold a tight seal
• Common symptoms include leaks at a fitting, a connection that won't stay tight, or restricted flow from a pinched tube end

• Shut off the water supply and disconnect power before servicing
• Cut the tubing square; remove any damaged section and deburr the edge
• Slide the compression nut and ferrule onto the tube, fully seat the insert, then assemble the fitting—do not overtighten
• Restore water and check all connections for leaks

This ice mold and heater assembly forms the ice cubes and warms the mold just enough during harvest so cubes release cleanly into the bin. Replacing a worn mold/heater restores reliable ice production and prevents jams or incomplete ejection.

• Forms the ice cube cavities and provides gentle heat for smooth release
• Can help resolve slow or no ice production due to cubes sticking in the mold
• Address misshapen cubes, ice jams, or incomplete harvest cycles
• Common when the coating is worn, the heater is open, or cubes consistently hang up

• Disconnect power to the refrigerator before servicing the icemaker
• Remove the icemaker assembly to access and swap the mold/heater unit
• Transfer any required brackets or hardware from the old part if applicable
• After reassembly, restore power and allow several hours for normal ice making

The Icemaker Fill Cup Sensor is an OEM part for Whirlpool bottom-mount and side-by-side refrigerators. Located inside the icemaker assembly, the fill cup sensor works to automatically detect when an ice scoop or bucket is in place below the icemaker chute. It signals the icemaker to drop ice cubes into the receptacle below.

Causes of a bad fill cup sensor can include mineral or dirt build-up inhibiting sensor response, moisture damage to its electronic functioning, or physical damage to the sensor head.

Symptoms of a bad fill cup sensor include:

• Ice failing to dispense or drop when a container is in place
• Ice clumping in the chute instead of dispensing properly
• The icemaker continuing to run even with ice present below
• Inability to sense when ice is removed from the bucket

This OEM Whirlpool replacement fill cup sensor is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore bottom-mount and side-by-side refrigerators.

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

This comb-shaped insert mounts at the front of the modular ice maker. It strips freshly ejected cubes from the rake and directs them into the bin to help prevent jams and cube hang-ups for consistent ice harvests.

• Guides cubes off the ejector fingers and into the bin
• Helps prevent cubes from re-entering the mold, bridging, or jamming
• Replaces a cracked, warped, or missing stripper to restore proper harvest path
• Typical symptoms: cubes stuck on the ejector, repeated jams, ice spilling or clumping

• Disconnect power to the refrigerator and turn off the ice maker before servicing
• Remove the ice maker front cover; release locking tabs or screws to remove the old stripper
• Position the new stripper over the ejector fingers; seat fully without forcing the rake
• Reinstall cover/ice maker, restore power, and allow a full cycle to verify operation

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures panels, trim pieces and small assemblies so covers and components stay aligned and rattle-free. It's a simple, direct fastening part used when an original screw is missing or damaged. What it does:

• Fastens panels, trim, control housings and other small components to the appliance chassis
• Replaces missing, worn or stripped screws that cause loose panels or rattling noises
• Restores correct alignment of covers and trims after service or disassembly
• Provides a direct, hardware-level repair instead of temporary fixes

• Disconnect power (and gas, where applicable) and ensure the appliance is cool before starting.
• Use the correct screwdriver bit and turn until snug; do not overtighten to avoid stripping threads or damaging parts.
• Keep removed hardware for reference; replace like-for-like if threads or inserts are damaged.
• Wear eye protection and gloves when working on appliances.

Replacement silverware basket with integral handle in dark gray. Holds forks, knives and spoons in the lower dishwasher rack to keep utensils upright for better cleaning and easier loading, removal and transport. What it does:

• Holds and separates flatware to reduce nesting and promote water flow during wash cycles.
• Integrated handle makes it easy to lift the basket in and out of the rack for loading or unloading.
• Keeps small items from falling through the rack and reduces rattling during operation.
• Replace the basket if it is cracked, broken, or if utensils no longer stay securely in place.

• Installs in the lower dishwasher rack by sliding or snapping into existing rack slots; typically requires no tools.
• Make sure the basket sits level and the handle moves freely before running the dishwasher.
• Inspect for cracks or sharp edges and replace if damaged to avoid utensil loss or interference with spray action.
• Disconnect power first; this part itself does not require electrical work.

This wire harness provides the electrical connection between the ice maker module and the refrigerator's control/power system, restoring reliable power and signal delivery for normal ice-making operation. What it does:

• Connects the ice maker module to the main power and control circuits so the ice maker can cycle and produce ice.
• Replaces damaged, frayed, or loose wiring that can cause intermittent operation or a non-working ice maker.
• Helps resolve symptoms such as the ice maker not powering up, not cycling, or producing little to no ice.
• Restores proper connector alignment and secure signal paths to prevent electrical faults.

• Disconnect power to the refrigerator before attempting any repair to avoid shock or injury.
• Inspect connectors and routing; replace only if the harness and connectors are the confirmed faulty components.
• Use basic hand tools and avoid cutting or splicing unless instructed by the service manual; improper splices can cause failures.

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

This is a replacement screw fastener used to secure appliance components and panels. It restores proper fastening and helps stop loose parts from vibrating or shifting during operation. What it does:

• Secures panels, brackets, or components in place to maintain appliance stability
• Stops rattling, vibration noise, and intermittent contact caused by loose fasteners
• Restores proper alignment where original screws have stripped, corroded, or been lost
• Functions as a direct-fit hardware replacement when the OEM screw is needed

• One replacement screw (quantity: 1)

• Use appropriate driver and moderate torque to avoid stripping threads or damaging parts
• Disconnect power and follow appliance safety procedures before working on the unit
• Repair or replace the mating component as needed

This ice pan is the molded plastic tray that sits beneath the ice maker to collect melted ice and runoff, helping keep the freezer compartment dry and the ice maker area tidy. It replaces a cracked or warped tray to restore proper drainage. What it does

• Collects melted ice and minor overflow from the ice maker area to prevent water from pooling in the freezer
• Provides a stable platform and channeling for ice melt toward the drain
• Helps reduce nuisance leaks and moisture that can cause frost buildup around the ice maker
• Fits into the ice maker housing to maintain proper clearance and alignment

• One ice pan

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove the ice maker or access panel as needed to reach and remove the old pan; keep track of fasteners
• Inspect surrounding components and clear any debris before installing the new pan
• Reassemble panels and restore power, then check for proper seating and absence of leaks
