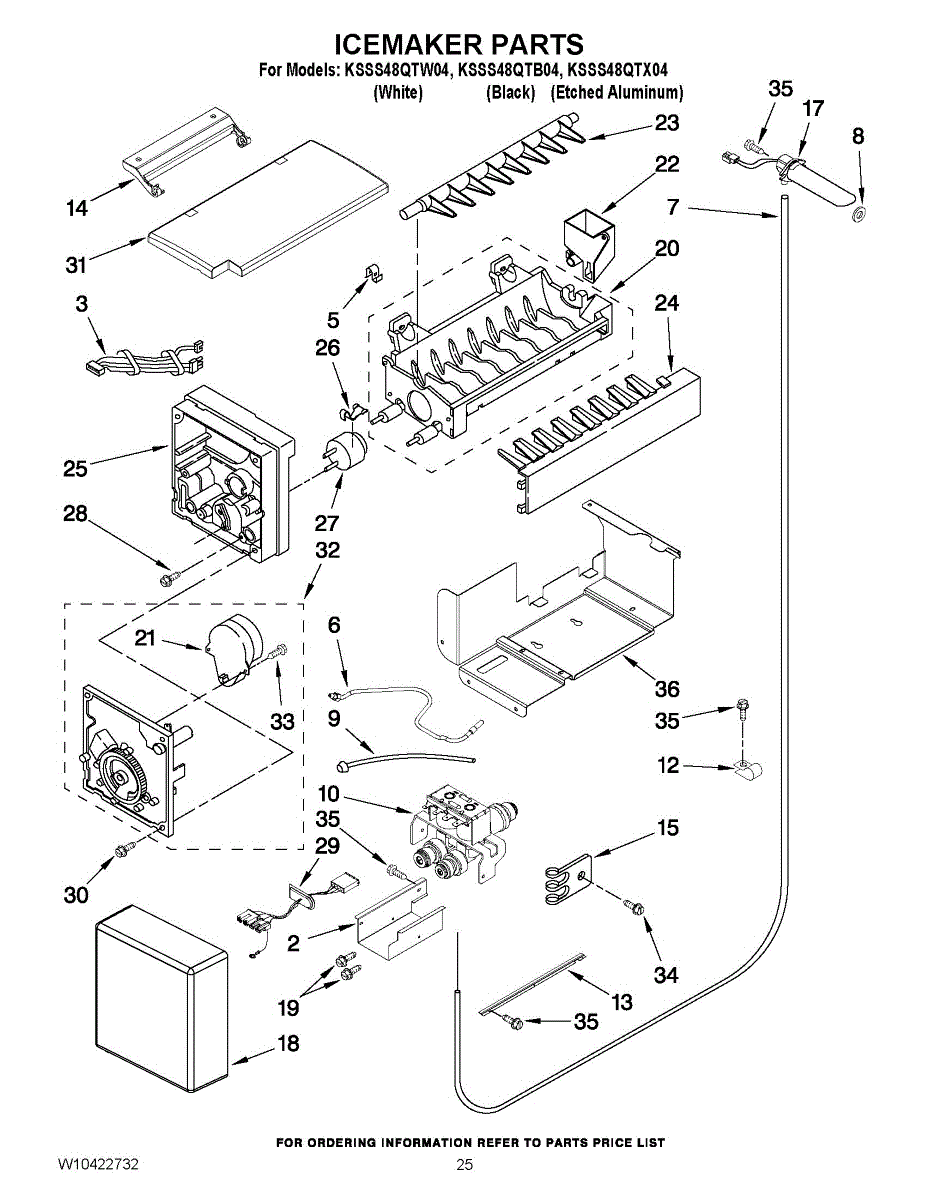

Parts for Kitchenaid KSSS48QTW04: 15 - Icemaker Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Shield for side-by-side refrigerators. Protects internal components from damage. Replace if cracked, broken, or missing to restore proper coverage.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

No water or ice? This inlet fitting connects your home water supply to your refrigerator's ice maker and dispenser. Quick DIY repair for leaks.

The Water Supply Tube is an OEM part for Whirlpool refrigerators. This tube transports water to supply the automatic ice maker. It ensures a consistent water flow to produce batches of ice on demand.

Causes of a bad water supply tube can include cracks or leaks from regular use and flexing over time. Mineral buildup inside the tube may also restrict water flow.

Symptoms of a bad water supply tube include:

• Ice maker not working or producing ice slowly
• Water droplets under the refrigerator
• Noticeable cracks or splits in the tube

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

No water or slow flow from dispenser? A faulty water inlet valve is often the cause. This valve regulates water supply to your refrigerator's dispenser.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

Ice maker cover loose or broken? This bracket secures the front cover to your ice maker assembly. Simple 5-minute DIY repair with basic tools and video guide.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Routes water from the valve to your refrigerator's ice maker. Replace if cracked, leaking, or disconnected to restore proper water flow and prevent spills.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Ice maker not filling properly or water leaking in freezer? A cracked fill cup causes inconsistent fills and leaks. Simple DIY fix guides water correctly.

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

Ice cubes jamming or not releasing from your ice maker? This stripper arm sweeps ice from the mold for proper harvest. Simple DIY fix in minutes.

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

Wire harness for refrigerators. Connects electrical components inside the cabinet. Replace if wires are frayed, damaged, or connectors are broken.

Mounting screw for refrigerator ice maker assembly. Secures components to maintain structural integrity. Replace if lost, stripped, or corroded.

Ice spilling out of your ice maker? This ice maker door cover seals the ice compartment to prevent spillage and keep ice contained securely.

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Secures the icemaker assembly inside your refrigerator freezer compartment. Replace this bracket if it's cracked, broken, or missing to restore support.

Ice maker not producing ice or leaking water? This complete ice maker assembly replaces faulty units. Straightforward DIY replacement restores ice production.

Replace your refrigerator's door handle when the original is cracked, broken, or worn. Mounts on the front door to provide a grip for opening and closing.

Ice not dispensing or clumping in your freezer? This ice container assembly holds and feeds ice to the dispenser. Replaces cracked or worn bins.
