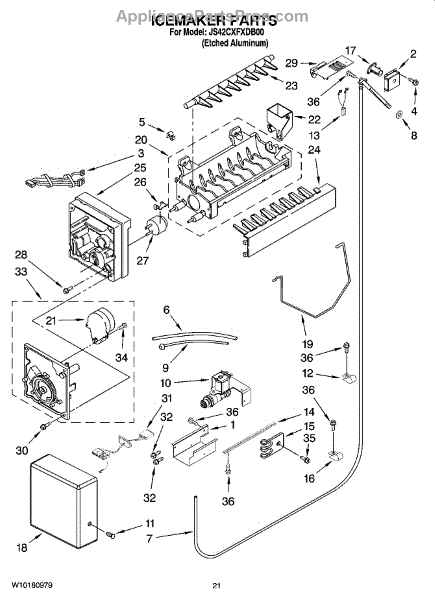

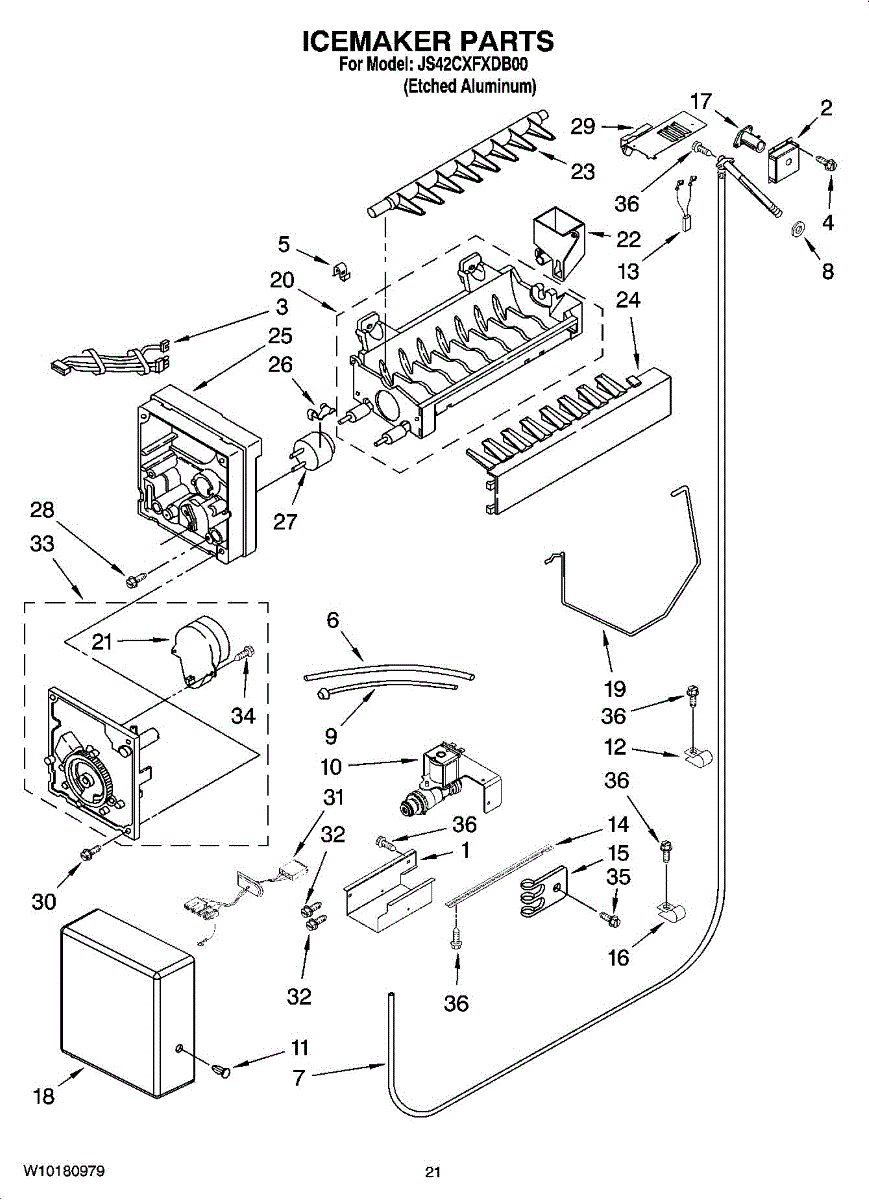

Parts for Maytag JS42CXFXDB00: 13 - Icemaker Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Complete wire harness assembly that routes power between refrigerator components. Replace if wiring is damaged, burned, frayed, or has loose connections.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

Seals refrigerator door to prevent air leaks and temperature loss. Replace when worn, cracked, or no longer forming a tight seal. Verify fit by model.

The Water Supply Tube is an OEM part for Whirlpool refrigerators. This tube transports water to supply the automatic ice maker. It ensures a consistent water flow to produce batches of ice on demand.

Causes of a bad water supply tube can include cracks or leaks from regular use and flexing over time. Mineral buildup inside the tube may also restrict water flow.

Symptoms of a bad water supply tube include:

• Ice maker not working or producing ice slowly
• Water droplets under the refrigerator
• Noticeable cracks or splits in the tube

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This water inlet valve uses a single solenoid to control water flow into the unit. Replacing a sticking or leaking valve restores proper fill and can resolve issues like no ice production or unwanted drips.

• Opens and closes the household water supply to deliver the correct amount of water during a fill cycle
• Common fix for an icemaker that won't fill or produces no ice
• Helps stop leaks from the valve area or water seeping into the ice mold between cycles
• Can resolve a condition where the valve hums/buzzes but no water flows

• Disconnect power and shut off the water supply before servicing.
• Place a towel or pan to catch residual water and relieve line pressure.
• Move tubing and wire connectors one at a time to the new valve to match positions; secure all connections.
• Restore water and power, check carefully for leaks, and run a test fill (clear any ice from the fill tube if applicable).

Secures interior trim and panels in your refrigerator. Replace when broken or loose to prevent rattling and ensure stable fit. Confirm compatibility.

This clamp secures flexible hoses to fittings to maintain a tight seal and prevent leaks. Use it to replace a worn or loose clamp to stop water or air seepage and restore proper hose attachment. What it does:

• Holds a washer, dryer, or appliance hose firmly to a barb or fitting to prevent slipping
• Helps maintain a watertight or airtight connection to reduce leaks and drips
• Replaces corroded, cracked, or stretched clamps that no longer grip reliably
• Supports normal appliance operation by keeping fluid/air flow contained

• One clamp

• Inspect the hose and fitting; replace the hose if damaged before installing the clamp
• Position clamp over the hose barb and tighten evenly; avoid over-tightening that can cut the hose
• Disconnect power and water supply before servicing any appliance components

This wire assembly is the factory replacement harness that connects electrical components so your appliance gets reliable power and signal routing. Restores proper connections for controls, sensors and powered parts. What it does:

• Routes power and signal between control board and components
• Replaces damaged, frayed or burned wiring that can cause intermittent or no operation
• Helps resolve symptoms like control or component failures, no-start or loss of specific functions
• Maintains correct connector fit and wire lengths for safe operation

• Disconnect all power (unplug or shut off breaker) before starting any repair
• Compare connectors and wire colors to the original harness before installing
• Route harness away from sharp edges, moving parts and heat sources; secure with existing clips/fasteners

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Icemaker clogs or stops making ice? This heated fill tube directs water from the inlet valve to your icemaker. Moderate DIY replacement fixes flow issues.

Ice maker won't stop making ice or overflows? This shut-off arm controls ice production in your refrigerator. Direct replacement part for common issues.

The Ice Mold is an OEM part for Whirlpool refrigerators. This component forms the ice cubes in the icemaker, shaping the water into cubes as it freezes. The ice mold is crucial for the efficient production of ice, ensuring that each cube is properly formed and easily released into the ice bucket.

You should replace the ice mold if it shows signs of wear or damage. Causes of a bad ice mold can include mineral buildup from hard water, physical damage to the mold surface, or malfunctioning heating elements that prevent ice from releasing properly.

Symptoms of a bad Ice Mold include:

• Ice cubes not forming correctly or being irregular in shape
• Ice cubes sticking to the mold and not dispensing
• The icemaker not producing ice at all
• Leaks around the icemaker area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

Ice maker leaking or shutoff arm broken? This fill cup and bearing assembly directs water into the mold and supports the arm. 15-minute DIY fix.

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

Ice stripper removes ice cubes from the ice maker mold so the dispenser or storage bin fills properly. Replacing a worn or broken stripper helps the ice maker eject cubes cleanly and reduces ice jams or stuck cubes. What it does:

• Pushes or guides harvested cubes out of the ice mold into the bin during the ice maker's harvest cycle.
• Prevents cubes from sticking in the mold; a damaged stripper can cause incomplete ejection or leftover ice in the mold.
• Works with the ice maker's ejector mechanism to maintain consistent cube release and storage.
• A faulty or broken stripper may lead to noisy operation, partial fills, or visible ice build-up in the mold.

• Disconnect power to the appliance before starting any repair to avoid electrical shock.
• Remove the ice maker or access panel per the manufacturer's instructions to reach the stripper; keep small parts and screws organized.
• Inspect the ice mold and surrounding components for damage or ice build-up; clear ice before installing the new stripper.
• After installation, restore power and run a test harvest cycle to ensure proper cube ejection.

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

Mounting screw for refrigerator ice maker assembly. Secures components to maintain structural integrity. Replace if lost, stripped, or corroded.

Screw: 8-16 x 3/8 inch.

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Fix ice maker not making ice or leaking with this complete assembly. Most DIYers complete installation in under an hour with basic tools and screwdriver.
