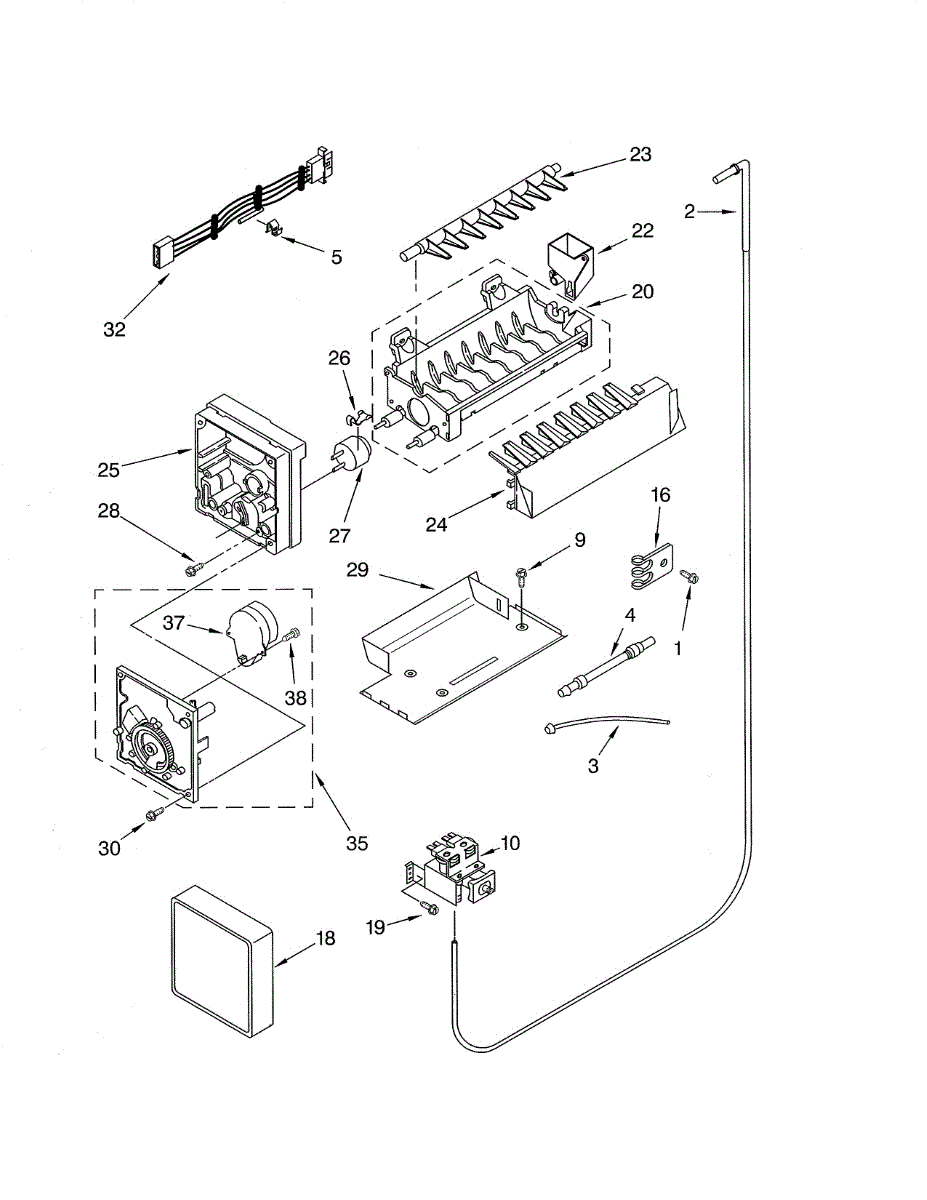

Parts for Whirlpool ED5SHEXML10: Icemaker Parts

Replace your refrigerator water filter every 6 months for clean, fresh-tasting water and ice. Simple twist installation. Verify fit with your model number.

Secures the handle end cap to the center of your refrigerator door. Replace if missing, stripped, or lost during handle repairs. 8-18 x 1/2 inch size.

Plastic tube that delivers water from the supply line to the ice maker assembly. Replace if cracked, split, burst, or leaking inside the freezer.

Replace a cracked, broken, or leaking 1/4" water tube in your refrigerator. This cut-to-fit tubing connects internal water components. Easy DIY fix.

Water filter inlet tube kit for refrigerators. Connects water supply to filtration system. Replace if tube is cracked, leaking, or damaged.

Ice maker stopped working or has a burning smell? This thermal fuse clip secures the fuse for safe operation. Simple snap-in installation takes minutes.

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Ice maker not filling or water dispenser leaking? This water inlet valve regulates water flow to both. DIY repair typically takes 10-20 minutes.

Secures flexible tubing to fittings on water and drain lines. Replace when clamps lose tension or you find leaks. Confirm fit with your model number.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

Fix an ice maker that stopped working or leaks water into the bin. This ice mold tray replacement takes about 10-20 minutes with our step-by-step video.

Ice maker leaking or shutoff arm broken? This fill cup and bearing assembly directs water into the mold and supports the arm. 15-minute DIY fix.

Ice cubes stuck in tray and won't eject? This ejector arm pushes ice from the mold into the bin. Simple snap-in install restores ice production.

Ice sticking in tray or won't release? The stripper arm removes ice from the mold. Common issue: broken teeth or loose tab. 30-minute DIY fix with video.

Mounts in the dispenser to secure the ice housing assembly. Keeps the chute and door aligned for smooth dispensing. Replace if cracked, broken, or worn.

Defrost issues or ice buildup? This thermostat retainer clip secures the defrost thermostat to the evaporator for accurate temperature sensing.

Ice maker stopped making ice? The cycling thermostat monitors temperature to control ice production. DIY-friendly repair with video instructions.

Replacement mounting screw for refrigerators. Secures panels, trim pieces, and small assemblies. Needed when original screw is missing or damaged.

Fix ice maker rattling, misalignment, or leaks with this refrigerator icemaker mounting bracket. Secures ice maker assembly to freezer wall. DIY-friendly.

Mounting screw for refrigerator ice maker assembly. Secures components to maintain structural integrity. Replace if lost, stripped, or corroded.

Ice maker not producing ice or working intermittently? This wire harness restores power and control signals to fix corroded or damaged connections.

Ice maker stopped making ice or won't eject cubes? A failed motor module is often the cause. DIY repair in under an hour with our video guide.

Ice maker stopped making ice or won't eject cubes? The control module regulates ice production cycles. Simple 3-screw replacement restores function.

Mounting screw for refrigerator ice maker brackets. Replaces broken, stripped, or missing screws that secure the ice maker assembly to the freezer wall.

Ice maker stopped making ice or won't eject cubes? This ice maker assembly restores ice production. Moderate DIY repair with video guide available.
