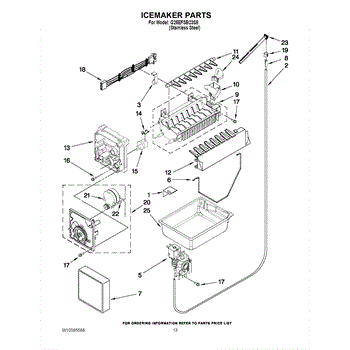

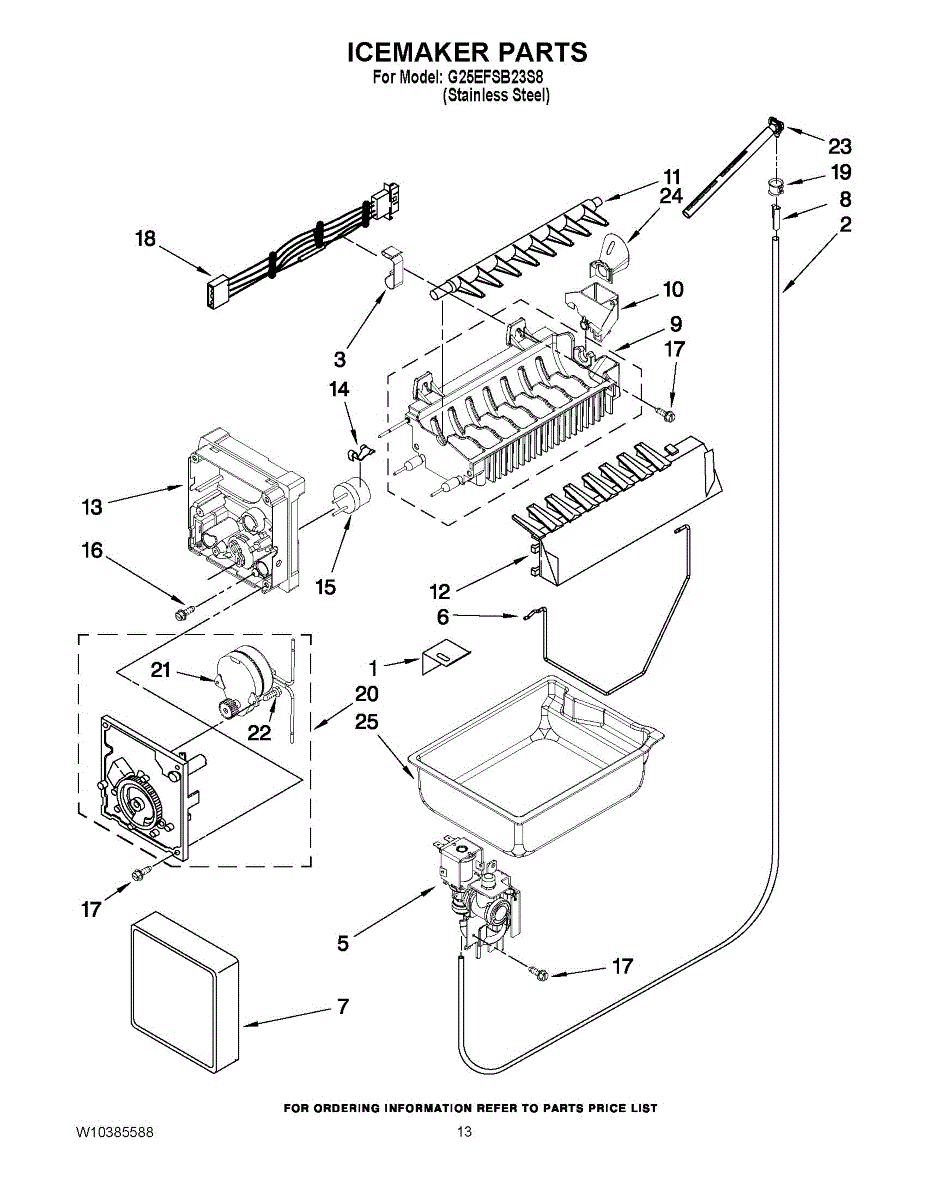

Parts for Whirlpool G25EFSB23S8: 07 - Icemaker Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement bracket secures the refrigerator ice maker assembly so it stays properly positioned for reliable ice production. It restores stable mounting and helps prevent the ice maker from shifting or coming loose. What it does:

• Holds the ice maker assembly in place on the freezer liner or mounting frame
• Keeps the ice maker aligned for proper operation and water fill
• Helps stop vibration or movement that can cause noisy operation or misfeeds
• Useful when the original bracket is bent, broken, or missing

• Disconnect power to the refrigerator and shut off the water supply before starting
• Remove the ice maker to access the bracket mounting screws
• Reuse existing screws if undamaged; tighten to secure but avoid overtightening
• If mounting points or surrounding plastic are damaged, replace or repair before reinstalling

Direct-replacement water tube that routes water from the fridge inlet to the ice maker fill valve, restoring consistent water delivery and helping prevent leaks or ice maker fill failures caused by cracked or clogged tubing. What it does:

• Routes water to the ice maker fill valve so the ice maker can fill properly.
• Restores normal water flow when cracked, pinched, or deteriorated tubing reduces fill.
• Helps stop internal leaks that can occur from split or brittle tubing.
• Addresses symptoms like intermittent/no ice production, slow or no fill, or water pooling under the refrigerator.

• Disconnect power to the appliance and shut off the water supply before starting.
• Replace tubing by loosening any clamps or quick-connect fittings; inspect and replace any worn O-rings or clips.
• Avoid kinks or sharp bends when routing the new tube; secure with existing clips to prevent vibration wear.
• After installation, restore water and power, then check for leaks and confirm the ice maker fills normally.

The shut-off arm is the lever that tells the ice maker when to stop and start making ice. Replace a bent, missing, or jammed arm to restore proper ice production control and prevent bin overfilling. What it does:

• Lowers to allow ice production; raises to stop cycles when the bin is full (down = on, up = off)
• Helps prevent overfilling, spills, and auger jams
• Common symptoms: ice maker won't stop making ice, no ice when the arm is stuck up, inconsistent ice production from misalignment
• Restores proper ice level sensing when the original lever is damaged or missing

• One shut-off arm

• Disconnect power and shut off water before servicing
• Remove the ice bin to access the ice maker
• Seat the arm's pivot ends fully in the ice maker head; avoid bending the lever
• The arm moves freely up/down and clears the bin before restoring power

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

This small insert slides into the end of plastic water tubing to reinforce it for a compression-style connection. It helps create a secure, leak-resistant seal at valves and couplings on appliance water lines.

• Supports the tubing wall so the ferrule and compression nut can tighten without collapsing the tube
• Helps prevent drips or seepage at the connection point
• Useful when the tubing end is cracked, deformed, or won't hold a tight seal
• Common symptoms include leaks at a fitting, a connection that won't stay tight, or restricted flow from a pinched tube end

• Shut off the water supply and disconnect power before servicing
• Cut the tubing square; remove any damaged section and deburr the edge
• Slide the compression nut and ferrule onto the tube, fully seat the insert, then assemble the fitting—do not overtighten
• Restore water and check all connections for leaks

This mold heater assembly warms the ice maker mold to help release ice and prevent ice buildup for consistent ice production. It replaces a faulty heater that can cause stuck cubes or irregular harvesting. What it does:

• Gently warms the ice mold so ice cubes release cleanly from the tray
• Helps prevent ice from sticking or freezing unevenly to the mold
• Supports regular ice harvesting cycles when heater has failed or is intermittent
• Works as the heater component inside the ice maker housing

• One mold heater assembly

• Disconnect power to the appliance before attempting any service
• Accessible from the ice maker module area; some models require removing the ice bin or access panel
• Handle the heater and surrounding components carefully to avoid damage to the ice maker

This icemaker fill cup guides incoming water from the refrigerator's inlet tube into the ice mold, helping prevent splashing and freeze-ups during the fill cycle. Replacing a cracked or missing cup restores consistent fills and reduces leaks.

• Directs water from the fill tube straight into the icemaker mold
• Helps prevent overspray, splashing, and ice buildup around the icemaker
• Replace if the cup is cracked, warped, loose, or missing
• Common symptoms: water dripping/freezing under the icemaker, clumped or misshapen cubes

• Unplug the refrigerator and turn off the water supply before servicing
• Remove the icemaker assembly as needed to access the inlet/fill area
• Release the old cup and seat the new cup so the fill tube aligns with the opening
• Restore water and power; check for proper fill and any leaks

This replacement ejector is the plastic arm that pushes harvested ice cubes out of the ice mold and into the storage bin, helping restore proper ice ejection and reduce ice that sticks inside the tray. What it does:

• Pushes ice cubes out of the ice mold during the ice maker's harvest cycle.
• Works with the ice maker's motor/gear assembly to advance cubes into the bin.
• Replaces worn, cracked, or broken ejector arms that can leave ice stuck in the mold.
• Can help address symptoms such as cubes that don't eject, partial fills, or frequent ice jams.

• Disconnect power to the refrigerator before servicing to prevent electrical shock.
• Remove the ice bin and follow the OEM ice maker removal steps to access the ejector.
• Handle plastic components carefully to avoid cracking; inspect gears, mounts, and the ice tray for related wear.

This comb-shaped insert mounts at the front of the modular ice maker. It strips freshly ejected cubes from the rake and directs them into the bin to help prevent jams and cube hang-ups for consistent ice harvests.

• Guides cubes off the ejector fingers and into the bin
• Helps prevent cubes from re-entering the mold, bridging, or jamming
• Replaces a cracked, warped, or missing stripper to restore proper harvest path
• Typical symptoms: cubes stuck on the ejector, repeated jams, ice spilling or clumping

• Disconnect power to the refrigerator and turn off the ice maker before servicing
• Remove the ice maker front cover; release locking tabs or screws to remove the old stripper
• Position the new stripper over the ejector fingers; seat fully without forcing the rake
• Reinstall cover/ice maker, restore power, and allow a full cycle to verify operation

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

This bimetal defrost thermostat controls power to the evaporator defrost heater. Replacing a failed thermostat restores proper defrost cycling, helping prevent ice buildup on the coils and safeguarding the unit from overheating during defrost.

• Senses evaporator coil temperature and opens/closes the defrost heater circuit
• Protects against overheating by cutting heater power when the coil warms
• Works with the control/timer to complete the defrost cycle
• Common symptoms: heavy frost on the freezer back panel/evaporator, warming temperatures after several days, or a defrost heater that won't energize

• Disconnect power; remove freezer shelves and the rear panel to access the evaporator
• The thermostat is typically clipped to the evaporator tubing—note placement/orientation before removal
• Make secure electrical connections and route wires away from sharp edges and the fan
• Reassemble, restore power, and operate the defrost system properly

A single replacement screw used to secure appliance panels and components. Restores proper fastening to reduce vibration and keep parts aligned for safe, quiet operation. What it does:

• Fastens panels, brackets or assemblies to the appliance frame
• Helps eliminate rattling or looseness from unsecured parts
• Maintains component alignment for reliable operation
• Matches the OEM fastening point and thread where specified

• Disconnect power and water before beginning work
• Use the correct screwdriver or bit to avoid stripping the head
• Install in the original location and hand-start threads to avoid cross-threading
• Do not overtighten; tighten to snug fit per service literature

This is a replacement screw fastener used to secure appliance components and panels. It restores proper fastening and helps stop loose parts from vibrating or shifting during operation. What it does:

• Secures panels, brackets, or components in place to maintain appliance stability
• Stops rattling, vibration noise, and intermittent contact caused by loose fasteners
• Restores proper alignment where original screws have stripped, corroded, or been lost
• Functions as a direct-fit hardware replacement when the OEM screw is needed

• One replacement screw (quantity: 1)

• Use appropriate driver and moderate torque to avoid stripping threads or damaging parts
• Disconnect power and follow appliance safety procedures before working on the unit
• Repair or replace the mating component as needed

This speed clip is a small retainer that slides over a panel edge to provide a captive thread for a screw. Replacing a worn or missing clip restores a tight, rattle-free hold on the attached component. What it does:

• Slides over a panel or bracket to create a captive thread for a mounting screw
• Maintains tension to resist vibration and loosening
• Helps when a screw spins or won't tighten due to a missing retainer
• Addresses loose, rattling, or misaligned panels or trim

• 1 speed clip

• Disconnect power and, if applicable, shut off water before servicing
• Note the original clip's location and orientation for correct fit
• Fully seat the clip on the edge; start the screw by hand to avoid cross-threading
• Do not overtighten; ensure the component is secure and noise-free

The Icemaker Fill Tube is an OEM replacement part for Whirlpool refrigerators. It delivers water to the icemaker, allowing it to produce ice cubes. It is responsible for directing water from the water inlet valve to the icemaker tray, where it freezes into ice cubes.

A bad fill tube can occur due to wear and tear, blockages, or damage. If you notice symptoms such as no ice production, leaking water, or ice cubes with an unusual shape or size, it may be time to replace the fill tube.

Symptoms of a bad fill tube include:

• No ice production or limited ice output
• Leaking water around the icemaker area
• Irregularly shaped or oversized ice cubes

Repair your refrigerator by replacing the faulty or damaged fill tube with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This funnel directs water into the ice maker fill cup to ensure proper filling and reduce spills. It helps maintain reliable ice production by guiding water flow to the correct inlet area. What it does:

• Directs incoming water into the ice maker's fill cup so the correct amount reaches the ice mold
• Reduces splashing and overflow during the fill cycle
• Helps prevent water from pooling inside the freezer compartment near the ice maker
• Supports consistent ice production when installed and aligned properly

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove the ice maker or access panel as needed to reach the old funnel
• Align the replacement funnel with the mounting tabs and secure per OEM orientation; avoid forcing it into place
• Test fill cycle after installation and check for leaks; for detailed steps

This ice container stores the ice your refrigerator makes and interfaces with the dispenser drive so cubes reach the door. Replacing a cracked or worn bin restores smooth, sanitary ice storage and dependable dispensing.

• Holds and organizes ice beneath the icemaker
• Guides cubes to the dispenser drive for cube or crushed delivery on models with a dispenser
• Helps prevent spills and stray ice in the freezer
• Common failure signs: cracked bin, ice not dispensing, clumping/jamming, or frost/shavings around the bucket area

• Unplug the refrigerator or switch off power before servicing; empty the old bin
• Slide the bin straight out and clear frost/debris from rails or the mounting area
• Align the drive connection (if present) and fully seat the new container so it sits flush or latches
• Restore power and test the ice dispense function

Does not come with wiring harness.
