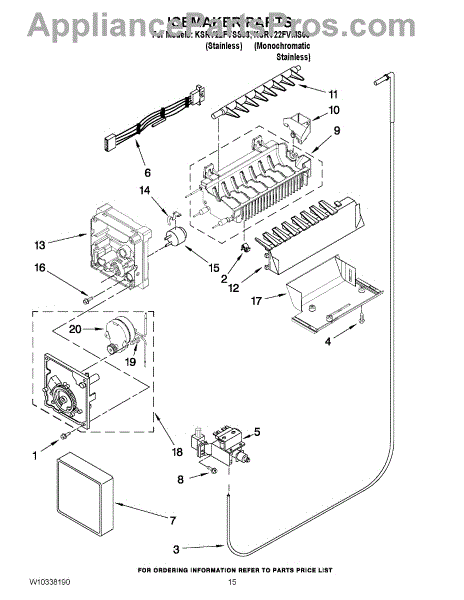

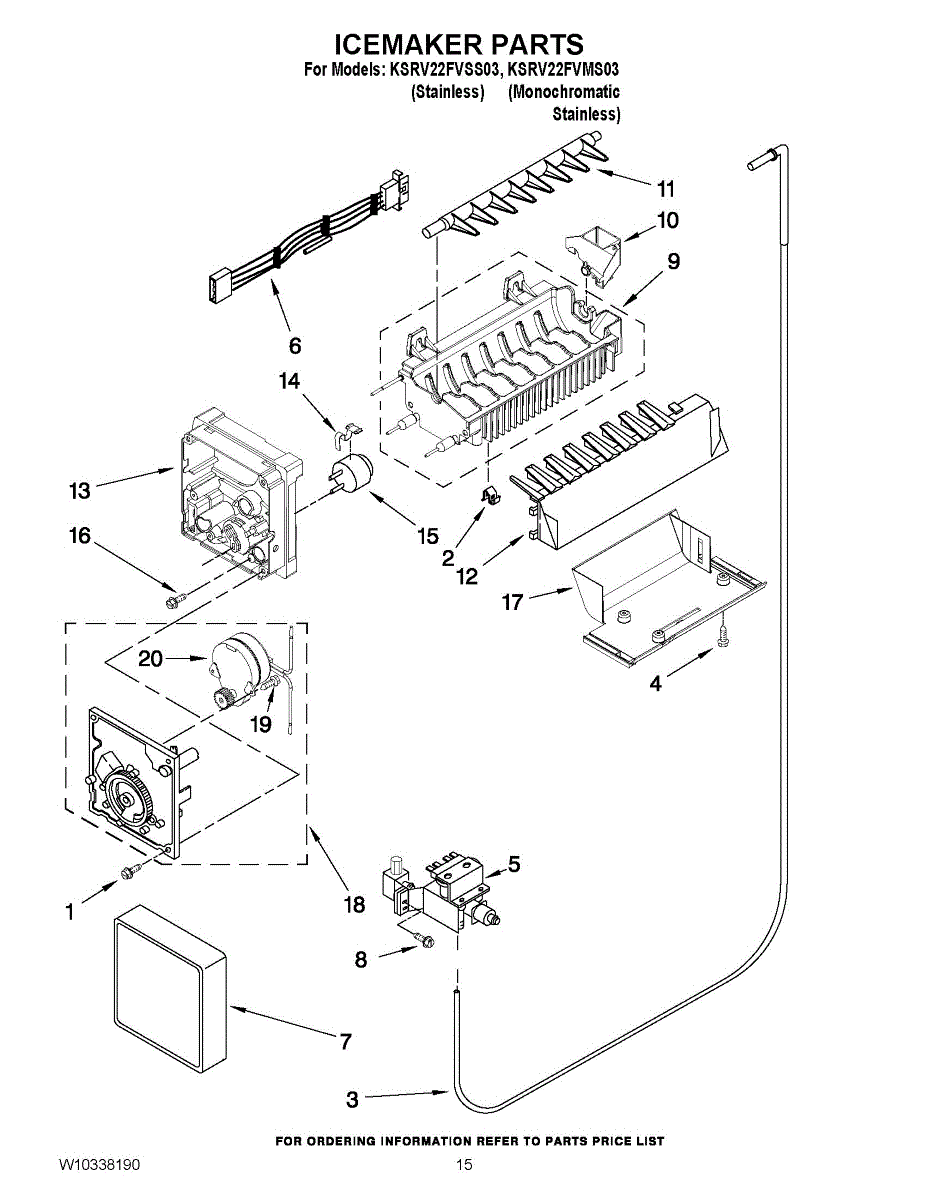

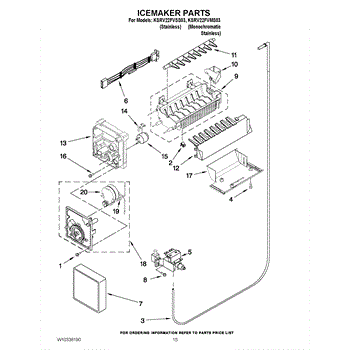

Parts for Kitchenaid KSRV22FVSS03: 09 - Icemaker Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

The Screw is an OEM part for Whirlpool refrigerators, designed to secure components of the ice maker assembly. This screw maintains the structural integrity of the ice maker, ensuring that all parts are tightly fastened to prevent malfunction or inefficiency in ice production.

Causes of failure can include stripping of the screw threads through over-tightening or corrosion, leading to a less secure fit.

Symptoms of a bad Screw include:

• Loose or dislodged components within the ice maker assembly.
• Inconsistent or halted ice production due to components shifting.
• Unusual noises emanating from the ice maker as a result of loose parts.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

Size: 8 x 1/2 ab.

The Refrigerator Water Inlet Valve is an OEM replacement part for Whirlpool side-by-side models. This valve regulates water entry to the ice maker.

Causes of failure can include worn solenoid coils leading to inconsistent opening/closing, stripped plastic stems from over-torquing common with mineral buildup areas, or severed wire connections rendering the valve inoperable.

Symptoms involve:

• Inoperative or slow ice production
• Ice maker not filling or making ice cubes fully
• Water leaking or pooling near the valve body

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

Note: On some models, there is a separate water connector from this valve. Order part# WPW10445062 for that connector.

This wire harness supplies electrical connections to the refrigerator ice maker assembly, restoring reliable power and signal routing so the ice maker can cycle and harvest ice properly. What it does

• Provides the factory electrical connections between the ice maker and the refrigerator controls.
• Replaces damaged or frayed wiring that can cause the ice maker to stop cycling or power up.
• Helps restore intermittent or no-power symptoms to the ice maker assembly.
• Maintains correct connector fit and routing to prevent shorts or loose connections.

• One wire harness for the ice maker assembly.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Match connectors and routing to the factory harness; secure with existing clips or fasteners.
• Inspect mating connectors and the ice maker for damage before reconnecting power.

This ice maker cover shields the front of the ice maker assembly, protecting the module and moving parts from dust and accidental contact. Replacing a cracked or missing cover restores a clean, finished appearance and keeps components protected.

• Shields the ice maker's front components and control module
• Helps keep dust, splashes, and debris out of the mechanism
• Prevents accidental contact with moving ejector parts
• Replace if the cover is cracked, warped, missing, or will not stay attached

• Unplug the refrigerator before servicing
• Access the ice maker in the freezer compartment
• Carefully release the retaining tabs and remove the old cover; note orientation
• Align the new cover and press until it snaps securely into place—do not force the tabs

A replacement machine screw with 8-32 threads used to secure panels and components on compatible Whirlpool appliances. Installs quickly to restore proper fit and stop rattling or loose parts. What it does:

• Secures panels, trim, brackets or components that use 8-32 machine-thread fasteners
• Restores proper alignment and prevents vibration-related noise
• Replaces missing, stripped, or damaged screws that allow parts to come loose
• Works where a standard 8-32 machine screw is specified by the manufacturer

• Disconnect power and/or gas before servicing the appliance to reduce shock or injury risk
• Use the proper screwdriver or nut driver for the screw head to avoid stripping
• Thread gently and stop when snug; do not overtighten to prevent stripping or damage
• If threads are damaged, replace with the correct-size screw rather than forcing it

This ice maker mold and heater assembly forms the cube cavities and briefly warms the mold during harvest so ice releases cleanly. Replace a corroded, leaking, or non-heating mold to restore reliable ice production and ejection. What it does:

• Contains and shapes water into ice cubes during the freeze cycle
• Integrated heater warms the mold during harvest so cubes release to the ejector
• Failure can cause cubes to stick in the mold, stalled harvests, or no ice production
• Pitting or corrosion of the mold can lead to leaks and poor cube release

• One ice maker mold with attached heater assembly

• Disconnect power before servicing; turn off the ice maker or water supply to prevent fill during service
• Remove the ice maker from the freezer to access the internal mold assembly; support wiring and harnesses
• Transfer any reusable components and fasteners from the original unit as directed by your service information
• After reassembly, restore power and allow a full cycle to verify proper fill, release, and ejection

This is the cup-style water fill used to direct or hold incoming water in the appliance's water delivery system, helping proper flow to the dispenser or ice/water components. It replaces a cracked or damaged fill cup to restore reliable water routing. What it does

• Directs incoming water to the dispenser/ice fill area so water reaches the correct channel
• Prevents water from leaking into surrounding compartments when intact
• Commonly replaced when cracked, warped, or causing pooling or poor fill performance
• Works as a passive funneling/holding component in the fill path

• One cup (water fill) as described

• Disconnect power and shut off the water supply before starting work
• Handle carefully to avoid cracking plastic; inspect seals/gaskets and mounting points
• Reinstall per appliance service instructions; secure fasteners and check for proper alignment
• After installation, restore power/water and test the dispenser/fill function for leaks

This ejector arm replaces the dispenser ejector that helps move detergent or rinse aid from the dispenser to the wash chamber for proper release during the cycle. Restores reliable dispensing and prevents missed or partial releases. What it does:

• Physically pushes or guides detergent/rinse into the wash chamber at the correct point in the cycle
• Replaces cracked, broken, or worn ejector arms that fail to move or sit correctly
• Addresses symptoms such as detergent not dispensing, dispenser door sticking, or visible damage to the ejector arm
• Works with the dispenser assembly to ensure consistent product release during operation

• Disconnect power to the appliance before starting any repair
• Remove the dispenser assembly per the service manual to access and replace the ejector arm
• Inspect surrounding dispenser components (hinges, springs, clips) and replace if damaged

This ice stripper arm is the small harvest component that helps remove ice from the ice maker mold and guide cubes into the bin, restoring proper harvesting and ice release. It's a direct-fit replacement designed to match the OEM shape and function. What it does:

• Strips ice cubes from the ice maker mold during the harvest cycle so cubes drop into the bin
• Guides released cubes away from the mold to prevent jams and refreezing
• Replaces worn, cracked or broken stripper arms that can cause incomplete harvests
• Works as part of the ice maker's harvesting mechanism to help ensure consistent ice delivery

• One ice stripper arm

• Disconnect power to the appliance before attempting any repair
• Remove the ice maker per the manufacturer instructions to access the stripper arm
• Inspect mounting points and the ice maker for additional wear; align and snap the new arm into place

This support mounts in the dispenser area to secure the ice housing assembly. It helps keep the chute and door properly aligned so ice dispenses smoothly and the opening seals as designed.

• Supports and positions the ice housing/chute assembly in the freezer door
• Helps maintain proper alignment and sealing of the ice door/flapper
• Reduces wobble or flex that can affect dispensing performance
• Typical signs it may be needed: loose or misaligned dispenser housing, ice or air leaking at the chute, frost buildup around the dispenser, inconsistent ice dispensing

• Disconnect power to the refrigerator before servicing
• Remove the dispenser trim/control to access the housing; handle wiring and tabs carefully
• Remove mounting fasteners, replace the support, and transfer any reusable hardware
• Reassemble, restore power, and test ice dispensing and chute seal

This thermostat retainer clip secures the defrost thermostat to the evaporator tubing in your refrigerator or freezer, maintaining firm contact for accurate temperature sensing and dependable defrost operation.

• Holds the thermostat firmly against the evaporator line for proper temperature feedback
• Helps prevent a loose or dangling thermostat that contribute to frost buildup and poor defrost performance
• Restores correct mounting when the original clip is cracked, bent, or missing
• Common signs include a broken clip or a thermostat not attached to the coil

• Disconnect power to the appliance before servicing; wear cut-resistant gloves
• Access the evaporator compartment; remove accumulated frost/ice as needed without prying on coil fins
• Position the thermostat body flat against the tubing and snap the retainer over it, avoiding pinched wires or damaged fins
• Confirm a secure fit and proper wire routing before reassembling and restoring power

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures panels, trim pieces and small assemblies so covers and components stay aligned and rattle-free. It's a simple, direct fastening part used when an original screw is missing or damaged. What it does:

• Fastens panels, trim, control housings and other small components to the appliance chassis
• Replaces missing, worn or stripped screws that cause loose panels or rattling noises
• Restores correct alignment of covers and trims after service or disassembly
• Provides a direct, hardware-level repair instead of temporary fixes

• Disconnect power (and gas, where applicable) and ensure the appliance is cool before starting.
• Use the correct screwdriver bit and turn until snug; do not overtighten to avoid stripping threads or damaging parts.
• Keep removed hardware for reference; replace like-for-like if threads or inserts are damaged.
• Wear eye protection and gloves when working on appliances.

The Icemaker Motor Module is an OEM part for Whirlpool refrigerators. This module is the heart of the icemaker, responsible for controlling the ice production cycle. It manages the timing, water fill, and ice tray ejection, ensuring that your refrigerator consistently produces and dispenses ice.

Symptoms of a bad Icemaker Motor Module include:

• The icemaker failing to produce ice,
• Ice cubes not ejecting into the bin,
• The icemaker making unusual noises during operation.

Causes of motor module failure typically involve mechanical wear from continuous use, electrical failures such as short circuits, or water damage affecting the electronic components.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Icemaker is an OEM part for Whirlpool refrigerators. This component is responsible for producing ice by automatically filling with water, freezing it, and then ejecting the ice cubes into the storage bin. Please note that for installation, you will need to reuse the original cover and bracket from your existing icemaker. Makes 5 cubes at a time.

Causes of a bad icemaker can include mechanical failures, clogged water lines, or electrical issues. Over time, wear and tear from constant use or exposure to hard water and impurities can also affect its performance.

Symptoms of a bad icemaker include:

• The icemaker not producing ice
• Ice cubes being smaller than usual or misshapen
• Leaking water inside the freezer
• Unusual noises during the ice-making process
• The ice bin not filling up

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
