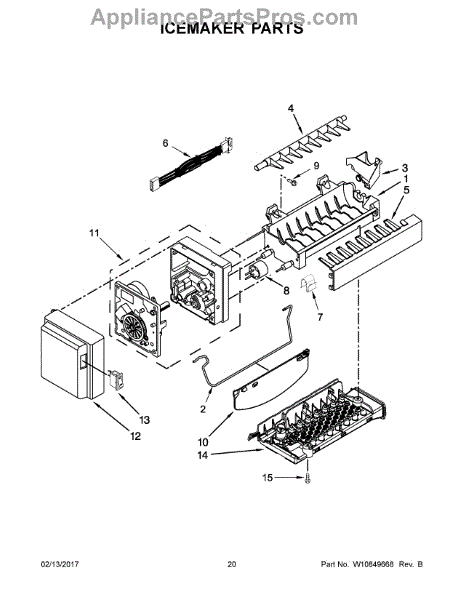

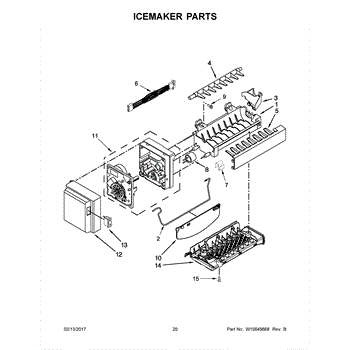

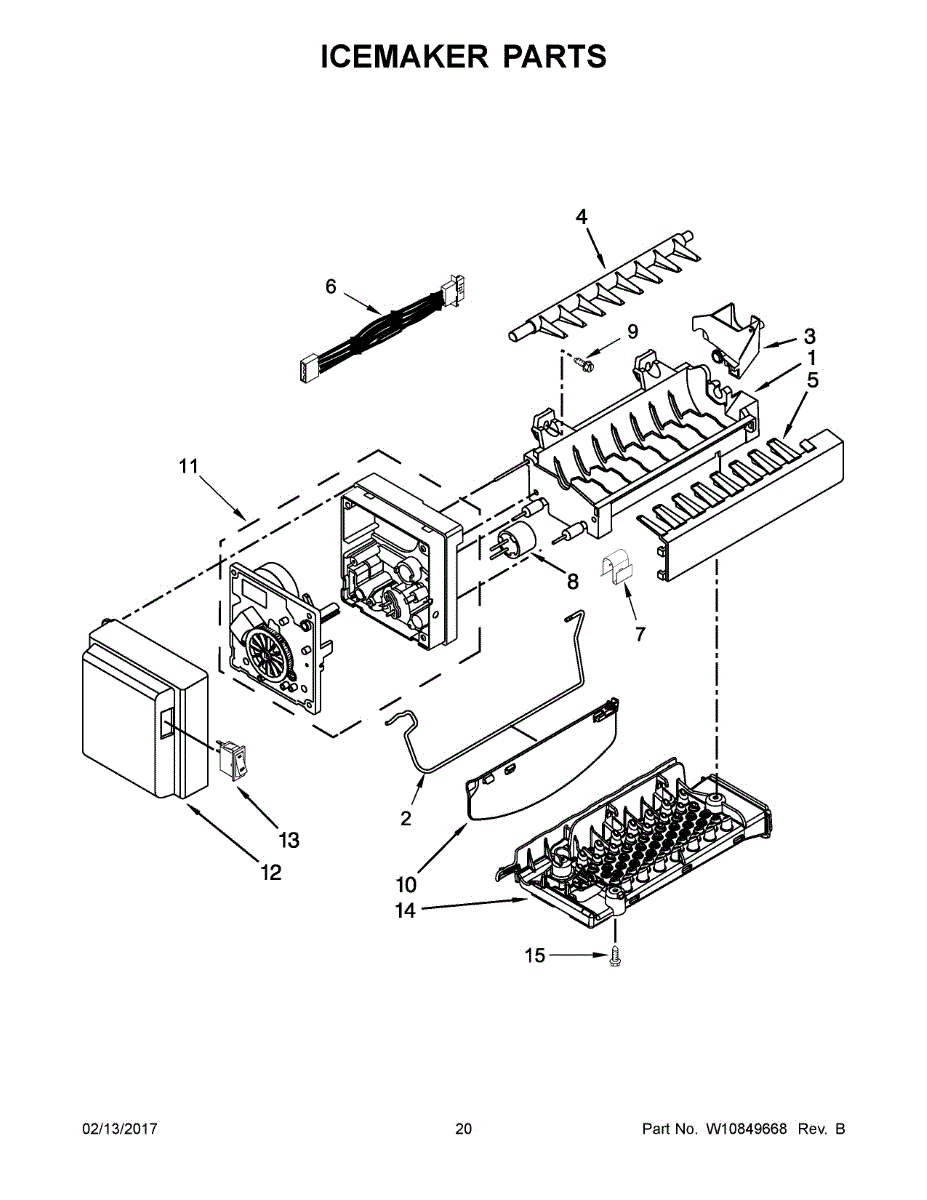

Parts for Maytag MFI2269DRM01: 11 - Icemaker Parts

The Refrigerator Water Filter is an OEM part for Whirlpool refrigerators. It delivers clean, filtered drinking water and ice by effectively reducing contaminants, including chlorine taste and odor, particulates, and various other harmful substances that may be present in the water supply.

Causes of a bad Refrigerator Water Filter can include regular wear and tear over time leading to reduced efficacy in filtering out contaminants, as well as accumulation of contaminants and sediment.

Symptoms of a bad Refrigerator Water Filter include:

• Noticeable decrease in water flow rate.
• Unpleasant taste or odor in the water or ice.
• Discoloration of water or ice.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This ice mold and heater assembly forms the ice cubes and warms the mold just enough during harvest so cubes release cleanly into the bin. Replacing a worn mold/heater restores reliable ice production and prevents jams or incomplete ejection.

• Forms the ice cube cavities and provides gentle heat for smooth release
• Can help resolve slow or no ice production due to cubes sticking in the mold
• Address misshapen cubes, ice jams, or incomplete harvest cycles
• Common when the coating is worn, the heater is open, or cubes consistently hang up

• Disconnect power to the refrigerator before servicing the icemaker
• Remove the icemaker assembly to access and swap the mold/heater unit
• Transfer any required brackets or hardware from the old part if applicable
• After reassembly, restore power and allow several hours for normal ice making

Restore proper ice control with this replacement ice maker shut-off arm. It senses the ice level and toggles production—lower to make ice, raised to stop—helping prevent overflow and resolving issues caused by a missing, bent, or broken arm.

• Controls the ice maker's on/off function through the internal shut-off switch
• Raises to stop ice production when the bin is full; lowers to allow ice making
• Common symptoms of a failed arm: keeps making ice/overfilling, won't make ice if stuck "off," or arm won't stay in position
• Direct replacement for a loose, deformed, or missing bail arm

• Unplug the refrigerator and turn off the water supply before servicing
• Remove the ice bin; removing the ice maker may improve access
• Note spring/anchor hole positions and install the arm in the same orientation without bending it
• After reassembly, the arm moves freely and starts/stops the ice maker when lowered/raised

This Arm Ejector secures and positions the dishwasher spray arm so it spins properly and distributes water for effective cleaning. Replacing a worn or broken ejector restores spray-arm stability and helps prevent uneven washing. What it does:

• Holds the spray arm in the correct position so it can rotate freely
• Prevents spray arm wobble, scraping, or falling off during cycles
• Helps maintain proper water distribution for consistent cleaning
• Can resolve symptoms like noisy spray arm movement or uneven wash performance

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower spray arm and mounting cup as shown in your model's parts diagram to access the ejector
• Inspect surrounding components for wear when replacing the ejector
• Use only the exact replacement part number to ensure proper fit and function

This wire harness connects key electrical components so your appliance powers and communicates correctly. It replaces a damaged or burnt harness to restore reliable electrical connections and reduce intermittent operation or failure. What it does:

• Routes power and signal between components using grouped wires for organized connections
• Restores lost power paths that can cause no-start, random shutoffs, or unresponsive controls
• Replaces frayed, pinched, or heat-damaged wiring that can create shorts or error codes
• Maintains factory routing and connector fit for proper function and safety

• Disconnect power at the breaker or unplug the appliance before starting work
• Match connector shapes and wire colors; avoid forcing connectors into place
• Inspect surrounding insulation and mounting clips; replace if damaged

This small metal mounting clip secures the thermal fuse in place to maintain proper thermal contact and stable wiring. It helps keep the fuse positioned so the appliance can monitor temperature reliably and operate safely. What it does:

• Secures the thermal fuse to the appliance housing or duct to prevent movement
• Keeps the fuse in correct contact with temperature-sensing surfaces
• Helps prevent intermittent heating or thermal-sensor misreads caused by a loose fuse
• Useful when replacing a damaged or missing fuse retainer during fuse service

• One thermal fuse mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels per your model's service instructions to reach the fuse location
• Install clip in the same orientation as the original; use pliers if needed to seat it firmly
• Inspect the thermal fuse and wiring while installing; replace any damaged components per OEM guidance

The Icemaker Cycling Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a crucial role in the icemaker's operation by monitoring the temperature in the icemaker and ensuring it is at the appropriate level for proper ice production. It reads the temperature to determine when the icemaker should cycle on and off.

Causes of a bad icemaker cycling thermostat can include electrical malfunctions, temperature sensor issues, or wear and tear.

Symptoms of a bad icemaker cycling thermostat may include:

• Inconsistent ice production.
• The icemaker not cycling properly.
• The icemaker not dumping the ice into the ice bin.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is the small extension that attaches to the ice maker's shut-off arm. It lengthens the arm so the ice bin can reliably raise/lower the arm to stop ice production when full and resume when space is available.

• Extends the ice maker's shut-off/bail arm for proper bin detection
• Helps prevent ice maker overfilling when the bin is full
• Can resolve issues like continuous ice production, overfilling, or ice not stopping
• Restores original fit and function on compatible ice maker assemblies

• Disconnect power and shut off water supply before servicing
• Access the ice maker, then slide/clip the extension onto the shut-off arm as directed by your model's service info
• Ensure the arm moves freely and properly actuates the ice maker switch
• Restore power and verify the arm stops ice production when raised

The Ice Maker is an OEM replacement part for Whirlpool refrigerators. It is responsible for producing ice cubes to fill the ice bucket in the freezer. The ice maker utilizes water from the refrigerator's internal supply line and electricity to slowly freeze water into individual ice cubes.

Causes of a bad ice maker can include worn components that affect its ability to properly freeze water, malfunctions in the electronic control board that regulate the process, or issues with the supply line.

Symptoms of a bad ice maker include:

• Failure to produce ice cubes
• Incorrect sized or shaped ice
• Excessive noise during operation
• Water in the freezer

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: 8 cube icemaker Includes two wire harnesses and shut off arm.

A single-pole, single-throw rocker switch that restores reliable on/off control for one electrical circuit. Replacing a worn or failed rocker switch helps return consistent control and stops intermittent or unresponsive operation. What it does:

• Opens and closes a single electrical circuit when the rocker is pressed.
• Common replacement for switches that stick, fail to latch, or cause intermittent power.
• Can stop symptoms such as unresponsive controls, lights or functions that won't turn on/off, or sparks from a worn switch.
• Matches OEM form and function for direct replacement in compatible appliances.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Note wire locations or take a photo before removing terminals to ensure correct reconnection.
• Use appropriate tools and avoid pulling on wires; if terminals are damaged, replace wiring or connectors.

This impinger assembly directs heated airflow inside the oven/microwave cavity to help promote even cooking and consistent heating. It replaces a damaged or warped air baffle to restore proper airflow distribution. What it does:

• Routes and evens airflow across the cooking cavity to help reduce cold spots
• Helps maintain consistent internal temperatures during operation
• Prevents hot air from short-circuiting around food for more uniform results
• Replaces cracked, warped, or missing air-baffle components that impair airflow

• Disconnect power to the appliance before starting any repair
• Use appropriate hand tools and take care to avoid sharp sheet-metal edges
• Inspect mounting clips/fasteners and replace if damaged; follow OEM fitment orientation

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

The Ice Maker is an OEM replacement part for Whirlpool refrigerators. It is responsible for producing ice cubes to fill the ice bucket in the freezer. The ice maker utilizes water from the refrigerator's internal supply line and electricity to slowly freeze water into individual ice cubes.

Causes of a bad ice maker can include worn components that affect its ability to properly freeze water, malfunctions in the electronic control board that regulate the process, or issues with the supply line.

Symptoms of a bad ice maker include:

• Failure to produce ice cubes
• Incorrect sized or shaped ice
• Excessive noise during operation
• Water in the freezer

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: 8 cube icemaker Includes two wire harnesses and shut off arm.
