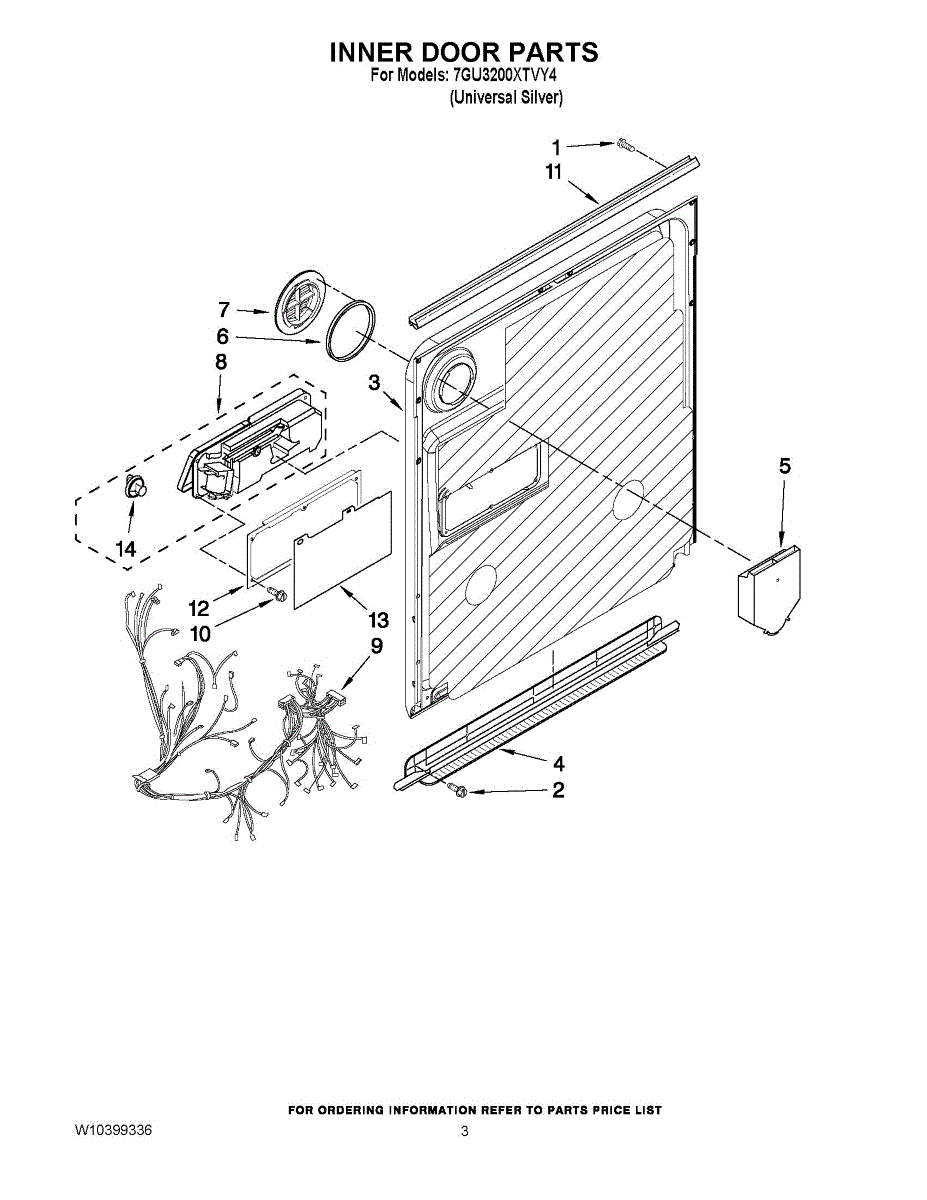

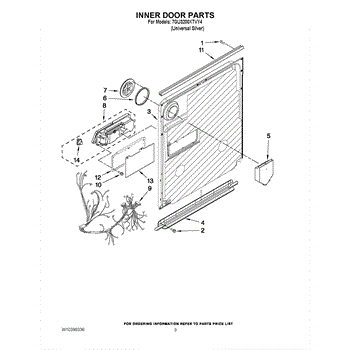

Parts for Whirlpool 7GU3200XTVY4: 03 - Inner Door Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Fixes loose panels, rattling doors, or wobbly components caused by stripped or missing screws. Secures brackets, covers, and mounting hardware. Easy DIY.

This factory-specified screw secures panels, brackets, and internal components in your appliance. Replacing worn or missing hardware restores a tight fit to help reduce vibration, noise, and premature wear.

• Fastens sheet metal, brackets, or plastic parts as designed by the manufacturer
• Helps maintain alignment and reduce vibration/rattling
• Direct replacement for stripped, corroded, or missing screws
• Common signs: loose panels or trim, shifting components, screw won't tighten

• Disconnect power; shut off water or gas supply if applicable
• Use the correct driver to avoid stripping the head
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening
• Replace one-for-one in the original location per service information

Replaces a cracked, broken, or deteriorated dishwasher air inlet that allows fresh air into the tub during drying. Installs on the inner door panel.

This vent is the dryer exhaust outlet that directs hot, moist air out of the dryer cabinet to the external ducting, restoring proper airflow and helping the dryer run efficiently. What it does:

• Channels dryer exhaust from the appliance to the home vent duct
• Helps maintain proper airflow for efficient drying performance
• Reduces moisture buildup inside the dryer cabinet
• Can prevent overheating or long dry cycles when functioning correctly

• Disconnect power (and gas supply, if applicable) before servicing
• Use appropriate fasteners and inspect duct sealing to avoid leaks

Seals the dishwasher air vent to prevent water leaks during operation. Replace if you notice dripping under the vent or wet insulation behind the panel.

Secures the dishwasher vent assembly and directs steam. Replace if cracked, loose, or causing leaks around the door vent. Confirm fit by model number.

Dispenser won't latch or close? This detergent dispenser releases soap at the right time. Moderate DIY repair requiring inner door panel removal.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This wire harness routes power and signals between the oven's controls and internal components to restore proper electrical connections and reliable operation. It replaces damaged, frayed, or corroded wiring that can cause intermittent function. What it does:

• Provides the factory routing and connector interfaces between control modules and internal oven components
• Restores lost or intermittent electrical connections that can cause nonresponsive controls or heating issues
• Replaces damaged insulation, broken wires, or melted connectors to reduce short and fire risk
• Maintains correct connector fit and secure wiring routing for reliable oven performance

• One complete wire harness as shown

• Disconnect all power to the appliance before beginning work to avoid electrical shock
• Handle connectors by the plug bodies; do not pull on wires when removing or seating connectors
• Route and secure the harness along factory clips and channels; avoid contact with heating elements or sharp edges
• Inspect connector terminals and mating components; replace or repair any additional damaged parts before reassembly

The Hex-Head Screw is an OEM replacement part for use in Whirlpool dishwashers. This metal screw measures approximately ¾ inch long. Its primary purpose is to secure the dispenser bracket in place, ensuring stable operation. This hex-head screw is designed for use with compatible hexagonal tools. This makes installation and removal straightforward. This part is sold individually and is guaranteed to fit your dishwasher door panel. This screw is compatible with select Whirlpool brand models including Amana, Crosley, Estate, Inglis, Jenn Air, Kenmore, Kitchen Aid, and Maytag.

If your detergent dispenser is loose or falling off, this bracket secures it to the door panel. Moderate DIY repair requiring door disassembly.

This cover protects the detergent dispenser mechanism and provides a finished appearance to your dishwasher's interior. It shields the dispenser from water spray during wash cycles while allowing proper detergent release. Replace this cover if it's cracked, warped, or prevents the dispenser from opening properly.

Rinse aid leaking onto dishes or floor? This dispenser cap seals the reservoir and prevents spills during wash cycles. Simple snap-in replacement.
