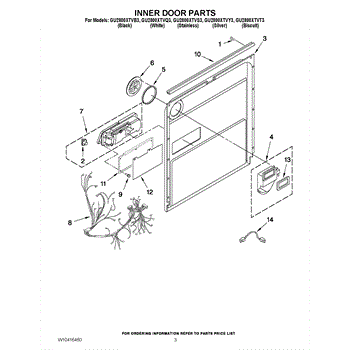

Parts for Whirlpool GU2800XTVS3: 03 - Inner Door Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This replacement screw secures appliance panels and components so they stay tight and aligned. Replace a missing, rusty, or stripped fastener to restore a solid hold and reduce vibration or rattling during operation. What it does:

• Fastens and secures panels, brackets, trim, or internal components as specified for your model
• Replaces missing, corroded, or stripped hardware to restore a proper fit
• Helps prevent vibration, rattling, and misalignment caused by loose fasteners
• Addresses issues like a loose panel/handle or a screw head that's rounded off

• 1 screw

• Disconnect power; if applicable, shut off gas and water before servicing
• Use the correct driver size; start by hand to avoid cross-threading
• Tighten snugly—do not overtighten into plastic or thin sheet metal
• Keep track of original screw locations and lengths during reassembly

The Dispenser Cap is an OEM part for Whirlpool dishwashers. It covers the detergent dispenser, ensuring that the detergent remains securely in place until it is dispensed during the wash cycle. This cap plays a vital role in the cleaning process by preventing detergent from spilling or dispersing too early, thereby optimizing the efficiency of the dishwasher.

Over time, the dispenser cap can become worn or damaged due to regular use, exposure to detergents, or accidental impacts. If the cap is compromised, it can lead to detergent leakage and ineffective cleaning.

Symptoms of a bad dispenser cap include:

• Detergent not dispensing properly
• Residual detergent left in the dispenser after the cycle
• Leaks or drips around the dispenser area
• Inefficient cleaning of dishes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This inner door is the replacement interior panel that restores the finished inside surface and mounting base of the appliance door. It helps protect internal components and provides the proper mounting surface for the door assembly. What it does:

• Replaces a cracked, dented, or damaged inner door panel to restore appearance and function
• Provides the mounting surface for door hardware and helps keep internal components protected
• Prevents sharp edges or exposed parts that can catch laundry or cookware
• Helps the door close and seal properly when installed with the correct outer components

• Follow appliance-specific service manual for disassembly and reassembly
• Disconnect power and any fuel source before beginning service to avoid shock or injury
• Keep removed fasteners and components organized to ensure correct reinstallation
• Inspect surrounding door components (hinges, latch, seals) and replace if damaged for best performance

This active vent assembly controls airflow from the dishwasher during and after a cycle, releasing humid air at the right time for better drying. Replacing a faulty vent can reduce lingering moisture and steam escaping from the door.

• Regulates and directs moist air out of the tub during the dry portion of the cycle
• Closes during wash to help contain water and heat inside the dishwasher
• Helps reduce interior condensation and improve overall drying results
• Common failure symptoms: dishes not drying, moisture remaining after the cycle, steam escaping at the top of the door, or unusual noise from the vent area

• Disconnect power at the breaker before servicing; allow the unit to cool
• Access is typically through the inner door panel; retain and reuse mounting hardware as required
• Inspect and correctly seat the vent seal to prevent steam leaks
• After installation, run a test cycle to check for proper vent operation and sealing

The Air Vent Gasket is an OEM part for Whirlpool dishwashers. It is designed to seal the air vent, preventing water from leaking out during the dishwasher's operation. This gasket plays a critical role in maintaining the efficiency and effectiveness of your dishwasher by ensuring a watertight seal around the air vent, which is essential for the proper function of the venting system.

Causes of a bad Air Vent Gasket can include wear and tear over time, leading to cracks or deterioration, improper installation, which may result in a poor seal, or damage from harsh cleaning chemicals.

Symptoms of a bad Air Vent Gasket include:

• Water leaking from around the dishwasher's door.
• Dishes not drying properly due to compromised venting.
• Visible signs of wear or damage on the gasket itself.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Detergent Dispenser is an OEM part for Whirlpool dishwashers. This component is crucial for the proper release of detergent into the dishwasher during a wash cycle. It includes mechanisms for storing and then dispensing both detergent and rinse aid at the correct times, ensuring optimal cleaning performance.

Symptoms of a failing detergent dispenser include:

• Detergent not being released into the cycle
• Residual detergent left in the dispenser after cycles
• Rinse aid levels decreasing at an inconsistent rate

Causes of detergent dispenser issues typically involve mechanical failures such as stuck or broken release mechanisms, clogging from detergent residue, or electronic malfunctions that affect timing and operation.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Hex-Head Screw is an OEM replacement part for use in Whirlpool dishwashers. This metal screw measures approximately ¾ inch long. Its primary purpose is to secure the dispenser bracket in place, ensuring stable operation. This hex-head screw is designed for use with compatible hexagonal tools. This makes installation and removal straightforward. This part is sold individually and is guaranteed to fit your dishwasher door panel. This screw is compatible with select Whirlpool brand models including Amana, Crosley, Estate, Inglis, Jenn Air, Kenmore, Kitchen Aid, and Maytag.

Located between the console and door

The Detergent Dispenser Bracket is an OEM replacement part for Whirlpool dishwashers. Located inside the dishwasher tub along the edge, this bracket securely holds the entire detergent dispenser assembly in place.

Causes of a bad bracket may be normal wear and tear over time, damage from overloading dishes, or accidental impact affecting the integrity of the plastic.

Symptoms of a bad detergent dispenser bracket include:

• Loose or unstable detergent dispenser
• Detergent not dispensing or leaking
• Clanking noises coming from inside the tub
• Visible cracks, breaks, or deformations in the bracket

This OEM Whirlpool part is also compatible with KitchenAid, Jenn-Air, Amana, and some Kenmore and Maytag models.

This dispenser cover (shield) replaces the plastic trim that surrounds a refrigerator's dispenser opening, restoring a clean finished look and helping direct water or ice into your cup. Fits where the dispenser meets the cabinet face. What it does:

• Covers and protects the dispenser opening, preventing chips and cosmetic damage
• Helps guide water and ice into cups for more accurate dispensing
• Hides internal dispenser components for a finished appearance
• Can reduce direct contact with moving dispenser parts

• One dispenser cover (shield)

• Remove power to the appliance before servicing to avoid electrical or injury risk
• Typically installs by snapping into place or fastening with a few screws; keep hardware if reusing
• Inspect surrounding trim for damage and replace any broken clips or screws for a secure fit

This front seal sits at the leading edge of the dishwasher door opening to keep wash water and steam contained. Replacing a worn seal helps stop front-edge drips and protects adjacent cabinetry and flooring.

• Creates a watertight barrier along the front tub-to-door interface
• Helps prevent leaks at the bottom/front of the door during cycles
• Replace if the seal is cracked, flattened, torn, or missing
• Common symptoms: water under the kick panel, damp streaks at the front lip, visible wear

• Disconnect power and turn off the water supply before servicing
• Open the door, remove the old seal, and clean the front lip/channel thoroughly
• Center and press the new seal fully into place without stretching; ensure even compression
• Close the door and run a short test cycle to check for leaks

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
