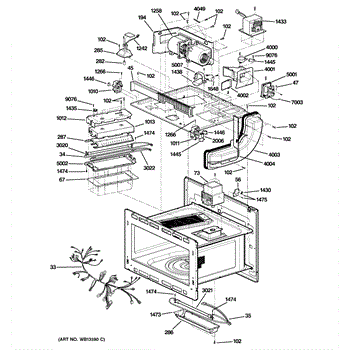

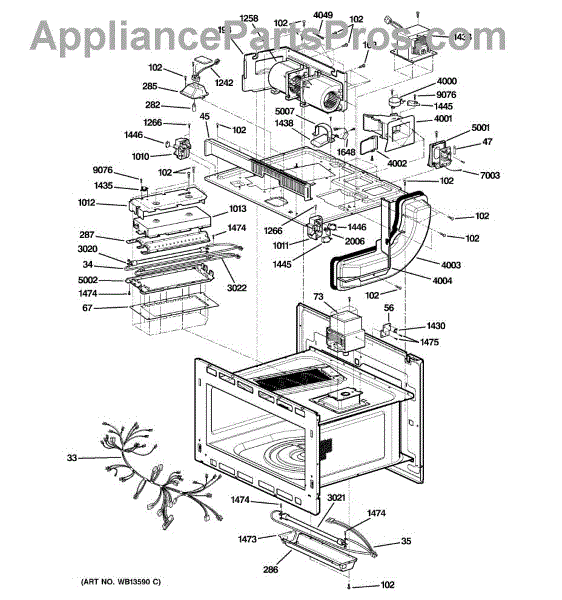

Parts for Ge SCB1000KWW02: 05 - Interior Parts (2) Parts

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement mounting bracket that secures internal panels to the frame. Install this bracket if your original is cracked, bent, or missing.

Microwave not heating? The magnetron generates the radiation that cooks food. Moderate DIY repair—discharge capacitor first, then swap 3 screws.

Truss head tapping screw for microwave assembly. Secures internal components and panels. Replace if screw is stripped, missing, or lost during repair.

Replace your microwave's halogen light bulb when interior lighting dims or fails. Restores visibility for monitoring cooking. Verify fit with your model.

Replace a cracked or discolored refrigerator interior light cover to protect the bulb and restore even, glare-free illumination inside the compartment. This molded lens snaps into the light housing for a clean finished look. What it does:

• Protects the interior light bulb from impact, moisture, and debris
• Diffuses light for more even illumination throughout the compartment
• Prevents direct exposure to the bulb, reducing bright hotspots and glare
• Stops rattling or vibration noises caused by a loose or damaged lens

• High-level replacement — usually snaps or screws into the existing light housing; no wiring required
• Power off the appliance or switch off the interior light circuit before servicing
• Inspect the housing and bulb for damage while replacing the lens; replace bulb if needed
• Use only the matching replacement lens to ensure proper fit and safe operation

The Latch/Switch Holder (Left Side) is an OEM component specifically designed for GE microwaves. It is responsible for securely mounting the latch and door switch components on the left side of the microwave door.

Symptoms of a bad latch/switch holder include:

• Loose, unstable, or improperly functioning door latch
• Inoperative or faulty door switch preventing the microwave from operating
• Physical damage or cracks in the holder plastic

Causes can include normal wear over time exposing internal wires, moisture damage compromising electronics or impact damage weakening the holder structure.

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models.

The Latch/Switch Holder (Right Side) is an OEM component specifically designed for GE microwaves. It is responsible for securely mounting the latch and door switch components on the right side of the microwave door.

Symptoms of a bad latch/switch holder include:

• Loose, unstable, or improperly functioning door latch
• Inoperative or faulty door switch preventing the microwave from operating
• Physical damage or cracks in the holder plastic

Causes can include normal wear over time exposing internal wires, moisture damage compromising electronics or impact damage weakening the holder structure.

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models.

Holder assembly clip for microwaves. Secures components in place. Replace if broken, loose, or causing rattling. Verify fit with your model number.

Uneven heating or poor ventilation? This circulation motor powers the fan to move air and maintain even temperatures inside your microwave or wall oven.

The Thermostat is an OEM part for GE microwaves. This part regulates the temperature within the microwave, ensuring it operates within safe and efficient temperature ranges. It helps prevent overheating by monitoring and controlling the internal temperature, protecting both the appliance and the user.

Causes of a bad thermostat can include wear and tear over time, electrical malfunctions, or damage from power surges.

Symptoms of a bad thermostat include:

• Microwave not heating properly
• Overheating or shutting off unexpectedly
• Error codes related to temperature issues
• Inconsistent cooking times

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Microwave not heating or making loud buzzing sounds? The high-voltage transformer powers the magnetron. Requires caution when testing or replacing.

Microwave won't turn on but turntable rotates? This thermal fuse shuts off power when overheating occurs. Moderate DIY repair taking 2-4 hours.

Microwave not heating? High voltage capacitor stores energy to power the magnetron. DIY repair typically takes 30-60 minutes with proper safety care.

Fix a microwave that won't start or stops mid-cycle with this door interlock monitor switch. Ensures safe operation when door closes. DIY repair.

The Door Interlock Switch is an OEM part for GE microwaves. It ensures the safety of the microwave by preventing the appliance from operating while the door is open. This switch is part of a microwave's safety mechanism, which includes multiple interlock systems designed to stop the generation of microwaves immediately once the door is opened, thereby protecting users from exposure to microwave radiation.

Signs that it's time to replace your door interlock switch include the microwave not starting or stopping unexpectedly, the microwave continuing to operate with the door open, or a failure to heat food even though the appliance seems to be running.

Symptoms of a bad Door Interlock Switch include:

• Microwave does not start
• Microwave stops unexpectedly
• The microwave operates with the door open
• Microwave turns on but does not heat food

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Secures the lead wire assembly inside your microwave. Replace if screw is stripped, missing, or no longer holds wiring securely in place.

Microwave not heating? A failed diode prevents the magnetron from generating heat. This high-voltage component converts AC to DC power. DIY repair.

The Microwave Lever is an OEM part for GE built-in and over-the-range microwaves. This metal lever links to the door handle and activates the door switch when the handle is pulled open.

Causes of a bad lever can include wear from daily use over many years. Repeated opening and closing of the microwave door puts stress on the lever and surrounding components.

Symptoms of a bad lever include:

• Power not disabling when door opened
• Loose or improper connection to door handle
• Door not shutting or latching completely
• Delayed microwave engagement or shut-off

This GE part is also compatible with Hotpoint, RCA, and select Kenmore models.

This Miraclon heater is a direct-replacement heating element assembly that restores proper heat generation in compatible appliances. It provides reliable, OEM-matching heating performance to help your appliance reach and maintain operating temperatures. What it does

• Replaces the appliance's failed internal heater assembly to restore heat production.
• Heats quickly and evenly to support cooking, drying, or defrosting cycles (depending on appliance).
• Common symptom: no heat or weak heat during normal operation.
• Common symptom: appliance runs but items fail to warm or dry as expected.

• Disconnect power and gas before starting any repair.
• Handle the heater carefully; avoid bending or damaging terminals and mounting tabs.
• Follow the appliance service manual for access, mounting, and wiring instructions.

A halogen heater heating element that restores radiant oven heat for even cooking and broiling. Use this direct-replacement heater when the oven's halogen element is burnt out or not producing heat. What it does:

• Provides targeted radiant heat used for baking and broiling in compatible ovens
• Replaces a failed or burned-out halogen heating element to restore normal oven temperatures
• Commonly used when oven is unevenly cooking, won't reach set temperature, or broil function is weak
• Operates as the oven's primary radiant heat source where applicable

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the glass element carefully; avoid touching the glass with bare hands to prevent oils and premature failure
• Verify the part number before installation

Fix a microwave clock or timer that won't advance with this AC synchronous motor. Restores gear-driven timing functions. Straightforward repair.

This original-style supporter secures and positions internal components to keep them stable and aligned for reliable operation. It helps restore proper fit and reduces noise or movement caused by a damaged or missing support. What it does:

• Provides structural support and holds the associated component in the correct position
• Prevents misalignment that can cause rubbing, vibration, or intermittent operation
• Restores proper spacing to help other parts seat and function correctly
• Useful when cracking, breakage or wear allows the mounted part to shift or rattle

• Disconnect power before beginning any service to avoid shock risk
• Inspect surrounding parts and mounting hardware; replace any damaged clips or screws
• Basic hand tools (screwdriver, nut driver) are typically required; follow the product service diagram

Fix a loose or rattling capacitor with this microwave capacitor bracket. Secures the high-voltage capacitor in place. Simple repair for most DIYers.
