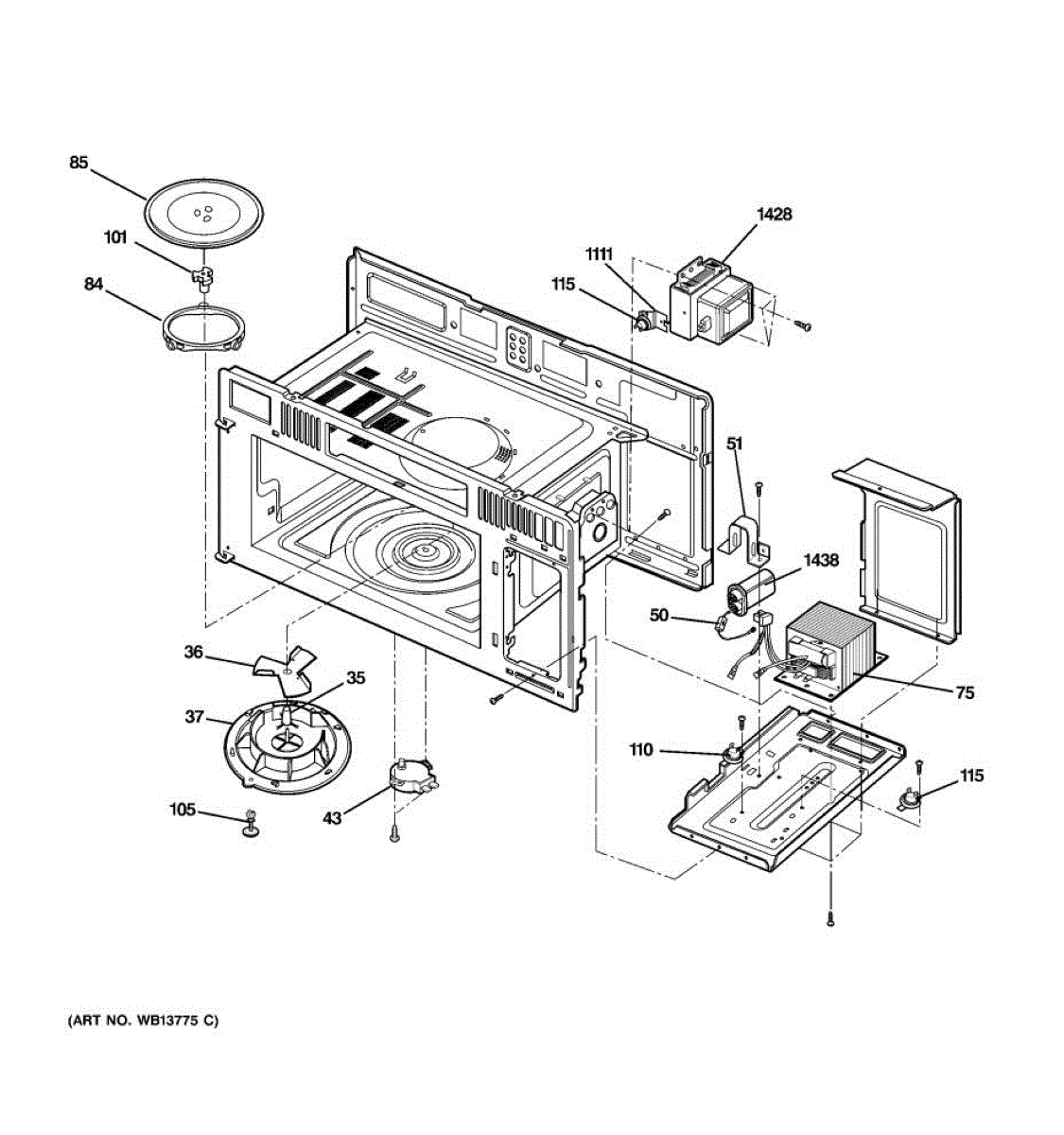

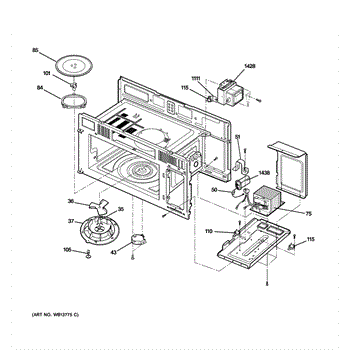

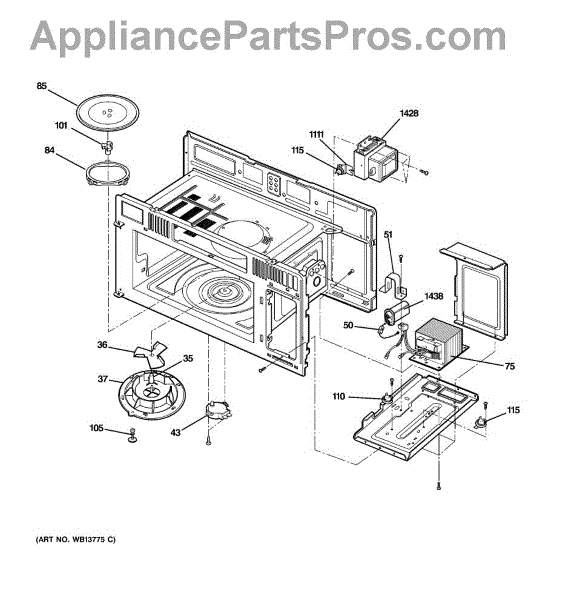

Parts for Ge JVM1653WH06: 05 - Interior Parts (1) Parts

The Diode Cable Assembly is an OEM part for GE microwaves. This part converts AC power to DC power, which is crucial for the microwave's operation.

Causes of a bad diode cable assembly can include electrical surges, overheating, or general wear and tear.

Symptoms of a bad diode cable assembly include:

• Microwave not heating food
• Unusual noises during operation
• Burning smell or visible damage to the cable
• Microwave shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rotating Ring Assembly is an OEM replacement part for GE microwaves. It houses the turntable motor and platter that rotate food during the cooking process. Proper rotation ensures even heating and cooking of items. This ring assembly measures approximately 9 inches.

Causes of a bad rotating ring assembly can include a failing motor that prevents rotation or a worn turntable mechanism. Without functioning rotation, microwave cooking performance is compromised.

Symptoms of a bad rotating ring assembly include:

• The turntable not spinning during cooking cycles
• Loud grinding or buzzing noises from the assembly area
• The motor overheating or burning smell

This GE replacement part is also compatible with some Kenmore models.

Color: clear. Measures about 14 inches in diameter.

This rivet assembly is a direct-replacement fastening piece used to secure appliance panels and components, restoring a stable, rattle-free fit and preventing movement caused by worn or broken rivets. What it does:

• Secures panels, brackets, or component mounts to restore proper alignment and support
• Stops rattling, vibration, or loose hardware caused by damaged or missing rivets
• Provides a durable mechanical fastener where original rivets have sheared or loosened
• Helps maintain safe operation by keeping parts properly retained

• Disconnect power (and gas/water if applicable) before attempting any repairs
• Removal may require drilling out the old rivet; installation typically needs a rivet gun or equivalent tool
• Keep hardware orientation the same as the original; replace any damaged surrounding parts

The Thermostat is an OEM part for GE ovens. This critical component functions as a temperature sensor and controller within the oven, ensuring that the oven heats to the set temperature and maintains it throughout the cooking process. The thermostat prevents the oven from overheating by cycling the heat on and off as needed.

Symptoms of a failing thermostat include:

• Oven not reaching the desired temperature
• Overheating beyond the set temperature
• Uneven cooking or baking results
• Oven temperature fluctuating more than usual

Causes of thermostat failure generally include age-related wear and tear, calibration issues, or exposure to extreme temperatures that can damage its internal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement mounting bracket that secures internal panels or components to the appliance frame, restoring alignment and stability. Use this bracket to replace cracked, bent, or missing supports that cause vibration or loose parts. What it does:

• Supports and secures panels, trim, or internal assemblies to keep components properly aligned.
• Reduces rattling, sagging, or movement caused by a broken or missing bracket.
• Restores stable mounting after impact, wear, or stripped mounting points.
• Helps maintain proper fit and operation of adjacent parts by providing a solid attachment point.

• Disconnect power (and water/gas if applicable) before starting any repair.
• Basic hand tools required; remove adjacent panels or trim for access as needed.
• Retain original fasteners when possible; replace damaged clips or screws.

The Magnetron is an OEM component specifically designed for GE microwaves. The magnetron is responsible for generating microwave radiation that cooks food by utilizing electromagnetic energy. It works by accelerating electrons within a vacuum tube using a magnet to generate microwave emissions.

Causes of a bad magnetron can include overuse, excessive cooking times, damage from arcing due to sparks, or general wear and tear over time.

Symptoms of a bad magnetron include:

• Inefficient or inconsistent cooking and heating
• Longer cook times required
• Food not cooking thoroughly or remaining cold in spots
• The microwave making buzzing or humming noises during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Capacitor High Voltage is an OEM part for GE microwaves. It stores and releases high voltage electrical energy to power the magnetron, which generates the microwaves for cooking.

Over time, capacitors can deteriorate due to prolonged exposure to high voltage, excessive heat, or electrical surges. A malfunctioning capacitor can lead to inefficient cooking or complete failure of the microwave.

Symptoms of a bad capacitor include:

• The microwave not heating food properly
• A loud humming or buzzing noise during operation
• The microwave shutting down unexpectedly
• Visible damage or leakage from the capacitor

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
