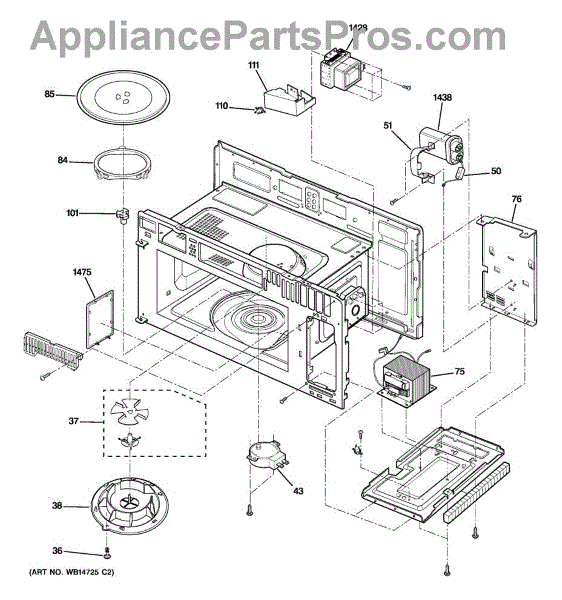

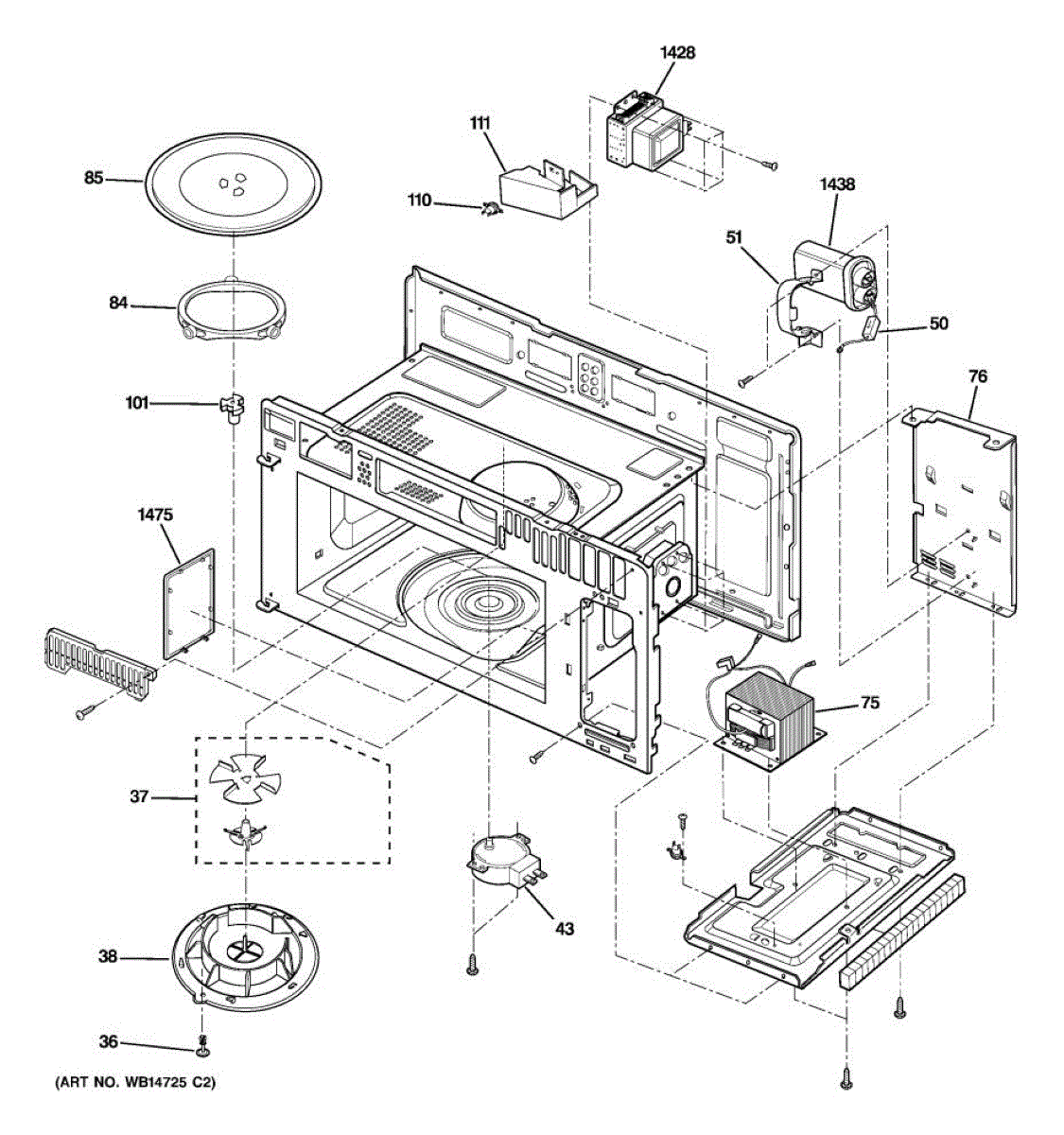

Parts for Ge JVM2052DN2BB: 05 - Interior Parts (1) Parts

This rivet assembly is a direct-replacement fastening piece used to secure appliance panels and components, restoring a stable, rattle-free fit and preventing movement caused by worn or broken rivets. What it does:

• Secures panels, brackets, or component mounts to restore proper alignment and support
• Stops rattling, vibration, or loose hardware caused by damaged or missing rivets
• Provides a durable mechanical fastener where original rivets have sheared or loosened
• Helps maintain safe operation by keeping parts properly retained

• Disconnect power (and gas/water if applicable) before attempting any repairs
• Removal may require drilling out the old rivet; installation typically needs a rivet gun or equivalent tool
• Keep hardware orientation the same as the original; replace any damaged surrounding parts

This AC synchronous motor powers the microwave's rotating mechanism—such as the mode stirrer or, on some models, the turntable—to circulate energy for more even cooking. Replacing a noisy, seized, or non-turning motor restores smooth rotation and consistent heating.

• Provides steady, low-speed rotation to drive the internal stirrer or turntable
• Promotes more uniform heating by distributing microwave energy
• Common symptoms of a failing motor: uneven heating, rattling/grinding from the cabinet, or the rotating component not turning
• Direct replacement for the original synchronous drive motor

• Disconnect power before servicing; microwaves contain high-voltage components that can retain a charge
• Access and location vary by model; remove the outer cover/grille to reach the motor
• Note shaft orientation and transfer any coupler; reuse existing mounting hardware
• Do not operate the unit with covers removed; after reassembly, test with a microwave-safe cup of water

The Diode Cable Assembly is an OEM part for GE microwaves. This part converts AC power to DC power, which is crucial for the microwave's operation.

Causes of a bad diode cable assembly can include electrical surges, overheating, or general wear and tear.

Symptoms of a bad diode cable assembly include:

• Microwave not heating food
• Unusual noises during operation
• Burning smell or visible damage to the cable
• Microwave shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement turntable assembly that restores proper rotation and even heating in countertop and over-the-range microwaves. Replaces a worn or broken tray and support so dishes rotate smoothly during cooking. What it does:

• Provides the rotating glass tray that ensures food turns for more even heating
• Includes the support/roller guide that centers and drives the tray on the motor shaft
• Helps stop wobbling, skipping, or noisy rotation caused by a cracked tray or damaged rollers
• Prevents food from slipping off the tray by maintaining stable, consistent rotation

• Disconnect power before servicing to avoid electrical shock.
• Handle the glass tray carefully to avoid chips or cuts.
• Set the roller guide in the oven cavity, then center the glass tray over it and onto the drive hub.
• Test rotation with a short cook cycle after reinstalling to ensure proper operation.

Female D shaft

The Thermostat is an OEM part for GE ovens. This critical component functions as a temperature sensor and controller within the oven, ensuring that the oven heats to the set temperature and maintains it throughout the cooking process. The thermostat prevents the oven from overheating by cycling the heat on and off as needed.

Symptoms of a failing thermostat include:

• Oven not reaching the desired temperature
• Overheating beyond the set temperature
• Uneven cooking or baking results
• Oven temperature fluctuating more than usual

Causes of thermostat failure generally include age-related wear and tear, calibration issues, or exposure to extreme temperatures that can damage its internal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-voltage capacitor stores and releases the electrical energy needed by a microwave's high-voltage system so the oven can produce heat. It replaces a failed capacitor to restore reliable high-voltage performance. What it does:

• Stores high-voltage charge used by the magnetron to generate microwave energy
• Helps the oven reach and maintain proper cooking power
• Common symptom: microwave runs but does not heat
• Linked to blown high-voltage fuse or arcing inside the cavity

• One high-voltage capacitor

• Disconnect power and unplug the appliance before servicing
• Discharge the capacitor fully before touching terminals; it can hold a dangerous charge even when unplugged
• Use insulated tools and avoid touching leads
• Inspect associated high-voltage components (diode, transformer, fuse) and wiring when replacing the capacitor

This molded resin cover is a protective plastic shield used inside the microwave. It helps protect internal components and ducting from splatter and debris and restores a secure, finished fit when the original cover is cracked or missing. What it does:

• Shields internal components from grease, steam, and food splatter inside the unit
• Helps maintain proper airflow paths and a snug, rattle-free fit
• Common replacement when the original cover is cracked, warped, loose, or missing
• Visual cue: exposed internal parts or a cover that won't stay secured

• One resin (plastic) cover

• Disconnect power (unplug or switch off the breaker) and allow the unit to cool
• Access the cover location; remove retaining screws/clips and keep hardware for reuse
• Align the new cover and secure it without overtightening
• Ensure the cover is fully seated and not contacting nearby moving parts before restoring power
