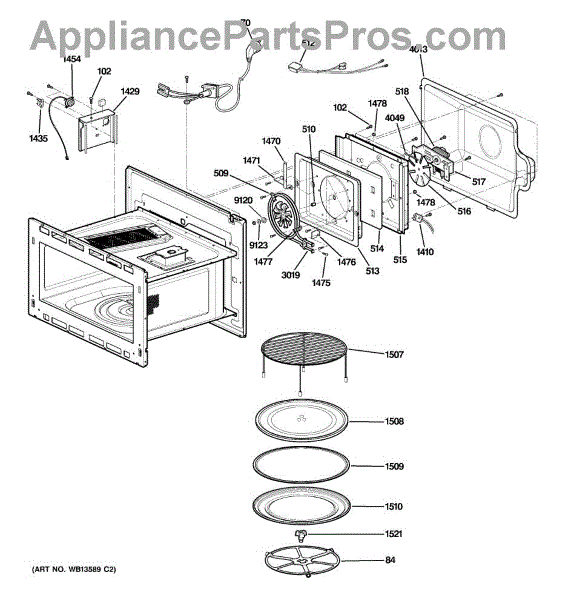

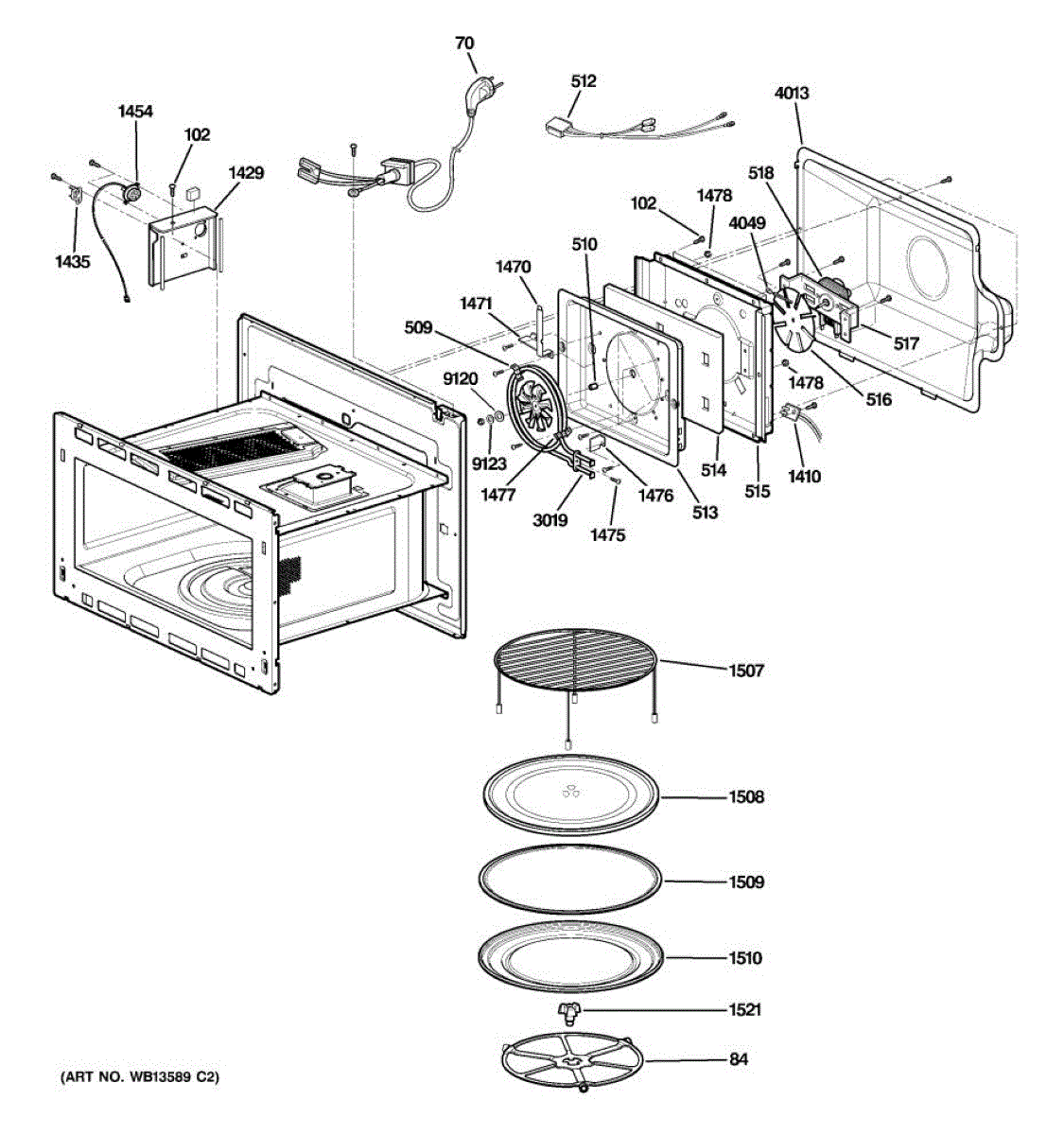

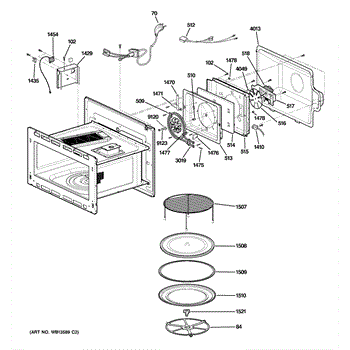

Parts for Ge SCB1000KCC01: 04 - Interior Parts (1) Parts

The Rotating Ring is an OEM part for GE microwaves. This component sits beneath the microwave's glass turntable and facilitates its smooth rotation, ensuring even heating and cooking of food by distributing microwave energy uniformly.

Causes of a bad rotating ring can include regular wear and tear from continuous use, damage from spills or heavy items placed on the turntable, and warping from exposure to high temperatures.

Symptoms of a bad rotating ring include:

• The turntable not rotating or moving unevenly
• Unusual noises during microwave operation
• Uneven cooking or heating of food
• Visible damage, cracks, or warping on the ring

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This shaft ring is a small retaining clip that secures a rotating shaft in place, helping keep connected components aligned and moving smoothly. It's a simple replacement that restores proper shaft retention and reduces wobble. What it does:

• Clips into a shaft groove to hold components on the shaft
• Prevents axial movement and keeps parts from sliding out of position
• Helps reduce noisy or unstable operation caused by loose shaft components
• Commonly used where a compact, reliable retention method is required

• One shaft ring

• Inspect the shaft and groove for wear or debris before installing; clean as needed
• Use appropriate snap-ring pliers or a safe, non-marring tool to install/remove the ring
• Ensure the ring fully seats in the shaft groove and the retained part is secure before reassembly
• Disconnect power and follow appliance safety procedures before servicing

This motor bracket secures the appliance motor to the housing, keeping the motor stable and aligned for reliable operation. It's a direct-fit replacement designed to restore proper motor positioning and reduce vibration or noise. What it does:

• Holds and supports the motor assembly in the correct position
• Maintains alignment between the motor and driven components (fans, pulleys, etc.)
• Reduces motor vibration and prevents contact with adjacent parts
• Faulty or cracked brackets can cause rattling noises, excessive vibration, or motor misalignment

• Install with power disconnected; follow manufacturer instructions for access and disassembly
• Use the factory mounting hardware and torque specs where specified
• Inspect surrounding mounts and fasteners; replace any worn or damaged hardware

This circulation motor drives the refrigerator/ freezer evaporator fan to keep cold air moving through the appliance, helping maintain even temperatures and efficient cooling. Replaces a failed or noisy evaporator fan motor. What it does

• Spins the evaporator fan blade to circulate cold air through the freezer and refrigerator compartments.
• Restores proper airflow when a unit is warm or cooling unevenly.
• Stops or reduces excessive noise when a worn or failing motor is replaced.
• Helps prevent frost buildup caused by poor air circulation.

• Disconnect power to the appliance before beginning any repair.
• Handle the fan blade and motor shaft carefully to avoid bending or damaging components.
• Verify mounting orientation and electrical connector fit before final assembly.

This NTC thermistor is a temperature sensor that feeds real-time temperature data to the control. Replacing a failing sensor helps restore accurate temperature regulation, reduce nuisance shutdowns, and improve consistent cycle timing and performance.

• Monitors temperature by changing resistance as heat rises or falls
• Sends a signal to the electronic control to manage heating and fan operation
• A failed sensor can cause inaccurate temperatures, short/long cycles, or sensor-related error messages
• May prevent certain cycles from starting

• Disconnect power and allow the appliance to cool completely before servicing
• Note connector orientation and wire routing; take a photo for reference
• Install the sensor in the original location/clip and route wires away from hot or moving parts
• Restore power and run a test cycle to proper temperature response

This is the oven thermostat that senses and controls the oven cavity temperature so your range heats to and maintains the set temperature for baking and roasting. Replacing a faulty thermostat can restore consistent, accurate cooking performance.

• Regulates oven temperature by cycling the heat source on and off
• Helps correct issues like oven not reaching set temperature or running too hot
• Can address erratic temperature swings or uneven baking results
• Mechanical control with sensing bulb/capillary that monitors oven heat

• Disconnect power and allow the oven to cool completely before service
• Handle the capillary/sensing bulb carefully—do not kink, bend sharply, or cut it
• Route and secure the capillary in the original clips/position to avoid hot spots
• Verify knob alignment and perform a test preheat; adjust calibration only per service guidance

A temperature sensor assembly that monitors internal temperatures and sends readings to the appliance control so the unit can maintain proper heating or cooling. Replacing a failed sensor restores accurate temperature regulation and consistent performance. What it does

• Detects and reports temperature to the electronic control or thermostat
• Helps the appliance maintain set temperatures for consistent operation
• A faulty sensor can cause inaccurate temperature readings or uneven heating/cooling
• May trigger temperature-related error codes or put the unit into a diagnostic/fail-safe mode

• Disconnect power to the appliance before attempting any repair
• Handle the sensor and its wiring gently; avoid bending or damaging the sensing tip or connectors
• Reconnect wiring securely and confirm correct routing to prevent interference with moving parts

This heater holder is the mounting bracket that secures the oven heating element in place so the element stays aligned for reliable heating and safe operation. It helps prevent movement that can cause uneven cooking or damage. What it does:

• Holds and stabilizes the oven/heater element in the cavity so it stays properly positioned
• Keeps the element from contacting other components, reducing the risk of shorts or damage
• Helps maintain even heat distribution by preventing element sagging or misalignment
• Fits where the element mounts and supports normal operation of the heating circuit

• One heater holder/mounting bracket

• Turn power to the appliance off at the breaker before servicing to avoid shock
• Inspect the element and surrounding insulation for damage when replacing the holder
• Typically secures with screws or clips—retain hardware and note orientation for reassembly

This removable wire rack fits microwaves designed for rack use, creating a second cooking level. Replacing a missing, bent, or chipped rack restores safe operation and the intended capacity for multi-item reheating and cooking.

• Provides a stable second-level surface for cooking or reheating multiple items in compatible models
• Positions dishes at the proper height for rack-enabled functions
• Replace if missing, bent, rusted, or if damaged coating causes arcing/sparking
• Use only in microwaves designed for a rack; follow your Use & Care manual

• Disconnect power before servicing; allow the cavity to cool
• Insert the rack into the designated side-wall supports; ensure it is level and not touching cavity walls or the turntable
• Remove the rack for cycles that require single-level cooking if instructed by your manual
• Stop use if arcing occurs; inspect placement and rack condition before resuming

The Glass Tray is an OEM part for GE microwaves. This tray sits on the turntable support and rotates to ensure even cooking and heating of food.

Common causes of a bad glass tray include accidental drops, cracks from overheating, or regular wear and tear over time.

Symptoms of a bad glass tray include:

• Visible cracks or chips in the tray
• The tray not rotating properly
• Uneven cooking or heating of food
• The tray wobbling or not sitting securely on the turntable support

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This metal tray sits inside the oven cavity to support food or cookware during cooking cycles. Replacing a warped, damaged, or missing tray restores a stable surface and helps maintain consistent, reliable cooking performance.

• Provides a flat, durable platform for placing food or cookware
• Seats on the designed supports/locator features inside the cavity for proper fit
• Replace if bent, warped, rusted, or otherwise damaged
• Common symptoms: missing tray, items wobble or sit unevenly, poor fit, visible damage

• Disconnect power and allow the appliance to cool completely before replacing internal accessories
• Remove the old tray and clean the support area; align and seat the new tray per your owner's manual
• Use only in the modes and configurations specified for your model
• Do not force the tray; ensure it is fully and evenly seated before use

Shaft assembly that transfers rotational force from the motor to the appliance's rotating component, restoring smooth, aligned rotation and helping reduce noise and vibration caused by worn or damaged shaft parts. What it does:

• Transfers motor rotation to the appliance's rotating component (drum, basket or agitator depending on model)
• Restores proper alignment to reduce wobble and vibration during operation
• Helps stop grinding, scraping or loud knocking that can occur when a shaft is worn or damaged
• Works with existing bearings/bushings to maintain smooth rotation

• Always disconnect power at the breaker before removing panels or working on the appliance; if the appliance uses gas, shut off the gas supply as required.
• Follow the appliance service manual for disassembly order and correct shaft orientation during installation.
• Inspect related bearings, bushings, seals and fasteners; replace any worn components to prevent premature failure.

This heater sheath is the metal protective tube that surrounds and secures a dryer's heating element, helping protect the element from abrasion and keeping heating airflow directed for reliable drying performance. What it does:

• Protects the heating element from contact and physical damage during operation
• Helps maintain proper airflow around the element for consistent heat distribution
• Reduces risk of element grounding or shorting caused by contact with other parts
• Can address symptoms like sputtering or uneven heating, burning/metallic smells, or visible damage to the element area

• 1 heater sheath

• Power off and unplug the appliance before service to avoid shock or injury
• Inspect the heating element and mounting hardware while replacing the sheath; replace any damaged parts
• Handle the sheath and element carefully—sharp edges may be present; wear gloves and eye protection
