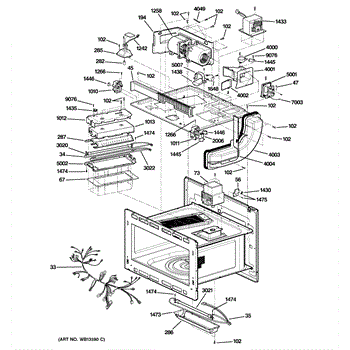

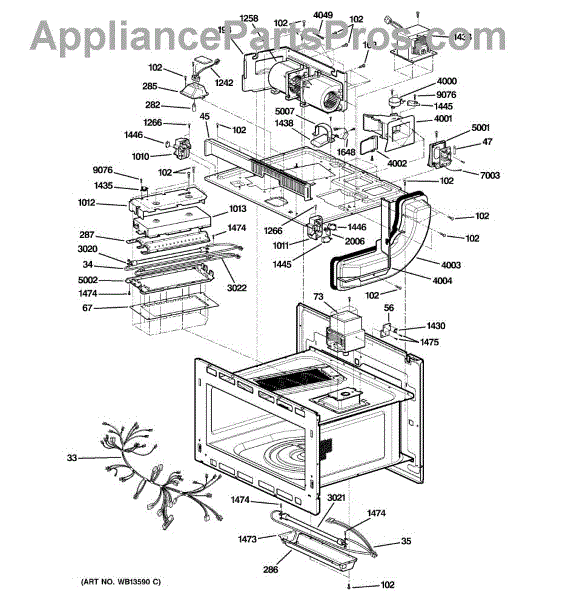

Parts for Ge SCB1000KCC01: 05 - Interior Parts (2) Parts

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement mounting bracket that secures internal panels or components to the appliance frame, restoring alignment and stability. Use this bracket to replace cracked, bent, or missing supports that cause vibration or loose parts. What it does:

• Supports and secures panels, trim, or internal assemblies to keep components properly aligned.
• Reduces rattling, sagging, or movement caused by a broken or missing bracket.
• Restores stable mounting after impact, wear, or stripped mounting points.
• Helps maintain proper fit and operation of adjacent parts by providing a solid attachment point.

• Disconnect power (and water/gas if applicable) before starting any repair.
• Basic hand tools required; remove adjacent panels or trim for access as needed.
• Retain original fasteners when possible; replace damaged clips or screws.

The Magnetron is an OEM component specifically designed for GE microwaves. The magnetron is responsible for generating microwave radiation that cooks food by utilizing electromagnetic energy. It works by accelerating electrons within a vacuum tube using a magnet to generate microwave emissions.

Causes of a bad magnetron can include overuse, excessive cooking times, damage from arcing due to sparks, or general wear and tear over time.

Symptoms of a bad magnetron include:

• Inefficient or inconsistent cooking and heating
• Longer cook times required
• Food not cooking thoroughly or remaining cold in spots
• The microwave making buzzing or humming noises during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Halogen Light Bulb is an OEM part for GE microwaves and ovens. It provides interior lighting, allowing you to clearly see the contents inside the appliance during operation. This illumination is essential for monitoring cooking progress and ensuring safety.

You should replace the halogen light bulb if it burns out or becomes damaged. Causes of a bad halogen light bulb can include regular use over time, electrical surges, or physical impact that can cause the bulb to break.

Symptoms of a bad halogen light bulb include:

• The light not turning on when the microwave or oven door is opened
• Flickering or dim lighting inside the appliance
• A burnt-out appearance or visible breakage in the bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replace a cracked or discolored refrigerator interior light cover to protect the bulb and restore even, glare-free illumination inside the compartment. This molded lens snaps into the light housing for a clean finished look. What it does:

• Protects the interior light bulb from impact, moisture, and debris
• Diffuses light for more even illumination throughout the compartment
• Prevents direct exposure to the bulb, reducing bright hotspots and glare
• Stops rattling or vibration noises caused by a loose or damaged lens

• High-level replacement — usually snaps or screws into the existing light housing; no wiring required
• Power off the appliance or switch off the interior light circuit before servicing
• Inspect the housing and bulb for damage while replacing the lens; replace bulb if needed
• Use only the matching replacement lens to ensure proper fit and safe operation

The Latch/Switch Holder (Left Side) is an OEM component specifically designed for GE microwaves. It is responsible for securely mounting the latch and door switch components on the left side of the microwave door.

Symptoms of a bad latch/switch holder include:

• Loose, unstable, or improperly functioning door latch
• Inoperative or faulty door switch preventing the microwave from operating
• Physical damage or cracks in the holder plastic

Causes can include normal wear over time exposing internal wires, moisture damage compromising electronics or impact damage weakening the holder structure.

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models.

The Latch/Switch Holder (Right Side) is an OEM component specifically designed for GE microwaves. It is responsible for securely mounting the latch and door switch components on the right side of the microwave door.

Symptoms of a bad latch/switch holder include:

• Loose, unstable, or improperly functioning door latch
• Inoperative or faulty door switch preventing the microwave from operating
• Physical damage or cracks in the holder plastic

Causes can include normal wear over time exposing internal wires, moisture damage compromising electronics or impact damage weakening the holder structure.

This GE replacement is compatible with Hotpoint, RCA, and Kenmore models.

This circulation motor powers the circulating fan to move air inside the appliance, helping maintain even temperatures and support proper cooling or heating performance. It replaces a worn or failed motor to restore airflow. What it does:

• Spins the circulating fan or blower to move air through the appliance compartment
• Helps maintain consistent internal temperature and airflow for efficient operation
• Can address symptoms such as weak or no airflow, uneven cooling/heating, or unusual motor noise
• Works as the rotating drive component that transfers power to the fan assembly

• One circulation motor as shown

• Disconnect power before attempting any service to avoid electrical shock
• Verify orientation and mounting before removal; note wiring positions for reinstallation
• Use proper tools and follow manufacturer instructions; replace any worn grommets or fasteners as needed

The Thermostat is an OEM part for GE microwaves. This part regulates the temperature within the microwave, ensuring it operates within safe and efficient temperature ranges. It helps prevent overheating by monitoring and controlling the internal temperature, protecting both the appliance and the user.

Causes of a bad thermostat can include wear and tear over time, electrical malfunctions, or damage from power surges.

Symptoms of a bad thermostat include:

• Microwave not heating properly
• Overheating or shutting off unexpectedly
• Error codes related to temperature issues
• Inconsistent cooking times

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-voltage transformer steps household power up to the level needed to energize the magnetron. Replacing a failing transformer can restore consistent microwave heating and reduce excessive humming under load. What it does and common symptoms:

• Steps up AC line voltage to power the magnetron through the high-voltage circuit
• Microwave runs but does not heat food
• Loud humming or buzzing when a cycle starts
• Blows internal fuse or trips breaker immediately after pressing Start (can also be caused by other HV components)

• 1 high-voltage transformer

• Disconnect power; microwave high-voltage components can retain a lethal charge
• Discharge the high-voltage capacitor before handling any internal parts
• Note and photo-document wire positions; transfer one lead at a time to avoid miswiring
• Support the transformer's weight during removal/installation and reuse original mounting hardware and insulators

• "No heat" can also result from a failed magnetron, HV diode, or HV capacitor; diagnose related components before replacing the transformer.

This is the oven thermostat that senses and controls the oven cavity temperature so your range heats to and maintains the set temperature for baking and roasting. Replacing a faulty thermostat can restore consistent, accurate cooking performance.

• Regulates oven temperature by cycling the heat source on and off
• Helps correct issues like oven not reaching set temperature or running too hot
• Can address erratic temperature swings or uneven baking results
• Mechanical control with sensing bulb/capillary that monitors oven heat

• Disconnect power and allow the oven to cool completely before service
• Handle the capillary/sensing bulb carefully—do not kink, bend sharply, or cut it
• Route and secure the capillary in the original clips/position to avoid hot spots
• Verify knob alignment and perform a test preheat; adjust calibration only per service guidance

The Capacitor High Voltage is an OEM part for GE microwaves. It stores and releases high voltage electrical energy to power the magnetron, which generates the microwaves for cooking.

Over time, capacitors can deteriorate due to prolonged exposure to high voltage, excessive heat, or electrical surges. A malfunctioning capacitor can lead to inefficient cooking or complete failure of the microwave.

Symptoms of a bad capacitor include:

• The microwave not heating food properly
• A loud humming or buzzing noise during operation
• The microwave shutting down unexpectedly
• Visible damage or leakage from the capacitor

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch Monitor Interlock is an OEM replacement part for GE microwaves. This safety component ensures that the microwave operates only when the door is securely closed. It prevents the microwave from running if the door is open, providing a critical safety feature to protect users from exposure to microwave radiation.

Causes of a bad switch monitor interlock can include wear and tear over time, mechanical damage from frequent door opening and closing, or electrical malfunctions that impact its performance.

Symptoms of a bad Switch Monitor Interlock include:

• The microwave not starting or operating intermittently
• The microwave running with the door open
• Error messages or safety warnings displayed on the control panel
• Unusual clicking or buzzing noises when the microwave door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Interlock Switch is an OEM part for GE microwaves. It ensures the safety of the microwave by preventing the appliance from operating while the door is open. This switch is part of a microwave's safety mechanism, which includes multiple interlock systems designed to stop the generation of microwaves immediately once the door is opened, thereby protecting users from exposure to microwave radiation.

Signs that it's time to replace your door interlock switch include the microwave not starting or stopping unexpectedly, the microwave continuing to operate with the door open, or a failure to heat food even though the appliance seems to be running.

Symptoms of a bad Door Interlock Switch include:

• Microwave does not start
• Microwave stops unexpectedly
• The microwave operates with the door open
• Microwave turns on but does not heat food

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Diode Assembly is an OEM part for GE microwaves. It plays a crucial role in converting alternating current (AC) to direct current (DC), which is essential for the microwave’s high-voltage functions, including powering the magnetron to generate microwave energy.

Over time, diodes can fail due to electrical surges, excessive heat, or wear and tear. A faulty diode assembly can lead to inefficient or non-functional microwave operation, impacting its ability to heat food properly.

Symptoms of a bad diode assembly include:

• Microwave not heating food
• Sparking or arcing inside the microwave
• Burning smell or unusual noises during operation
• Microwave turning on but failing to generate heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Microwave Lever is an OEM part for GE built-in and over-the-range microwaves. This metal lever links to the door handle and activates the door switch when the handle is pulled open.

Causes of a bad lever can include wear from daily use over many years. Repeated opening and closing of the microwave door puts stress on the lever and surrounding components.

Symptoms of a bad lever include:

• Power not disabling when door opened
• Loose or improper connection to door handle
• Door not shutting or latching completely
• Delayed microwave engagement or shut-off

This GE part is also compatible with Hotpoint, RCA, and select Kenmore models.

This Miraclon heater is a direct-replacement heating element assembly that restores proper heat generation in compatible appliances. It provides reliable, OEM-matching heating performance to help your appliance reach and maintain operating temperatures. What it does

• Replaces the appliance's failed internal heater assembly to restore heat production.
• Heats quickly and evenly to support cooking, drying, or defrosting cycles (depending on appliance).
• Common symptom: no heat or weak heat during normal operation.
• Common symptom: appliance runs but items fail to warm or dry as expected.

• Disconnect power and gas before starting any repair.
• Handle the heater carefully; avoid bending or damaging terminals and mounting tabs.
• Follow the appliance service manual for access, mounting, and wiring instructions.

A halogen heater heating element that restores radiant oven heat for even cooking and broiling. Use this direct-replacement heater when the oven's halogen element is burnt out or not producing heat. What it does:

• Provides targeted radiant heat used for baking and broiling in compatible ovens
• Replaces a failed or burned-out halogen heating element to restore normal oven temperatures
• Commonly used when oven is unevenly cooking, won't reach set temperature, or broil function is weak
• Operates as the oven's primary radiant heat source where applicable

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the glass element carefully; avoid touching the glass with bare hands to prevent oils and premature failure
• Verify the part number before installation

This AC synchronous motor drives timed or fixed-speed rotations in compatible appliances to restore reliable timing and rotation. Ideal when a worn motor prevents timers, clocks or small gear-driven functions from operating. What it does:

• Turns at a constant, AC-synchronous speed to drive timers, clocks or small mechanical linkages.
• Replaces a failed or noisy timer/clock motor to restore timed functions.
• Common symptoms: appliance clock or timer won't advance, no rotation of small mechanisms, or intermittent timer operation.
• Operates as a direct replacement for the listed part number when matched to the appliance's OEM specification.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Note or photograph original wire locations and mounting orientation to ensure correct reconnection.
• Use basic hand tools; some models require removing a control panel or control box to access the motor.

This original-style supporter secures and positions internal components to keep them stable and aligned for reliable operation. It helps restore proper fit and reduces noise or movement caused by a damaged or missing support. What it does:

• Provides structural support and holds the associated component in the correct position
• Prevents misalignment that can cause rubbing, vibration, or intermittent operation
• Restores proper spacing to help other parts seat and function correctly
• Useful when cracking, breakage or wear allows the mounted part to shift or rattle

• Disconnect power before beginning any service to avoid shock risk
• Inspect surrounding parts and mounting hardware; replace any damaged clips or screws
• Basic hand tools (screwdriver, nut driver) are typically required; follow the product service diagram
