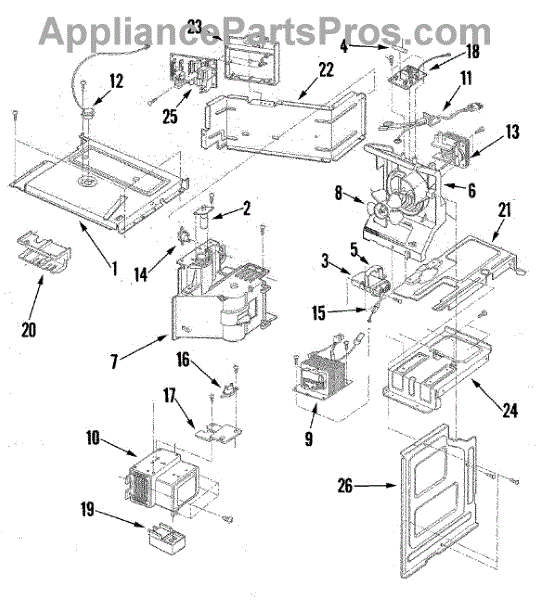

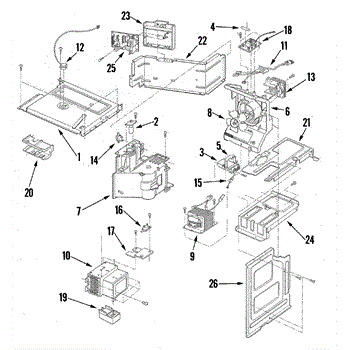

Parts for Jenn-Air JMC8130DDS: 05 - Internal Controls Parts

This baseless light bulb restores the washer drum light so you can clearly see inside during loading and unloading. Replace a failed lamp to regain visibility and help prevent small items from being missed. What it does:

• Illuminates the washer drum when the light feature is activated
• Replaces a burned-out or damaged baseless lamp in the drum light assembly
• Common symptoms: light won't turn on, flickers intermittently, or the bulb appears darkened/broken
• Helps you check for remaining items after a cycle

• Includes 1 baseless light bulb

• Disconnect power to the appliance before servicing
• Allow the old bulb to cool completely before handling
• Access the drum light housing; pull the old bulb's leads straight out and insert the new bulb's leads fully into the socket
• Avoid touching the glass; handle the new bulb with clean gloves or tissue, then restore power and test

This replacement capacitor restores stable electrical timing and motor/run performance in compatible Whirlpool appliances. It helps the appliance start and run smoothly when the original capacitor has failed or weakened. What it does:

• Provides the stored charge needed for motor start/run circuits and control timing.
• Helps prevent motor hum, slow starts, or failure to start when the capacitor is failing.
• Reduces erratic cycling or intermittent operation caused by a weak capacitor.
• Supports reliable operation of blower, fan or small motor circuits that rely on a dedicated capacitor.

• Disconnect power to the appliance at the source before accessing electrical components.
• Capacitors can hold charge—discharge safely before touching terminals.
• Use insulated tools and avoid shorting terminals; verify correct fit and secure connections.

The Fuse is an OEM part for Whirlpool microwaves. It is a crucial safety component designed to protect the microwave from electrical surges and potential short circuits by breaking the circuit if the current flow exceeds safe levels.

Causes of a bad microwave fuse can include electrical surges, faulty wiring, or normal wear and tear over time. A blown fuse will render the microwave inoperable, as it cuts off the power supply to prevent further damage or hazards.

Symptoms of a bad microwave fuse include:

• The microwave not powering on
• The microwave stopping mid-operation
• No response from the control panel or keypad
• Sudden loss of power during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a Whirlpool microwave magnetron. The microwave magnetron is one of the main components that control the heating function in the appliance. If a microwave has suddenly stopped heating but is still turning on normally, the problem could be the magnetron. Use a voltage tester to confirm whether this part is causing the problem. This component is made for installation in a microwave and oven combo where the microwave doubles as a vent hood. To replace this part, begin by unplugging the appliance and removing it from above the oven. Two people will be needed for this repair. This part requires exposure to highly sensitive electrical parts that could cause severe injury.This is a genuine OEM replacement part sourced directly from the manufacturer. This part is compatible with Whirlpool, Magic Chef, Amana, and Maytag appliances.

The Diode is an OEM part for Whirlpool microwaves. It plays a crucial role in the microwave's operation by allowing electrical current to flow in one direction, essential for converting AC power to DC power, which is necessary for the microwave's components to function correctly.

Over time, the diode can fail due to electrical surges, general wear and tear, or exposure to high heat. A bad diode can disrupt the microwave's ability to heat food properly, leading to inefficient performance or complete appliance failure.

Symptoms of a bad diode include:

• Microwave not heating
• Sparking or unusual noises during operation
• Burning smell from the microwave
•  Microwave shutting down shortly after starting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
